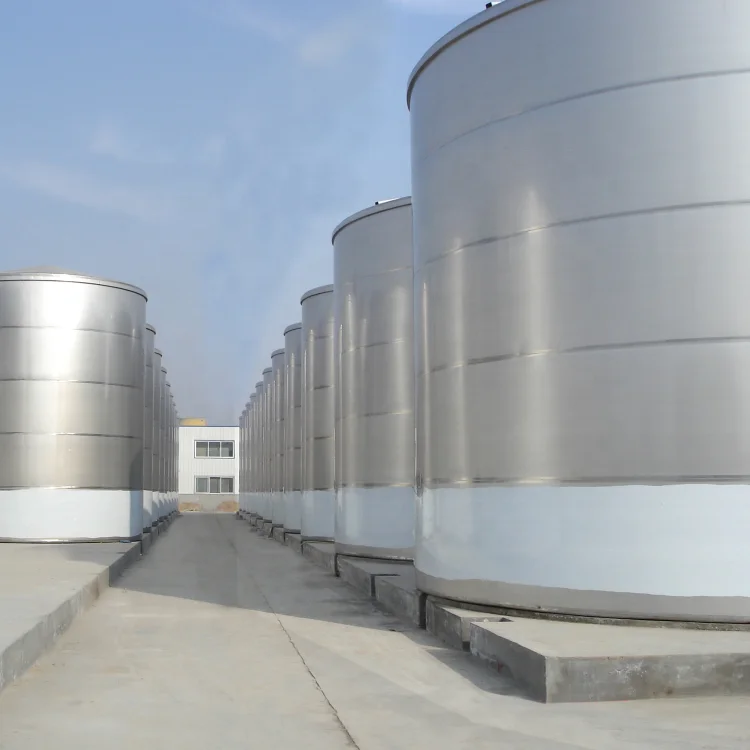

10 000L stainless steel storage tank for olive oil
- Category: Storage Tank >>>
- Supplier: Prettech Machinery Manufacturing Co. Ltd.
Share on (60082077826):
Product Overview
Description
Product Description
Stainless steel palm oil storage tank/edible oil storage tank/ Olive oil storage tank（ Size can be Customized from 100L to 100KL )
This type of tank is designed for use under atmospheric pressure. Their design depends on technology and process. They can be equipped with cooling/heating elements and can be non-insulated or insulated with insulation material and an insulation jacket. It applies for palm oil, olive oil and vegetable oil.
We manufacture also tanks of larger dimensions, with volumes of 100,000 L or more. For an easy and safe access to connectors and attachments located higher, tanks can be equipped with ladders and a walk-on platform. It can be designed to sit on concrete base
This type of tank is designed for use under atmospheric pressure. Their design depends on technology and process. They can be equipped with cooling/heating elements and can be non-insulated or insulated with insulation material and an insulation jacket. It applies for palm oil, olive oil and vegetable oil.
We manufacture also tanks of larger dimensions, with volumes of 100,000 L or more. For an easy and safe access to connectors and attachments located higher, tanks can be equipped with ladders and a walk-on platform. It can be designed to sit on concrete base
or be with self supporting legs.
Are you going to consult customized dairy mixing tank information with a reliable Mixing Tank manufacturers and suppliers?
Prettech Machinery is always at your service.(capacity can be customized)
Are you going to consult customized dairy mixing tank information with a reliable Mixing Tank manufacturers and suppliers?
Prettech Machinery is always at your service.(capacity can be customized)
Configurations:
Cylindrical shell
Conical top
Cone bottom
Supporting legs (adjustable feet optional)
Top round manhole
Dimple cooling jacket (cooling coil)
CIP
Drain outlet
Thermometer
Breathing valve
Sampling valve
Level gauge
Motor and gear box
Mixer--customized type
Conical top
Cone bottom
Supporting legs (adjustable feet optional)
Top round manhole
Dimple cooling jacket (cooling coil)
CIP
Drain outlet
Thermometer
Breathing valve
Sampling valve
Level gauge
Motor and gear box
Mixer--customized type
Company Profile
JIANGSU PRETTECH MACHINERY& TECHNOLOGY CO., LTD (Below named PRETTECH) Prettech was established in 1971 and is now known as the top brand in the industry of stainless steel tank in China, especially for food&beverage, pharmacy, biochemicals and agriculture processing. Till 2015 total sales volume comes up to US$250 million, and total number of employee reaches 4500. Our business range covers consulting, designing, fabricating, installation, commissioning &training. Product Range covers varied stainless steel tanks for liquid storage, fermenting, blending, temperature keeping, distilling,sterilizing,filtering and grain treatment. Prettech
stainless steel tanks are exported to 20 countries and receive a favorable response. We provide consultation, design, producing, installation and varied shipping solution according to each client’s requirements and demands. We supply not only regular tanks, but also customized tanks.
Prettech is committed to do the first brand of stainless steel tank solution.
stainless steel tanks are exported to 20 countries and receive a favorable response. We provide consultation, design, producing, installation and varied shipping solution according to each client’s requirements and demands. We supply not only regular tanks, but also customized tanks.
Prettech is committed to do the first brand of stainless steel tank solution.
Our Facility
Advanced Laser&CNC Processing Center, which can achieve fast cutting without burs, accurate positioning, higher efficient and fewer human errors.
Workshop Corner
Automatic welding and manual welding adopted
All welders are qualified and certified
All welders are qualified and certified
Our Certificate (ISO9001, CE, PED, etc.)
Test & Inspection
Static pressure test on tank body and jacket / Dye penetration test on welding/ X-ray inspection / NDT
Packing & Delivery
√ Seaworthy packaging&reinforcement to minimize damages during shipping&transportation.
√ Delivery to customer's door, and self-loading truck service available if necessary.
√ Varied container types are optimized including general container and flat rack.
√ Delivery to customer's door, and self-loading truck service available if necessary.
√ Varied container types are optimized including general container and flat rack.
FAQ
Q: Can you produce tanks with S.S.316L?
A: Yes we can, the wetted-parts are produced by S.S.316L to guarantee the corrosion resistance, the non-wetted parts are produced by S.S.304 to reduce cost.
Q: What’s the lead time?
A: 35-50 working days depend on the order quantity.
Q: How do you ship the goods?
A: We usually ship by sea in containers or flat rack.
Q: Are you factory or trading company?
A: We are a manufacturer and export by ourselves.
Q: Can your factory produce products according to our samples or drawing?
A: Yes, we can do OEM and customization.
Q: What is your nearest port?
A: Qingdao port,China
Q: Do you supply door to door shipping?
A: Yes we do, Prettech do ocean shipping, customs clearance, import procedures and deliver products to the appointed place.
Q: How do you guarantee this machine normally operating?
A: Every machine is tested in our factory before shipping, We will adjust the machine to optimal effect before delivery. And spare parts arew always available and free for you in warranty time.
Q:Do you supply after-sale services?
A: Yes we do, if any defects occurred, Prettech would give instructions of how to handle, arrange fast repair locally if needed.
Q: What inspections will you do before delivery in your factory?
A: All tanks would be tested by static pressure test, dye penetration or X-ray test available if requested, we have our own test lab.
