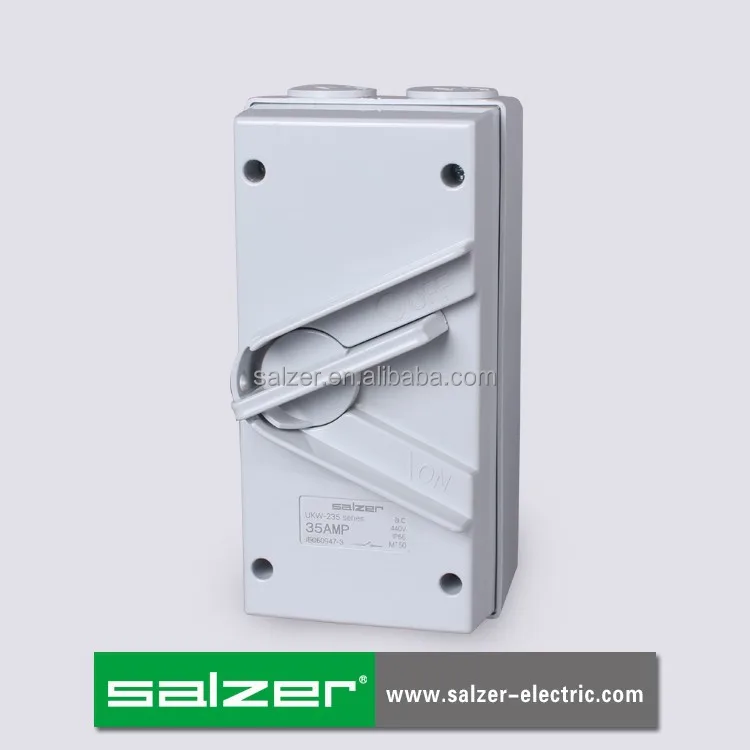

Salzer enclosed Isolator switch IP66 SAD1 235 35A ON OFF on load 20A to 63A 1 pole to 4 pole 440VAC High quality

Product Overview

Description



Salzer enclosed Isolator switch IP66 SAD1-235  35A ON-OFF on load 20A to 63A 1 pole to 4 pole  440V High quality

Description

SAD1-series isolator switch is rigidly buitt to withstand more than just the vagaries of the it is designed also for frequent switching even on severe load such as switching of mouting loads or other highly inductive load. Suitable to be mounted in outdoor and indeer dliverse environment

Features

Switching ON & OFF on-load

Padlockable handle with 7mm hole in OFF position

Dual 25mm threaded coriduit entries on top and bottom

IP66 rating prevents from heavy dust and water ingress

Specification

Standard:IEC/EN60947-3,AS/NZS 3947

Utilization Category: AC22A /AC23A

Rated Frequency:50/60HZ

IP Protection:IP66

General Information

Model	SAD1-235
Rated Voltage	220-240V
Rade frequency	50/60Hz
Current	20A, 35A, 45A, 63A
Pole	1POLE, 2POLE, 3POLE, 4POLE



Overall & Mounting Dimensions

We at Salzer back up our products with a 12 or 13-month warranty, during which substandard products are replaced free of charge. In addition, we can offer customize products according to customers' sample, drawings or other requirements. Free product samples (less than USD30) and wearing parts are also available, upon request. As a result, customers can feel secure in purchasing our axial fan, fan filter, cam switch, isolator switch, push button switch and LED indicator.

Mini order amount USD5,000



Please don't hesitate to contact us if any special specifications are needed.
