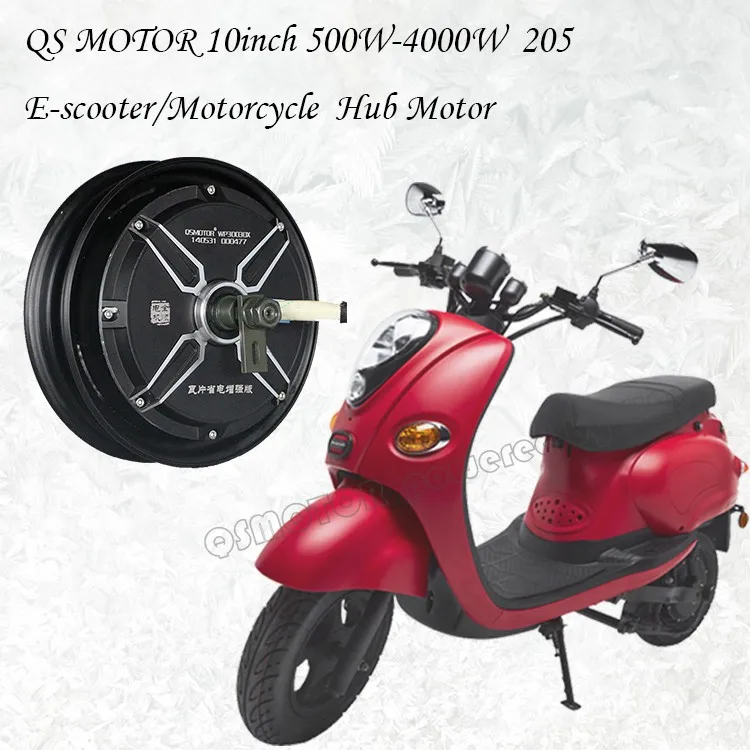

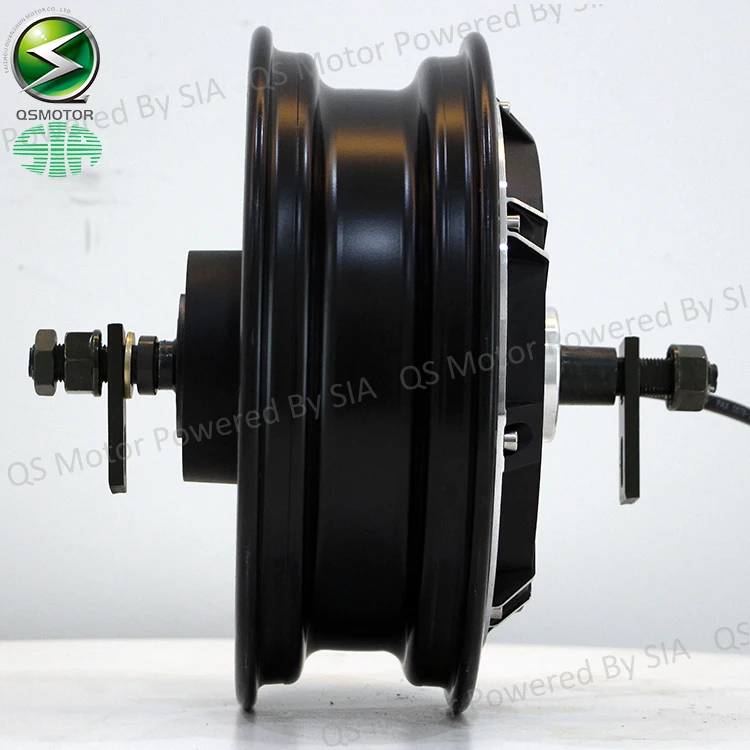

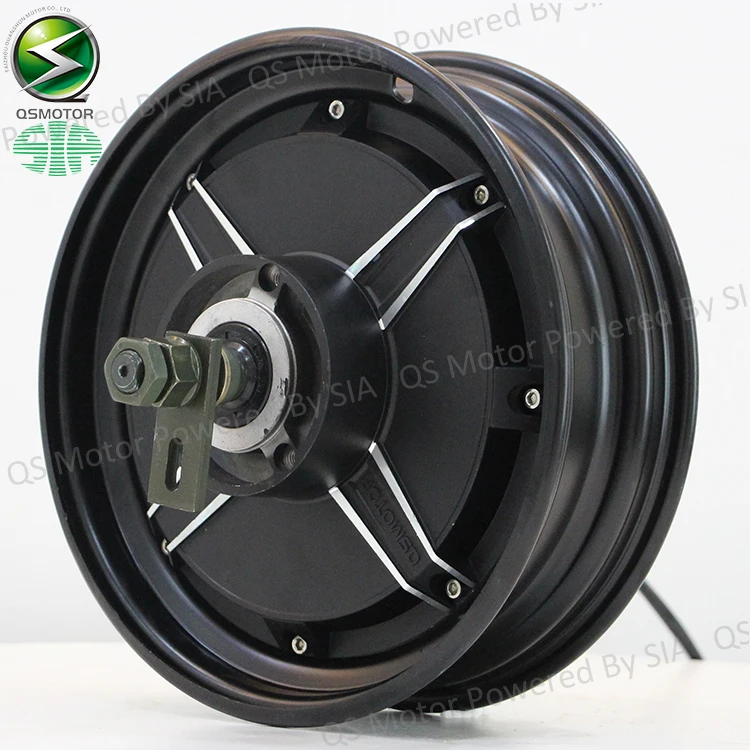

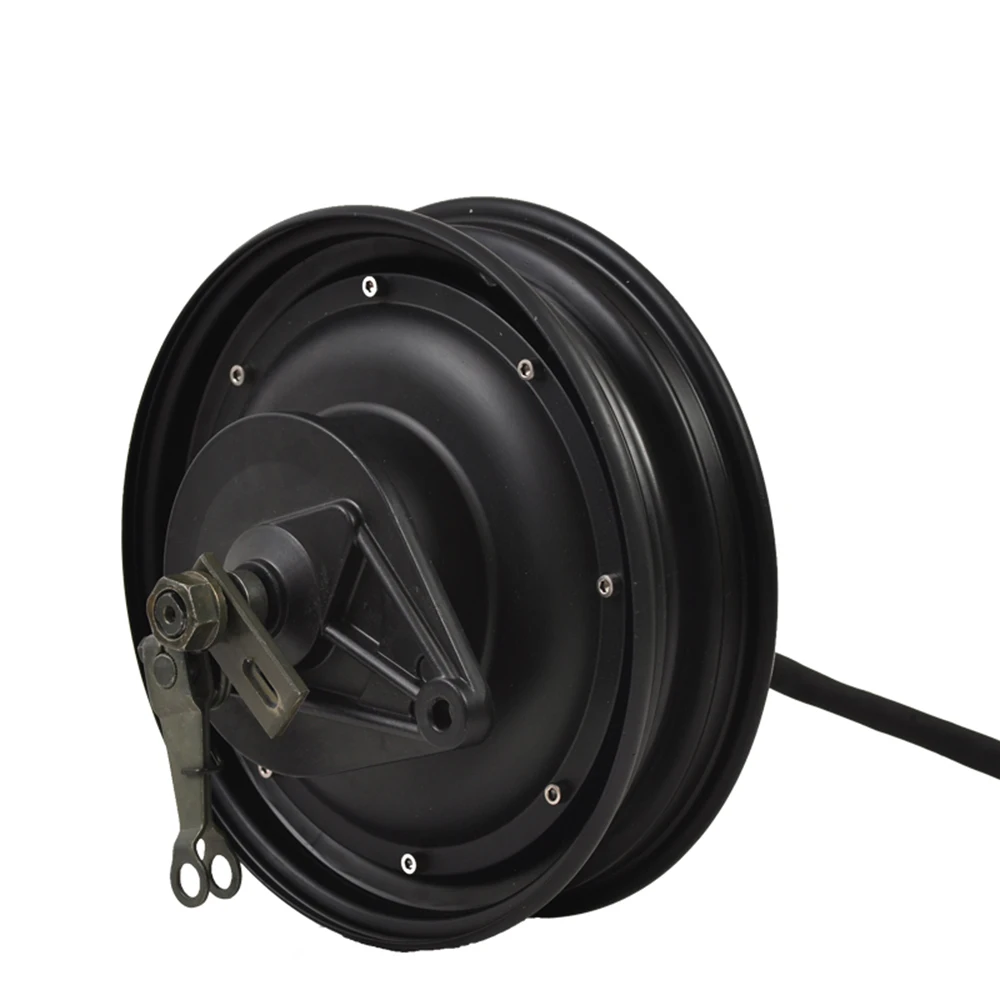

QS MOTOR 10inch 1000W 205 35H V1 48V Brushless DC Electric Scooter Motorcycle Wheel Hub Motor

Product Overview

Description

QS MOTOR 10inch 1000W 205 35H V1 48V Brushelss DC Electric Scooter Motorcycle Wheel Hub Motor







QS Motor Specification

• Motor Type: BLDC Outer Rotor In-Wheel Hub Motor With Hall Sensor


• Brand: QS Motor,QSMOTOR


• Motor Design: Double axle with 10inch moped rim (integrated)


• Rim size:10x2.15inch(Narrow Tire as default), Matched tire:3.0-10,3.5-10 etc


•               10x3.0inch(Wide Tire)


• Magnet Height: 35mm, 23 pole pairs


• Stator: Aluminum Core


• Rated Power: 1000W


• Speed(customizable):

48v 30km/h~40km/h 300-700RPM

60v 30km/h~50km/h 300-700RPM

72v 30km/h~50km/h 300-700RPM

• Max Torque approx 124.9N.m


• KV: 5.42/7.29/8.54/9.17/9.75/10.40/11.80/12.90/18.75 (optional)


• Thermic Probe: KTY83-122 (as default, optional)


• Max Efficiency approx 88%


• Brake type: Disc brake (as default), PCD3*80mm-M8, CB 58mm


• Drop-outs: 200mm


• Dual Halls with waterproof connectos(One for spare, in case of damage)


• 4mm² Phase Wire


• Waterproof Grade: IP54


• Color: Black (as default), Yellow or White/Luminous

More QS Motor Informaiton (e.g.appearance & more options):

Refer to below hyperlink

QS Motor 10inch 500W~4000W 205 Electric Scooter Hub Motor

PS. For delivery cost, please contact with us if it's not reasonable.

We will modify it after place the order on-line (before payment).

When place the order online, please leave the message about the KV and your E-mail address.



(For how to choose the KV, please feel free to contact with us. E-mail used for details confirm)
