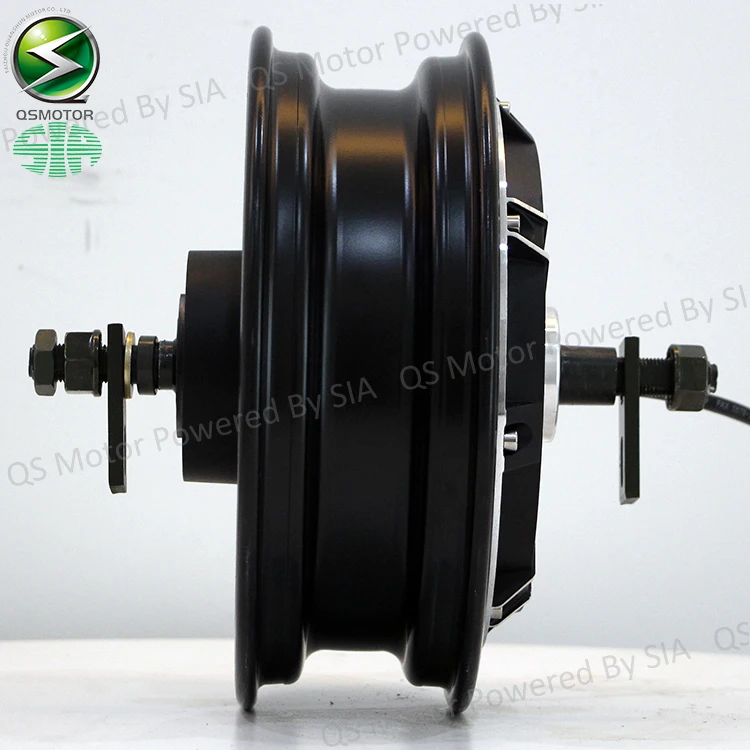

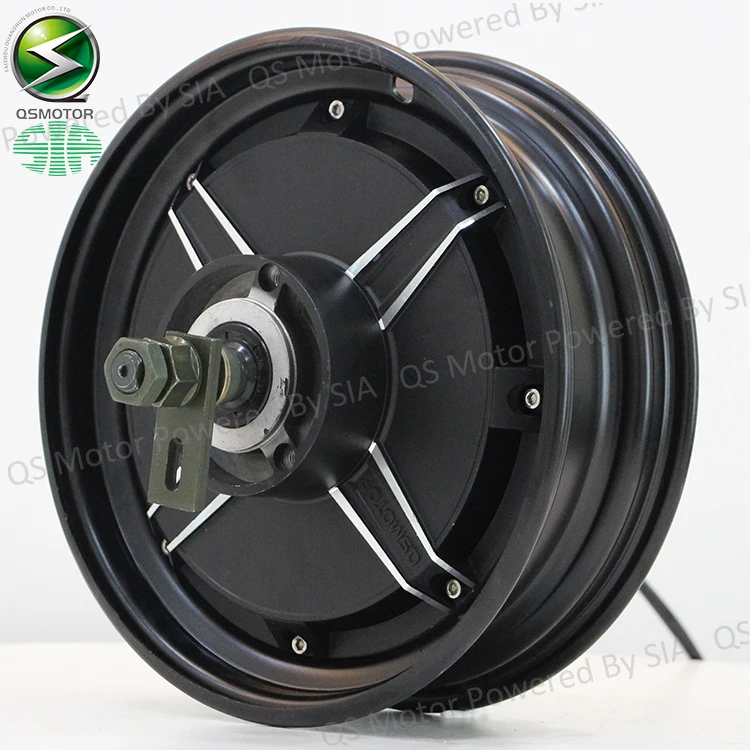

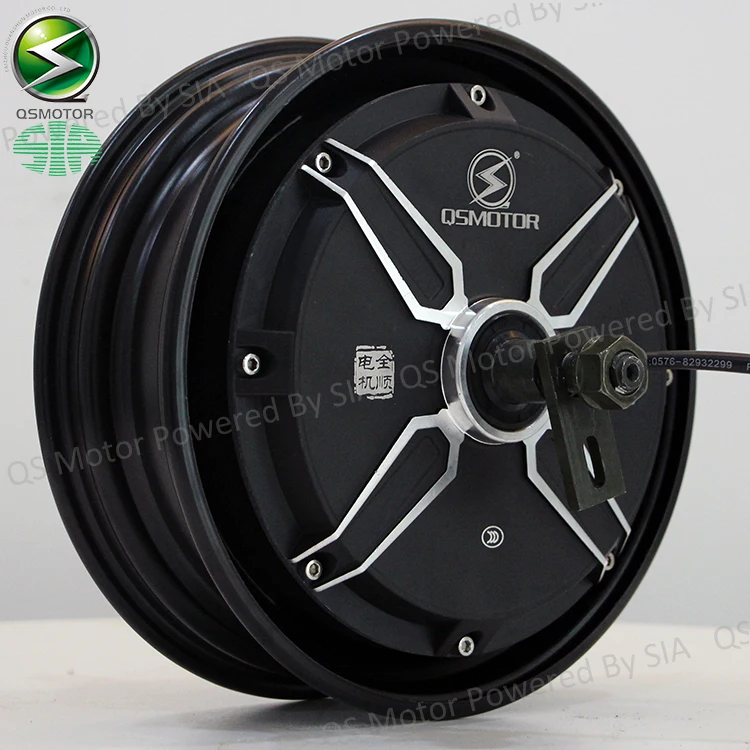

10inch 1500W 205 45H V2 48V BLDC Brushless Electric Scooter Motorcycle Hub Motor

Product Overview

Description

10inch 1500W 205 45H V2 48V BLDC Brushless Electric Scooter Motorcycle Hub Motor



QS Motor Specification

• Motor Type: BLDC Outer Rotor In-Wheel Hub Motor With Hall Sensor


• Brand: QS Motor,QSMOTOR


• Motor Design: Double axle with 10inch moped rim (integrated)


• Rim size:10x2.15inch(Narrow Tire as default), Matched tire:3.0-10,3.5-10 etc.


•               10x3.0inch(Wide Tire)


• Magnet Height: 45mm,23 pole pairs


• Stator: Aluminum Core


• Rated Power: 1500W


• Speed(customizable):

         High Torque Version

         48v 461rpm  = 32km/h

         60v 569rpm  = 40m/h

         72v 681rpm  = 48km/h



        Balance Version

         48v 577rpm  = 40km/h

         60v 690rpm  = 50m/h

         72v 830rpm  = 60km/h



        High Speed Version

         48v 707rpm  = 50km/h

         60v 882rpm  = 62m/h

         72v 1050rpm= 74km/h

• Max Torque approix 125N.m


• KV:11.42


• Thermic Probe: KTY83-122 (as default, optional)


• Max Efficiency above 87%


• Brake type:

          Disc brake, PCD3*80mm-M8, CB 58mm(as default)

          Drum Brake, 110mm



• Drop-outs: 200mm


• Dual Halls with waterproof connectos (one for spare, in case of damage)


• 8mm² Phase Wire (not include insulation)


• Waterproof Grade: IP54


• Color: Black (as default), Yellow or White/Luminous

More QS Motor Informaiton (e.g.appearance & more options):

Refer to below hyperlink

QS Motor 10inch 500W~4000W 205 Electric Scooter Hub Motor

PS. For delivery cost, please contact with us if it's not reasonable.

We will modify it after place the order on-line (before payment).

When place the order online, please leave the message about the KV and your E-mail address.

(For how to choose the KV, please feel free to contact with us. E-mail used for details confirm)



No QS Motor, No Super EVs!
