Pump Gland Graphite PTFE Packing for Industrial Sealing

Product Overview

Description

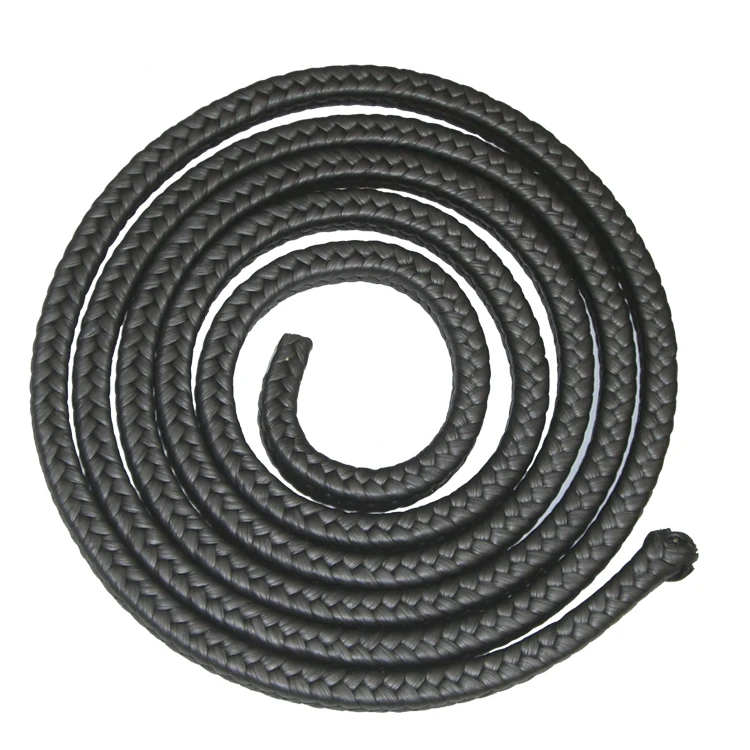

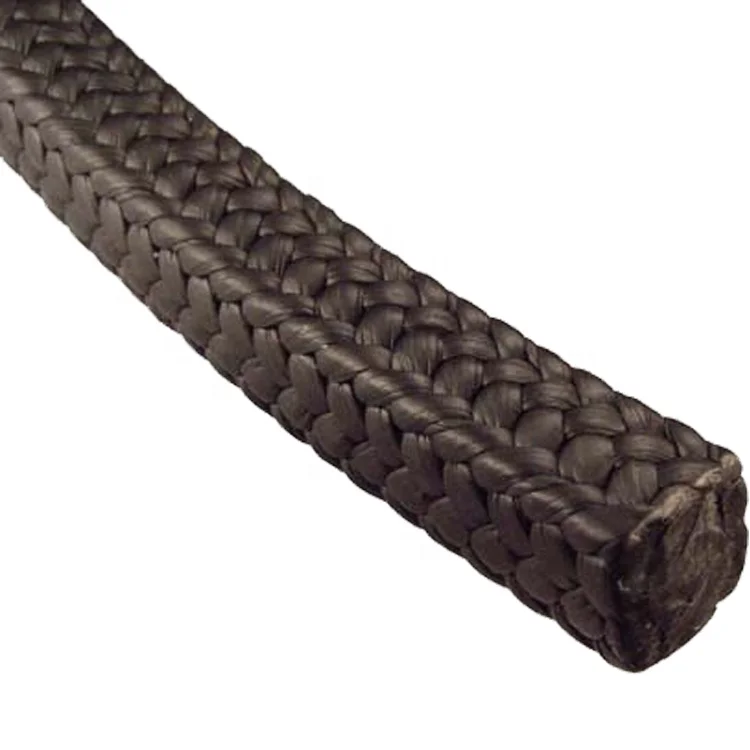

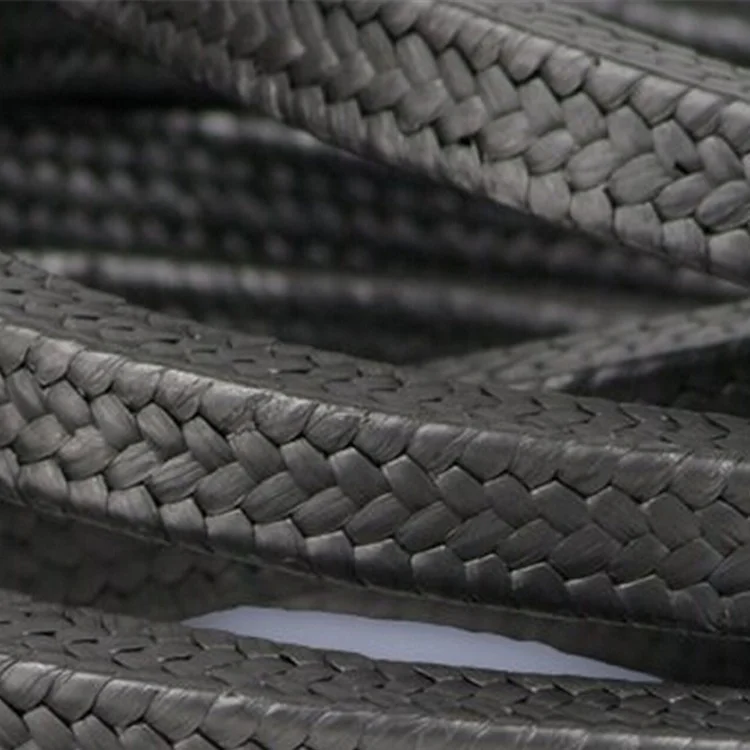

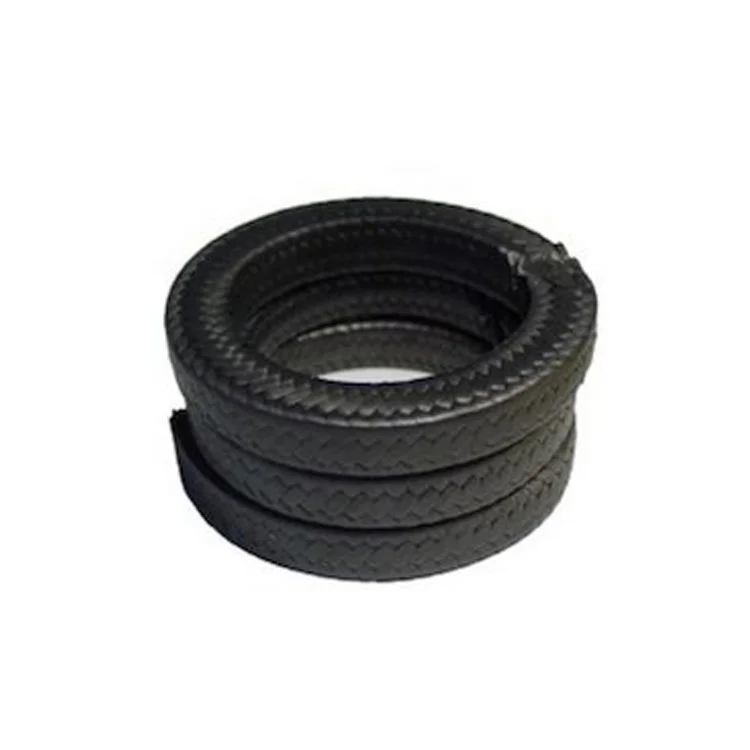

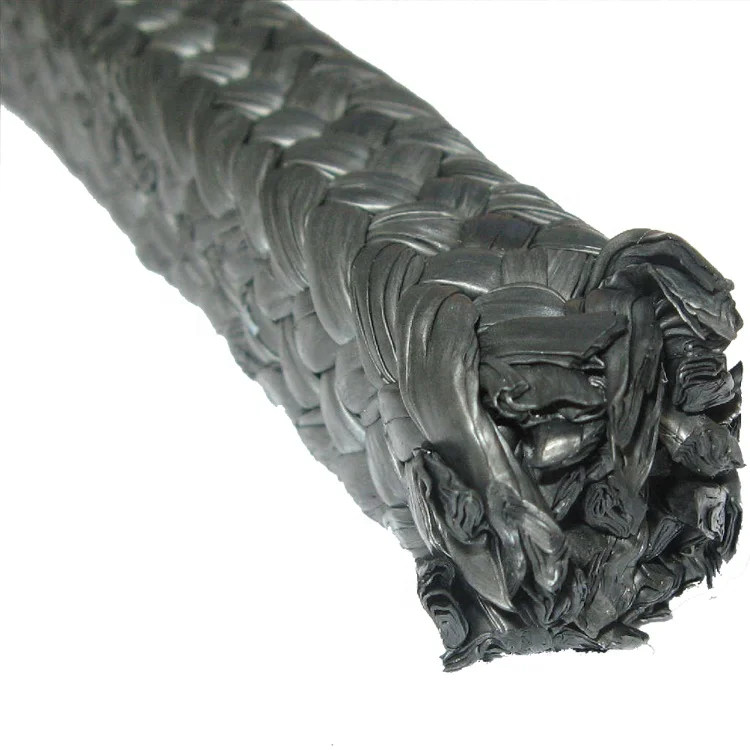

PTFE Graphited Packing

Description:

It is a flexible braided packing which is made of an innovative expanded pure graphite yarn.The combination of other braided packings installed with the excellent sealing capabilities of expanded pure graphite makes TR2300 the most effective sealing component.



Application:

It can be used to seal hot water, high temperature and pressure steam, heat transfer fluid, hydrogen gas, ammonia,organic solvents,hydrocarbons, cryogenic liquids etc., except fewer strong oxidizer.It is a unique and universal sealing packing.



Specification:

Style		TR3200
Pressure	Centrifugal pumps	30 bar
	Piston pumps	250bar
	Valves	250bar
linear speed	Centrifugal pumps	40 m/s
	Piston pumps	2m/s
	Valves	2m/s
Density		1.15g/cm3
Temperature		Up to 650°C
PH range		0-14
