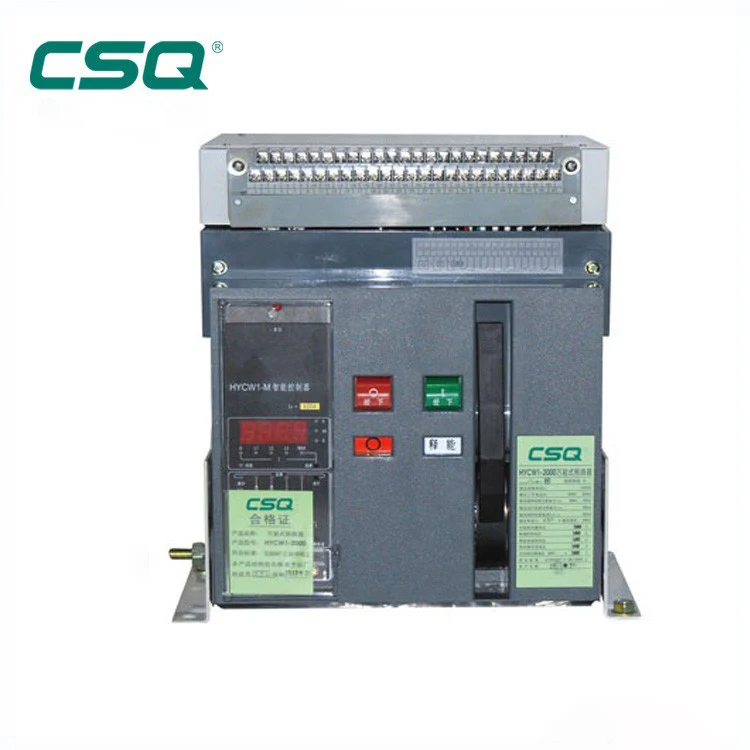

HYCW1 Smart Intelligent 2000 amp Air circuit breaker ACB universal air circuit breaker China supplier high quality low price ACB
- Category: >>>
- Supplier: SIQI Technology Co. Ltd. [Zhejiang China]SIQI
Share on (60082791358):
Product Overview
Description
HYCW1 Smart Intelligent Air circuit breaker
Our Promise
1. Provide solutions and high quality product
2. Streamline the buying and paying processes
3. Deliver the goods to our customers all over the world with speed and precision
Defects liability period
On the premise of that users comply with the prescriptive maintenance and usage, such products would have a defects liability period of 24 monthes.
Product Description

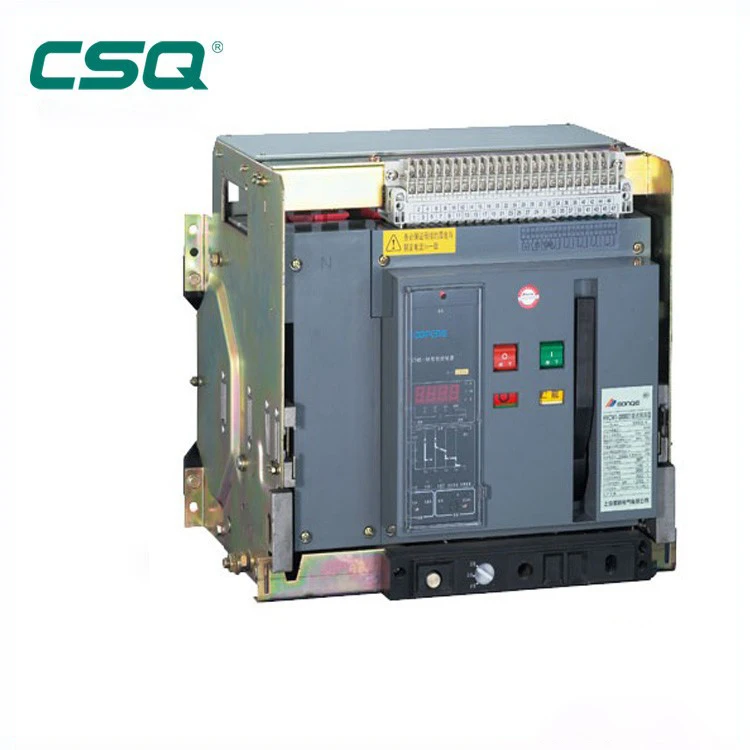

HYCW1 series 2000 amp Air circuit breaker

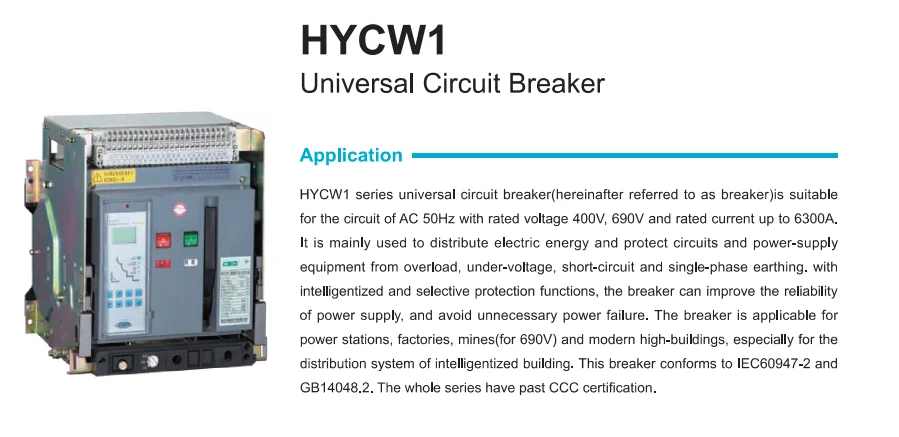

1.Application
***Rated current: 630A,800A,1000A,1250A, 1600A, 2000A
***Breaking circuit or electric isolate.
***switch conforms to IEC60947-2 and GB/T14048.2
2.Innovation structure:
***more compact and aesthetically
***Intergration can be installed more easier
***Easier to increase or decrease of function

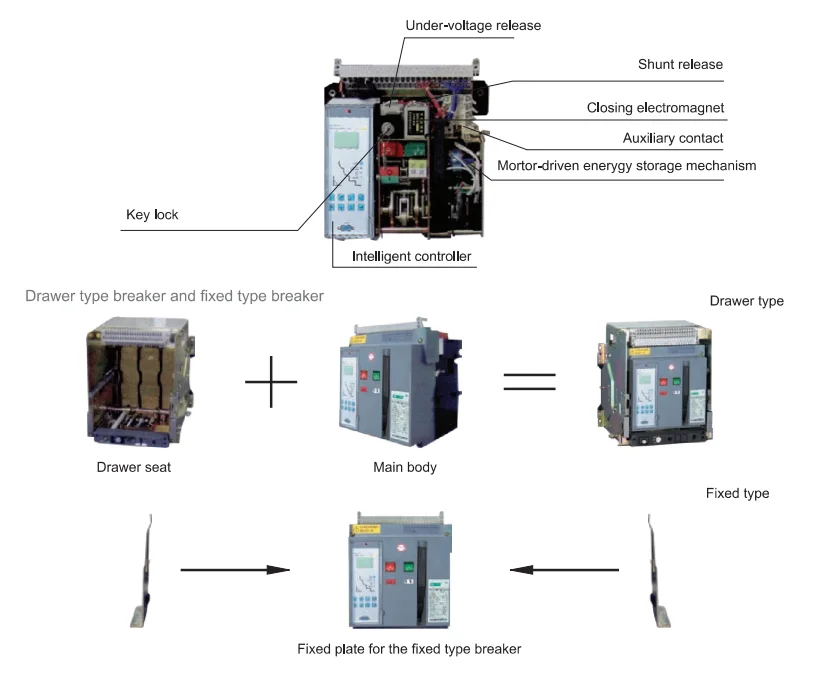

Structure:
3. Basic Specification and Main Parameters:
Type (drawer and fixed Air Circuit breaker) | HYCW1-2000A | ||||
Rated Ultimate short circuit breaking capacity(kA) | Icu=80kA 400v 50kA 690V, Ics==Icw=50kA 400v 40kA 690V, | ||||
Rated Current In ( A) | 630, 800, 1000, 1250, 1600, 2000 | ||||
Number of poles | 3 poles, 4poles | ||||
Rated Voltage Ue (V) | 400V, 690V | ||||
Rated insulation voltage Ui (A) | 1000V | ||||
Rated current of N-pole In ( A) | 50% In, 100% In | ||||
Fixed disconnection time | 23-32ms | ||||
Intelligent controller | Sandard type (M) | • • • • • • | |||
Communication Type (H) | • • • • • • | ||||
Operation Performance | Electric life | 1000 | |||
Mechanical life | Non-maintenance 2500 | ||||
Maintenance 10000 | |||||
Connection performance | Horizontal, Vertical | ||||
Weight (kg) | Drawer type 3 pole/ 4 pole | 68/77 | 70/80 | 74/81 | |
Fixed type 3 pole/ 4 pole | 42/51 | 43/52 | 45/53 | ||
Type (drawer and fixed Air Circuit breaker) | HYCW1-3200A, HYCW1-4000A | |||
Rated Ultimate short circuit breaking capacity(kA) | Icu=100kA 400v 65kA 690V, Ics==Icw=50kA 400v 50kA 690V, | |||
Rated Current In ( A) | 2000, 2500, 3200 , 4000A | |||
Number of poles | 3 poles, 4poles | |||
Rated Voltage Ue (V) | 400V, 690V | |||
Rated insulation voltage Ui (A) | 1000V | |||
Rated current of N-pole In ( A) | 50% In, 100% In | |||
Fixed disconnection time | 23-32ms | |||
Intelligent controller | Sandard type (M) | • • • • | ||
Communication type (H) | • • • • | |||
Operation Performance | Electric life | 500 | ||
Mechanical life
| Non-maintenance 2500 | |||
Maintenance 10000 | ||||
Connection performance | Horizontal, Vertical | |||
Weight (kg) | Drawer type 3 pole/ 4 pole | 94.5/117 | 94.5/117 | |
Fixed type 3 pole/ 4 pole | 52.5/65.5 | |||
Type (drawer and fixed Air Circuit breaker) | HYCW1-6300A | ||
Rated Ultimate short circuit breaking capacity(kA) | Icu=120kA 400v 80kA 690V, Ics==Icw=100kA 400v 65kA 690V, | ||
Rated Current In ( A) | 4000, 5000, 6300A | ||
Number of poles | 3 poles, 4poles | ||
Rated Voltage Ue (V) | 400V, 690V | ||
Rated insulation voltage Ui (A) | 1000V | ||
Rated current of N-pole In ( A) | 50% In, 100% In | ||
Fixed disconnection time | 23-32ms | ||
Intelligent controller | Sandard type (M) | • • • • | |
Communication type (H) | • • • • | ||
Operation Performance | Electric life | 500 | |
Mechanical life
| Non-maintenance 2000 | ||
Maintenance 80000 | |||
Connection performance | Horizontal, Vertical | ||
Weight (kg) | Drawer type 3 pole/ 4 pole | 210/233 | 233 |
