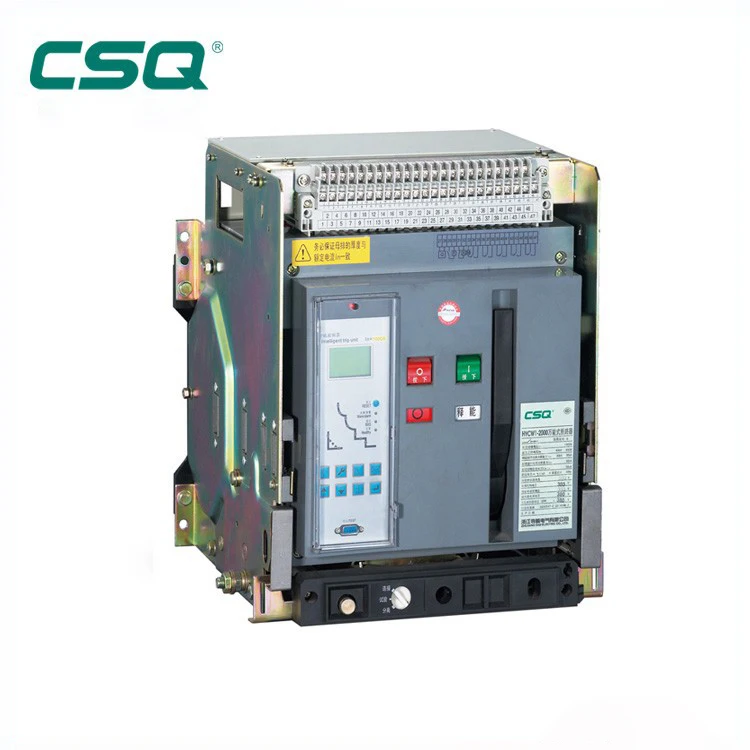

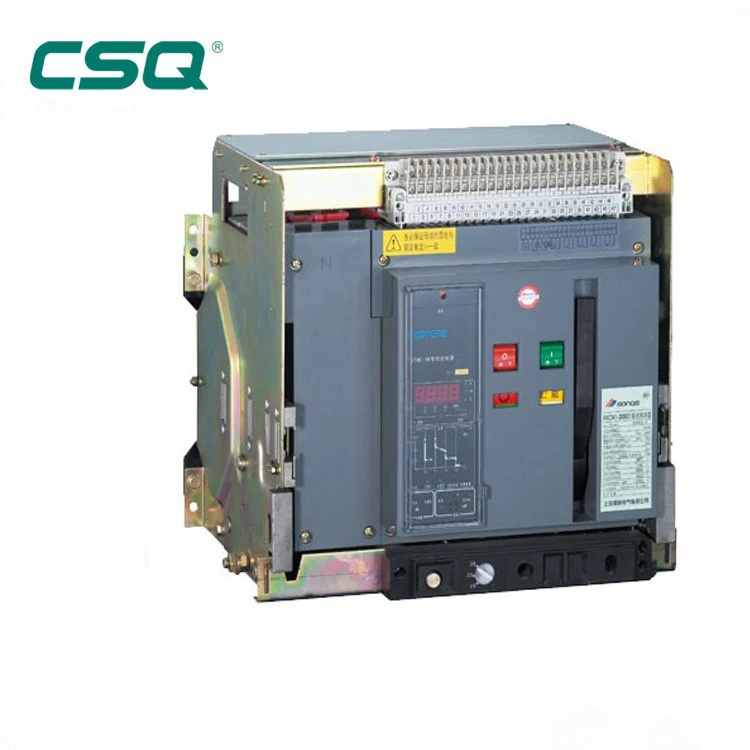

4P fixed Air circuit breaker
HYCW1 series 4P Air Circuit Breaker (ACB) 2500A
1.Application
***Rated current: 1600A, 2500A, 3500A, 4000A, up to 6300A
***Breaking circuit or electric isolate.
***switch conforms to IEC60947-2 and GB/T14048.2
2.Innovation structure:
***more compact and aesthetically
***Intergration can be installed more easier
***Easier to increase or decrease of function
Structure:
3. Basic Specification and Main Parameters:
Type (drawer and fixed Air Circuit breaker) | HYCW1-2000A | ||||
Rated Ultimate short circuit breaking capacity(kA) | Icu=80kA 400v 50kA 690V, Ics==Icw=50kA 400v 40kA 690V, | ||||
Rated Current In ( A) | 630, 800, 1000, 1250, 1600, 2000 | ||||
Number of poles | 3 poles, 4poles | ||||
Rated Voltage Ue (V) | 400V, 690V | ||||
Rated insulation voltage Ui (A) | 1000V | ||||
Rated current of N-pole In ( A) | 50% In, 100% In | ||||
Fixed disconnection time | 23-32ms | ||||
Intelligent controller | Sandard type (M) | • • • • • • | |||
Communication Type (H) | • • • • • • | ||||
Operation Performance | Electric life | 1000 | |||
Mechanical life | Non-maintenance 2500 | ||||
Maintenance 10000 | |||||
Connection performance | Horizontal, Vertical | ||||
Weight (kg) | Drawer type 3 pole/ 4 pole | 68/77 | 70/80 | 74/81 | |
Fixed type 3 pole/ 4 pole | 42/51 | 43/52 | 45/53 | ||
Type (drawer and fixed Air Circuit breaker) | HYCW1-3200A, HYCW1-4000A | |||
Rated Ultimate short circuit breaking capacity(kA) | Icu=100kA 400v 65kA 690V, Ics==Icw=50kA 400v 50kA 690V, | |||
Rated Current In ( A) | 2000, 2500, 3200 , 4000A | |||
Number of poles | 3 poles, 4poles | |||
Rated Voltage Ue (V) | 400V, 690V | |||
Rated insulation voltage Ui (A) | 1000V | |||
Rated current of N-pole In ( A) | 50% In, 100% In | |||
Fixed disconnection time | 23-32ms | |||
Intelligent controller | Sandard type (M) | • • • • | ||
Communication type (H) | • • • • | |||
Operation Performance | Electric life | 500 | ||
Mechanical life
| Non-maintenance 2500 | |||
Maintenance 10000 | ||||
Connection performance | Horizontal, Vertical | |||
Weight (kg) | Drawer type 3 pole/ 4 pole | 94.5/117 | 94.5/117 | |
Fixed type 3 pole/ 4 pole | 52.5/65.5 | |||
Type (drawer and fixed Air Circuit breaker) | HYCW1-6300A | ||
Rated Ultimate short circuit breaking capacity(kA) | Icu=120kA 400v 80kA 690V, Ics==Icw=100kA 400v 65kA 690V, | ||
Rated Current In ( A) | 4000, 5000, 6300A | ||
Number of poles | 3 poles, 4poles | ||
Rated Voltage Ue (V) | 400V, 690V | ||
Rated insulation voltage Ui (A) | 1000V | ||
Rated current of N-pole In ( A) | 50% In, 100% In | ||
Fixed disconnection time | 23-32ms | ||
Intelligent controller | Sandard type (M) | • • • • | |
Communication type (H) | • • • • | ||
Operation Performance | Electric life | 500 | |
Mechanical life
| Non-maintenance 2000 | ||
Maintenance 80000 | |||
Connection performance | Horizontal, Vertical | ||
Weight (kg) | Drawer type 3 pole/ 4 pole | 210/233 | 233 |
