Automatic Machine For Making Disposable Foam Thermocol Plates Tray
CE Certificate
Product Description

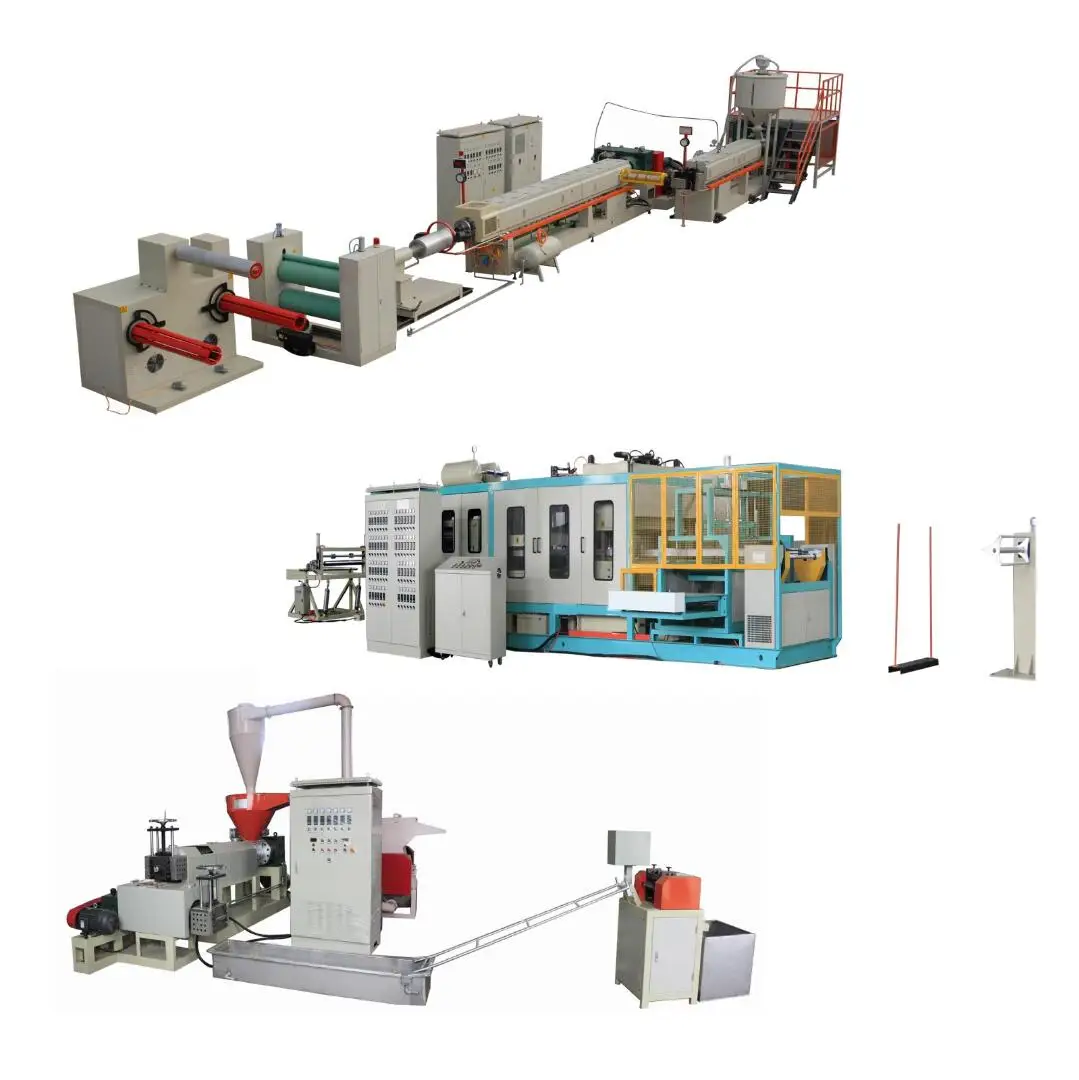

The whole production line including three parts:
1 PS foam sheet machine: make ps foam sheet from raw material.
2 Automatic Forming and cutting machine: put ps foam sheet into this machine,through heating, forming, cutting, stacking and finally finished into final products.
3 Recycling machine: recycling waste foam sheet to raw material and used again.
1.PS Foam Sheet Making Machine ( HX-PS105/120 )
Main Technical Parameters
Model | Unit | HX-PSP70/90 | HX-PSP90/120 | HX-PSP100/130 | HX-PSP120/150 |
Extruder |
| 70/90 | 90/120 | 100/130 | 120/150 |
Foam rate |
| 10-20 | 10-20 | 10-20 | 10-20 |
Width of product | mm | 640-1040 | 640-1040 | 640-1040 | 640-1200 |
Cutting method |
| Single cutter | Double cutter | ||
Thickness of product | mm | 1.0-3.0 | 1.0-3.5 | 1.0-3.5 | 2.0-5.0 |
Cooling method |
| Cooled by wind and water | |||
Output | kg/h | 50-90 | 100-180 | 180-230 | 230-320 |
Installed power | kw | 120 | 150 | 180 | 260 |
Dimensions(L×W×H) | m | 26×4.0×2.8 | 30×4.1×2.8 | 36×4.2×3 | 38×4.2×3.2 |
Total weight | T | 10 | 12 | 15 | 18 |

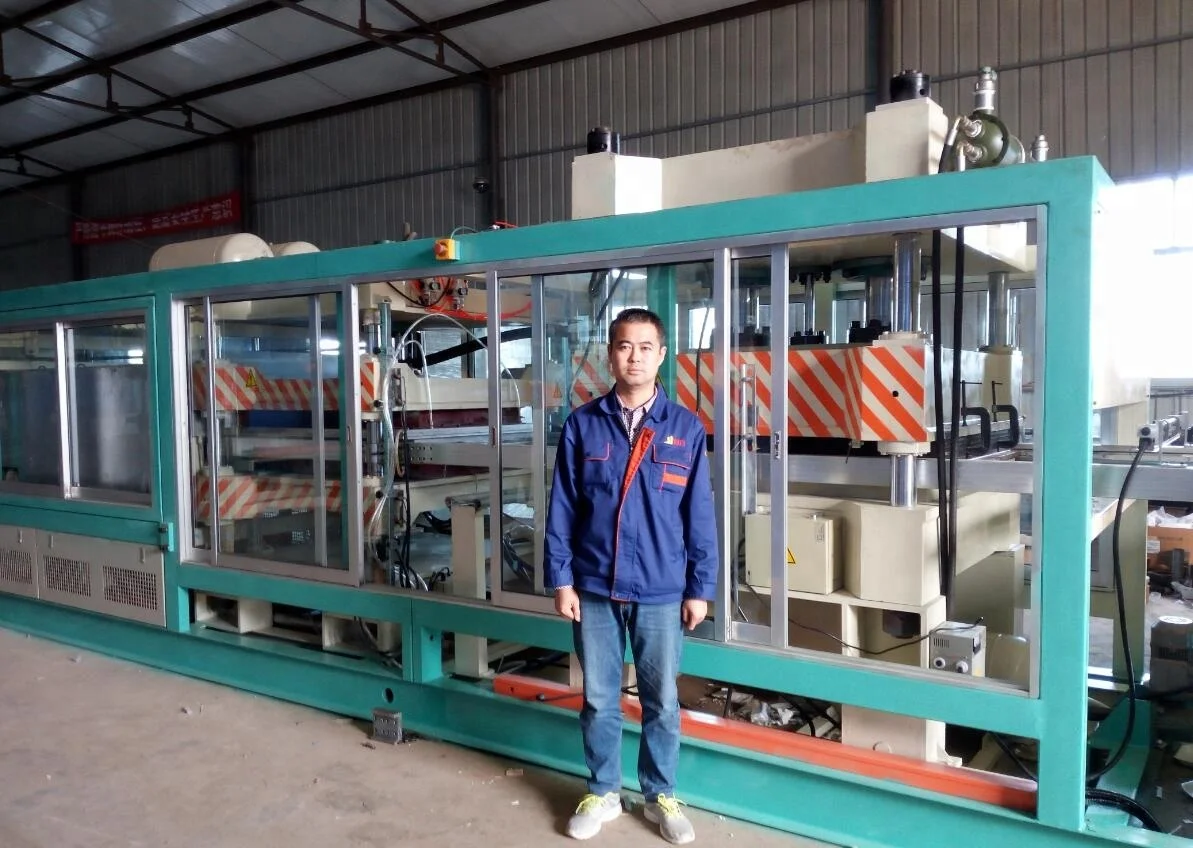

2. Automatic Forming And Cutting Machine(HX-1040)
Main technical parameters
Model | Unit | HX-1040 |
Max. forming area | mm2 | 1000×1100 |
Max. forming depth | mm | 80 |
Production efficiency | s/die | 3 - 8 |
Forming pressure | T | 15 |
Mounted power | kw | 168 |
Total weight | T | 16 |
Installation size | m | 13×2×3.2 |
3. Recycling Machine(HX-180+120/100)
Technical requirement
Output:80~130kg/h
Pressing material motor power: 1.5kw
Heating power: 35kw
Mounted power: 70kw
Power requirement: 380v three-phase/ 50HZ
Cooling water pressure: ≥0.2Mpa
All size: 13m×3.4m×3m
Total weight: 3T
