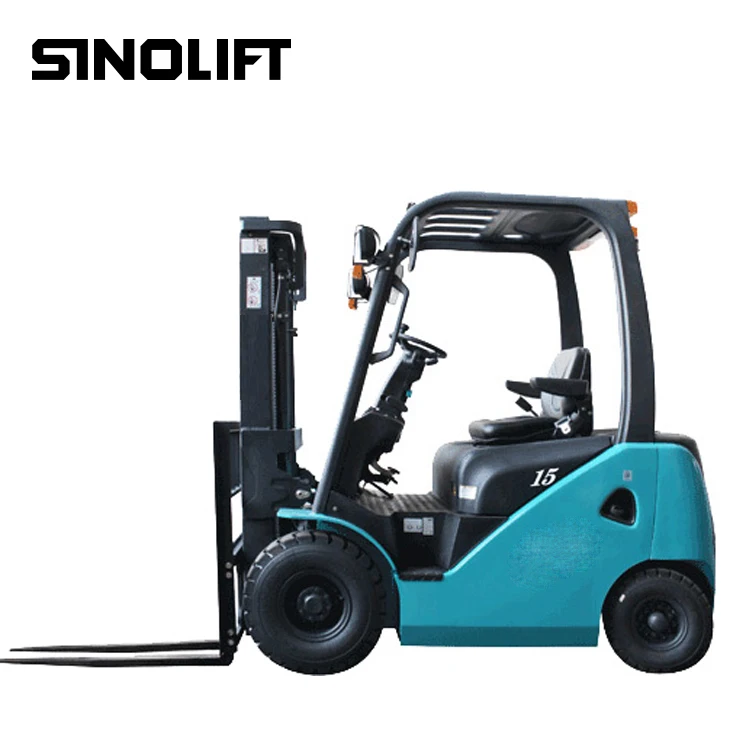

Sinolift G series 1.5T 1.8T Configuration Counterbalance Diesel ForkLift

Product Overview

Description

              Sinolift G series High-level Configuration Counterbalance 1.5T 1.8T Diesel Fork Lift

1) Features

       Redesigned counterweight and cooling system assists in improving longevity of engines.



      Shock absorbing rubber mounted steering axle provides improved operator comfort and steering control.



      Foot operated park brake offering easy and safe engagement.



     Electric direction change lever, conveniently and ergonomically placed for effortless forward and reverse selection.



2) Specification Data

General	Prouduct Name			Sinolift G series 1.5-1.8T Diesel Forklift
	Model			CPCD15G-W1	CPCD18G-W1
	Power type			Diesel
	Rated capacity		kg	1500	1750
	Load center		mm	500	500
Dimension	Lift height    H		mm	3000	3000
	Free lift height    H4		mm	162	162
	Fork size    L*W*T		mm	920*100*40	920*100*40
	Mast tilt angle    α/β		deg	6/11	6/11
	Front overhang     X		mm	408	408
	Overall dimension	Length to fork face         L1	mm	2255	2255
		Overall width                    B1	mm	1080	1080
		Mast lowered height         H1	mm	1995	1995
		Mast extended height       H3	mm	4042	4042
		Overhead guard height    H2	mm	2100	2100
Performance	Turning radius     R		mm	2070	2120
	Travel speed (full load/no load)		km/h	12/14	12/14
	Lift speed (full load/no load)		mm/sec	460	485
	Max. Gradeability		%	20	20
	Service weight		kg	2740	3000
Chassis	Tyre	Front		6.50-10-10PR	6.50-10-10PR
		Rear		5.00-8-10PR	5.00-8-10PR
	Tread	Front   B2	mm	890	890
		Rear    B3	mm	920	920
	Wheelbase		mm	1450	1450
	Ground clearance (full load/no load)	Mast		95/110	85/110
		Frame	mm	100/110	100/110
Drive units & Control	Engine	Apply to truck model		CPCD15/18/20/25/30/35G-W1
		Engine type		Diesel
		Engine Name Code		W1
		Model		ISUZU C240PKJ
		Rated output	kw/rpm	34.5/2500
		Rated torque	N.m/rpm	139/1800
		No.of cylinder		4
		Bore*stroke(mm)	mm	86*102
		Displacement	(L)	2.369

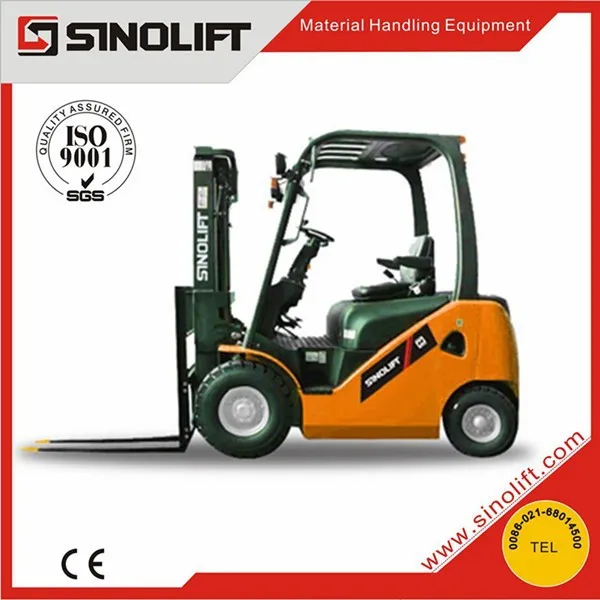

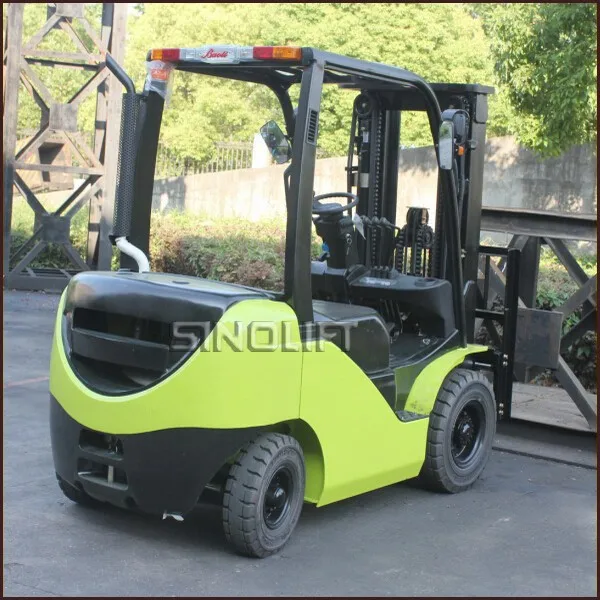

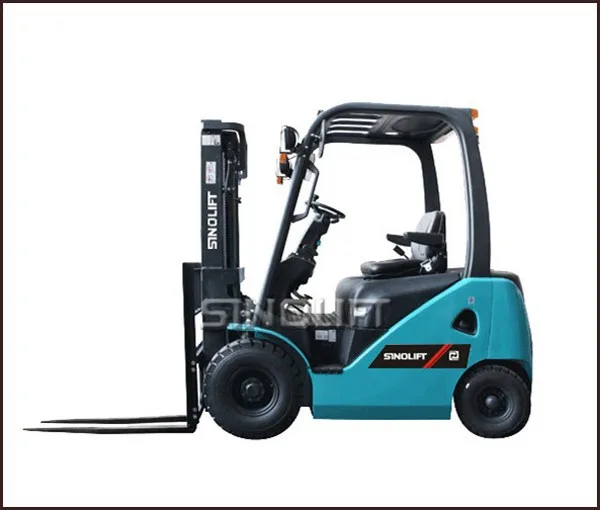

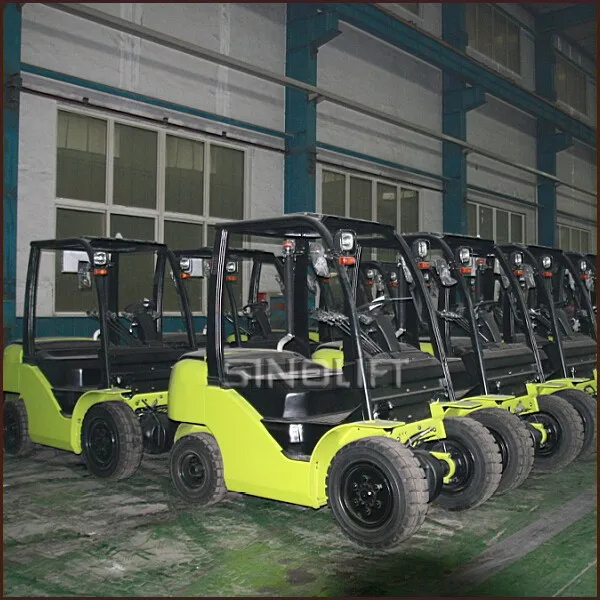

3) Photos
