XDEM YZ50 150B full hydraulic drilling rig/portable digging machines/borehole drilling machine
- Category: >>>
- Supplier: Nanyang Xinda Electro-Mechanical Co. Ltd.
Share on (60083410470):
Product Overview
Description

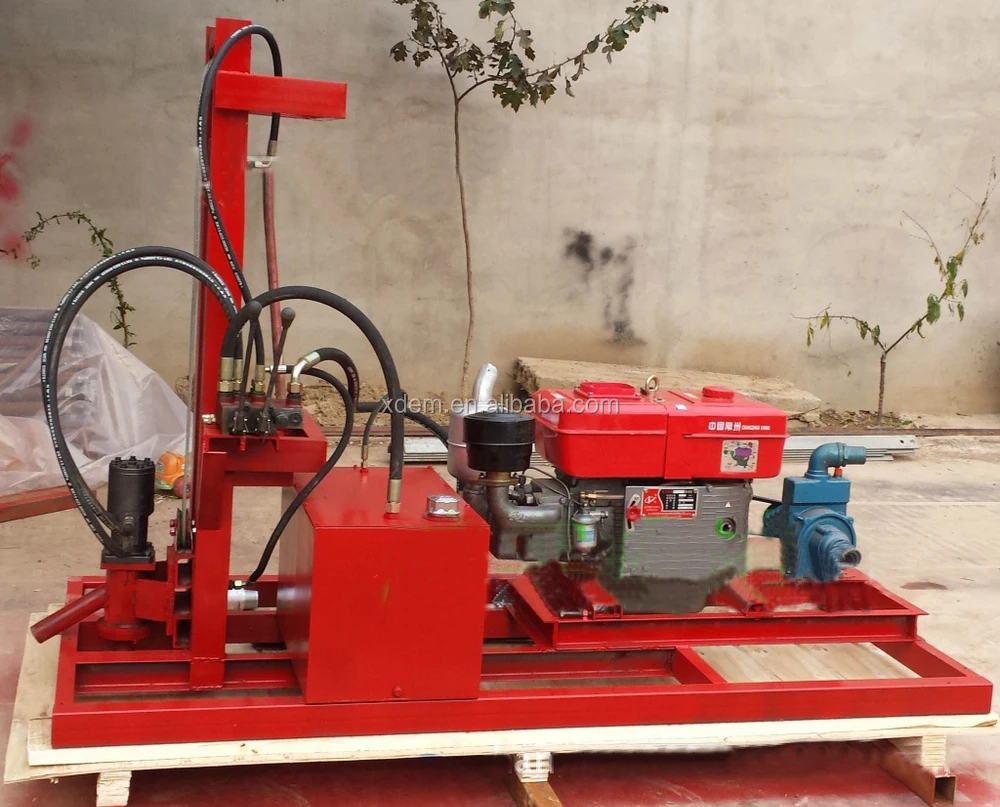

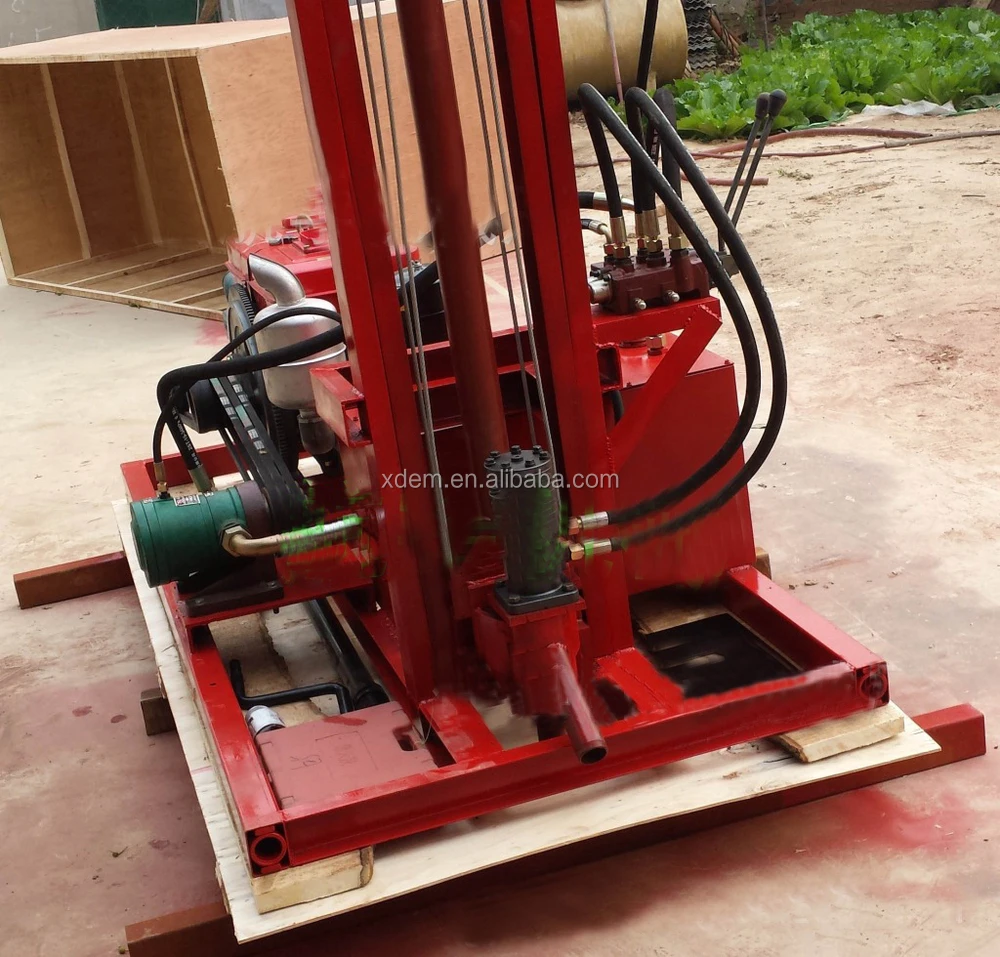

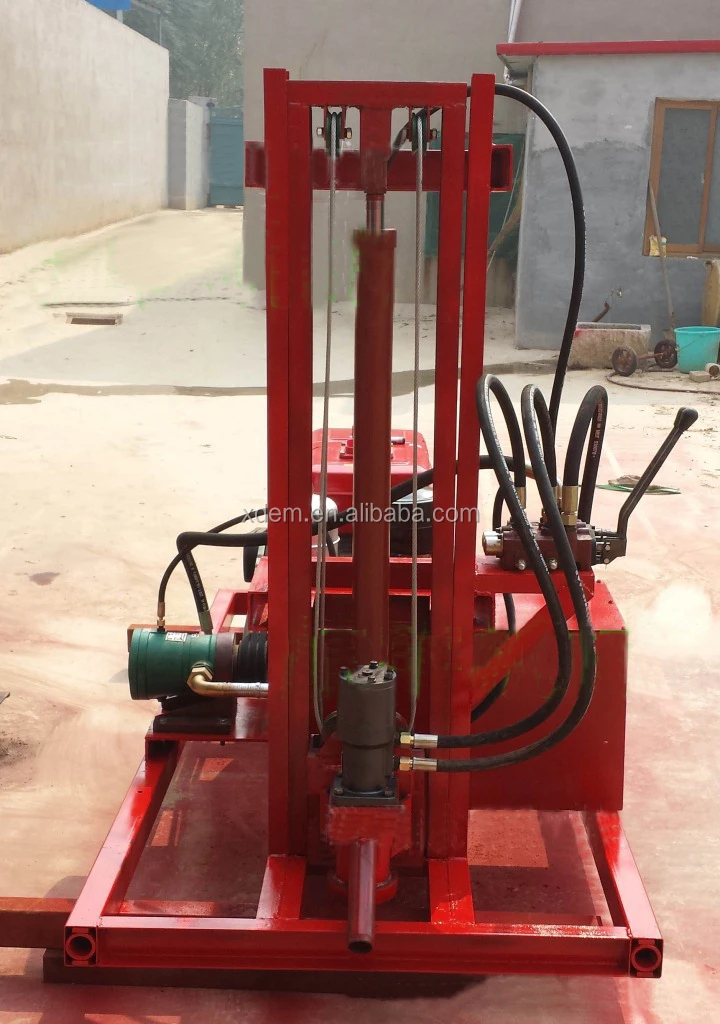

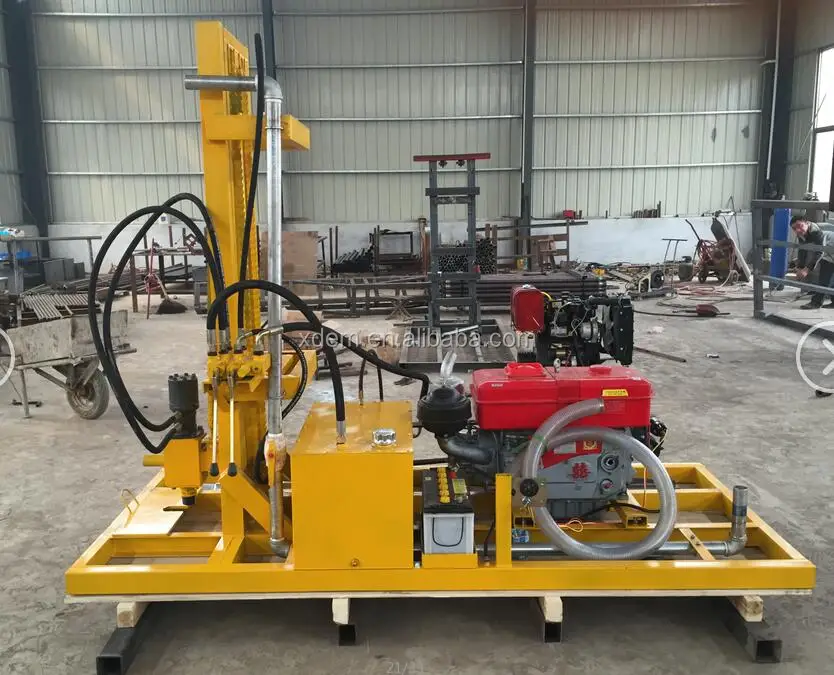

XDEM YZ50-150B full hydraulic drilling rig/portable digging machines/borehole drilling machine
This water well rig is suitable for general civilian, which are small automatic drilling machine. drilling diameter 20cm, less than 6 inches, the experiments depth is 160 meters (in Plains) economic depth 80-120 meters. Supporting the well pipe diameter less than 16cm (1-6 inches household wells).
Features of the water well rig drilling machine:
1.This small water drilling machine occupies a small place(1 m2), height 3.5 m, install job simple. Can be installed outside or inside the house. It can be disassembled, the total length is less than two meters when disassemble, the largest component is lighter than 40 kg. Light, one man can carry it.
2.Replace the drill bit, it can drill the different diameter of 1 inch, 1.5 inch, 4 inch, 6 inch plastic pipe, pvc pipe deep wells. The tube well is fully enclosed, no leakage of the shallow aquifers, which guaranteed the safety and health of the drinking water.
3.Mine detector bit with strong rock breaking ability. Average drill 30 meters per hnour in plains. The max. drill depth is 160 meters, accompanied with diamond bit can penetrate hard rock.
4.R & D to solve the difficult problem of unloading drill rod. Make the lifting, unloading drill pipe all mechanized, saving time, effort, simple and easy to operate. Supply with the civilian 220 volts, 60 volts transformer low voltage DC power, convenient and safe.
5.Lifting device uses electric, manual dual setting, even if a sudden power outage. You also can respond freely.
Main Diameter of the water well rig:
| Model | YZ50-150B |
| Drill depth | 210m |
| Drill hole diameter | 100-400(mm) |
| Spindle speed | 150r/min (unload) |
| Drill rod diameter | 50mm |
| Size | 2100X1100X1500(mm) |
Company Information
We Nanyang Xinda Electro-Mechanical (XDEM), is an senior international trading company mainly dealing construction machinery, which was set up and supported by local dealer ship of XCMG, LIUGONG, we continually introduce Chinese excellent construction machinery enterprises and their products to international markets, such as XCMG, LIUGONG, SANY, YTO etc. We not only make more international customers know and approbate our products, but also gradually build up friendship with construction machinery customers all over the world.
We have the largest-size factories for construction machinery and industrial equipments in Asia. Our factories have the world-class modern facilities and automated manufacturing process for production. Our factories are mainly located in Jiangsu, Henan, Hubei provinces in China.
