Koller Aliexpress New Technology Directly Evaporated Ice Block Machine from China Manufacturer

Product Overview

Description







Koller Aliexpress New Technology Directly Evaporated Ice Block Machine from China Manufacturer





• ice block machine Capacity: 1000kg ice blocks per day;


• Without brine water for freezing ice;


• freezing time: 2-3hrs newest tech;


• ice block size: 5kg per piece.







2. Advantages:

  Our DK series ice block machine adopt aluminum plate as ice can, the refrigerant will evaporate inside the aluminum plate so the plate can freeze ice making water quickly. This is the intergrated system, meanwhile, we design the lifting system to harvest ice blocks directly, no need hands to harvest ice blocks one by one.



3. Features:

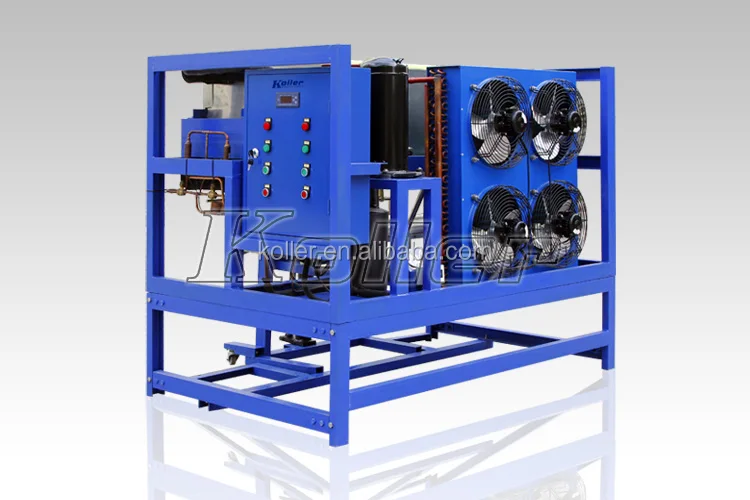

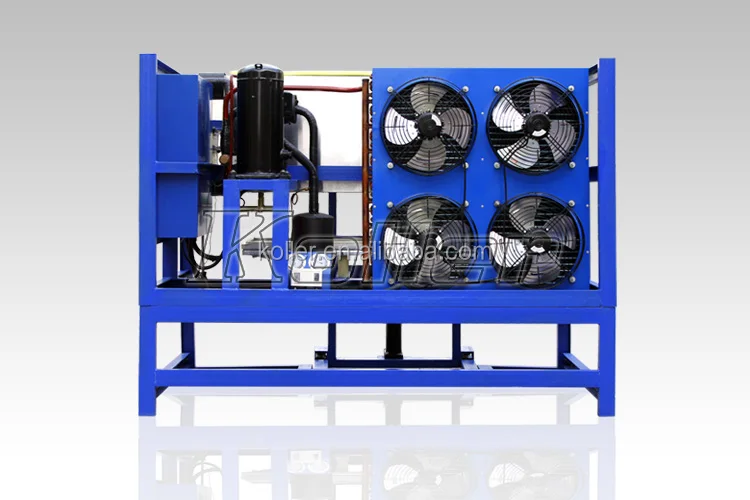

DK10 Block ice machine
Technical parameters
NO.	Description	Details
1	Freezing time per cycle	2-3 hours(approx)
2	Weight of each ice block	5kg, 40 ice moulds
3	Outdimensions	2000mm x 1200mm x 1350mm
4	Ice making capacity	1000kg/day
5	Evaporator for ice tank	Aluminum plate
6	Cover	SUS 304 Stainless steel
7	Compressor	Copeland
8	Refrigerant	R22
9	Condenser	Air cooler
10	water inlet temperature	20-25°C
11	ambient operating temperature	35-40°C
12	Control and safety devices	autormatic electic control panel box;
		HP/LP switch with automatic reset
13	Cooling systerm	Copper pipes, liquid separator,
		solenoid valve,filter and so on
14	Install power	6KW,380-450V/3ph/50HZ











 4. Warranty:

• 12 months warranty after delivery.


• Professional after-sales department to provide 24/7 technical support, all complaints should be replied within 24 hours.


• Over 10 engineers available to service machinery overseas.


• Free spare parts replacement within warranty period.


• Beyond guarantee period, we will charge market price for spare parts.



5. Why choose us?

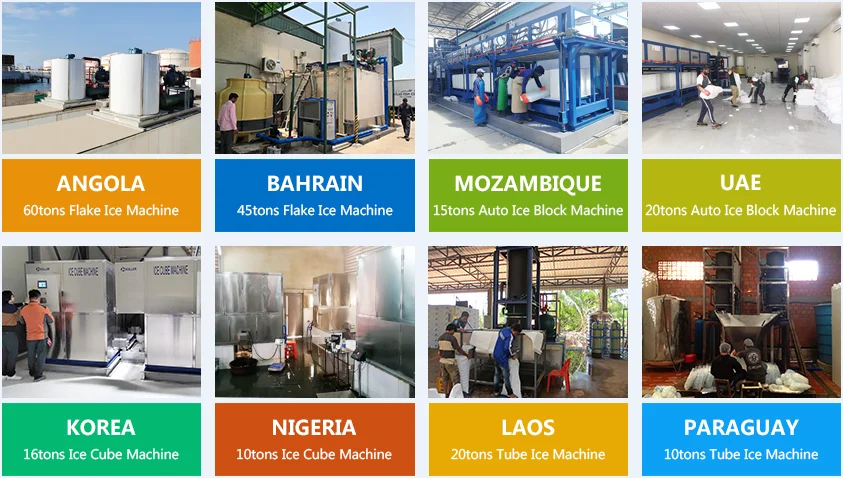

• So far, we have exported ice machines to 150 countries in the world.

• Excellent Brand of Chinese Ice Machine Industry.


• The Drafting Committee of National Ice Machine Industry Standard.


• Produce & Academic Research Strategy Cooperating Partner with Tsinghua University.


• Independent after-sales department, 8 engineers are ready to service abroad.





Dear friend, don't hesitate to give a enquiry if you are interested! We would be very glad to be on service for you, as the most professional ice machine manufacturer with the biggest factory base in China, we are pleased to attach our best offer. We are definitely to contact you within 24 Hours after getting your enquiry.
