Electrostatic powder coating&spray line powder painting line high quality

Product Overview

Description

POWDER COATING LINE/ POWDER PAINTING LINE



1.  Brief introduction of company business range:

• Complete Powder coating production line


• Complete liquid painting production line


• Electrophoresis painting line for automotive products


• Fiber flocking production line



2. Why customer choose us:

• Leading  advanced technology with most reasonable designing concept;


• Stronger technical team


• More than 15 year's exploration experience in coating line


• Better before-sales, during-sales, and after-sales attitude & service


• Large company scale and production capacity make customer be at ease to place us order


• Top products quality and good reputation in coating line


• Never to copy, just innovation

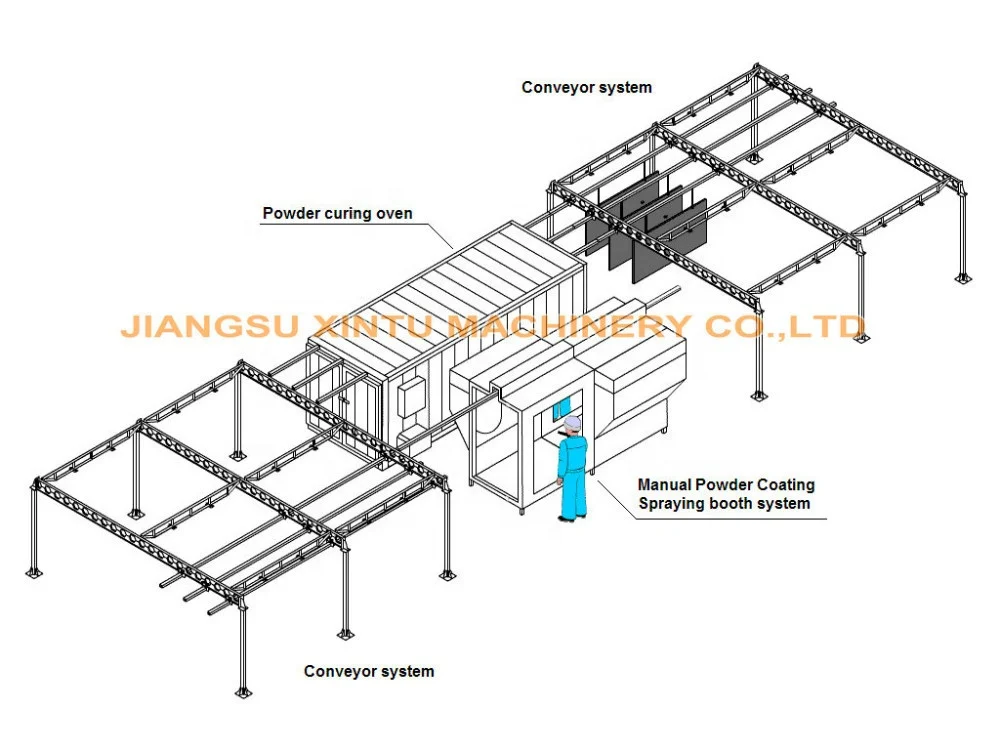

3. Complete Powder coating production line / powder painting production line system



 3.1 Pre-treament system

ITEMS	CONTENTS	DESCRIPTION	REMARKS
Pre-treatment system	Mechanical pre-treatment	Sand blasting Pre-treatment	Thickness ≥ 2 mm
		Shot blasting pre-treatment	Thickness ≥ 3 mm
		Grinding pre-treatment	Manual
	Chemical  pre-treatment	Phosphating pre-treatment
		SIH4 pre-treatment
		Two-in-one Pre-treatment
	Chemical pre-treatment type	Dipping pre-treatment	Tank : cement ,PP or stailess structure
		Full spraying pre-treatment	Tank: Stainless
	Chemical pre-treatment (Custom processing)	1.  Pre-degreasing	Remove the degrease
		2.  Degreasing	Remove the degrease
		3.  Rinsing 01	Cleaning
		4.  Rinsing 02	Cleaning
		5.  Surface conditioning	Conditioning function
		6. Phosphating	Improve adhesition property
		7. Rinsing 03	Cleaning
		8. Rinsing 04	Cleaning



Dipping pre-treatment system

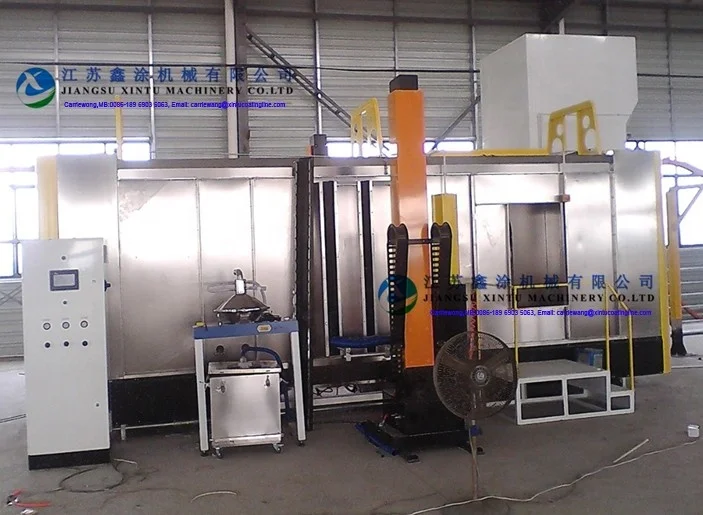

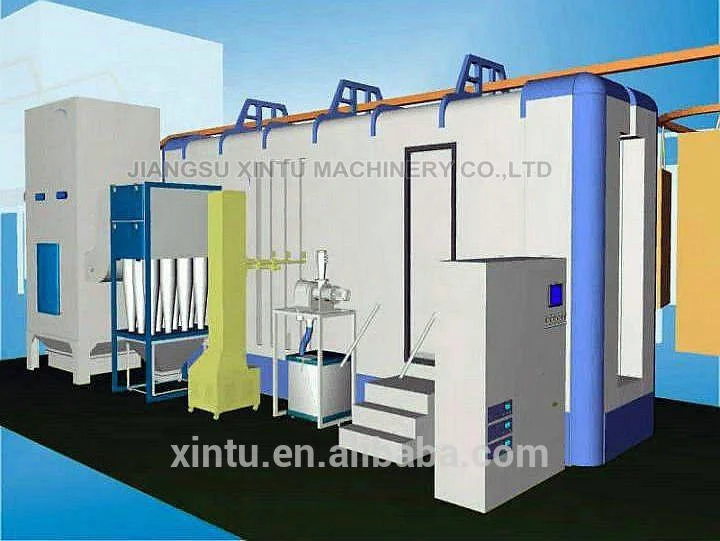

3.2 Powder Spraying system

ITEMS	CONTENTS	DESCRIPTION	REMARKS
Powder spraying system	Powder sraying booth (By conveyor type)	Conveyorizing spraying booth
		Non-conveyor spraying booth
	Powder sraying booth (By workers position)	Double posistion spray booth
		Single position spray booth
		Home-application spray booth
	Powder spraying booth (By material type)	Stainless powder spraying booth
		Carbon steel spraying booth
		PP spray booth
	Powder spraying machine	Automatic powder spray machine
		Manual Powder spray machine
	Powder recycling system	Cyclone separator recycling
		Custom Cartridge filters recycling
	Powder recycling cabin	Backpack type
		Movable separated type



















3.3  Drying & Curing System



ITEMS	CONTENTS	DESCRIPTION	REMARKS
Drying & Curing system	Drying & Curing Oven type	Conveyorized Straight  tunnel oven
		Conveyorized bridge tunnel oven
		Batch oven
	Heating source	By GAS, LPG, Diesel, Electric or others
	Raw Material	Carbon steel, Galvanizing sheet, Stainless are avaible; Custom material: Exterior : CRS coating sheet Insulation wall: 80~150mm Interior : Galvanizing sheet Heating exchanger: Stailness tubes Frames : Hot or cold rolled steel
	Temperature	Working temperature: 180~2000C Maximum temperature: 2200C
		Maximum design capacity: < 1200 0C
		Inner Uniformity: ± 5 0C
		Good quality temperature adjustor, dectors etc components
		Automatic control according to presetted temperature
	Burner	Brand : Italy "RIELO"
	Heating exchanger	Stainless
	Blowers	Customized heating-resistance fan 16Mn blades
	Hot air circulation	Bottom blowing-in, top returning back
	Features	Less heating loss, saving energy



Bridge conveyorizing tunnel drying & curing oven

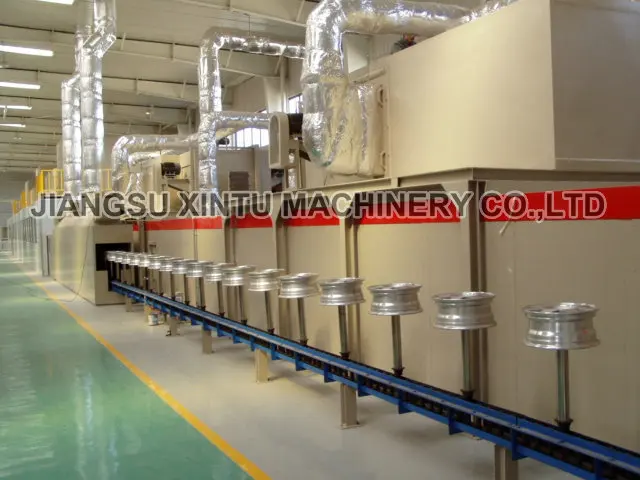

Ground track tunnel drying & Curing oven

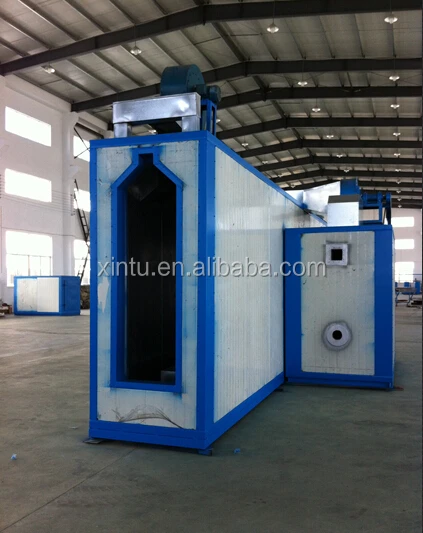

Conveyorized straight tunnel drying & curing oven





Batch oven





Electric drying & Curing Oven





3.4 Conveying system:



ITEMS	CONTENTS	DESCRIPTION	REMARKS

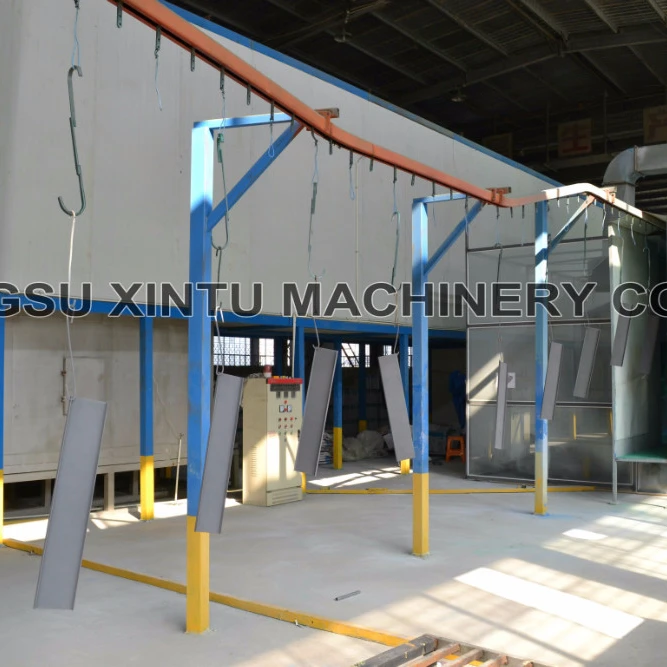

Conveyor system	Conveyor system	Overhead hanging chains & rails
		Ground rails and tools
		Trolleys and sliding tracks
		Belt conveyor ( Usually for food products)







3.5 Electric control system:



The designed powder coating production line adopt disperse setting, disperse controlling system,equipping several electric control cabinet to control the system of dipping preeatment ,drying and curing oven,

and powder spraying booth.Electronic equipment design, fabrication, type choice, and installation conform

to related regulations and conditions. Electric control cabinet is characterized by clean appearance, beauty

and reasonable layout, convenient to operate; Electric cables and wires layout is standard,  binding together,

ranked neatly and beautifully.



All the components such as ACB, AC contactor,Hot relay,Control button indicators used in control

cabinet are used domestic top quality products.



3.6 Delivery time:  Geneally, we make delivery within 20~45 days after receipt of the deposit.
