used hydraulic thread rolling making machine for Anchor bolts price in china
- Category: >>>
- Supplier: Bobo Machine Co. Ltd.
Share on (60083805886):
Product Overview
Description
Product Application
This machine is primarily used for manufacture various types of precision external roll thread, high strength standard parts, including the general pass thread, trapezoidal thread and modulus thread.
1 | Max roll pressure | 260KN |
2 | Max roll diameter | Ø6-80mm |
3 | Screw pitch | 1-7mm |
4 | Max diameter of rollers | Ø210mm |
5 | Hole diameter of rollers | Ø75mm |
6 | Max thickness of rollers | 120mm |
7 | Main spindle tilt angle | ±15° |
8 | Spindle center distance | 150-300mm |
9 | Main spindle speed | 26/38/55/90rmp |
10 | Active power | 11kw |
11 | Hydraulic transmission power | 5.5kw |
12 | Cooling power | 125w |
13 | Size | 2450*1780*1670mm |
14 | Weight | 3200±50Kg |

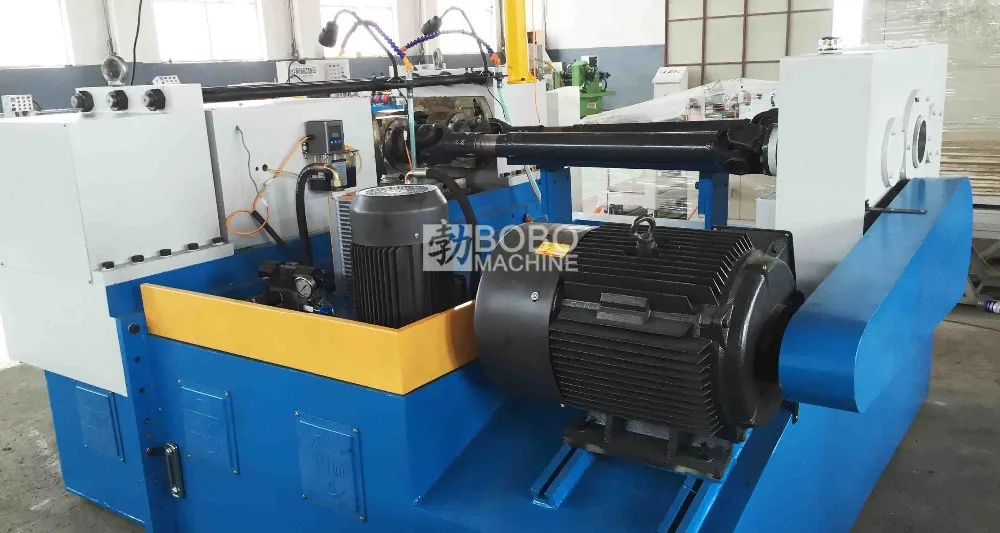

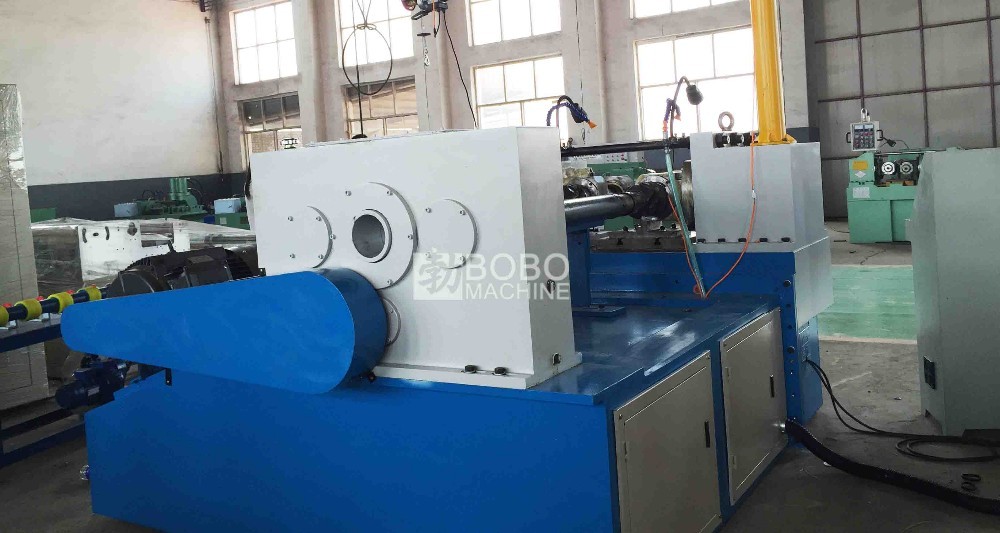

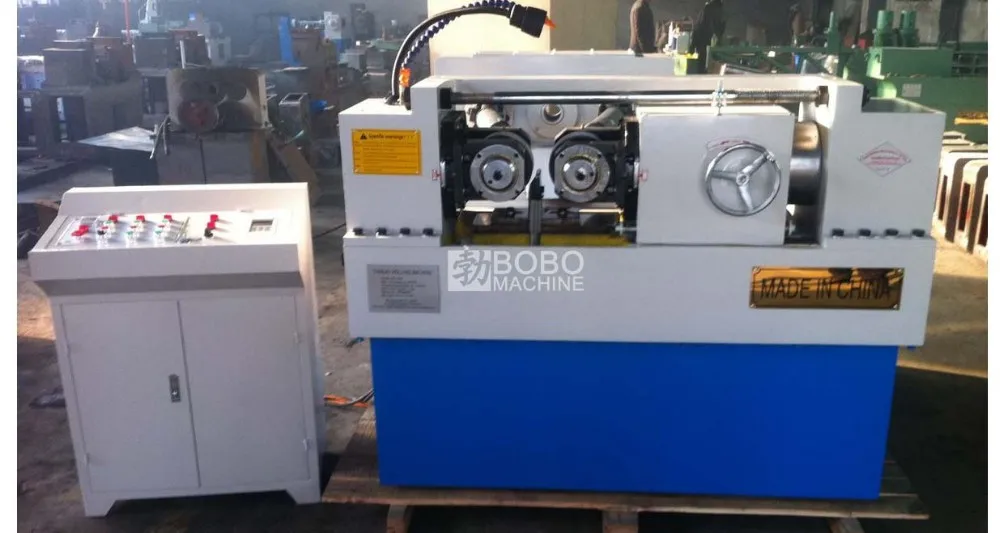

Detailed Images
Packing & Delivery
Packaging | ||
Size | 2450*1780*1670mm | |
Weight | 3.8 T | |
Packaging Details | The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request. | |
