Product Overview

Description


60L milk batch pasteurizer description
pasteurizer

  • Product description
    Pasteurizer is stainless steel equipment with heating function. This device can heat milk to a suitable temperature and keep this temperature for a certain period of time. This is in order to kill all the unwanted bacterium in milk and extend milk’s shelf life.

  • what is pasteurizing: pasteurization or pasteurize is to expose (a food, as milk, cheese, yogurt, beer, or wine) to an elevated temperature for a period of time sufficient to destroy certain microorganisms, as those that can produce disease or cause spoilage or undesirable fermentation of food, without radically altering taste or quality.

  • pasteurizer main capacity:
    small scale pasteurizer 50Liter / 100Liter / 150Liter / 200Liter / 300Liter
    normal capacity batch pasteurizer : 500Liter / 600L / 800L / 1000Liter
name: batch pasteurizer
batch pasteurizer technical parameters
brandwanyuan
modelLRG-50P-E
pasteurization Capacity / output50Liter pasteurizer with 20% extra space <head sapce>
pasteurization vat inner diameter450mm
pasteurization vat overall diameter700mm
pasteurizer vat inner height400mm
pasteurization tank overall height1100mm
motor brandworld famous brand with CE certificate or equivalent
motor power0.75KW / 1.1Kw / 1.5kw
mixing speed

36rpm low speed / 40~200rpm variable speed / VFD / 1450rpm high speed

without special request, we will choose 36rpm low speed for milk / cream pasteurizer

heating modeuse electric heating elements <insert into the heating jacket>
heating mediumtap water / heat transfer fluid / thermal fluid / heat transfer oil
60L milk batch pasteurizer Details show



60L milk batch pasteurizer Application

This kind of batch pasteurizer can be used to the pasteurization of milk, juice, cream, jelly, jame as well as yogurt and salad or sauce

60L milk batch pasteurizer Shipping

this kind of pasteurizer is made of stainless steel, it is heavy and with big package, so most of time we use sea transport for the delivery of this batch pasteurizer. but in some special situation, for eg. customer need it urgently, we can arrange the delivery by air.

60L milk batch pasteurizer Payment
  1. Letter of credit
    for big orders of batch pasteurizer, L/C is prefered.
  2. Wire Transfer / bank transfer / TT
    for one or two pcs of batch pasteurizer, the amount is not too much, so TT is better
  3. West Union for small amount or for shipping fees.
60L milk batch pasteurizer Certification



CE certificate for the batch pasteurizerCE certificarte


60L milk batch pasteurizer Packing

pasteurizers are made of stainless steel, the out surface of the pasteurizer is good looking. After inspection the batch pasteurizers are packed in wooden cases in order to protect the pasteurizers from get injured on the sea transportation

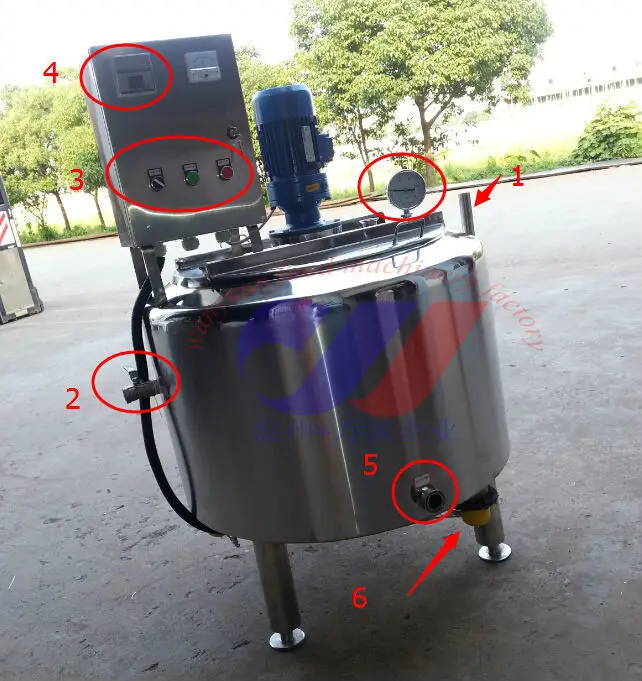

details of the milk batch pasteurizer

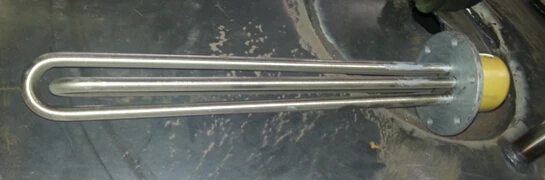

1. electric heating elements for batch pasteurizer

heating elements for batch pasteurizer

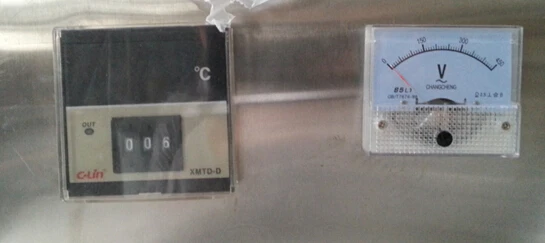

2. temperature controller ---digital controller for batch basteurizer

temperature control device for pasteurizer

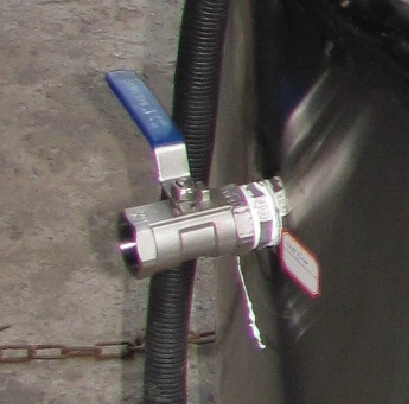

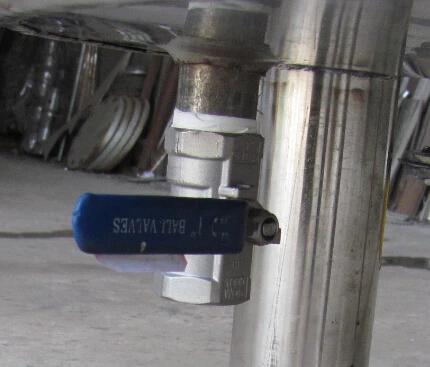

3. heating oil overflow valve for batch pasteurizer    4. heatig oil drainage valve

heating oil inlet valve for batch pasteurizer heating oil drainage valve for batch pasteurizer

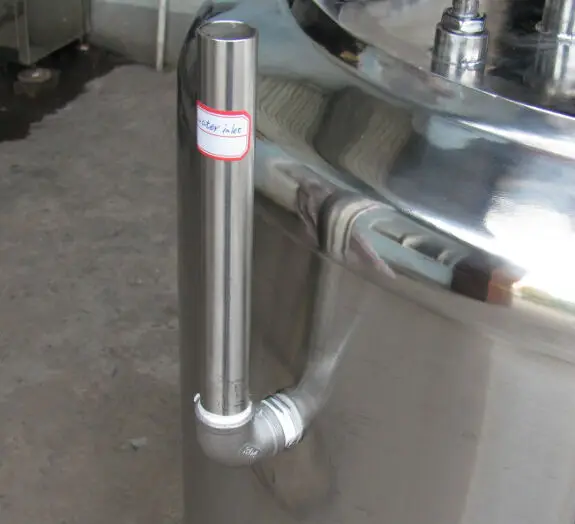

5.heating oil inlet valve for batch basteurizer           6. scrapers for batch pasteurizer

heating medium inlet pipe for batch pasteurizer food grade scrapers for batch pasteurizer

NOTE: The batch pasteurizers are equipped with electric heating elements, heating oil inlet, heating oil overflow valve, drainage valve as well as temperature gauge and digital temperature control device.
About us
We have more than 15-year experiences on batch pasteurizer production especially for milk batch pasteurizer and cream batch pasteurizer vat. We are a typical  China supplier and have worked for different capacity pasteurizer for juice, milk, cream as well as yogurt. you can get different capacity pasteurizer in our factory. if you need a customized batch pasteurizer, that is also possible. We have factories in East China in order to meet customers' needs.

Our batch pasteurizer structure

This milk pasteurizer shown in this quotation is a small capacity batch pasteurizer.
it is made of 3 walls including:

  • inner wall <contact to milk directly>
  • heating jacket <weld to the outside of the inner wall, the gas between the inner wall and this jacket will be filled with tap water when machine working>
  • outer wall <this is the outer shell of the pasteurizer, inside this shell, it is a 50mm thickness thermal insulation / preservation layer>

for more infor of the batch pasteurizer, please contact us freely
