Integrated Coal Gasification in China

Product Overview

Description

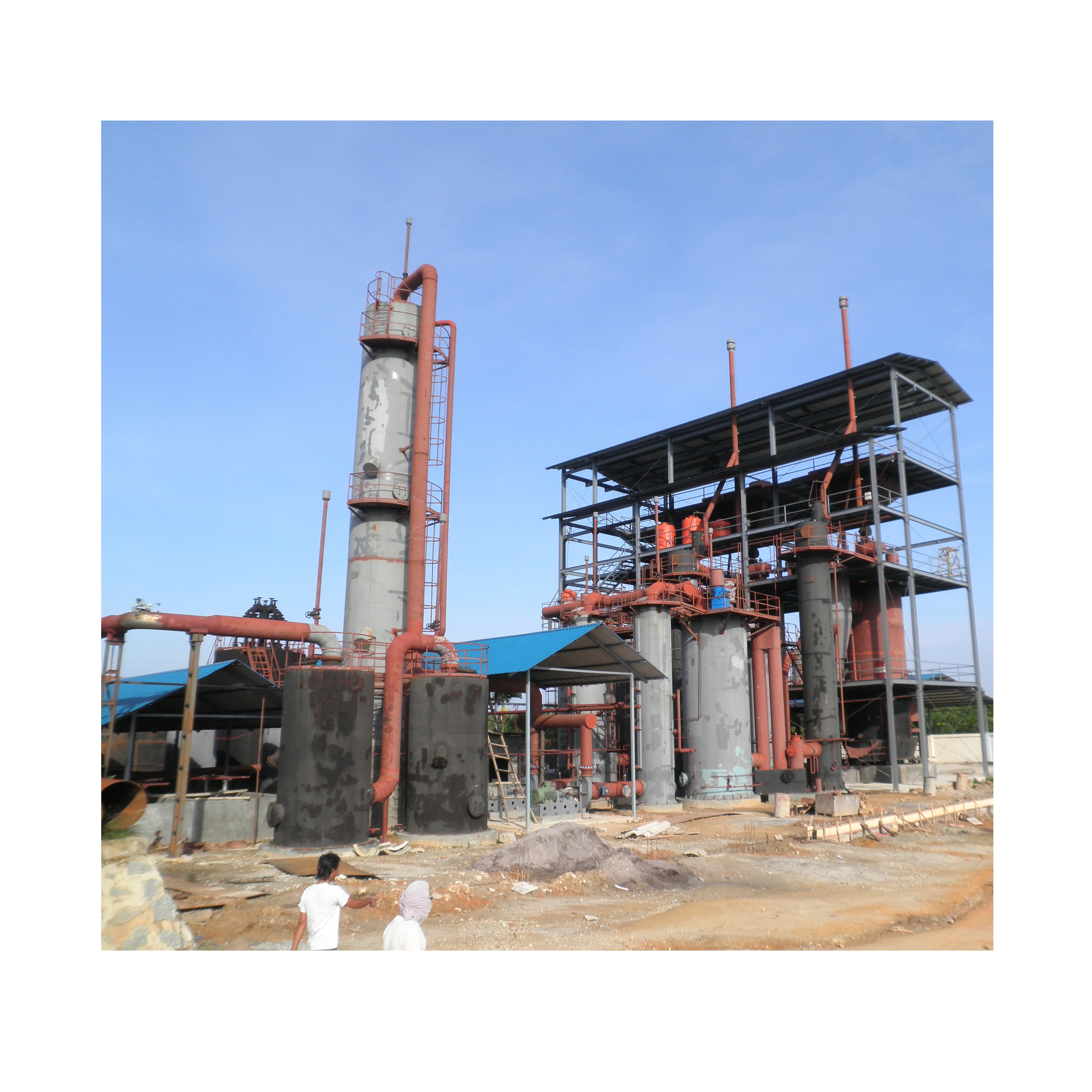

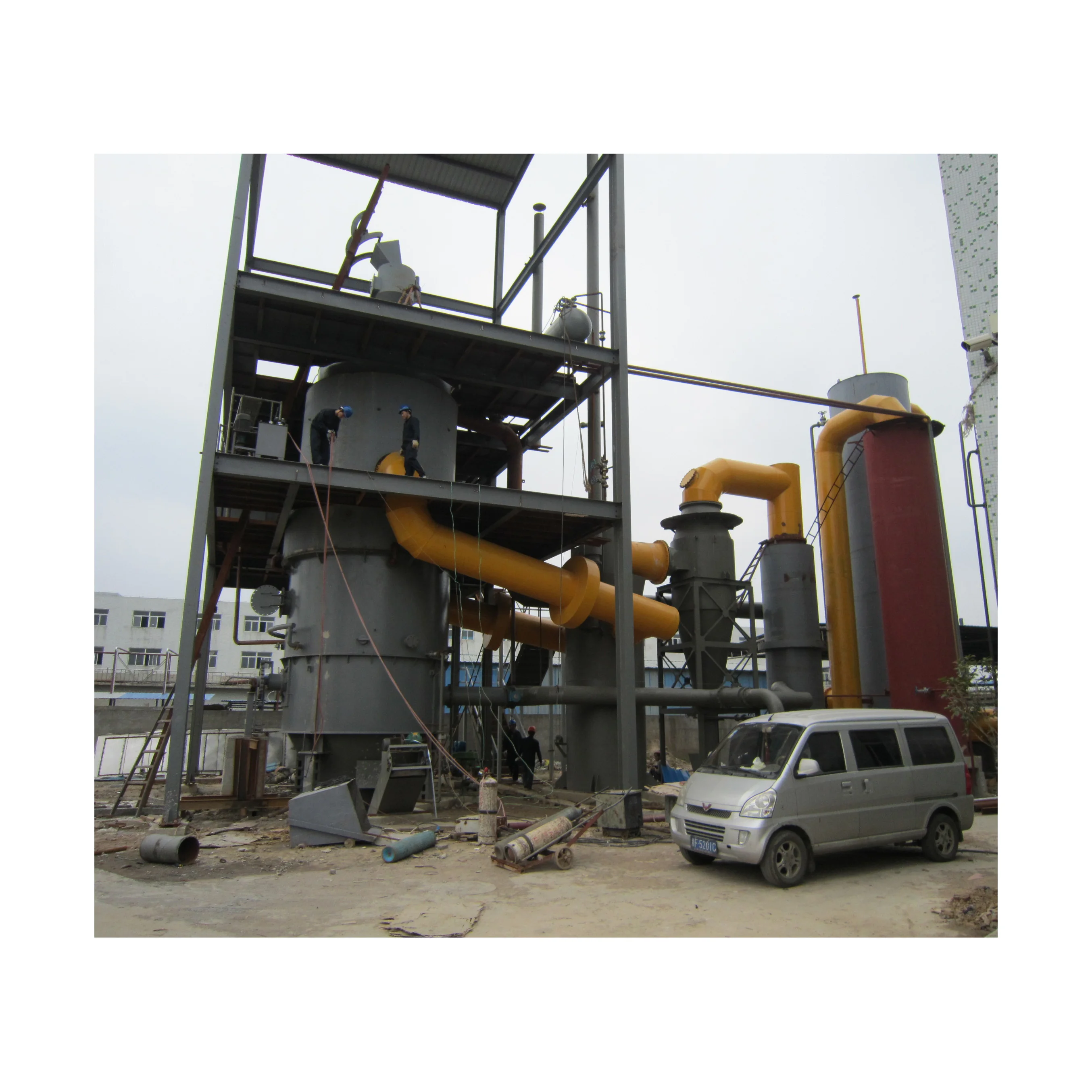

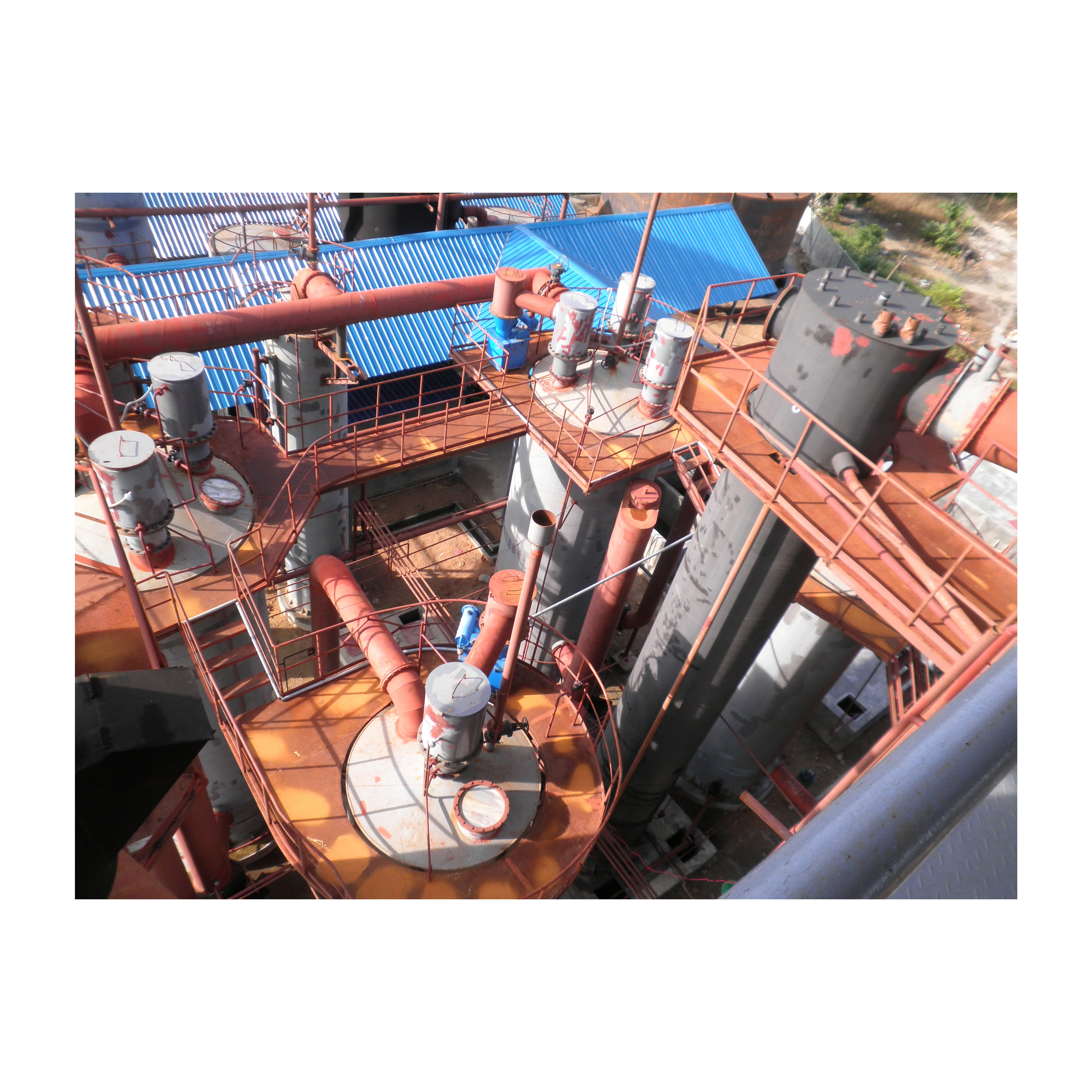

The basic principle of POWERMAX’s coal gasification system(abbreviated as CGPS) is to convert coal into combustible gas . It is then used as fuel in gas engine to generate electricity. Coal gasification system is characteristic of small land requirement and environment friendly. Our coal gasification process includes three steps. The First step is coal gasification, which convert coal into syngas. The Second step is syngas purification. The producer gas coming from gasifier usually contains contaminants including dust, coke, tar and etc. The contaminants will be removed by the purification system to ensure normal operation of gas engine. The Third step is power generating in gas engine. The high temperature exhaust gas may be reused by waste heat boiler to generate steam or hot water for civil or industrial use). Steam turbine may also be considered to make a gas-steam combined cycle power plant, which will increase the total efficiency.

This technology uses thermochemistry conversion method. With Powermax independent R&D technology, coal can be converted into electricity, heating or charcoal. Moreover, the coal can be turned into wealth and can be made full use of.

The basic principle of Powermax coal gasification power generation system is to convert the different types coal into gas, and use the combustible gas to drive gas generating equipment for electricity. It can take full advantage of the equipment’s compact-design and environmental-friendly features. Therefore, it is one of the most eco-friendly way for coal.

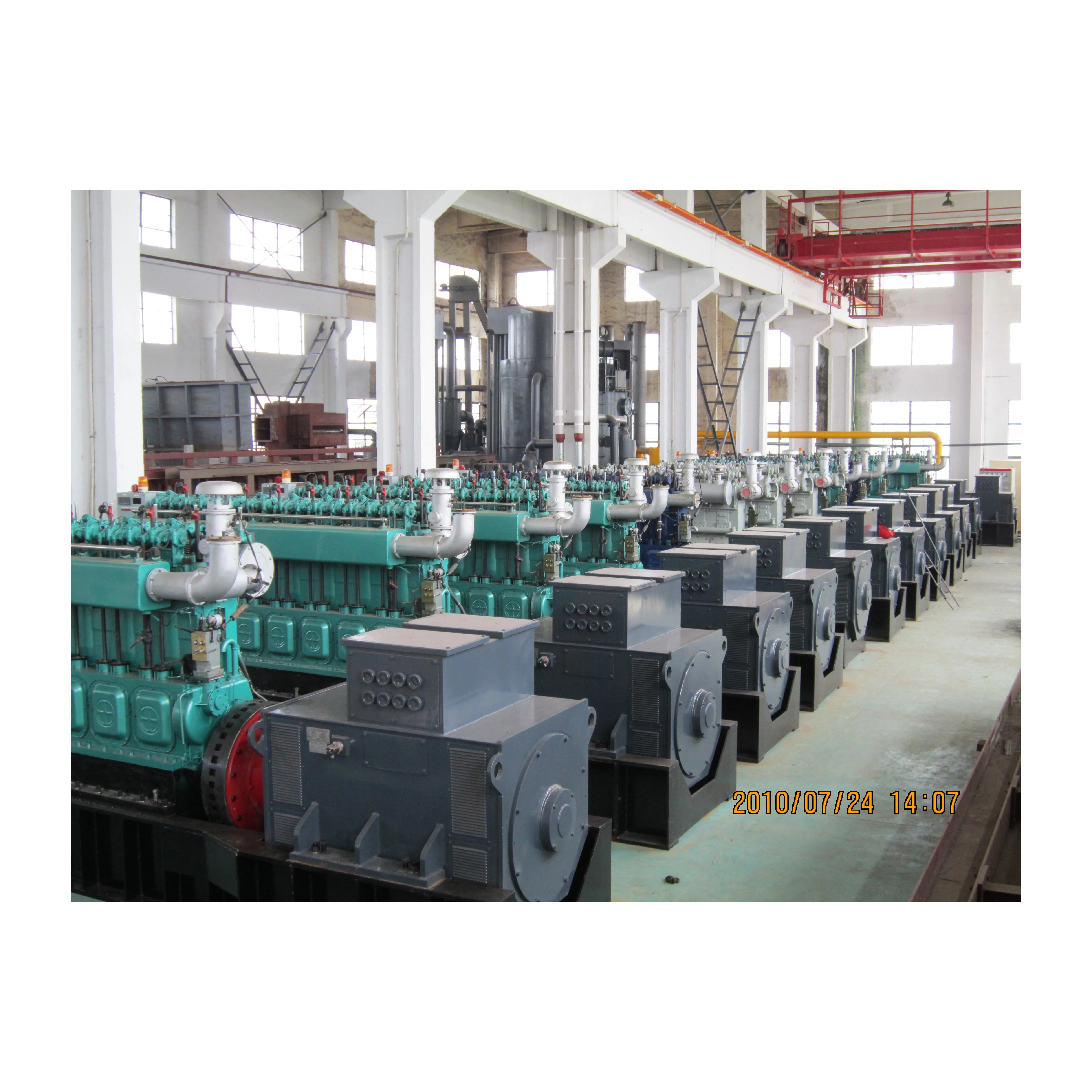

The process of Powermax coal gasification power generation includes three steps. The first step is coal gasification. The coal is converted into combustible gas. The second step is gas purification. The gas has impurities through gasification, including ash, tar, which should be removed with purification system in order to ensure the operation of gas power generator. The third step is gas power generation, which use gas engines(spark plug ignition type) for electricity generation, and the high temperature flue gas produced by the gas engine can heat boiler to get steam or hot water for residential or industrial use.

The Powermax coal gasification power generation system adopts modular design, which can be normally applied to power stations of 50-20000KW.



Model	50TFCG	100TFCG	200TFCG	300TFCG	400TFCG	500TFCG	600TFCG	800TFCG	1000TFCG
Rated Power(KW)	50	100	200	300	400	500	600	800	1000
Rated Frequency	50/60HZ
Rated Voltage(V)	220/400/440/6300/6600/11000/13800
Model of Gasifier	TFCG50	TFCG100	TFCG200	TFCG300	TFCG400	TFCG500	TFCG600	TFCG800	TFCG1000
Gasifier Type	Twin-fire Fixed Coal Gasifier
Coal Moisture Requirement	≤20%(Wet Basis)
Coal Size Requirement	Diameter 20mm-80mm; Length 10mm-80mm
Coal Consumption(Kg/Hr)	50-100	100-200	200-400	300-600	400-800	500-1000	600-1200	800-1600	1000-2000
Gas Production(Nm³/h)	125-150	250-300	500-600	750-900	1000-1200	1250-1500	1500-1800	2000-2400	2500-3000
Ash Discharge Type	Dry Ash Type/Wet Ash Type
Type of Gas Purification	Dry Type Gas Purification System
Heat Value of Gas	≥1200Kcal/Nm³
Gas Composition	CO 15-20%    CO2 8-12%    CH4 Up to 3%   H2 15-20%    N2 45-50%
Model of Genset	50GFLS	100GFLS	100GFLS	300GFLS	400GFLS	500GFLS	300GFLS	400GFLS	1000GFLS
Qty of Genset	1 Set	1 Set	2 Sets	1 Set	1 Set	1 Set	2 Sets	2 Sets	1 Set
