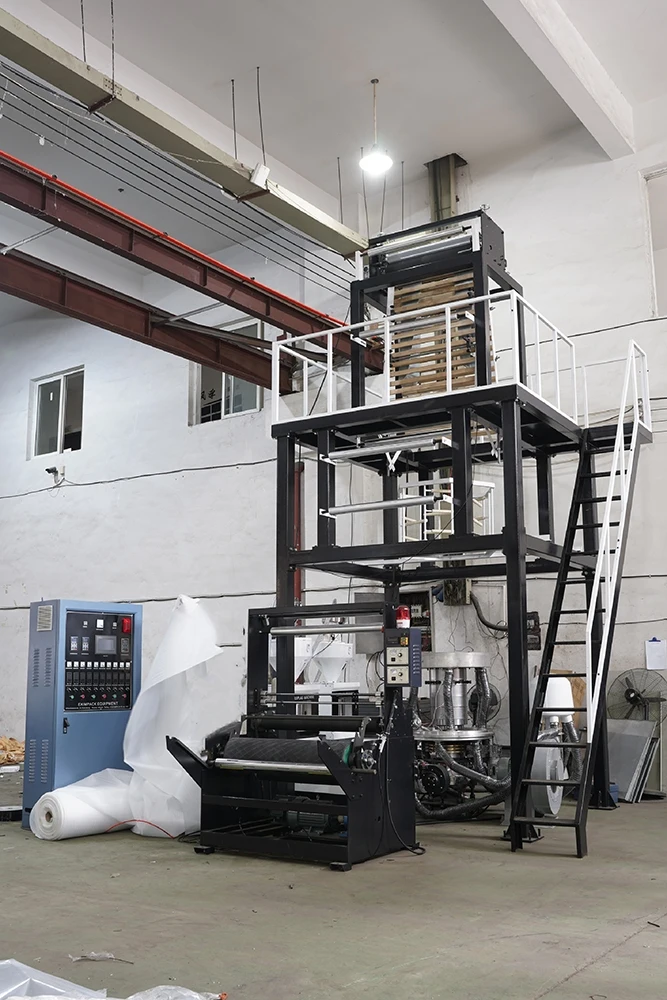

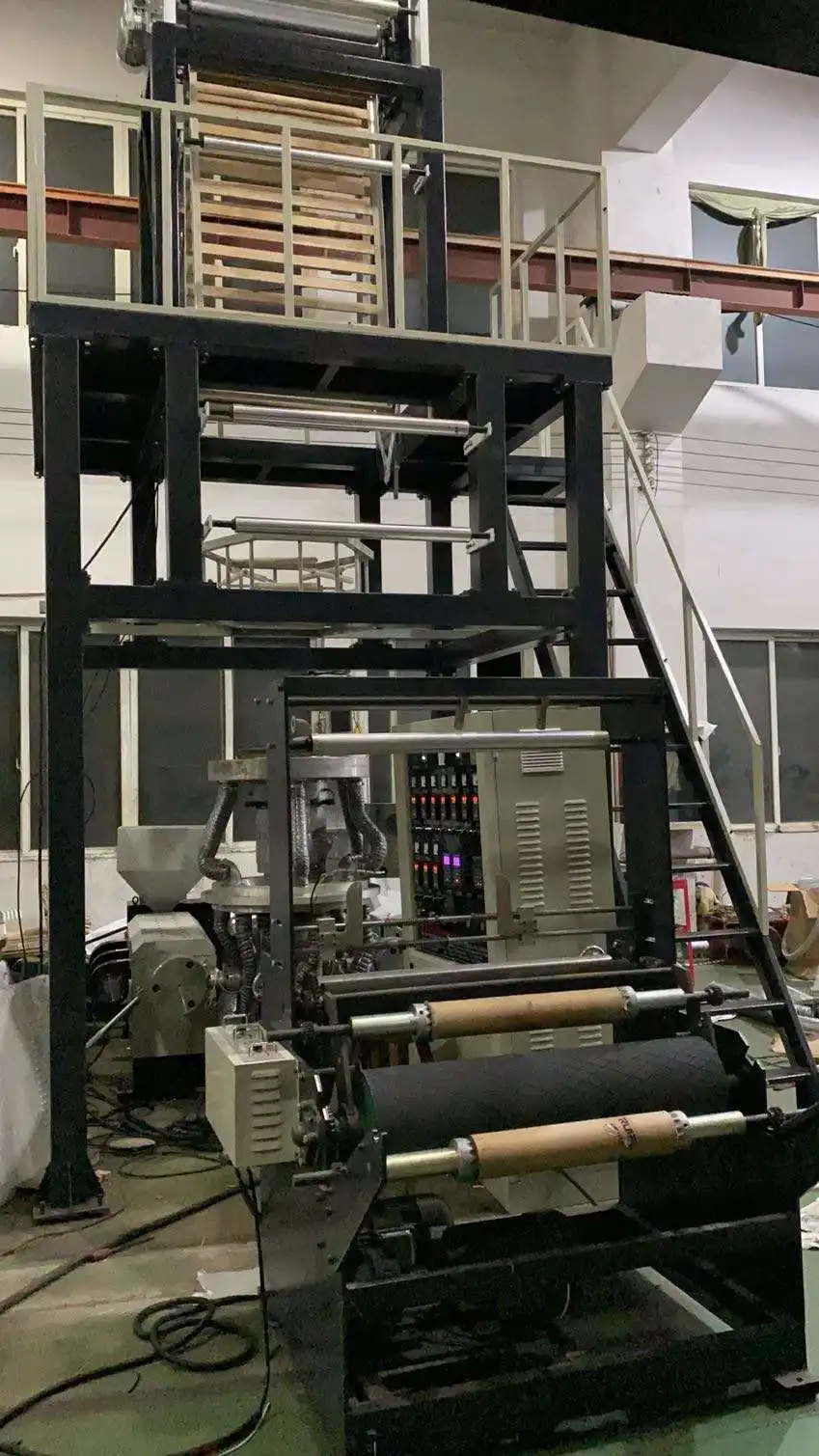

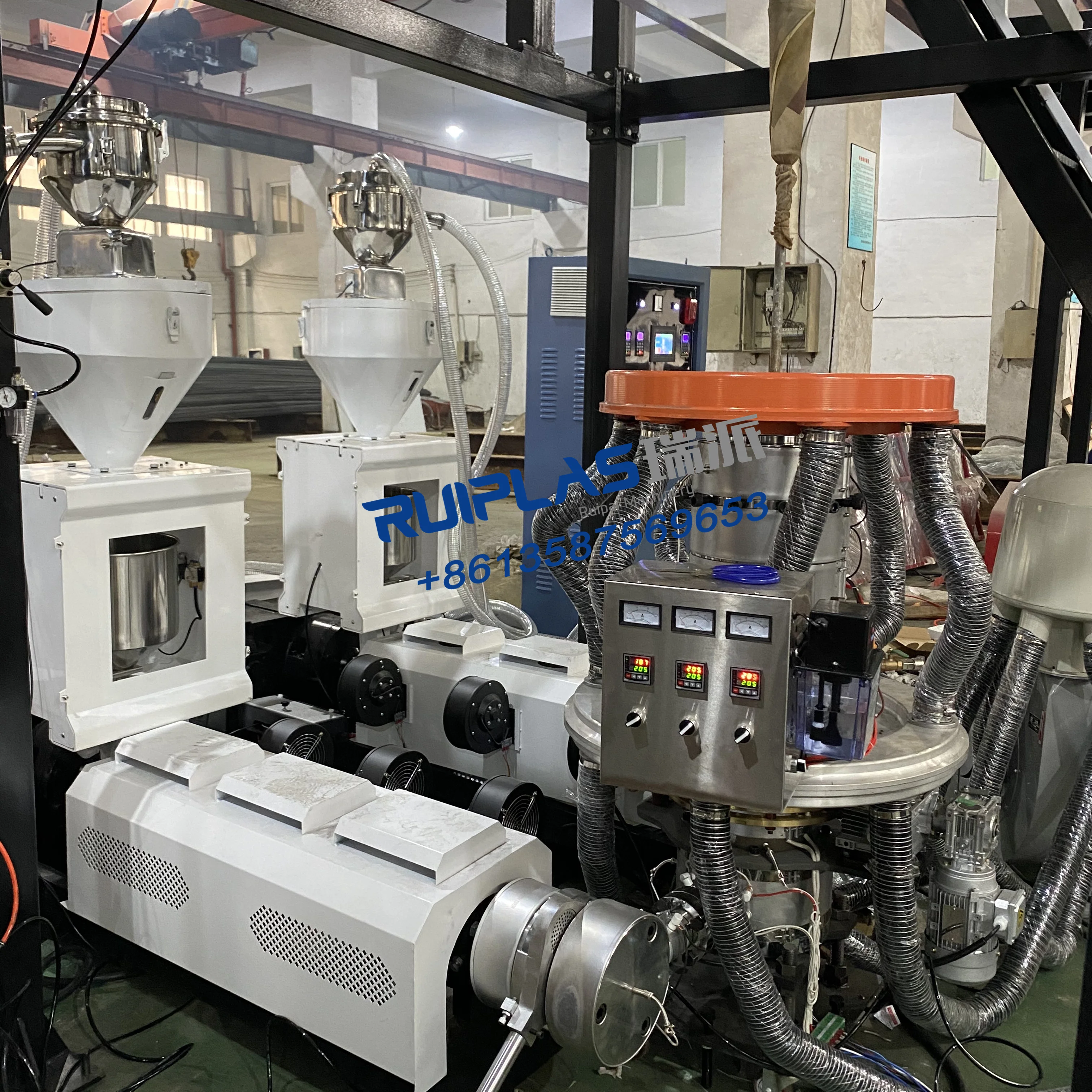

Double layer rotation die HDPE/LDPE/LLDPE/EVA/PBAT/PLA biodegradable price of plastic PE film extrusion machine
- Category: >>>
- Supplier: Ruian Ruipai Machinery Co. Ltd.
Share on (60084809372):
Product Overview
Description
Product Description
Specification
Specification | ||
Model | RP-ABA800 | |
Suitable material | HDPE | |
Reduced diameter of film(mm) | 200-800mm | |
Single-face Thickness of film(mm) | 0.006-0.08mm | |
Max. extrusion capacity | 80kg/h | |

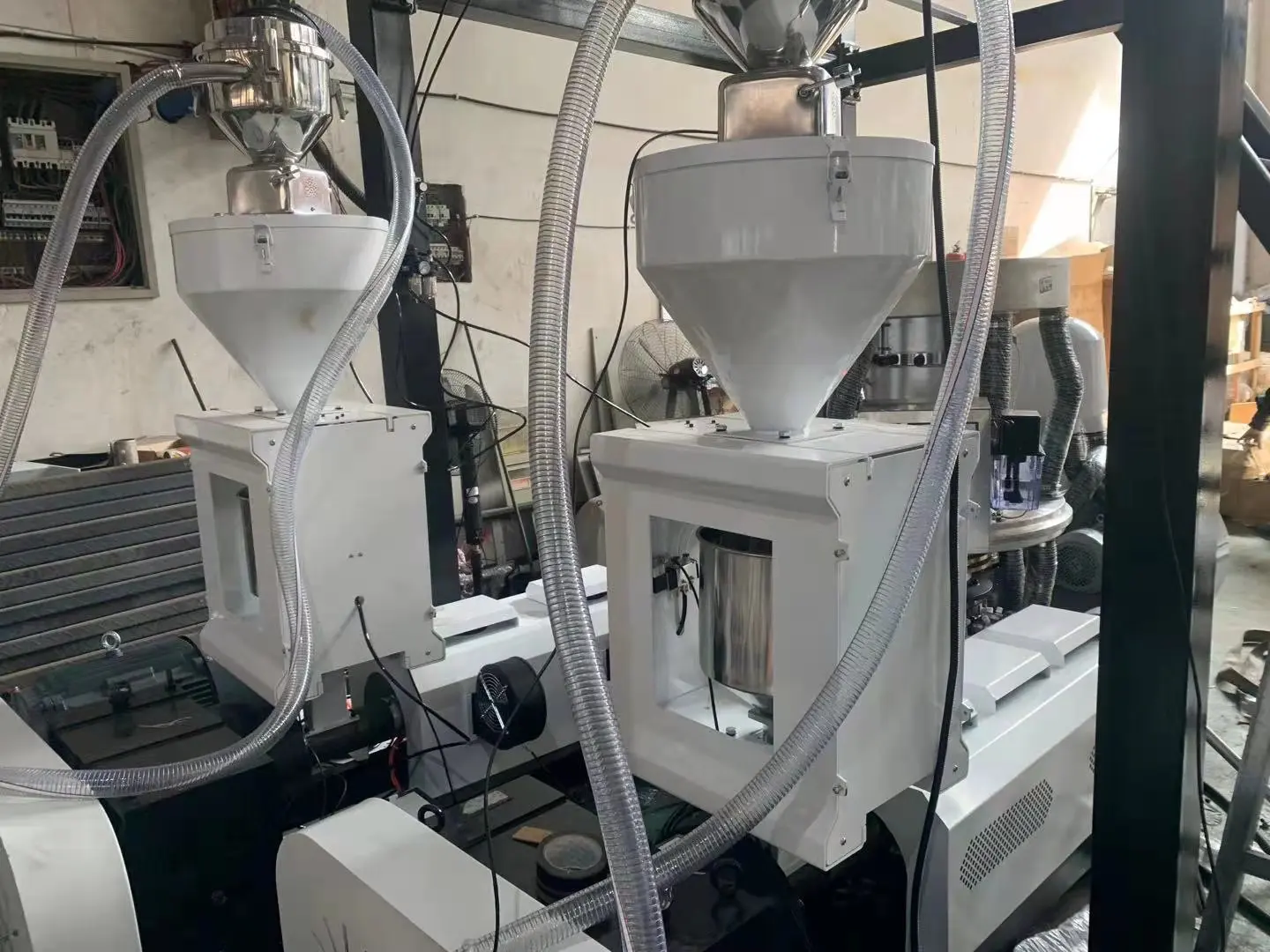

Extruder A | ||
Diameter of screw | 50MM | |
L/D | 30:1 | |
Cylinder material | 38CRMOALA | |
Screw material | 38CRMOALA | |
Screw Temperature control | 3 zone | |
Cooling fan | 240w×3 | |
Filter changer | Normal manual fast changer | |
Filter changer material | NO.45 steel | |
Main motor | 15kw | |
Inverter control | 15kw | |
Gearbox | 146, oil pump, water cooling type | |
Gearbox Ratio | 1:10 | |
Extruder B | ||
Diameter of screw | 50MM | |
L/D | 30:1 | |
Cylinder material | 38CRMOALA | |
Screw material | 38CRMOALA | |
Screw Temperature control | 3 | |
Cooling fan | 240w×3 | |
Filter changer | Normal manual fast changer | |
Filter changer material | NO.45 steel | |
Main motor | 15kw | |
Inverter control | 15kw | |
Gearbox | 146, oil pump, water cooling type | |
Gearbox ratio | 1:10 | |

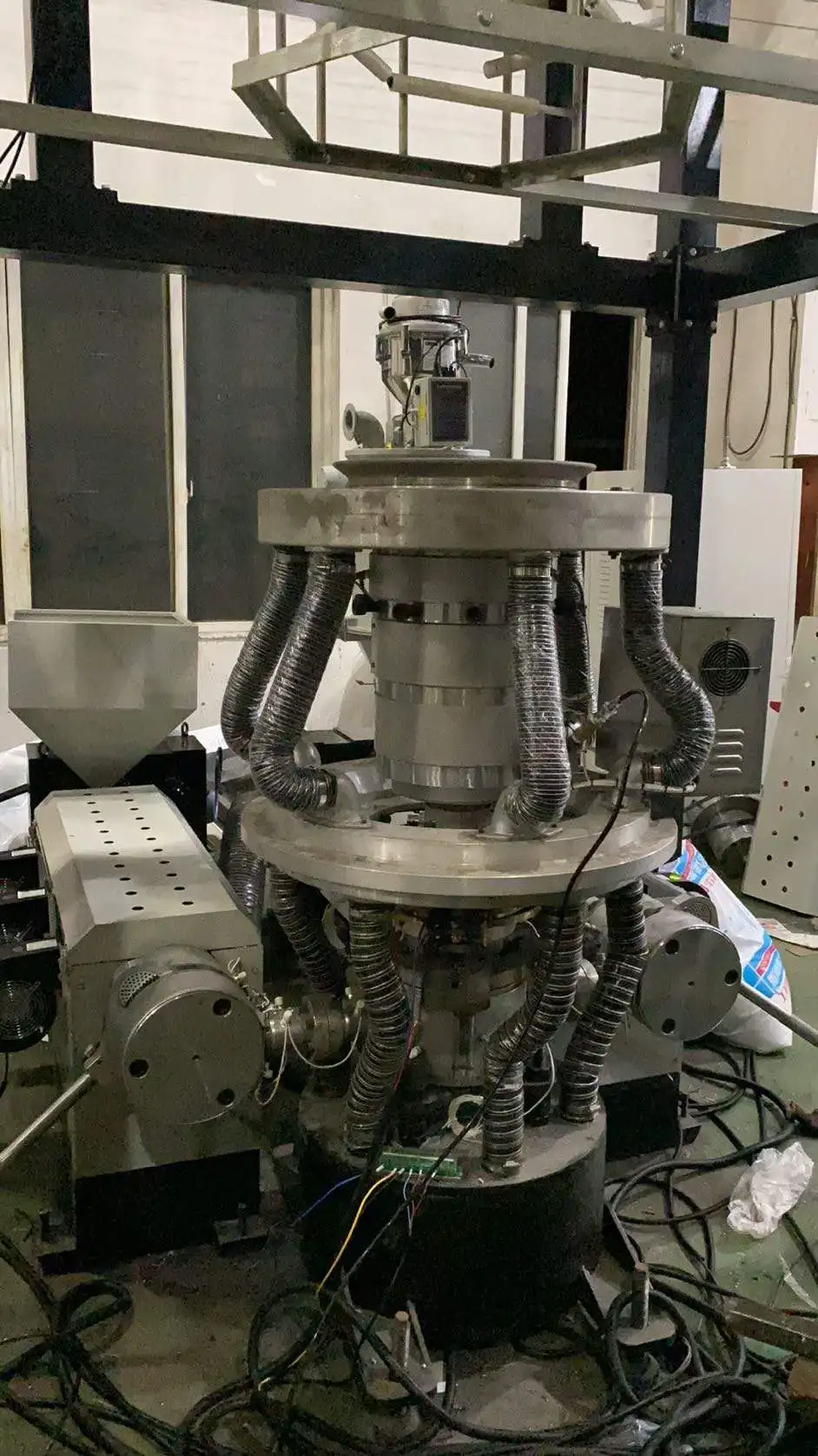

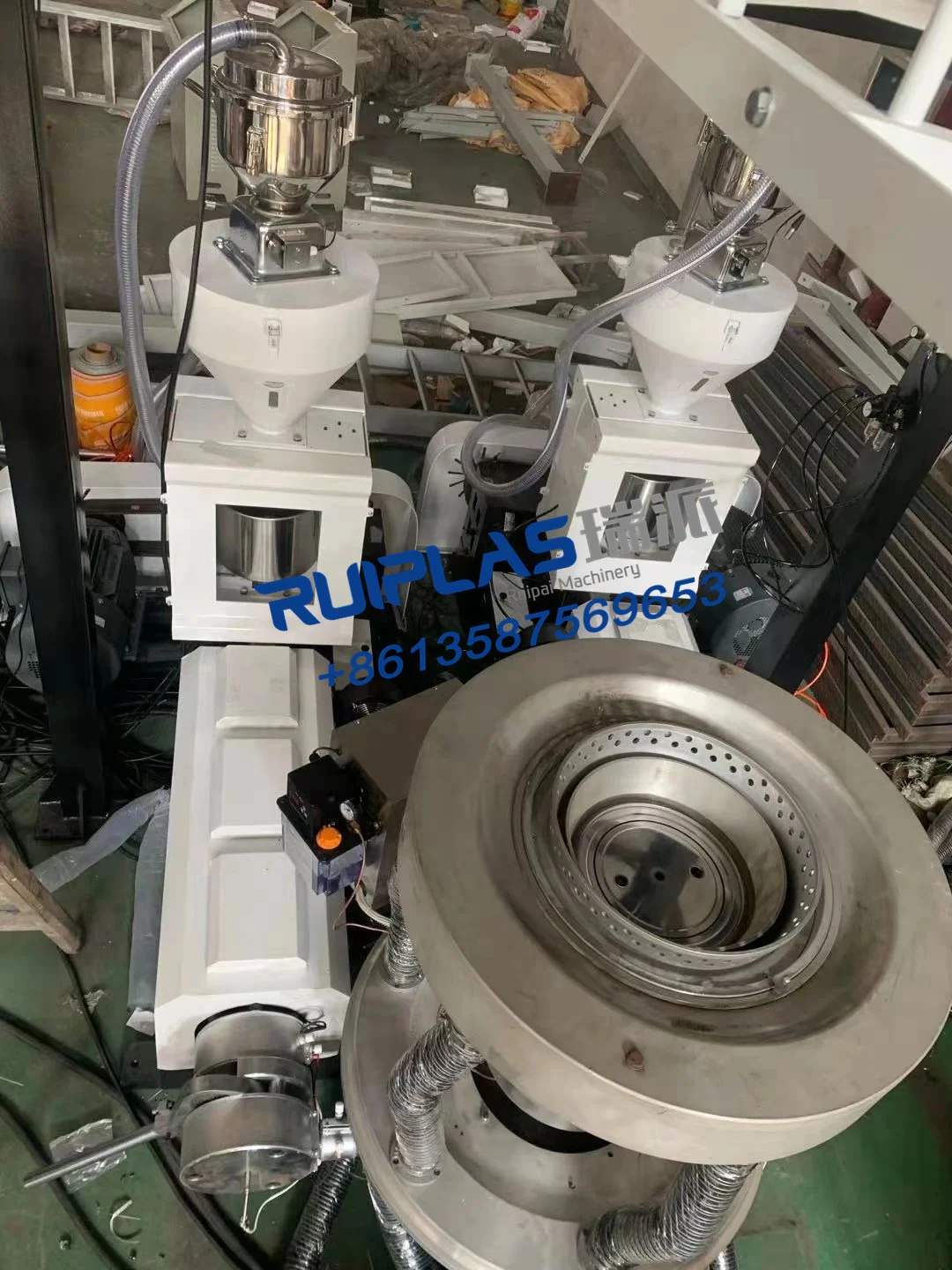

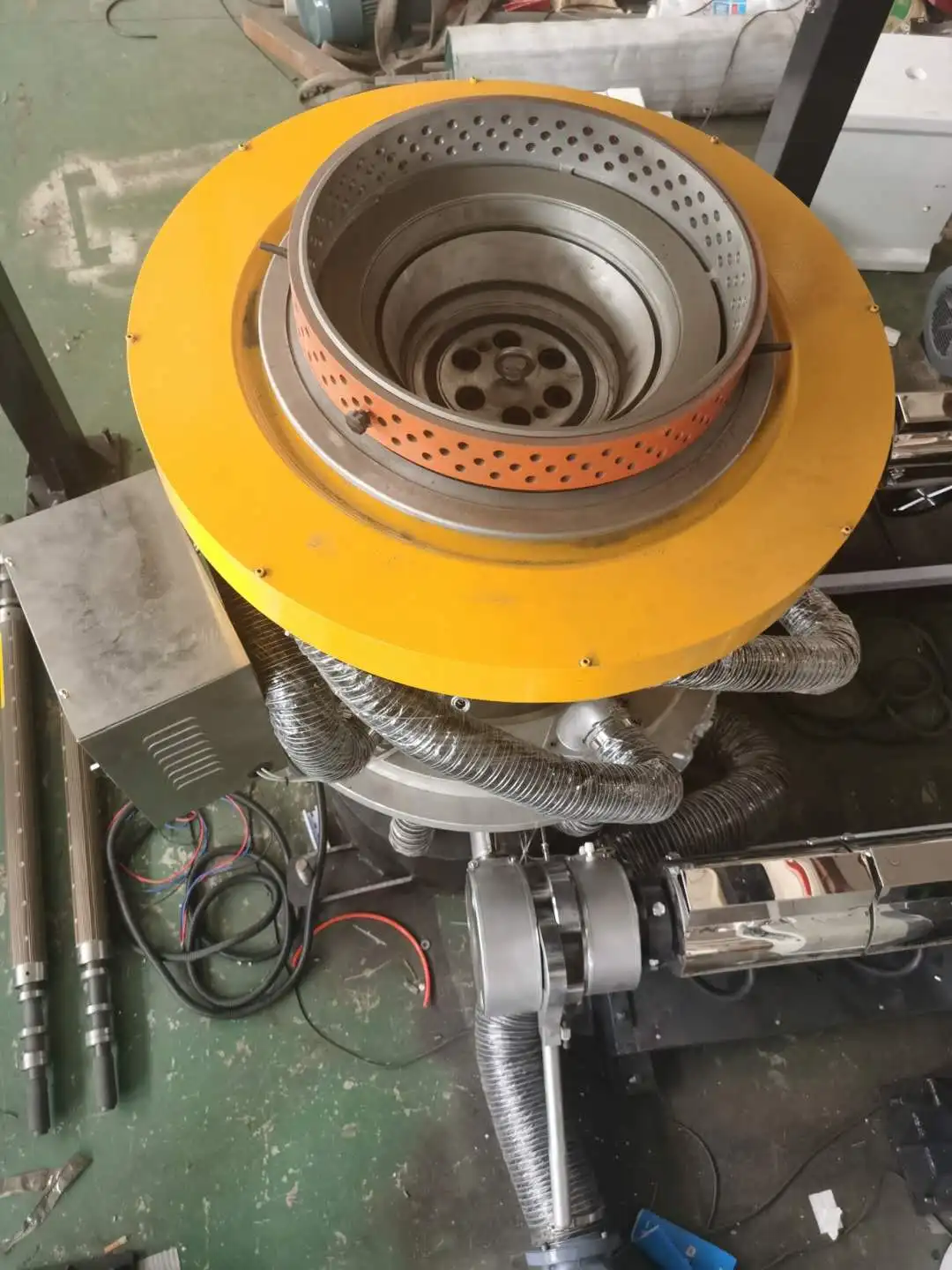

Die head | ||
Die size | HDPE:Φ70MM+Φ110MM as changeable | |
Die head rotation | Without | |
Die head material | 40 Cr | |
Die temperature control | 3 | |

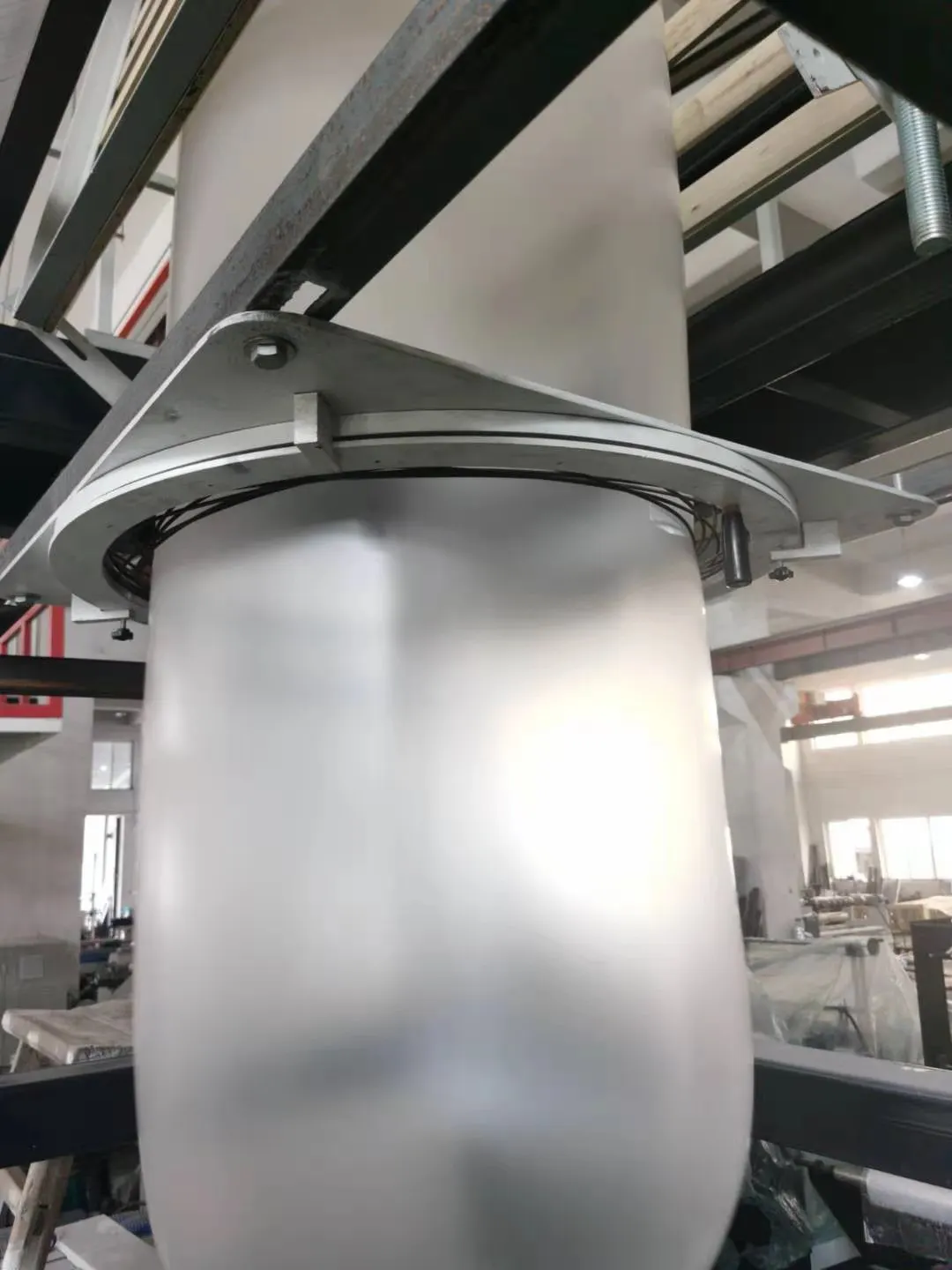

Air ring | Φ800 1set , double vent air ring | |
Heating Power(kw) | 30 | |
Air blower | 3.7kw | |

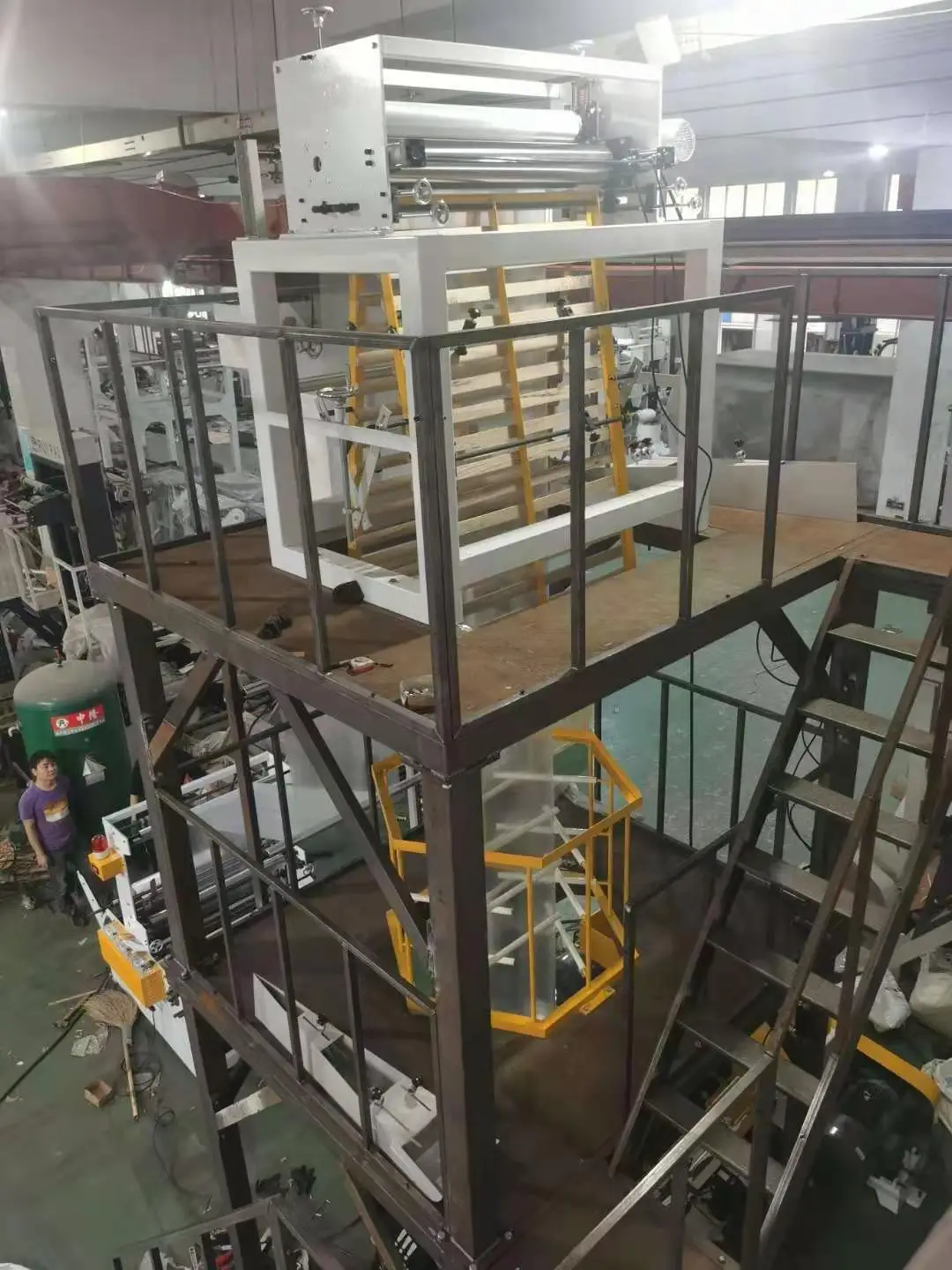

Take up | ||
Take up roller width | 165×900mm | |
Effective width | 900mm | |
Take up speed | 10-100m/min | |
Take up motor | 1.5kw | |
Take up control system | Pneumatic | |
Winder | ||
Winder type | Manual single winder | |
Winding motor | 10N.M , Torque motor | |
Winding speed | 100m/min | |
Second traction roller | Rubber roller+ steel roller | |
Second traction motor | 10N.M , torque motor | |
Outline diameter(L×W×H)(mm) | 5000×3800×5200 | |
Weight(T) | 4T | |

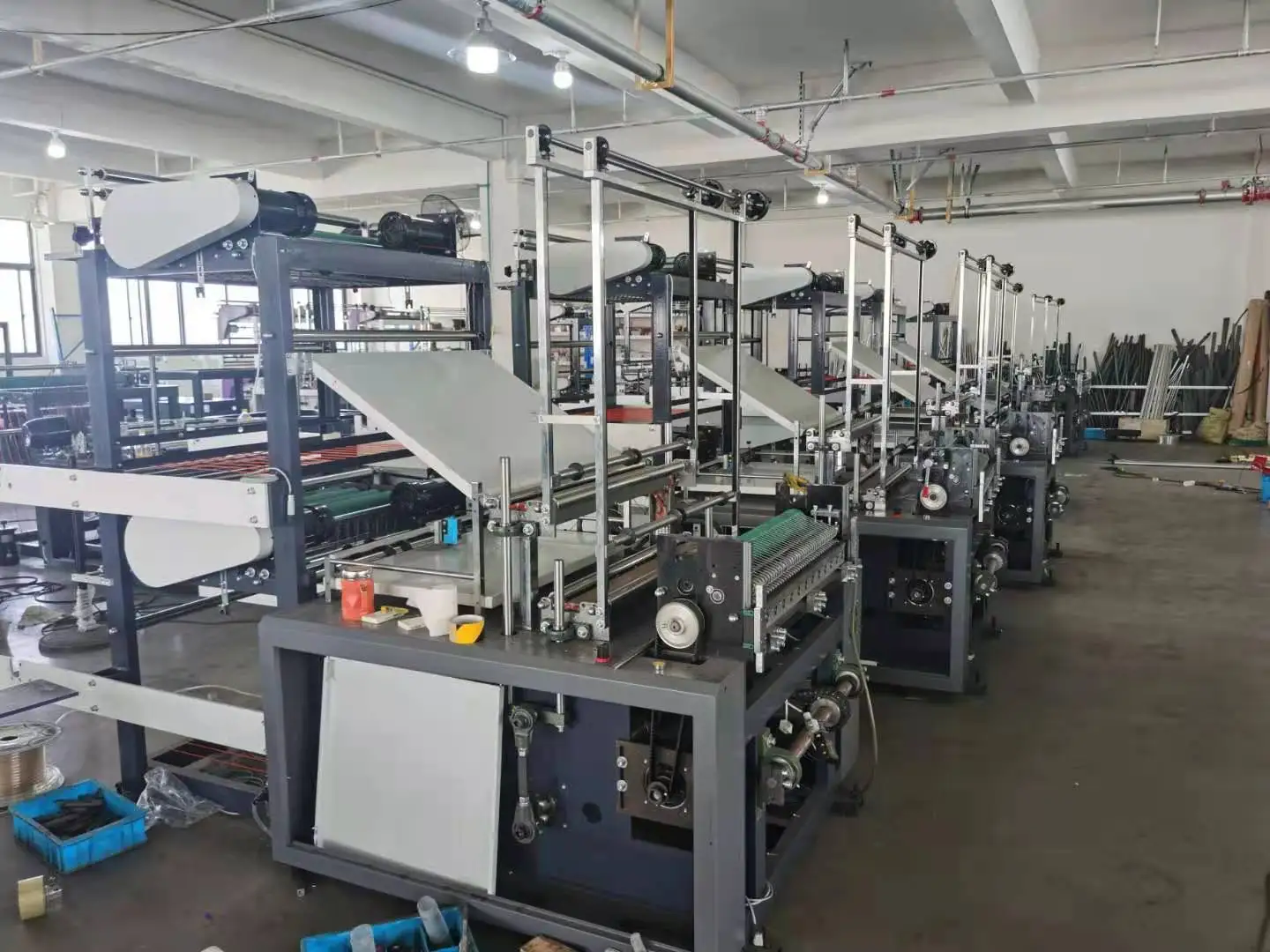

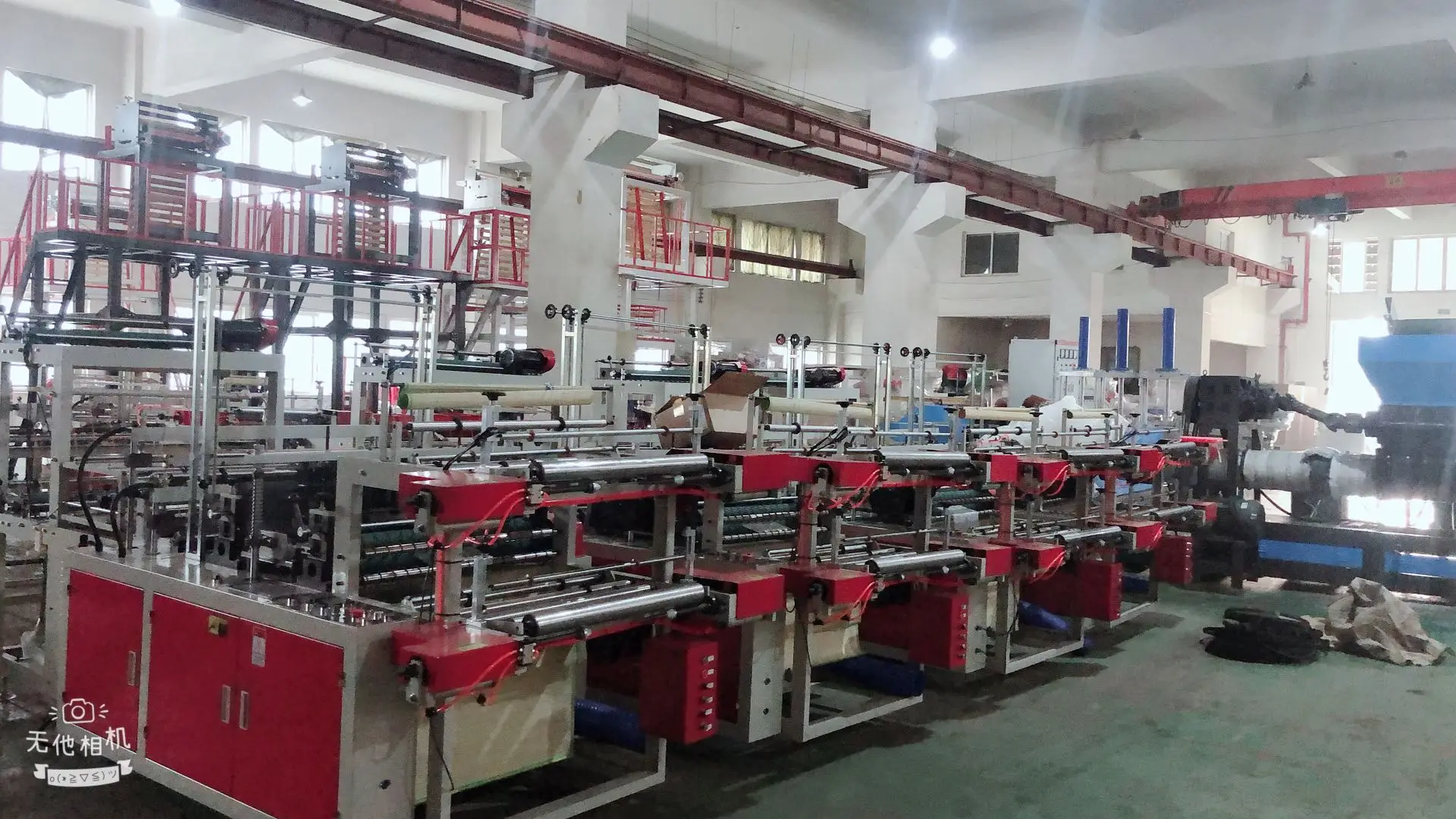

Company Profile
