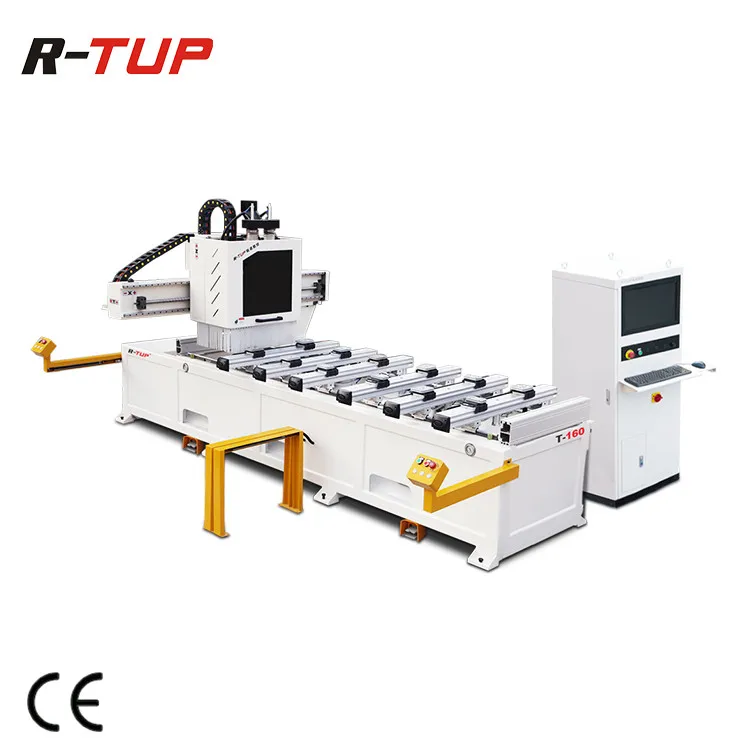

CNC Wood Boring Machine for Cabinet Making (PTP 260)
- Category: Wood Boring Machines >>>
- Supplier: Foshan Shunde Ruinuo CNC Equipment Co. Ltd.
Share on (60085087221):
Product Overview
Description
Product Description
| NO. | Machinical Specifications | Parameter | |
| 1 | Working range | X-axis: | 1200mm |
| Y-axis: | 3300mm | ||
| 2 | Min working size | ＞80mm | |
| 3 | Machine Precision | Processing Precision | ±0.05MM |
| Repeat positioning | ±0.01MM | ||
| 4 | Machine Speed | Max. Traverse Speed | 75m/min |
| Max. working Speed | 35m/min | ||

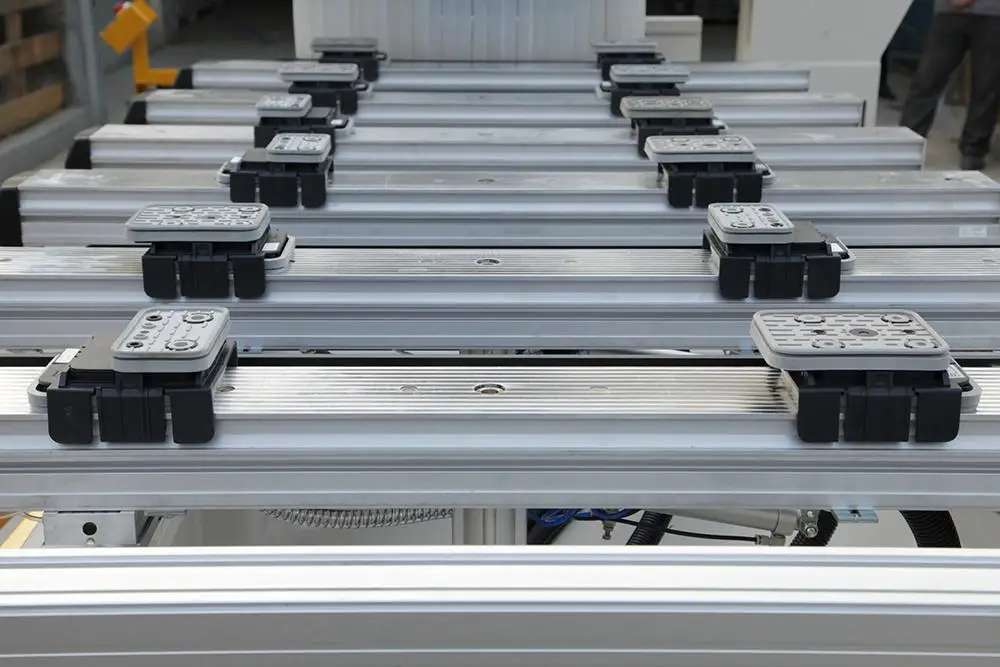

| 5 | machine structure | work table | 1270*1550mm moveable 6 Group（Two vacuum sucker for each group） |
| X/Y/Z axis | X/Y axis：Oblique Rack Gear | ||
| Zaxis：Ball Screw | |||
| 6 | Speed | Y axis speed | 60m/min |

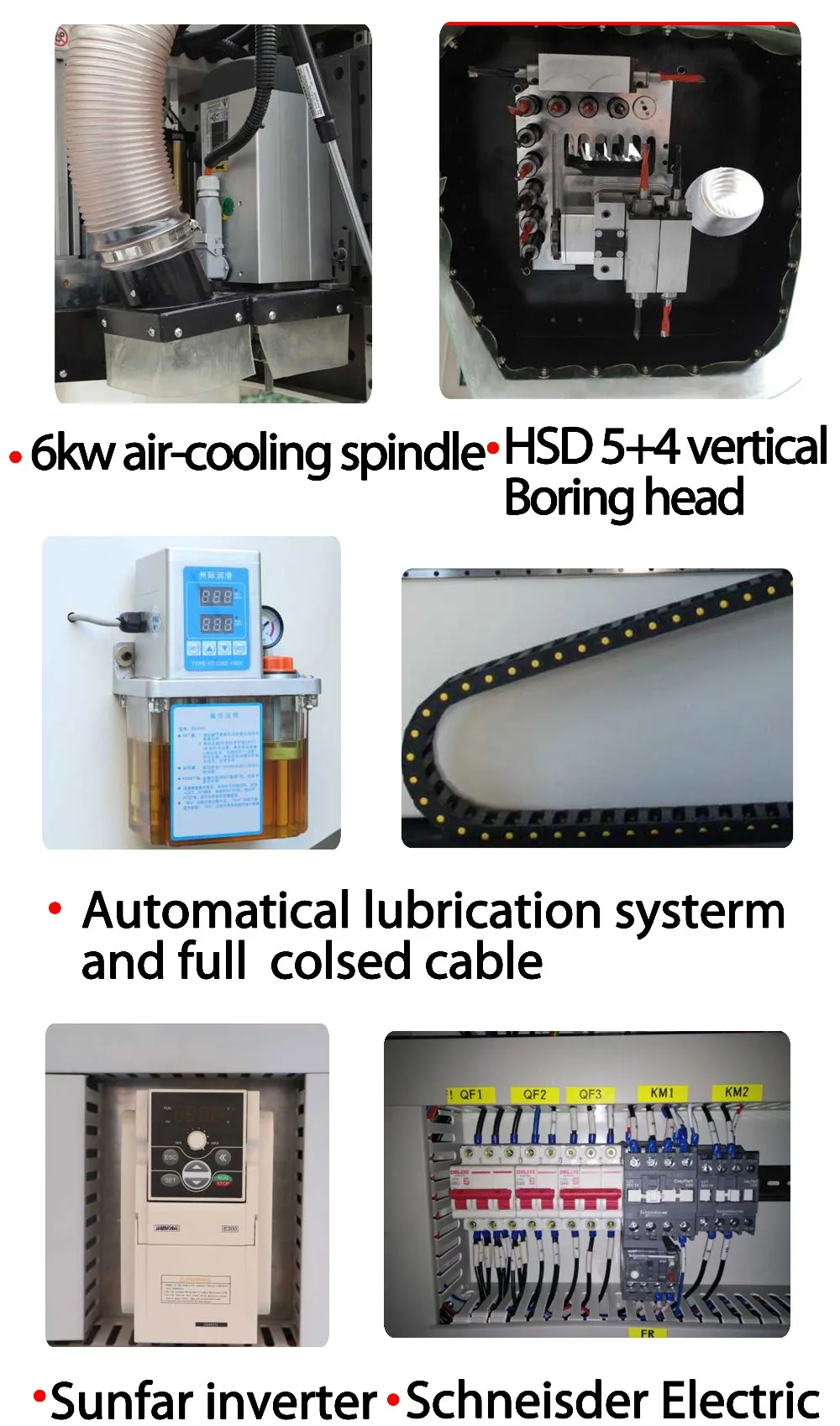

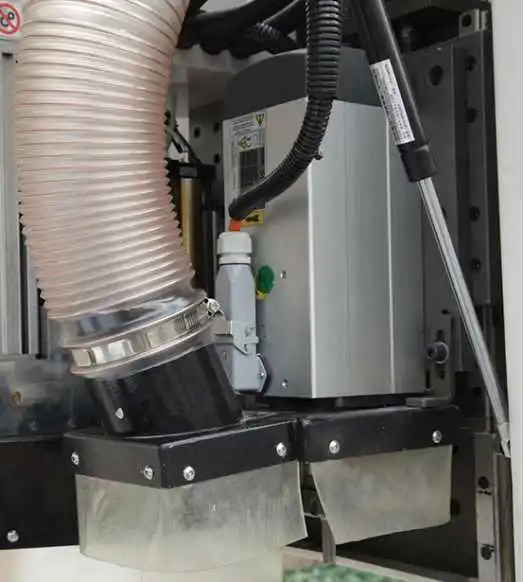

| 7 | Main spindle | Quantity | 1 |
| Power | 9KW | ||
| Rotating speed | 24000 rpm | ||

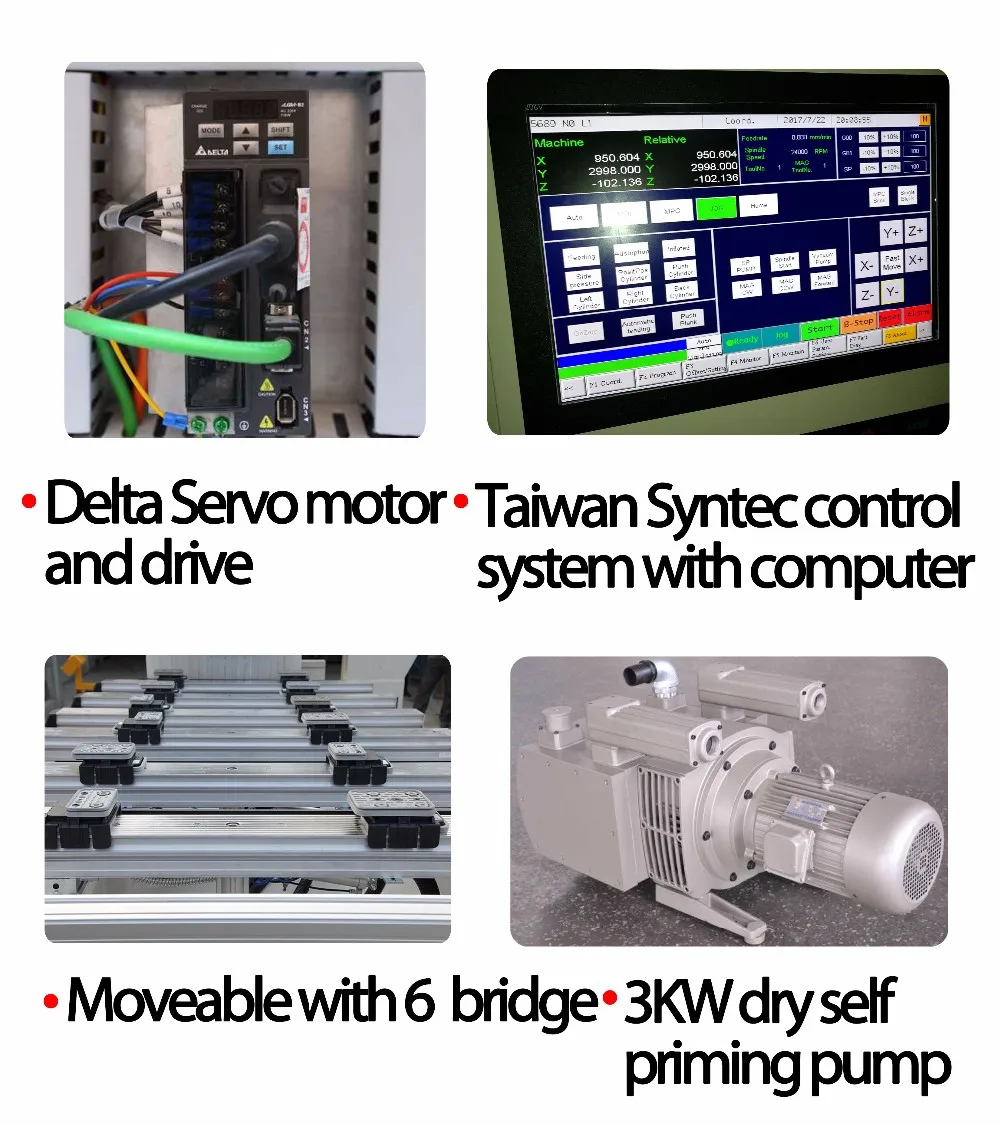

| 8 | Drive system | servo motor and driver | |

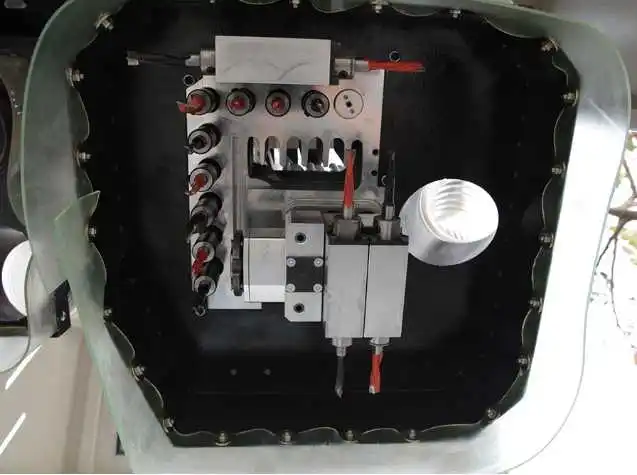

| 9 | Driil unit | Quantity | 9 vertical, 6 horizontal ,1 saw |
| Power | 2HP | ||
| Spin speed | 5400RPM | ||

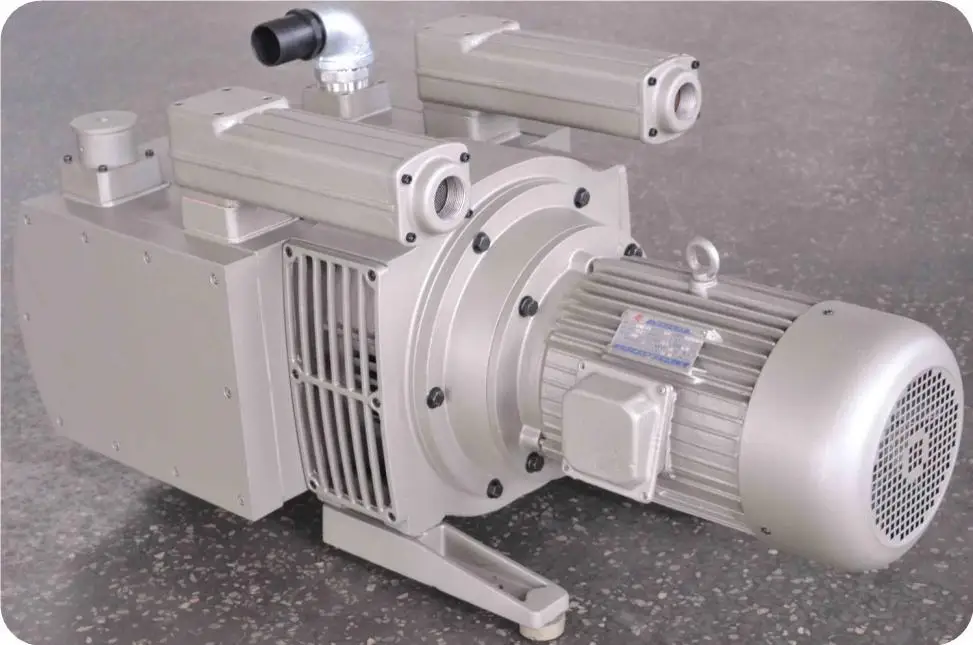

| 10 | Vacuum pump | Working principle | AIR |
| Quantity | 1 | ||
| Power | 3KW | ||
| Suction flow rate | 160 m³/h | ||

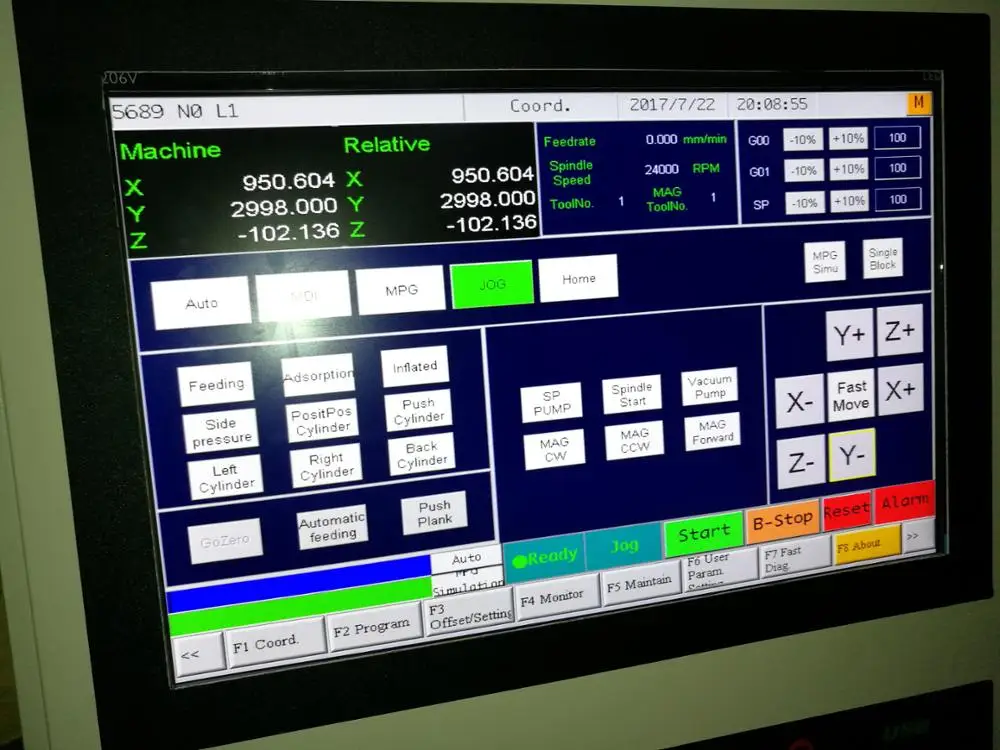

| 11 | control system | Syntec control systerm | |
| 12 | Power supply | Voltage: 380V, 3-phase, Frequency: 50 Hz | |
| 13 | Software | Jdpaint, powermill, Artcam, Alphacam, Type 3, etc. | |
| CAD/CAM software compatible, identify G code, *.NC. | |||
| 14 | Packing size | 3300x4700x2000mm | |
| 15 | Net weight | 3000kg | |
Related products
Production Process
About RUINUO
Stories of success
Package&Shipping
FAQ
1. What kinds of processing can the CNC router do?
A: The CNC Router can be used in cutting, milling, grinding, planning, drilling, engraving etc., especially for
abnormal shape’s cutting.
2.What kinds of materials can the CNC router work on?
A: It can work on a lot of different materials besides kinds of wooden materials, such as acryl,
light guide, diffusion board, PVC, ABS PF, PE, PU, Fiber glass, man-made stone, compact grade
laminate board, Bakelite, aluminum profile, cooper plates etc.. For different materials, we have corresponding machines for choices.
3.Guarantee & After-sale Service
A..12 Months warranty under normal use and lifelong maintenance we supply
B..24 hours technical support by phone, email and other online contact.
C..Free training on machine operation, daily maintenance etc. in seller’s factory.
D..We can send engineer go to overseas training
4.Delivery Time
Usually, for normal model, within 15 -20 days after get the deposit
5. Payment Terms
A.T/T in advance
B.L/C is allowed if the amount is big. Please issue the L/C draft for our configuration first.
C.Other kinds of payment we can consider if acceptable for us
Dear, in order to recommend the best suitable machine with the best quality and price for you, please kindly contact me with below questions, our professional services will satisfy you!
1. what is you product?
2. what is the material of you product, and the size( length/width/thickness)?
3. what do you want to do on your product, cutting, drilling, milling, evgraving etc.?
4.what is the working area do you want?
5. do you have any other technical requirements? the more the better.
if you can provide some pictures of your products,that would be great!
Welcome to visit our factory, we can arrange pickup. our factory is located in Lunjiao town, Shunde District Foshan City,
1 hour drive from Guangzhou airport
30 minutes drive from Lecong international furniture town
20 minutes drive from Leliu furniture hardware town
40 minutes drive from Foshan building material town
