single girder workshop crane 10 ton overhead travelling crane

Product Overview

Description

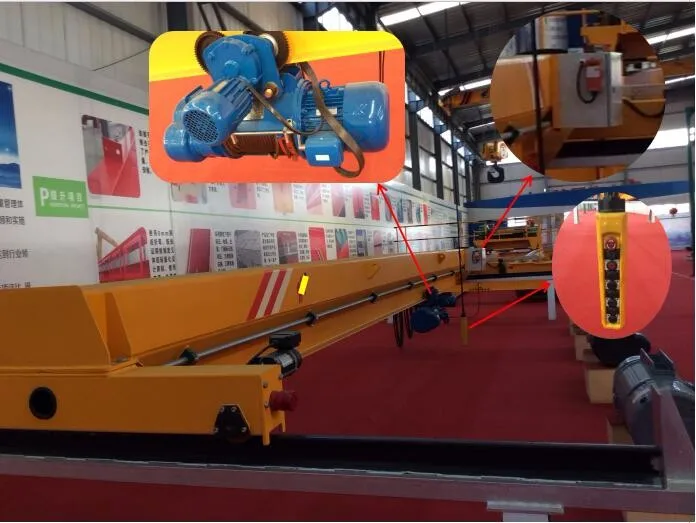

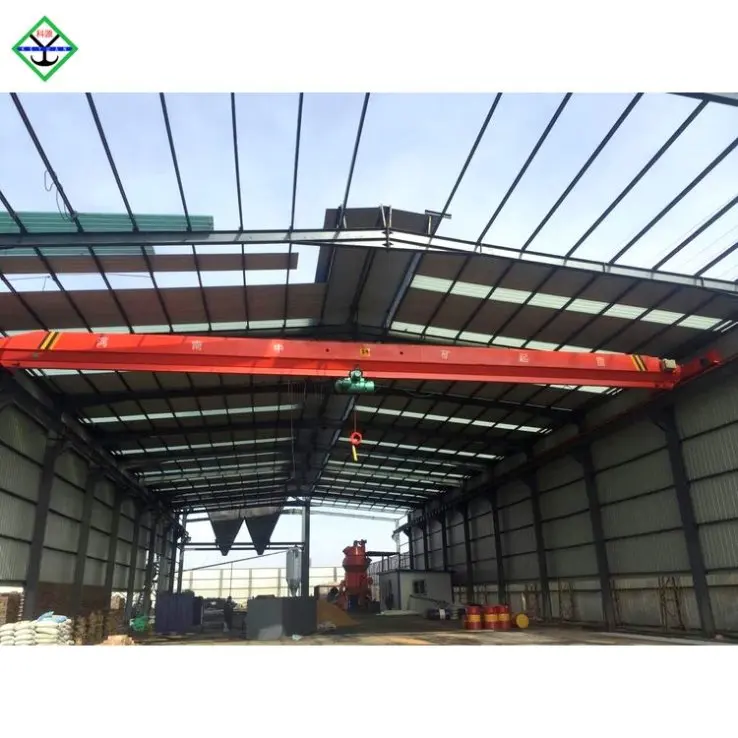

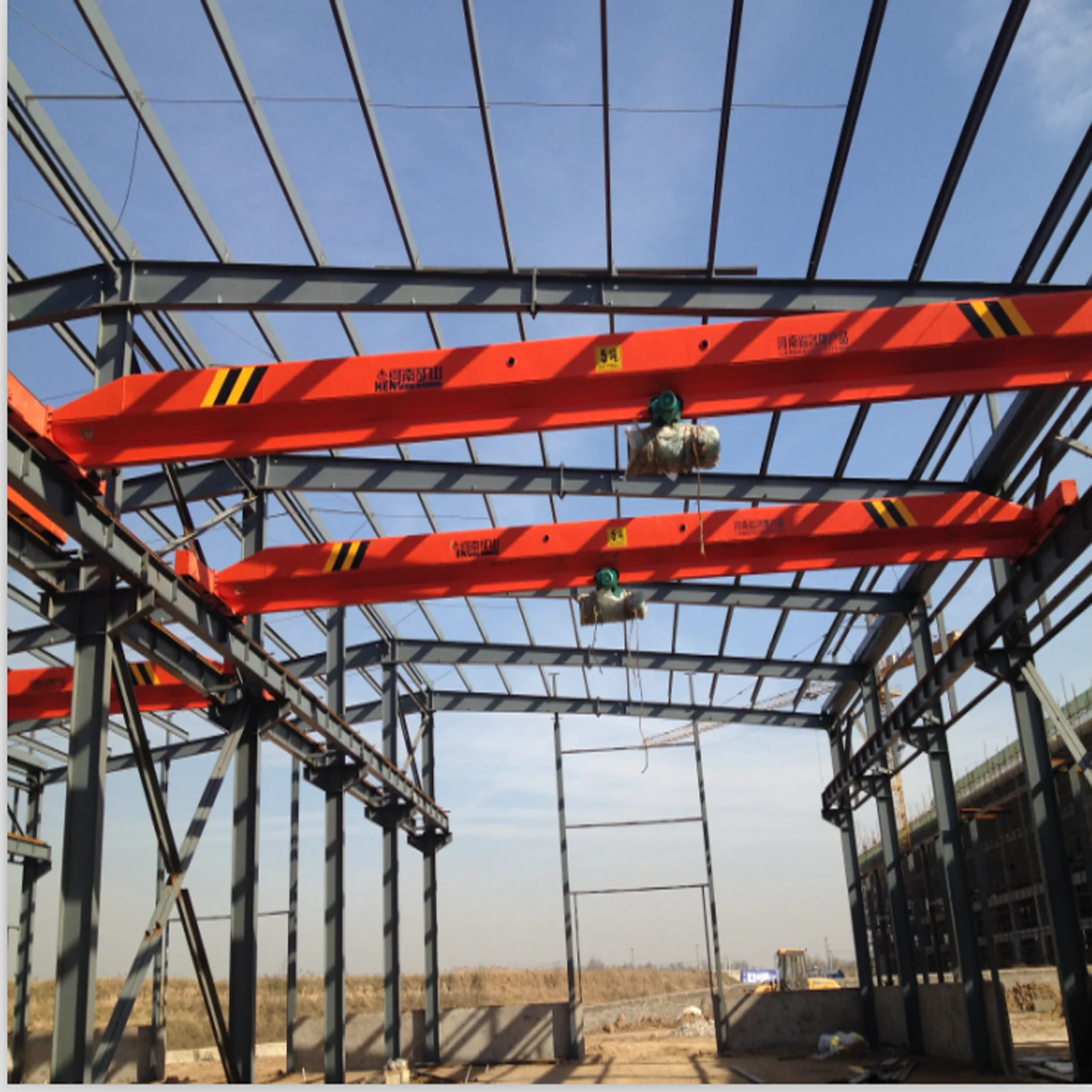

      LDA  Single girder overhead  crane



overhead crane  warning light/wiring diagram  price

Widely used heavy duty light weight overhead crane is used when heavier loads,wider spans or higer working frequency are required.  This kind of crane is widely used in plant, workshop and warehouse for material lifting and moving.





Safety Features	Advantages
Emergency stop system Limit Switch for Lifting Limit Switch for Travelling Overload protect device High quality buffer Current overload protect device Voltage Lost protect device	Push button of control: the life can reach 200000 times. Electrical adapt as Chint, SIMENS, or Schneider. Motor Choose China best motor brand: Nanjing special motor. Soft start motor make the traveling smoothly. Brake from Jiaozuo brake factory, China best brand. LYC bearings which is serve for the the Shenzhou spacecraft



No.	Item	No.	Item
1	Limit Switch	1	Short-circuit protection
2	Interlock protection device	2	Uner-voltage protection
3	Buffer	3	Zero protection
4	Rail tongs,Anchor device	4	Motor overhead protection
5	Rail clear plate	5	Emergency stop system
6	Protective cover	6	Current overhead protection

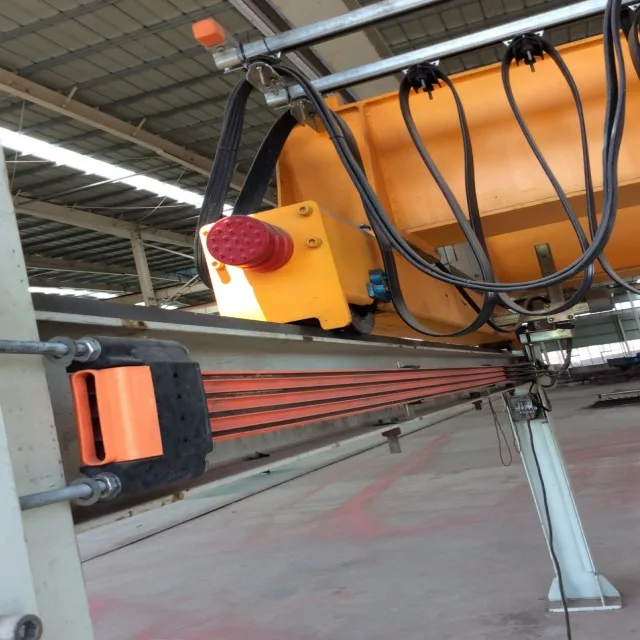

7	Bus bar preventer plate	7	Security chain protection
8	Anti-collision device	8	Ground protection

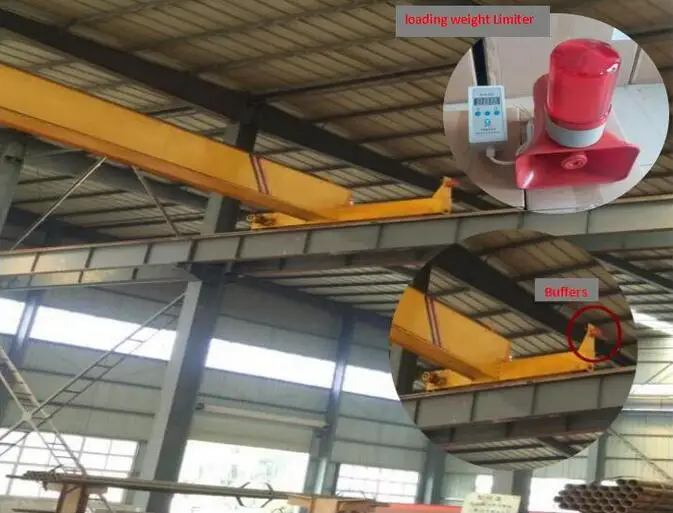

9	Overhead Limiter	9	Main isolating switch

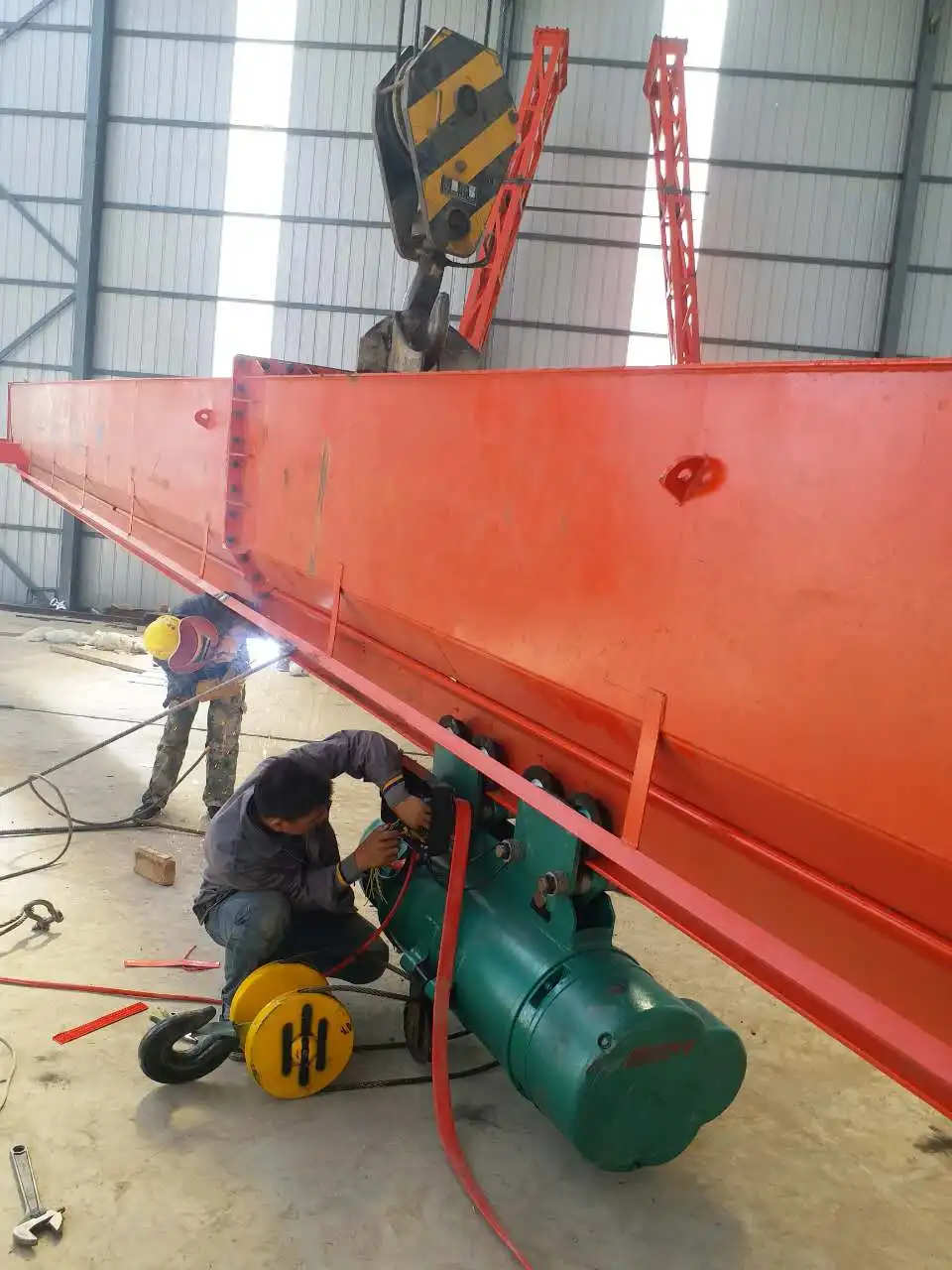

Main Girder and Carrier beams

Sand Blasting treatment for steel plate. Robot welder and top level welder do the welding make sure the whole body very strong and beautiful! Third times Primary Paint for whole structure. Final Paint the color is depend on cutomer's.













Technical date (1-10 ton electric single girder bridge crane)

Crane traveling mechanism	Traveling speed m/min		20	30	45	60	75
	Speed rate		58.78	39.38	26.38	19.37	15.88
	Motor	Model	ZDY21-4			ZDR12-4
		Power  kw	2*0.8			2*1.5
		Rotation speed	1380

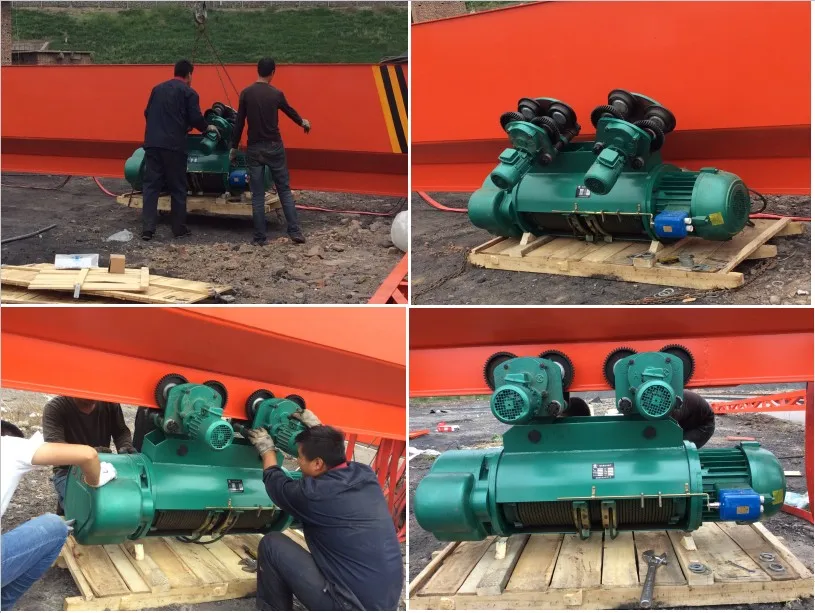

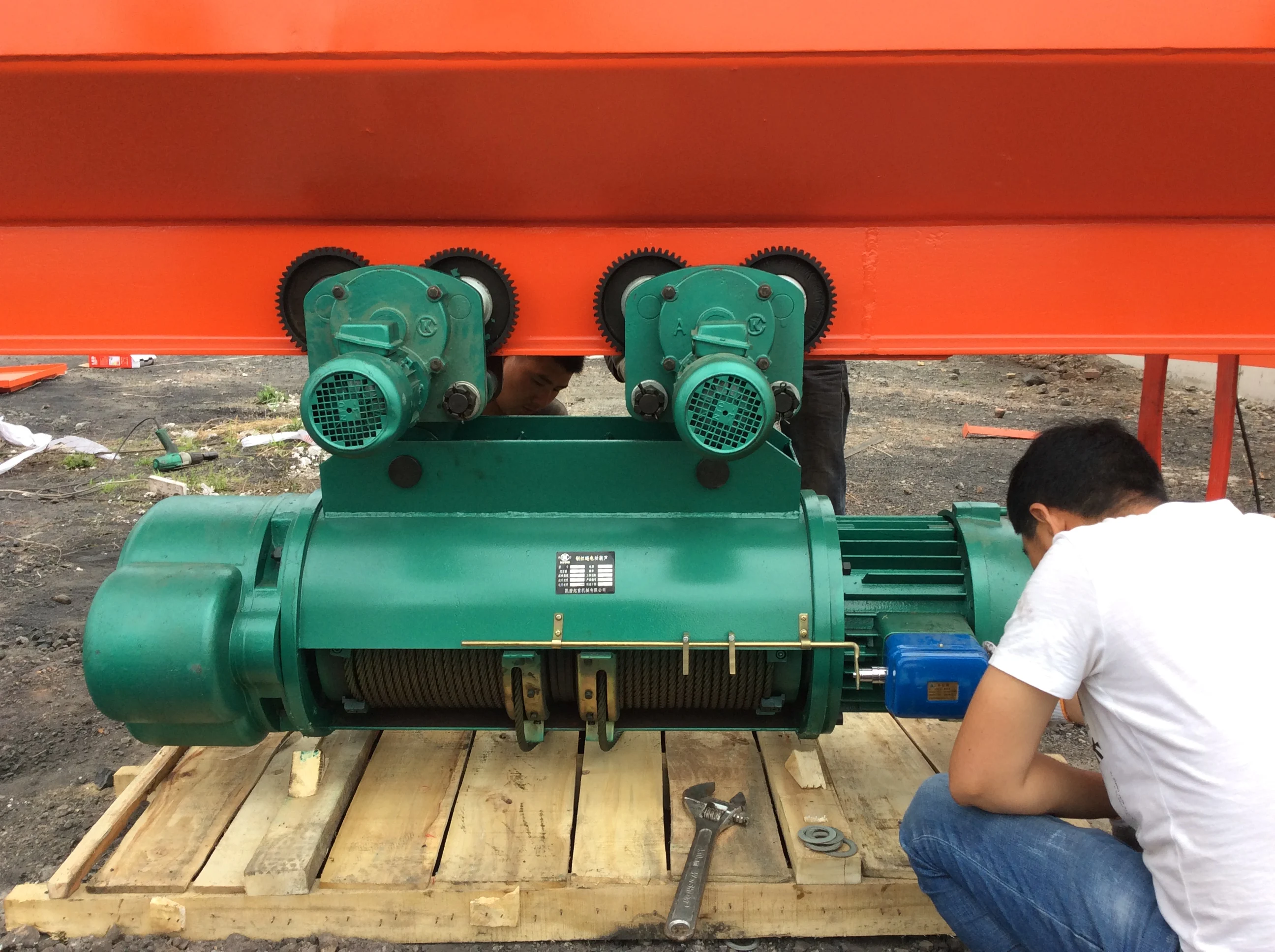

Lifting mechanism (electric hoist )	Model of electric hoist		CD1                                                                       MD1
	Lifting speed           m/min		8                                                                           0.8/8
	Lifting height           m		6.9.12.18.24.30
Trolley traveling	Traveling speed      m/min		20/30
	Model of  traveling motor		Taper  sqirrel-cage
Working duty	A3-A5
Power supply	3ph  380v 50hz
Wheel diameter   mm	270 mm
Track surface width	37-70mm









Installation Service

:Our engineer to site for installation,  customers need to supply the VISA,Round trip tickets,  accommodation and meals for them, and pay USD$150/day for each person.









Refer  product







Our addvantage :
Customizing according to every client .
Our cranes are exported to all over the world
Double girder overhead crane in Hongkong,Bangladesh,Tunisia ,Saudi Arabia,in Uzbekistan,
JIb crane project in Australia ,Hungary,Bahrain
Single girder overhead crane in USA ,India ,Kazakhstan,Malta
Lifting equipment in Pero ,Ireland,Holland ,Malta ,Singapore,Philippines,Argentina,Paskistan ,in Georgia
Cast heavy duty double bridge crane in Bangladesh . in Georgia
Crane parts in Saudi Arabia ,Indonesia,Vietnam,UAE ,
Gantry crane project in indonesia
