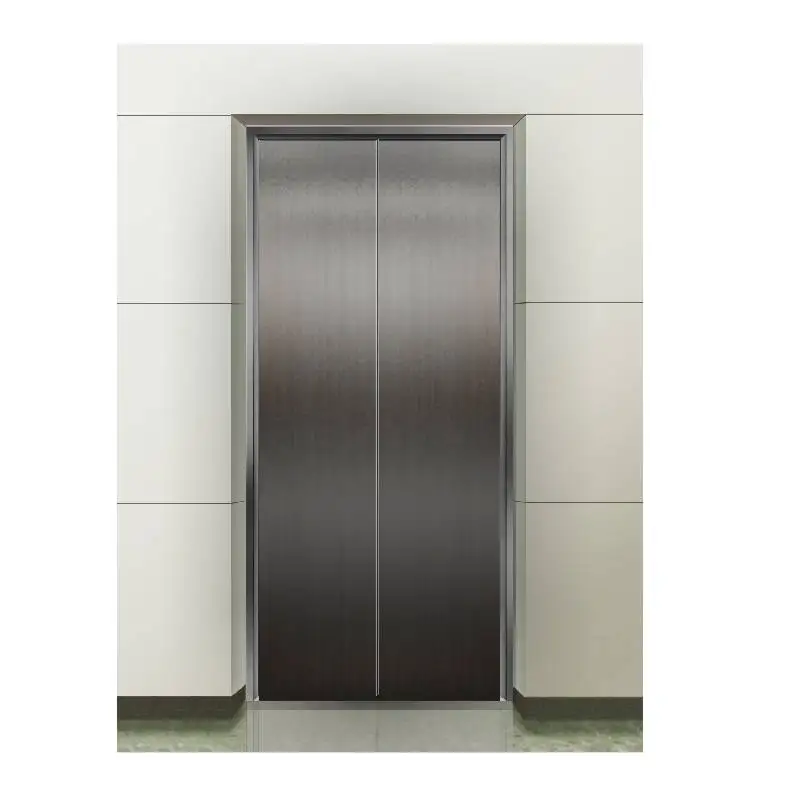

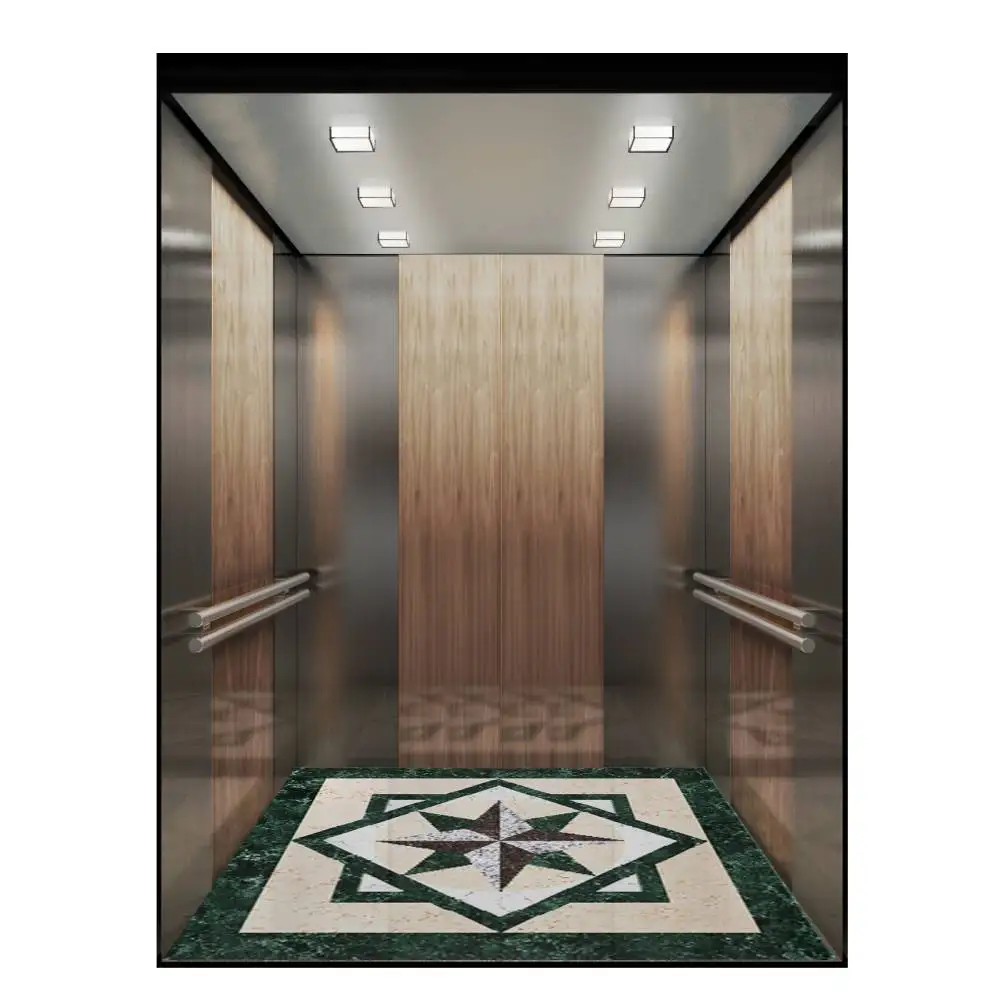

SRH MRL Passenger elevator for hotels and office buildings
- Category: >>>
- Supplier: Sicher Elevator Co. Ltd.
Share on (60085562539):
Product Overview
Description
Products Description
GRPN20

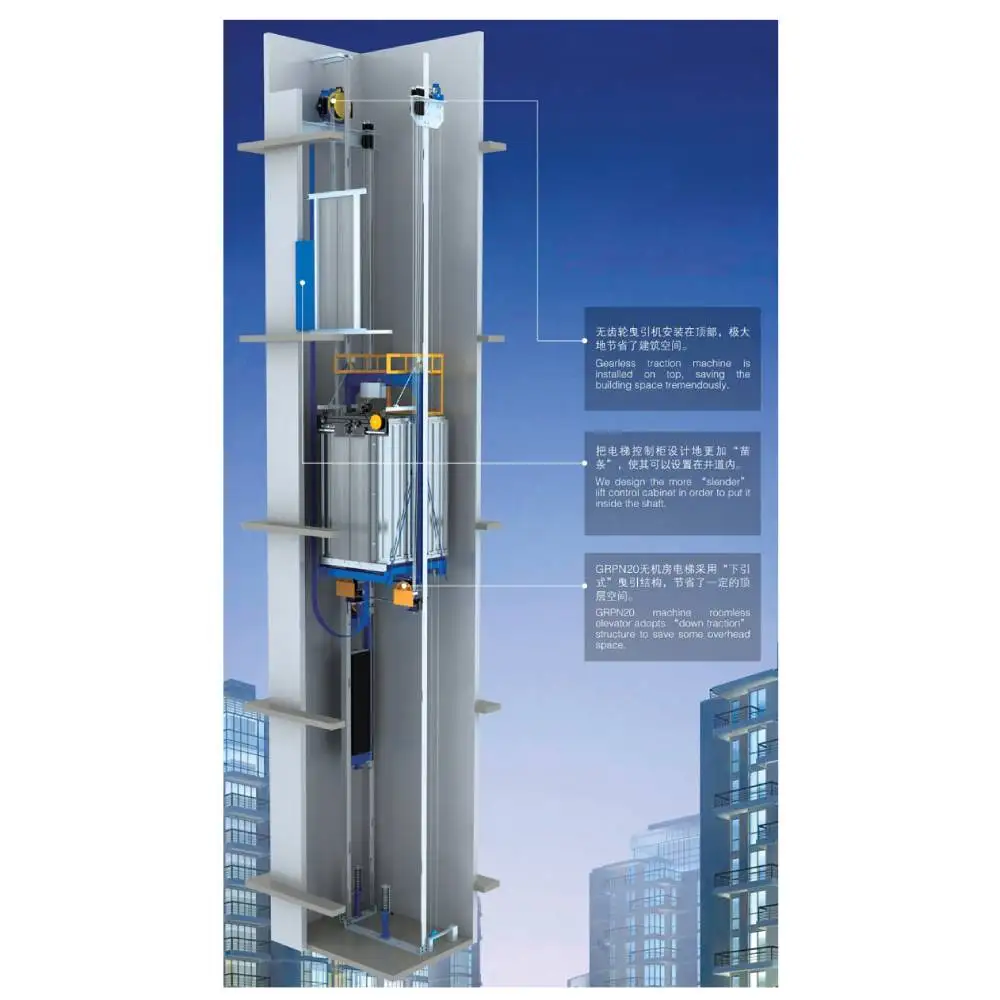

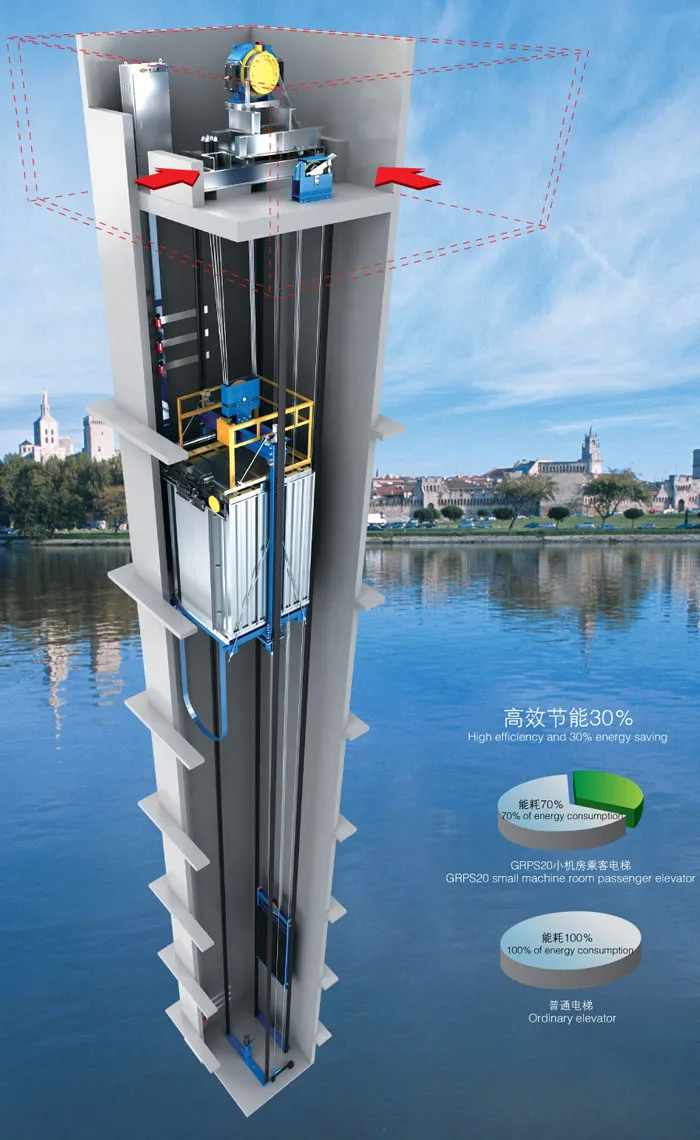

Machine roomless passenger elevator
SRH GRPN20 machine roomless passenger elevator breaks through the premise that every elevator needs to have a machine room.It
offers an infinitely inventive possibility for the limited space in the modern constructions.
offers an infinitely inventive possibility for the limited space in the modern constructions.
Feature:
1.Efficient and 30% energy saving;
2.Humanized design, comfort and natural;
3.Double VVVF driver , stable and reliable;
4.Green environmental, automatic lighting of LED energy-saving lamp;
5.Low noise;
6.Top advance door operator system;
7.Remote monitor can follow commands from a long distance away;
8.Photocell protection.
1.Efficient and 30% energy saving;
2.Humanized design, comfort and natural;
3.Double VVVF driver , stable and reliable;
4.Green environmental, automatic lighting of LED energy-saving lamp;
5.Low noise;
6.Top advance door operator system;
7.Remote monitor can follow commands from a long distance away;
8.Photocell protection.
Functions
Standard Function | ||
Travel function | VVVF drive | |
VVVF door operator | ||
Independent running | ||
Automatic pass without stop | ||
Car Stops and door open | ||
Command register cancel | ||
Direct parking | ||
Safety function | Photecell protection | |
Designated stop | ||
Overload holding stop | ||
Anti-stall timer protection | ||
Start protection control | ||
Fault self-diagnosis | ||
Up/down over-run and final limit protection | ||
Down over-speed protection device | ||
Upward over-speed protection device | ||
Braking force self-detection function | ||
Steel rope slipping self-detection | ||
Balance system self-learning | ||
Emergency function | Emergency car lighting | |
Inching running | ||
Five way intercom | ||
Fire emergency return | ||
Man-machine interface | Micro-touch button for car call and hall call | |
Floor and direction indicatior inside car | ||
Floor and direction indicator in hall | ||
Car arrival Gong | ||
Energy-saving function | Car ventilation, light automatic shut off | |
LED Green lighting | ||
Optional Function | ||
Travel Function | Anit-nuisance | |
Open the door in advance | ||
Group control function | ||
Duplex control | ||
Door opening re-leveling | ||
Safety function | Absolut-Location Positioning system | |
Caution pinch function | ||
3D door proctection function | ||
Unitended car movement protection | ||
Man-machine interface | Voice announcer | |
The second operation box | ||
Operation box for handicapped | ||
IC card control function | ||
Voice calm function | ||
Mobile calling function | ||
Monitor function | Camera function in the car | |
Mobile phone commissioning function | ||
Remote mointor | ||
Energy-saving function | Leveling when power failure | |
Clean Antibacterial function | ||
Auto Return Device | Auto Return Device | |
Specifications
Capacity (Kg) | Speed (m/s) | Car size C.W. X C.D. (mm) | Door size D.W. X D.H. (mm) | Shaft size H.W. X H.D (mm) | Overhead height (mm) | Pit depth (mm) |
400 | 1.0 | 1100x1000 | 700x2100 | 2100x1400 | 4000 | 1600 |
630 | 1.0 | 1400x1100 | 800x2100 | 2200x1700 | 4000 | 1600 |
1.6 | 4100 | 1600 | ||||
1.75 | 4100 | 1600 | ||||
800 | 1.0 | 1400x1350 | 800x2100 | 2200x1850 | 4000 | 1600 |
1.6 | 4100 | 1600 | ||||
1.75 | 4100 | 1600 | ||||
2.0 | 4200 | 1700 | ||||
1000 | 1.0 | 1600x1500 | 900x2100 | 2400x1950 | 4000 | 1600 |
1.6 | 4100 | 1600 | ||||
1.75 | 4100 | 1600 | ||||
2.0 | 4200 | 1700 | ||||
1250 | 1.0 | 1950x1400 | 1100x2100 | 2950x1850 | 4300 | 1600 |
1.6 | 4400 | 1600 | ||||
1.75 | 4400 | 1600 | ||||
2.0 | 4500 | 1700 | ||||
1350 | 1.0 | 1950x1550 | 1100x2100 | 2950x2000 | 4300 | 1600 |
1.6 | 4400 | 1600 | ||||
1.75 | 4400 | 1600 | ||||
2.0 | 4500 | 1700 | ||||
1600 | 1.0 | 1950x1750 | 1100x2100 | 2950x2200 | 4500 | 1600 |
1.6 | 4600 | 1600 | ||||
1.75 | 4600 | 1600 | ||||
2.0 | 4700 | 1700 |

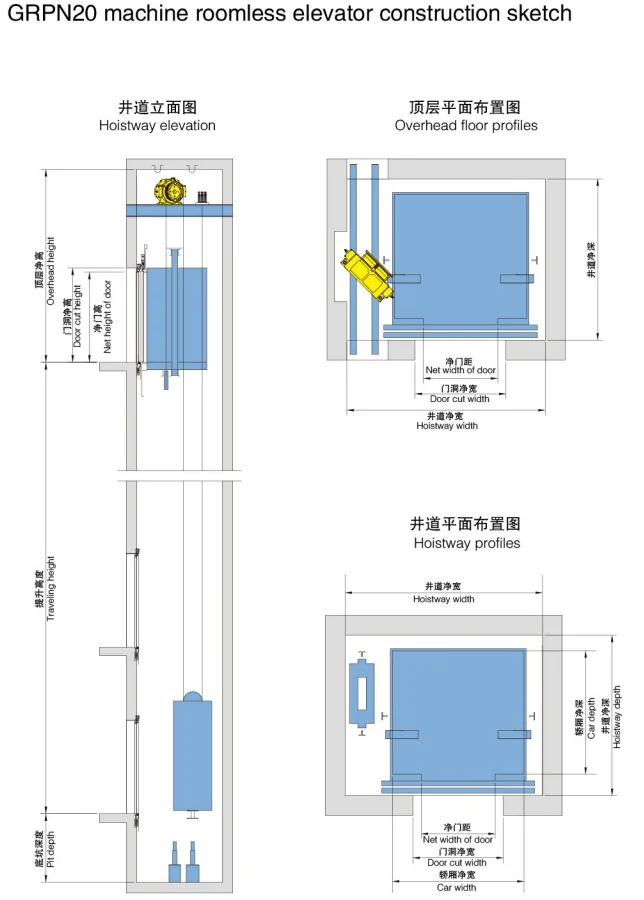

Construction Sketch
Company Profile
Sicher Elevator Co., Ltd.
Sicher Elevator Co., Ltd. is a specialized, collectivized transnational operation enterprise through investment, merger and stock restructuring.

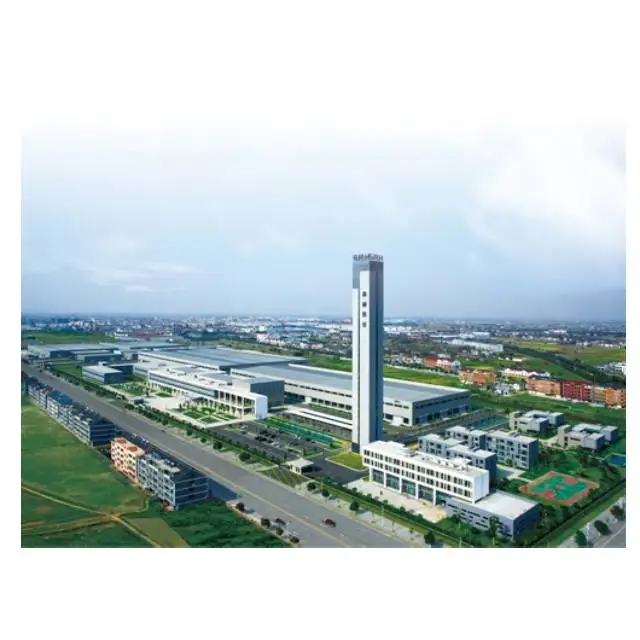

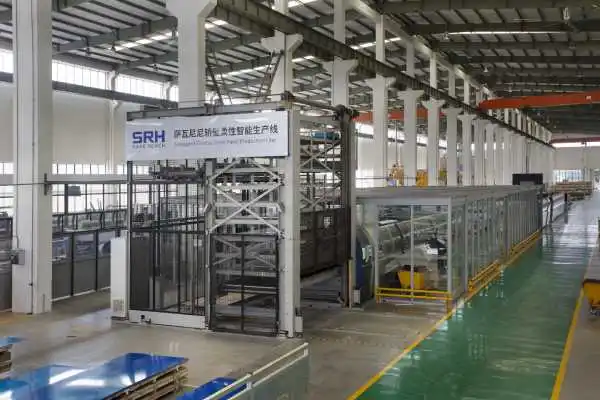

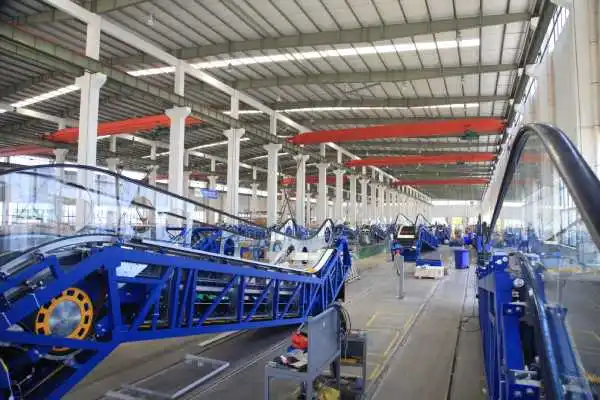

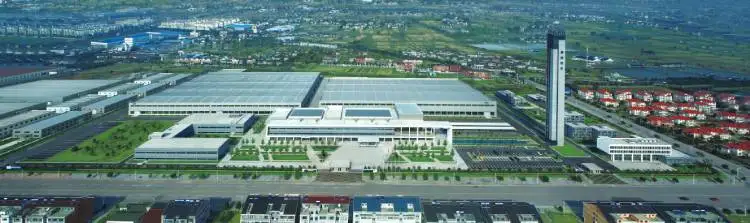

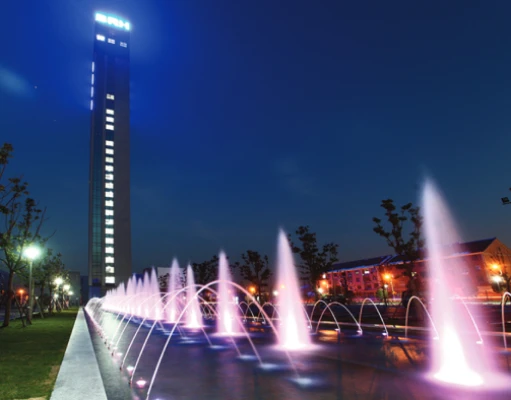

Sicher elevator Covers an area of 147,600 square meters, with overall floorage about 170,000 square meters, owns product manufacturing center, R&D center, customer service center, along with elevator testing tower about 108 meters height, 10.0m/s running speed. It also has introduced production facilities and inspecting equipment with advanced world levels from Germany, Italy and other countries, so that keeps a manufacturing capacity about 40,000 sets as annual output, which is a large-scale and modern manufacturing enterprise, facing the global market from elevators & escalators.
Sicher elevator Covers an area of 147,600 square meters, with overall floorage about 170,000 square meters, owns product manufacturing center, R&D center, customer service center, along with elevator testing tower about 108 meters height, 10.0m/s running speed. It also has introduced production facilities and inspecting equipment with advanced world levels from Germany, Italy and other countries, so that keeps a manufacturing capacity about 40,000 sets as annual output, which is a large-scale and modern manufacturing enterprise, facing the global market from elevators & escalators.
Certifications
CE certificate
EAC certificate
Energy efficiency certificate
ISO9001
Exhibition
Global exibitions
Sicher Elevator attends professional elevator expo worldwidely, included WEE Shanghai, Interlift Germany, IEE India etc.

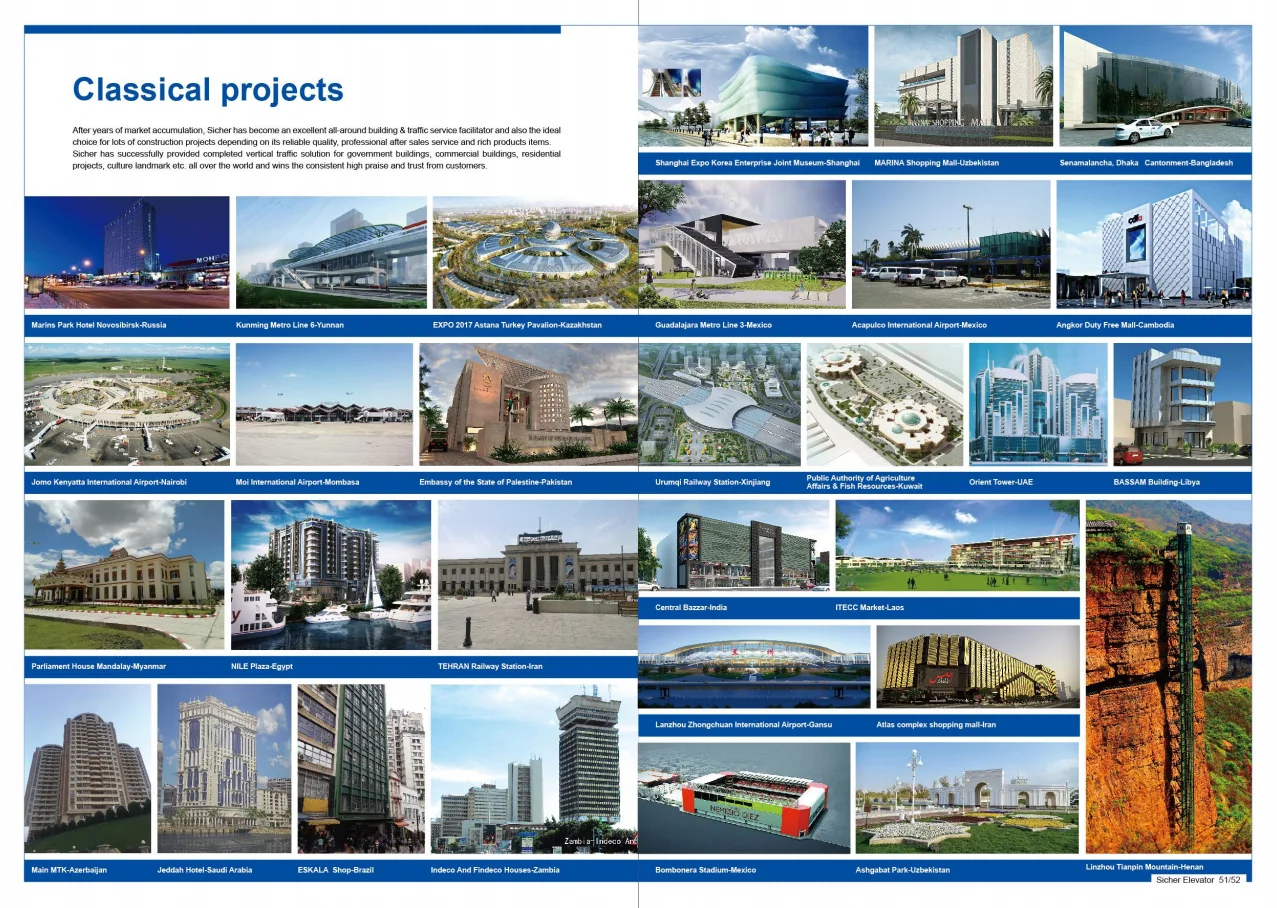

Projects

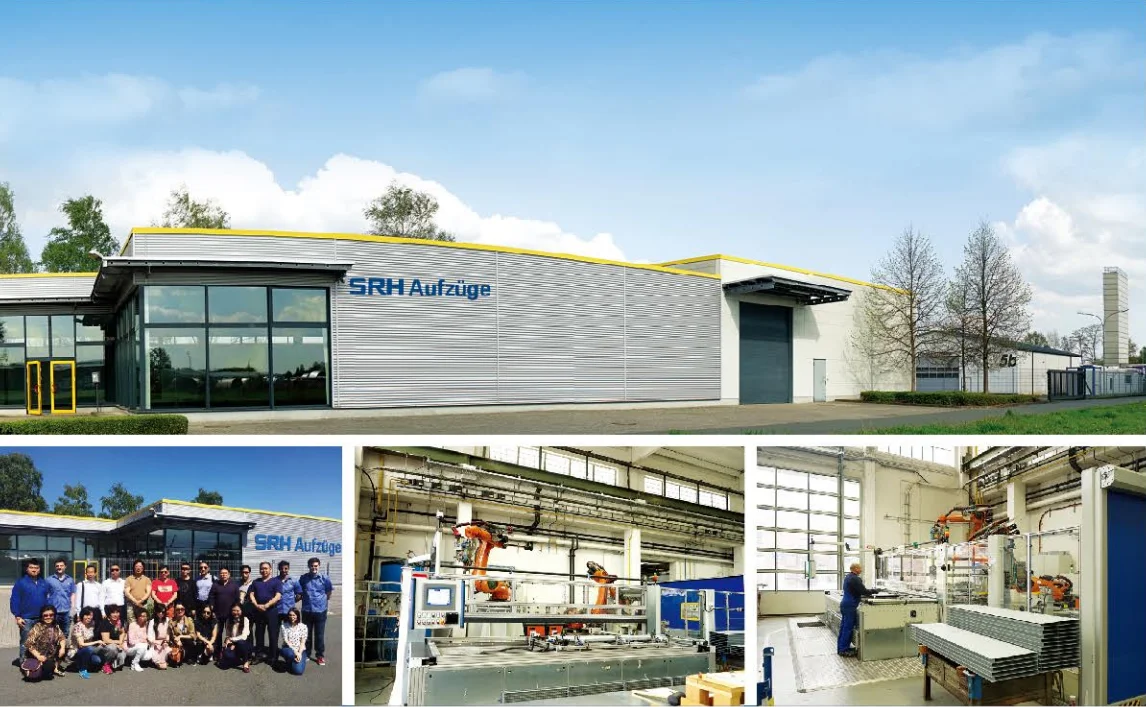

SRH Augzuge GmbH (Germany)
SRH Aufzuge GmbH, as a wholly owned subsidiary by Sicher Elevator Co., Ltd. builds the close strategic cooperationunion with German large, medium-sized elevator manufacturing companies and elevator parts companies to provide all kinds of SRH brand products in line with EU standards for global customers.
