Product Overview
Description
300Mbps high power ceiling AP,2.4GHz for office WiFi range extend , 8 hotel room,ceiling wifi ap
Product Description
What It Does
XD9500Q & XD9508Q is an 300Mbps high power Ceiling Wireless Access Point with Qualcomm QCA9531 Chipset. Comply with IEEE 802.11b/g/n standard, 300Mbps data rate, with MIMO omni antenna inside, 500mW high RF power together with PoE, easy to set up in different environment.
Ceiling Mount case, Hardware with Qualcomm chipset, 16M Flash, 64M DDR2, firmware work with AC controller for central management and captive portal authentication function, it designed specifically for business-class environments such as hotels, airports, coffee shops, shopping centers, sporting venues, and university campus.

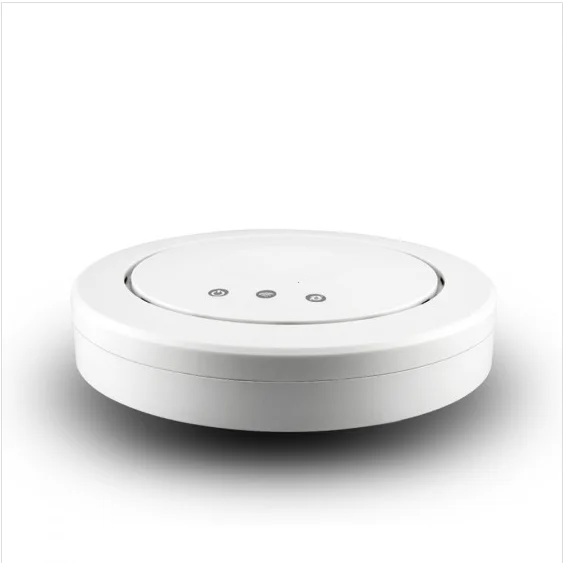

Stylish Ceiling Mount Design

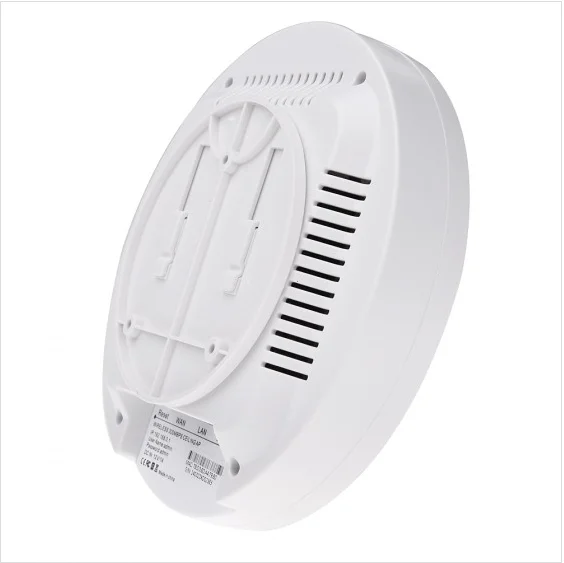

Housed in a stylish ceiling mountable case, the XD9500Q & XD9508Q can be installed on a wall or ceiling to blends in nicely with most interior decorations in a modern hotel. With big space and Installed highly on ceiling, it extends optimum wireless signal to multiple neighboring rooms and better heat radiation.
Specification | |
Hardware | |
MCU | Qualcomm QCA9531 |
RF | 2T2R, 300Mbps MIMO tech , comply with IEEE 802.11b/g/n standard |
Memory | 64MB DDR RAM |
Flash | 16MB |

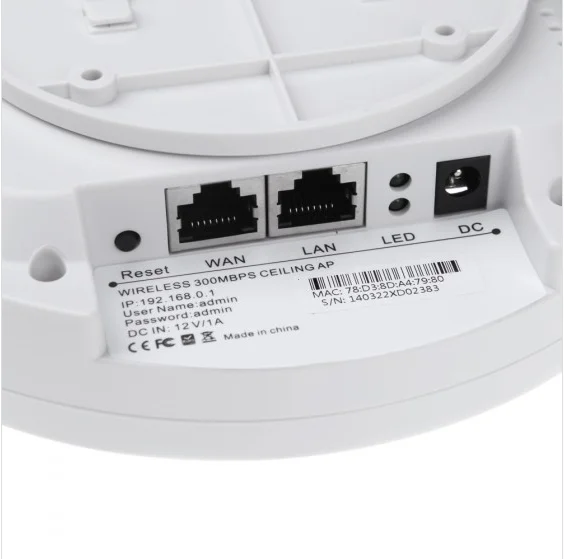

Interface | 2 x RJ-45 for 10/100 Mbps WAN/LAN Port (WAN port support IEEE 802.3af POE) |
| 1 x Reset button(Reset & Factory Defaults) |
| 1 x Power DC Jack |
Power
| DC: 12V/1A; 110V/220V XD9500Q: 24V Passive PoE XD9508Q: IEEE 802.3af 48V PoE |
Antenna | Build in 2PCS Omni 5dbi antenna |
Size | 168*35mm |
RF | |
Frequency | 802.11b/g/n, 533MHz |
| 2.4~2.4835GHz |
| U.S.,Europe and Japan product covering 2.400 to 2.4835 GHz,programmable for different country regulations |
Modulation | OFDM = BPSK,QPSK, 16-QAM, 64-QAM |
| DSSS = DBPSK, DQPSK, CCK |
Throughput | 300 Mbps |
Sensitivity | 802.11n: -70dbm@MCS7, -88dbm@MCS0. 802.11g: -72dbm@54Mbps, -88dbm@6Mbps. 802.11b: -85dbm@11Mbps, -94dbm@1Mbps. |
RF Power | 802.11n: @MCS7:22±2DB, @MCS0:24±2DB. 802.11g: @54M:23±2DB, @6M:25±2DB. 802.11b: @11M:26±2DB, @1M:28±2DB |
EVM | 802.11n: ≤-28 DB 802.11g: ≤-25 DB 802.11b: ≤-10 DB |
PPM | ±20ppm |
Max Uses | 64+ |
Software | |
Operation Mode | Gateway/ AP/ Repeater |
Protocol/Standard | IEEE 802.3(Ethernet) |
IEEE 802.3u(Fast Ethernet) | |
IEEE 802.11b/g/n(2.4G WLAN) | |
Wireless | Auto-Channel selection |
Distance Control (802.1x Ack timeout) | |
BSSID | |
Security | WEP Encryption-64/128/152 bit |
WPA/WPA2 Personal (WPA-PSK using TKIP or AES) | |
WPA/WPA2 Enterprise (WPA-EAP using TKIP) | |
Hide SSID | |
Management | |
System Settings | Web-based configuration (HTTP/Telnet) |
Firmware Upgrade | Upgrade firmware via web browser or TFTP |
Administration | Admin Password can be configured |
System monitoring | Status in hand , useful statistic and Event log |
Logs | Supports local logs, logs host, logs file export |
Reset | Reset or factory defaults |
Backup | Restore settings & configuration of the device to local file |
Physical Property | |
Temperature | Working: -20°C~55°C |
Storage: -40°C to 70°C | |
Humidity | 5%~95% (typical) |
Package | |
XD9500Q & XD9508Q complete set
| |
User Manual | |
90mm LAN Cable | |
Setting Accessory | |
24V PoE adapter for XD9500Q | |
Packaging & Shipping
We are professional manufacturer, now our APs sales valume share more than 70% on China market. Our AP case own patent for each model;Please contact me freely if you're seeking for high quality models with affordable prices, as well as unique case;
The Ceiling AP support Access controller system, bounded with POE switches, VLAN, ideal for some hotel/enterprise wifi construction.
