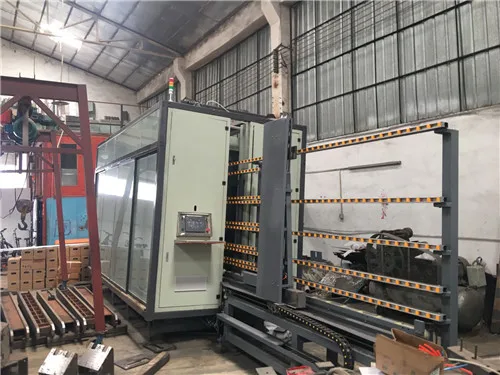

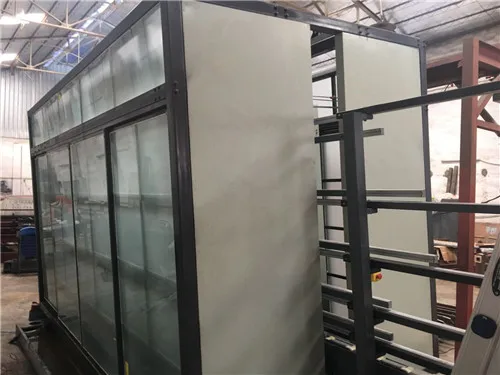

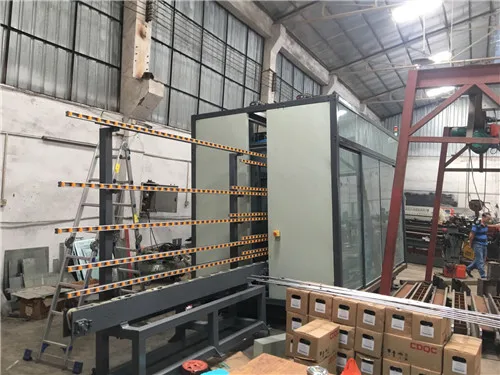

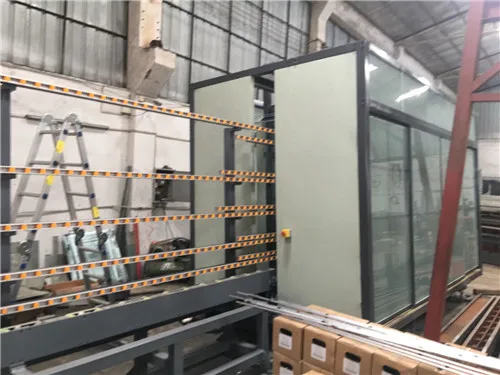

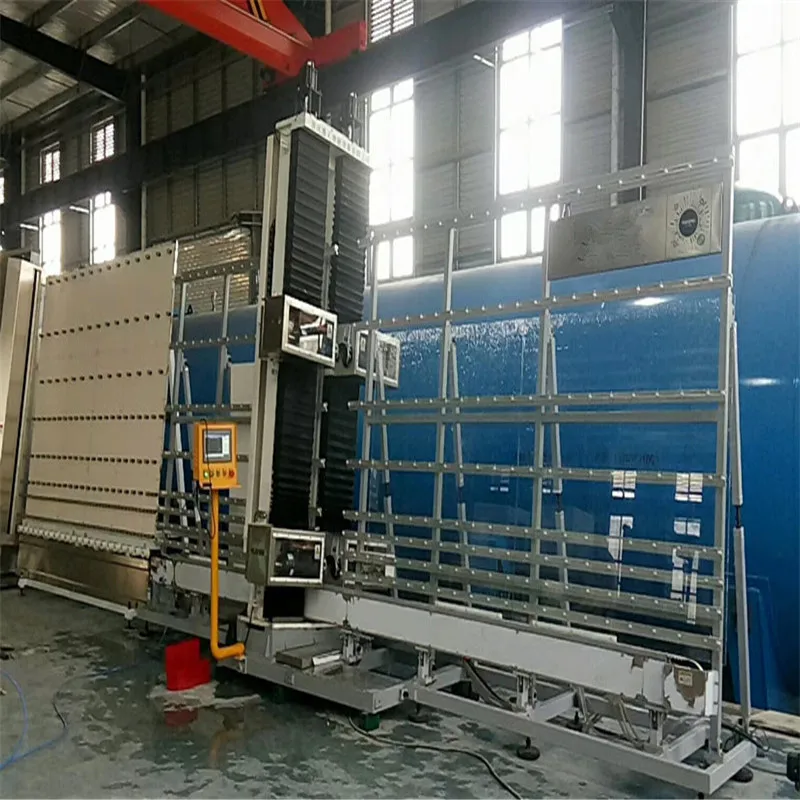

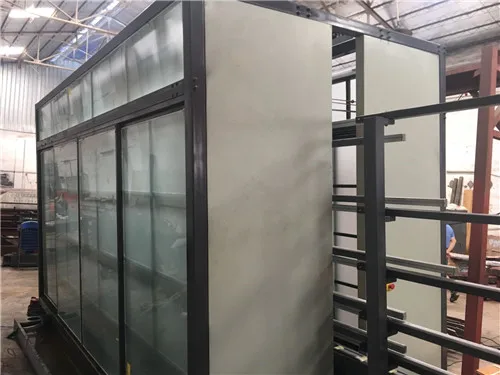

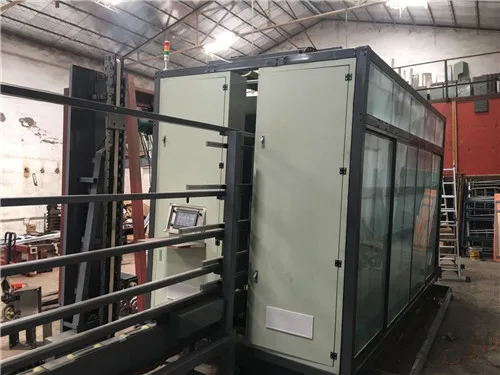

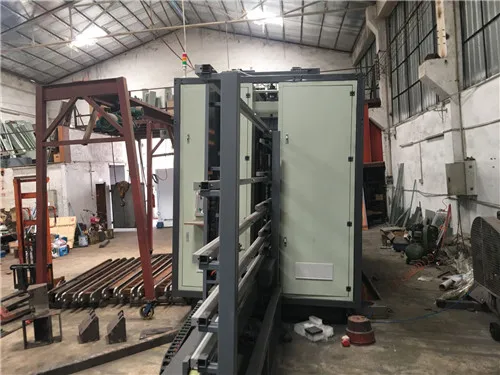

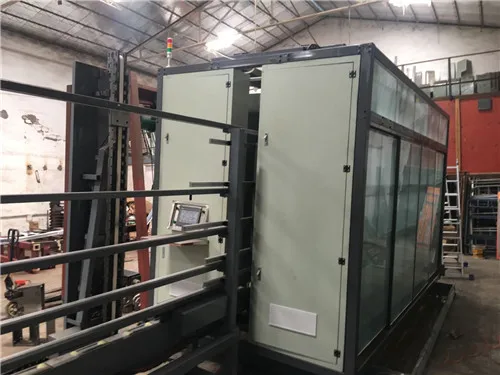

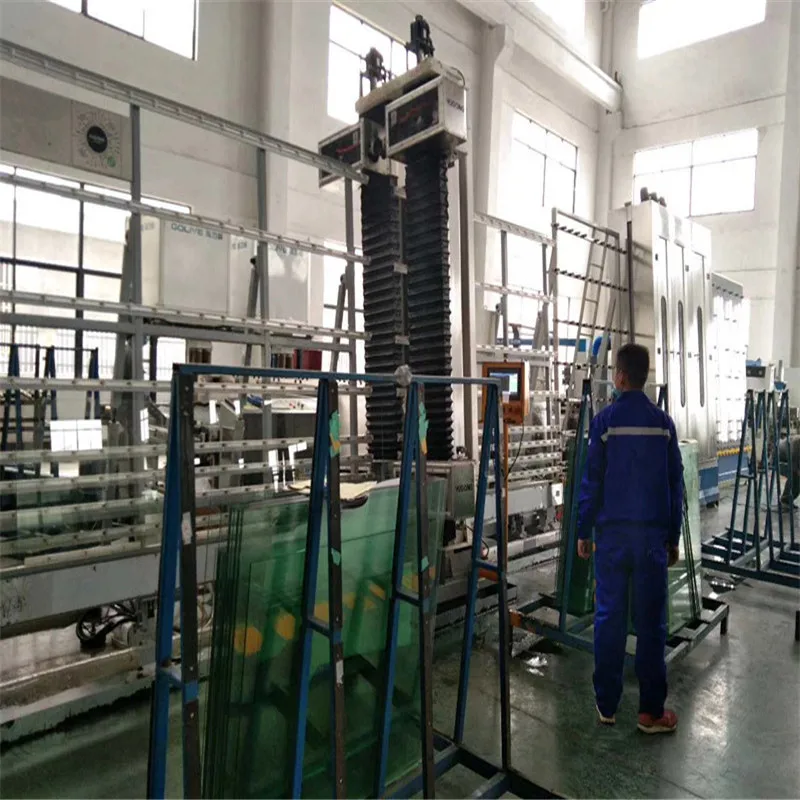

CNC Glass Vertical Double Heads Drilling Machine

Details

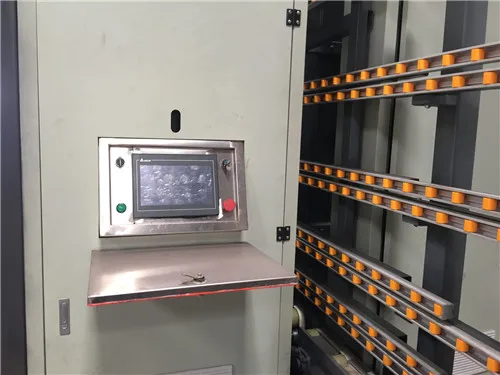

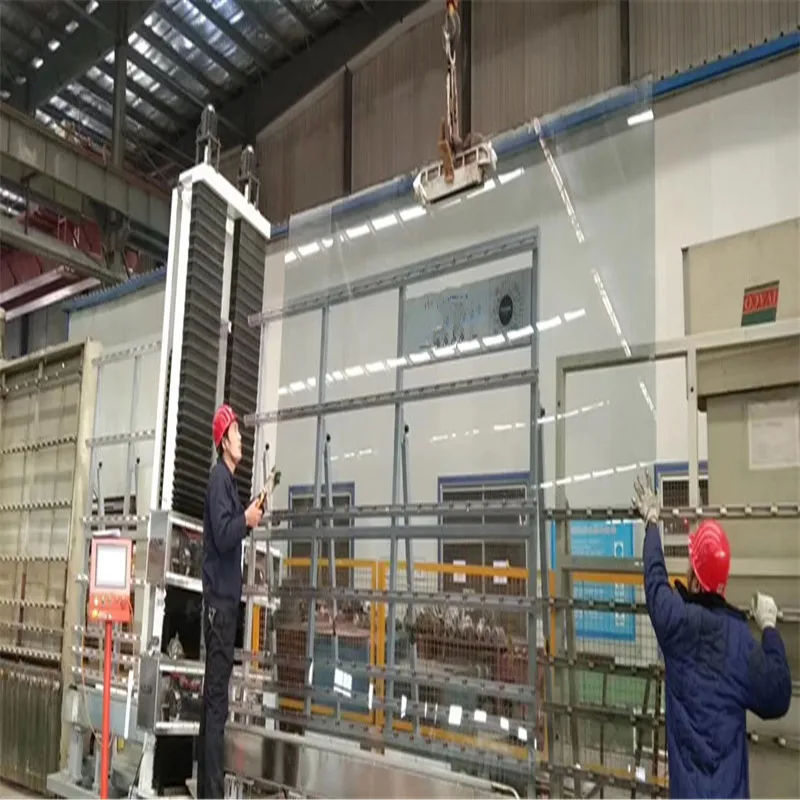

CNC Glass Double Heads Vertical Drilling Machine is designed with NC control system, including PLC, positioning module and touch screen, and AC servo system to achieve the accurate positioning on X, Y and Z Axis. After placing the glass on the transferring belt, input the drilling parameters, then press START button, the machine will position the glass automatically and drill all the holes, then stop work after finishing drilling. The 2 couples of drilling heads can work at the same time, or work separately. The features are high precision drilling, accurate sizes and high efficiency. It is the best choice for drilling of industrial and architectural glass.



Main Technical Parameters





Drilling Hole Diameter	4-60mm
Process Range of Thickness	4-30 mm
Max Process Size	2500mm Height
Min Process Size	750 x 620 mm (2 couples drilling at the same time)
Drilling Hole Tolerance	≤±0.5 mm
X Axis Moving Speed	1-7 m/min
Z Axis Moving Speed	1-8 m/min
Pneumatic Pressure	0.6-0.8 Mpa
Min Drilling Holes Distance	500 mm (2 couples drilling at the same time)
Standard Height of Working Table	920+50 mm
Gross Weight	2500 kgs
Total Power	8 KW  380V / 50Hz 3P
External Dimensions	7000 x 2020 x 4110 mm



The machine is regular and if you have any special requirement, we can design for you.





Scheme Table

1. Specifications and brand for main parts:

Base and vertical pillar use fine welding steel structure, the artificial aging treatment before assembling make sure it straight.



2. Timing belt is supplied by Megadyne from Italy or other suppliers, drilling heads transferring and supporting by ball screw and gliding guide track, servo motor drive. Accurate adjustment can move driller easily.



3. Use PLC control system, FX2N-20GM position module, double axis positioning.



4. Ball screw supplier is German STAR or other good quality transmission ball screw. Straight line rolling glide track is supplied by Taiwan ABBA and other good ones.



5. Main electronic parts:

Servo transmission motor driver, PLC programmable controller, data positioning module is Japanese Mitsubishi. Stopper photoelectric switch is German SIK. Human-computer interface 10.4 inch screen is WEINVIEW from Taiwan. Encoder is from Japanese Omron. Driller motor is from Guangdong kaiping xindongya. Other motor is from Shanghai Schneider Electric Industrial Control Co., Ltd, Juche Electronic appliance, Chint Electrics Co., Ltd.
