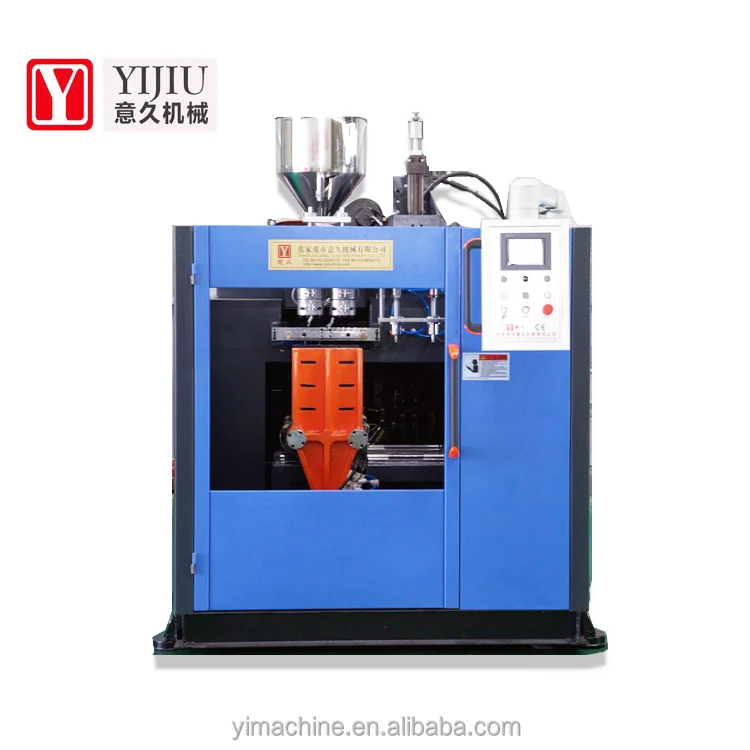

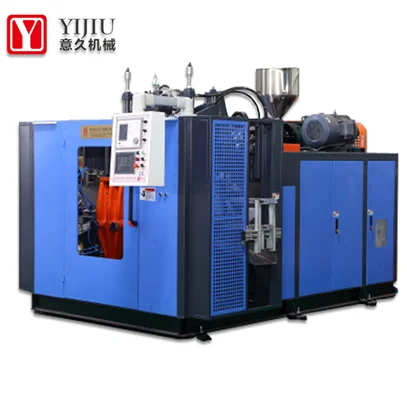

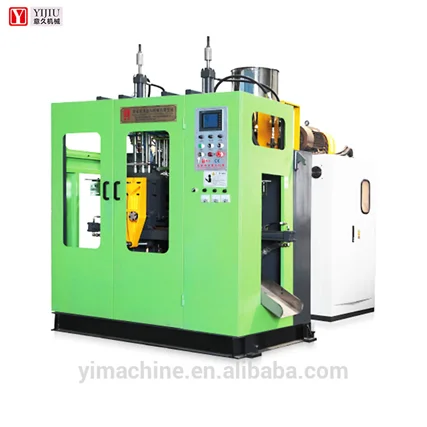

pp pe plastic mini blow moulding machine extrusion blow molding machine
- Category: >>>
- Supplier: Zhangjiagang Yijiu Machinery Co. Ltd. [Jiangsu China]Zhangjiagang
Share on (60086084553):
Product Overview
Description
Product Description

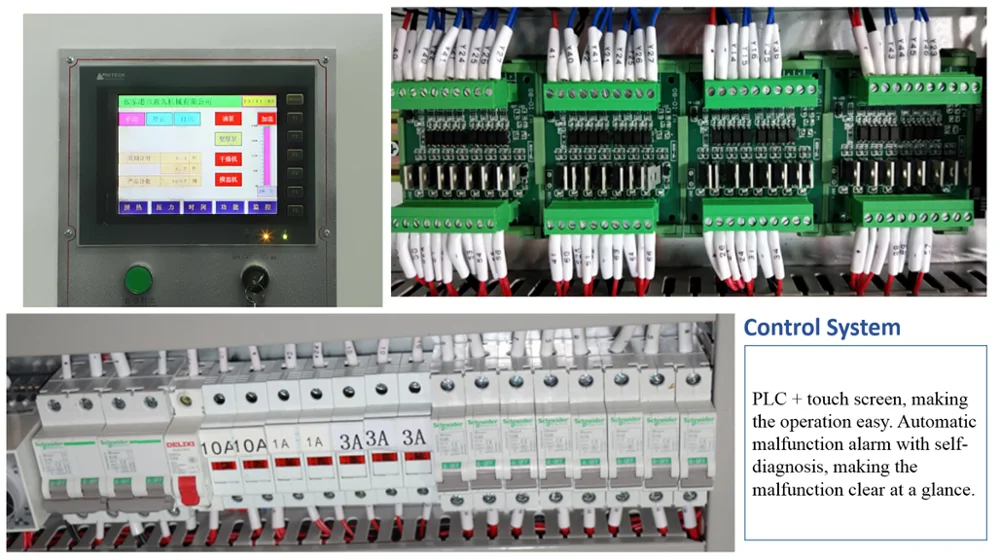

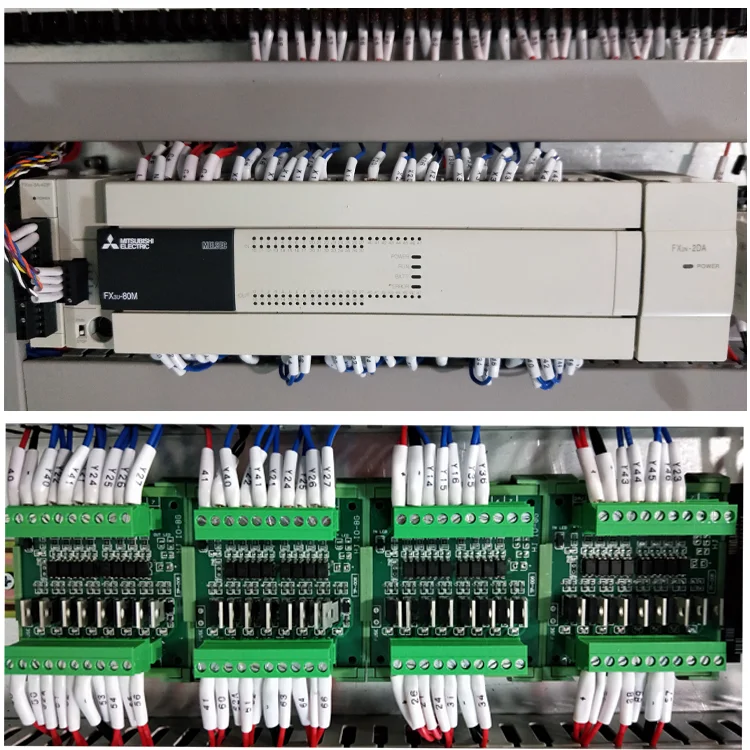

*PLC+touch screen: making the operation easy. Automatic malfunction alarm with self-diagnosis,
making the malfunction clear at a glance.
*Accumulator die head: Accumulator die head whose runner is made by high-quality mitrede alloy steel with morrorsurface treatment, material and color quick reload.

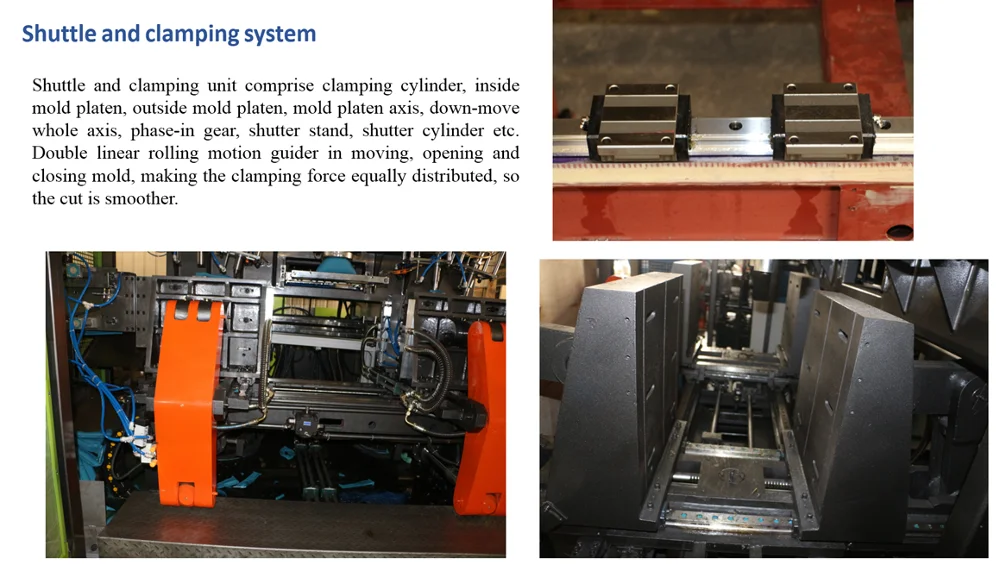

*Unique “liner guide”: Unique “liner guide” to the clamping structure to ensure mold-lock uniform, knit line smoother.
*Energy-saving hydraulic principles: Hydraulic system designed under energy-saving hydraulic principles, lower energy consumption by 20%-40% compared with the conventional model. At the same time, a significant reduction in oil temperature extends the service life of hydraulic parts.
*Variety of functions for products: Variety of functions for different products matching the technological requirements: bottom blow and lift, rotation, encapsulation, material support, sub-mould, robot, parison control system, etc.
Main Parameters | ||
Available material | PE,PP,etc. | |
Max. Product Volume | 2 | (L) |
Dry Cycle | 1500 | (pcs/h) |
Machine Size | 2.5*1.7*2.3 | (LxWxH)(m) |
Machine Weight | 3.2T | (Ton) |
Installed capacity | 25 | KW |

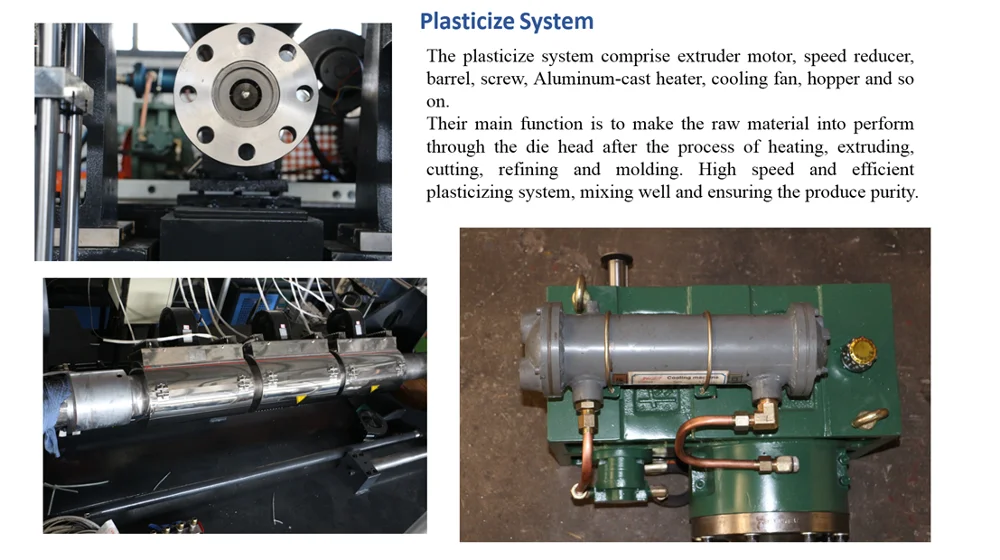

Plasticizing System | ||
Screw Diameter | 50 | (mm) |
Screw L/D Ratio | 22 | L/D |
Plasticizing capacity | 35 | (kg/h) |
Screw Heating Zone | 3 | (Zone) |
Screw Drive Power | 11 | (KW) |
Extrusion Die Head | ||
Type | Continuous Die Head | |
NO. of Heating Zone | 3 | (Zone) |
Die Heating Power | 4.2 | (KW) |
Max. Die Diameter | 100 | (mm) |
Opening And Clamping System | ||
Clamping Force | 40 | (KN) |
Mold Stroke | 128~368 | (mm) |
Max. Mold Size | 300*320 | (WxH)(mm) |

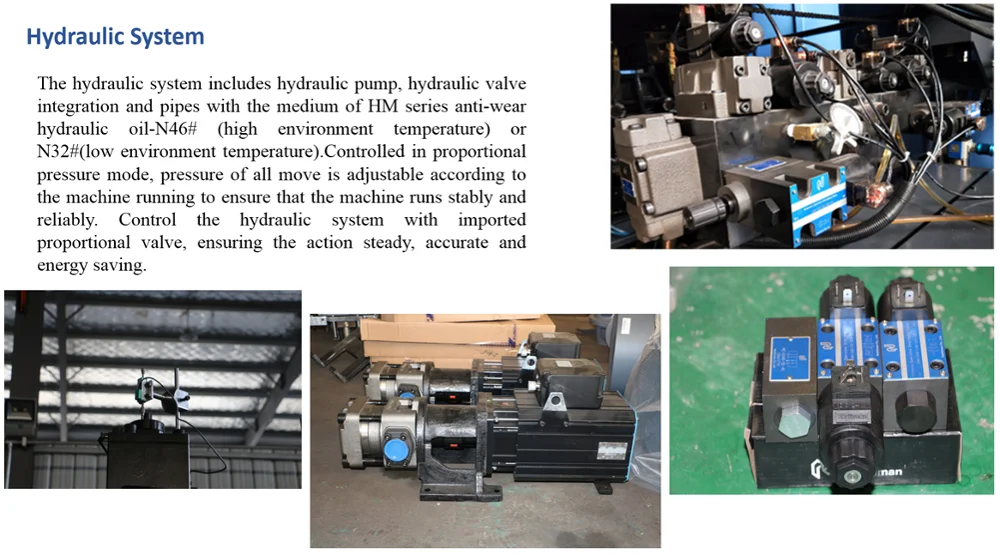

Hydraulic System | ||
Oil Pump Power | 5.5 | (KW) |
System pressure | 10 | (MPa) |

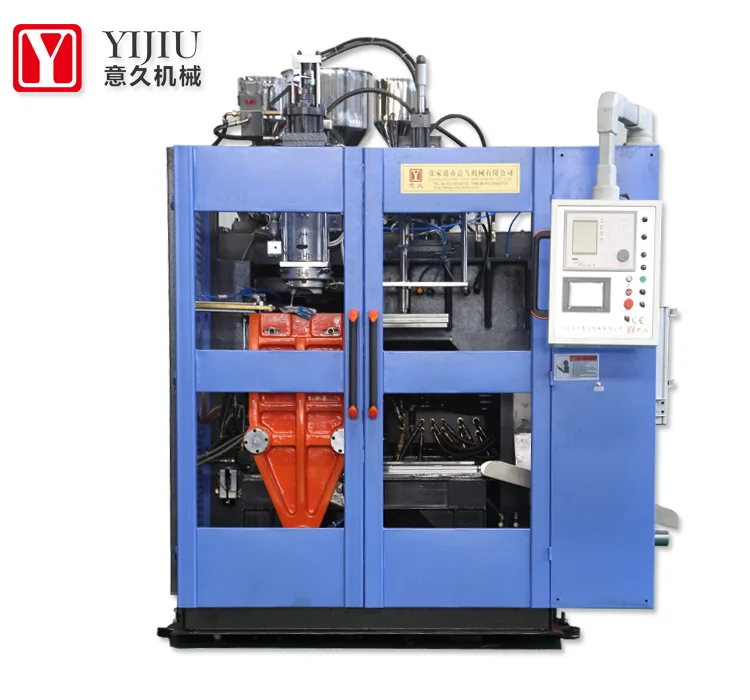

Fully Automatic 2L Energy Saving Blow Moulding Machine packing and shipment
FAQ For Extrusion Blow Molding Machine |
Q1: Are you a trading company or a manufacturer? |
A1: We own a factory ourselves, and we can assure the quality we manufactured. |
Q2: What’s your guarantee or the warranty of the quality if we buy your machines? |
A2: We offer you high quality machines with high quality after-service. Also we have one year warranty of the spare parts, free of charge. |
Q3: How can I install my machine when it arrives? |
A3: We will send our engineer to your side as soon as you get all your machines ready, for testing and teaching your technicians how to run the machines. |
Q4: How about the spare parts? |
A4: After we deal down all the things, we will offer you a spare parts list for your reference. |
Q5: What after-sales service your company offers? |
1, Your inquiry related to our product & price will be replied within 72 hours. |
2, Well-trained & experienced staff are to answer all your inquiries in English and Chinese. |
3, Working time: 8:00am ~6:30pm, Monday to Saturday. |
4, Your business relationship with us will be confidential to any third party. |
5, Good after-sales service offered, please get back to us if you got any questions. |
Q6: Can I visit your factory and send team for learning and inspect? |
A6: Yes, sure. We will do our best to teaching you how to use the machine.welcome to visit our factory! |
Q7: What is our advantages? |
A7: 1.Competitive price |
Q8: Where is your factory located? How can we visit there? |
A8: Our factory is located in Zhang Jia Gang City, Jiang Su Province, China, about 2 hour to Hong Qiao airport, from SHANG HAI by air. We offer transportation service from Hong Qiao airport to our factory. |
. |
|
| |
| |||
