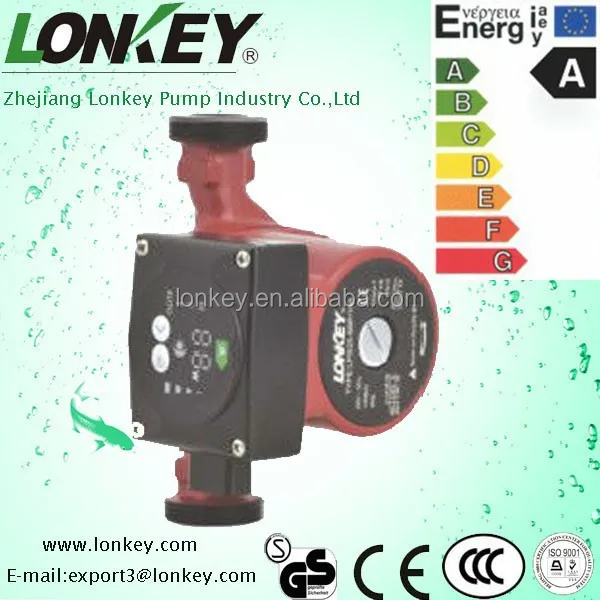

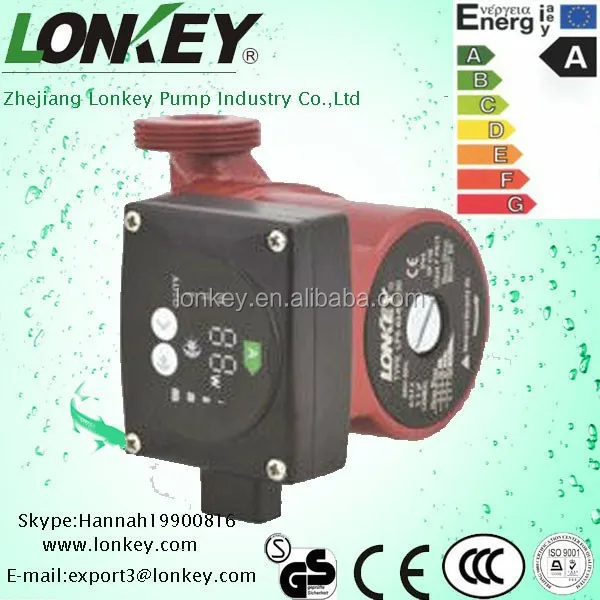

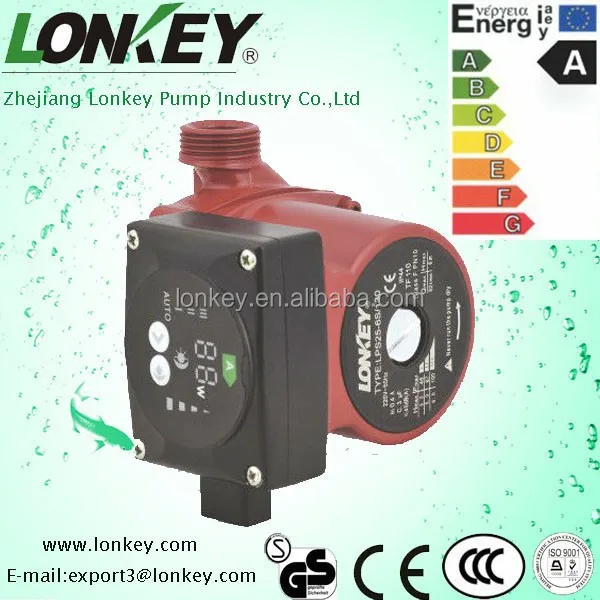

central heating circulating a rated pumps, low consumption smart circulator pump, converter class A hot water circulation pump

Product Overview

Description

Specifications

circulator pump, wet rotor type, 304S.S.
no noise <45dB(A), no leakage, environment friendly, easy installation

Energy saving hot water Circulation pump

This circulation pump especially designed for heating system and used to supply water

and add pressure for mansions of city,villa of subarb,house,to match with industrial equipment,

to supply water in cycle for cooling air-condition,boiler and solar energy,suppy hot andwater and keep warm cycle.

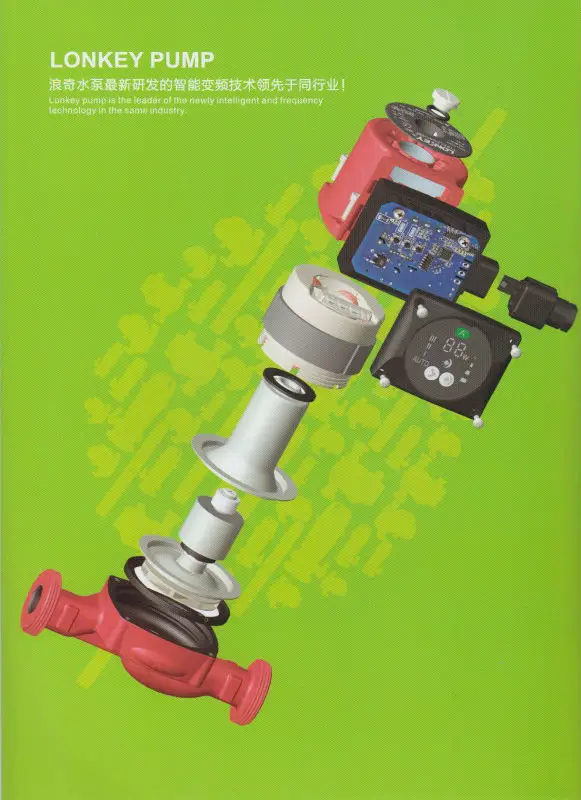

Construction Material

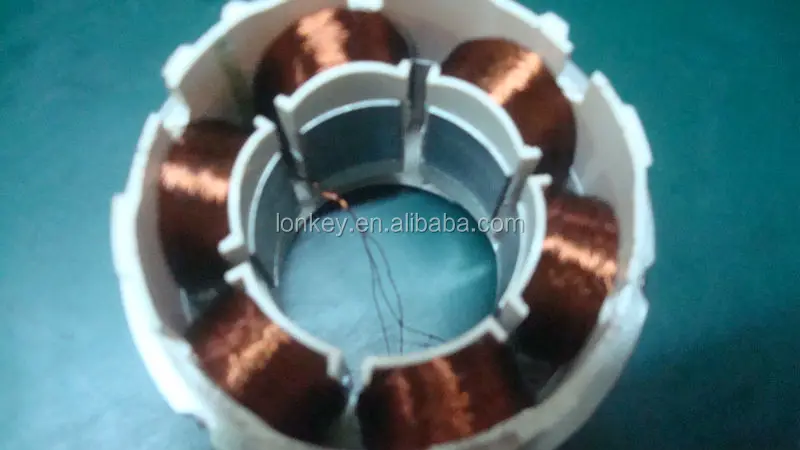

•  Motor wire:copper


•  Motor shell: aluminium


•  Rotor can: stainless steel 304


•  Impeller: PP


•  Pump body: cast iron


•  Shaft: ceramic/S,S


•  Bear: ceramic/graphite

Technical Data

• Liquid temperature range: -10 - 110°C

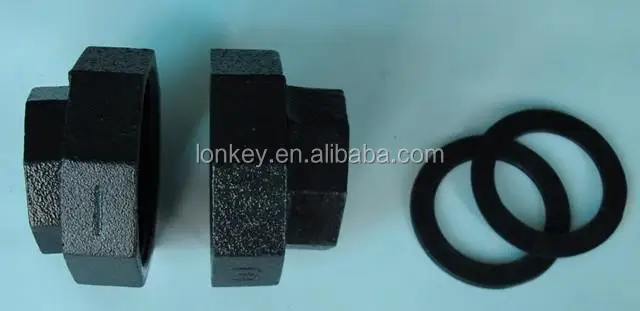

• Pipe size: G1.5", DN25mm


• Port to port length: 180mm


•  Max. operating pressure: 10bar


• Pressure stage, pipe connection: PN10


• EEI≤0.23

Electrical Data

• Max flow:52l/min


• Max head:6m


•  Max input power.: 45W


•  Mains frequency: 50Hz


•  Rated voltage: 220V


•


•


•


•


•


•





























  1.	Can I buy one as sample?
  A:	Yes, of course. MOQ of solar pump is 1 piece.
  2.	Are you a factory or trading company?

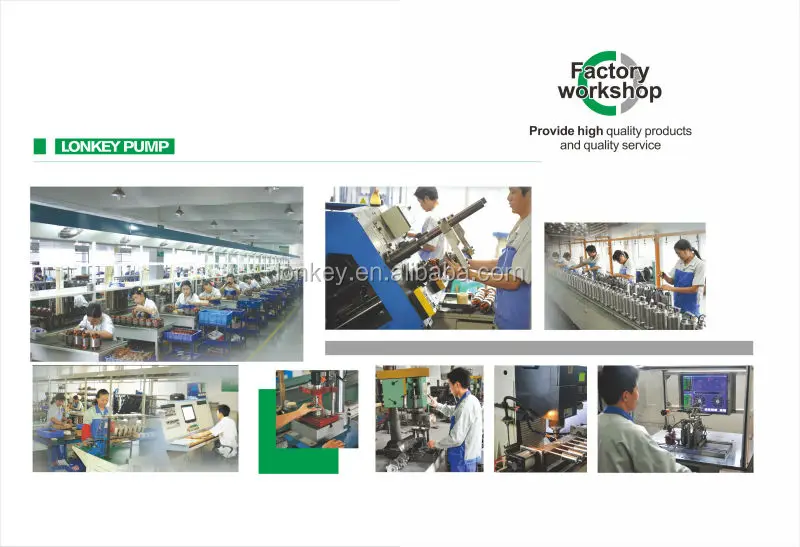

  A:	We are the factory which focused on water pump for more than 23 years
  3.	Can you make OEM?
  A:	Yes, you can put your logo and brand on the box.
