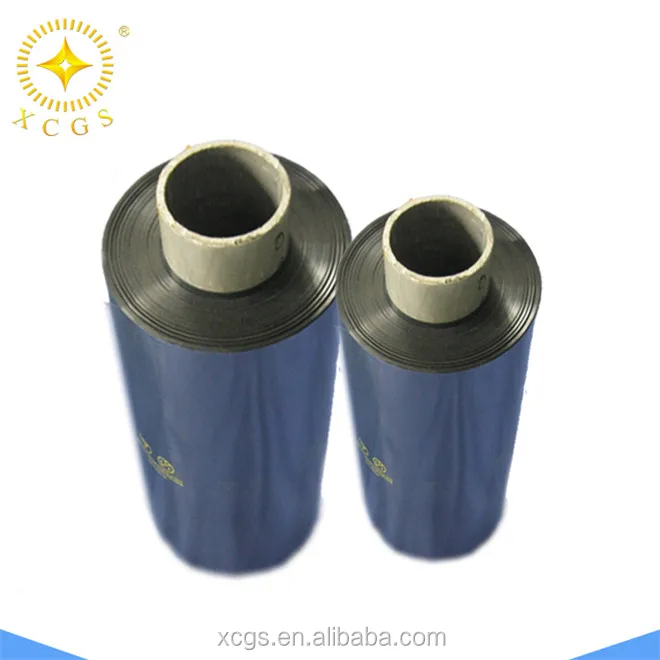

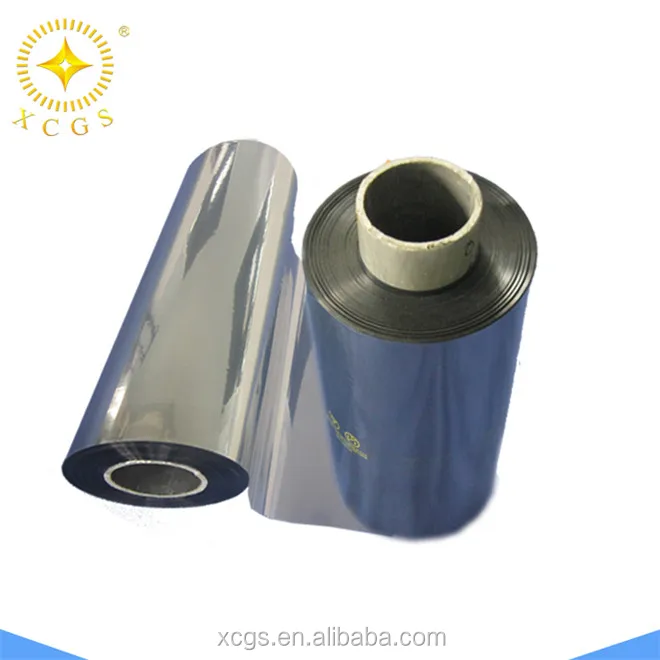

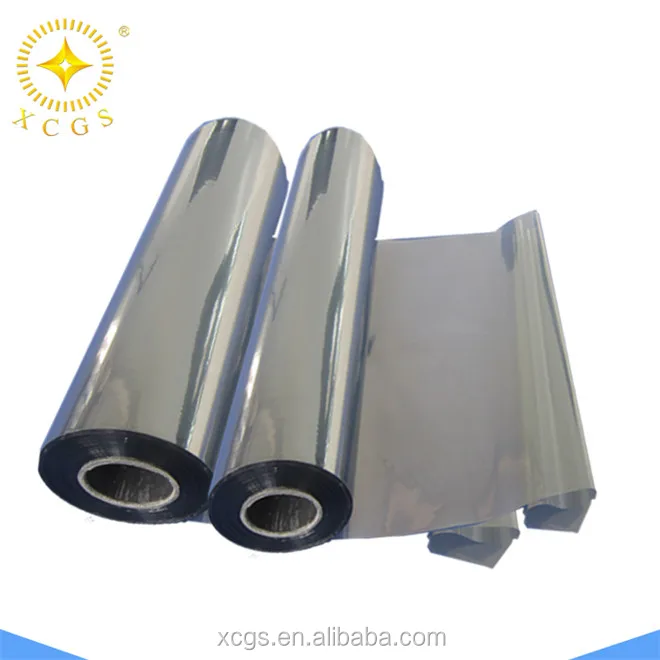

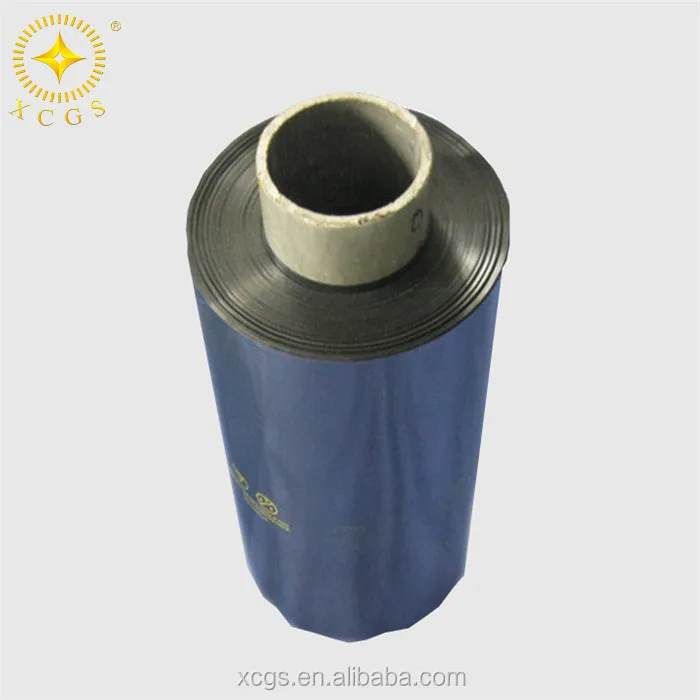

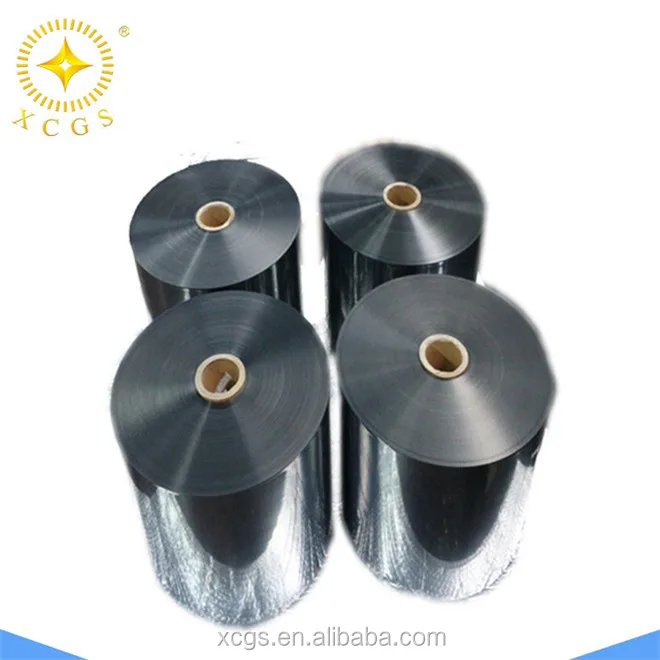

Защитные пленки от электромагнитных помех, антистатическая защитная пленка от электростатического разряда
- Category: Composite Packaging Materials >>>
- Supplier: Suzhou Star New Material Co. Ltd.
Share on (60086390845):
Product Overview
Description
EMI Shielding Film ESD Shielding Antistatic Film
Bag specification
| Dimensions(for zipper shielding bags): from 2.3’’*2.3’’ to 47’’*118’’ |
| Dimensions(for non-zip shielding bags):from 1.6’’*1.6’’ to 62’’*118’’ |
| Common Seal Width: 5mm; 7mm; 10mm |
| Printing design can be customized(Max printing color: 8 colors) |
Product Description
EMI Shielding Film ESD Shielding Antistatic Film
1. ESD Shielding Bags prevents products from damagesdue to static
2. Best choice for packing electronic products
3. All sizes are available in open top/zip lock/self-adhesive/gusset/cubic styles

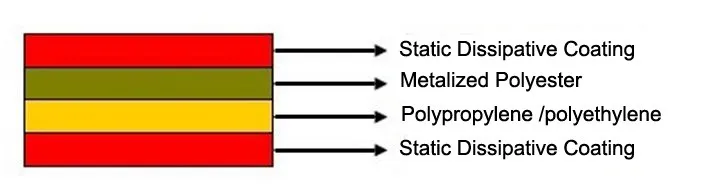

4.Material structure: metalized dissipative polyester outer layer/aluminum shielding layer/static dissipative polyethylene or polypropylene inner layer
NO. | Item | Unit | Test standard and result |
1 | Metal layer resistance | Ohm/sq | <100 |
2 | Metal layer optical transmission | Optical density | 40%-70% |
3 | Surface resistivity | Ohm/sq | 108-1011 |
4 | Time for static removal | 5000-0V | <0.02 sec FTMS 101 B Method 4046 |
5 | Puncture resistance | P.S.I | ASTM D3420 >12 lbs,50N |
7 | MVTR | gm/100in-2/24hrs | ASTM E 96 <0.3 |
8 | Heat sealing Time | S | 0.5-3.5 seconds |
9 | Hot sealing temperature | F | 250-375F |
10 | Seal strength | N/15mm | ASTM D-882-91 ≥12 lbs/inch |
Usage
EMI Shielding Film ESD Shielding Antistatic Film
1. The kind of bag can keep static-sensitive components away from the potential static danger to the largestextent. Its special four -layer structure can create such effect as an inductivecover to separate the goods inside from the static field.
2. Furthermore, the inner layer is made from ethane which can remove the static and avoid static generation inside thebag
3. In addition, this kind of hot seal bagis transparent, so the goods inside can be easily recognized from outside. Andthe surface resistance: 108-1011
4. Applicable to pack electronic productswhich are sensitive to static, such as PC board, IC integrated circuit ,CDdriver, HD
EMI Shielding Film ESD Shielding Bag/Antistatic Stretch Film
Technical Parameters:
| NO. | Item | Unit | Test standard and result |
| 1 | Metal layer resistance | Ohm/sq | <100 |
| 2 | Metal layer optical transmission | Optical density | 40%-70% |
| 3 | Surface resistivity | Ohm/sq | 108-1011 |
| 4 | Time for static removal | 5000-0V | <0.01 sec FTMS 101 B Method 4046 |
| 5 | Puncture resistance | P.S.I | ASTM D3420 >100 |
| 6 | MVTR | gm/100in-2/24hrs | ASTM E 96 <0.2 |
| 7 | Oxygen Barrier | CC/100in-2/24hrs | ASTM D 3985 <0.5 |
| 8 | Hot sealing temperature | F | 250-375F |
| 9 | Seal strength | N/15mm | 25.2 |

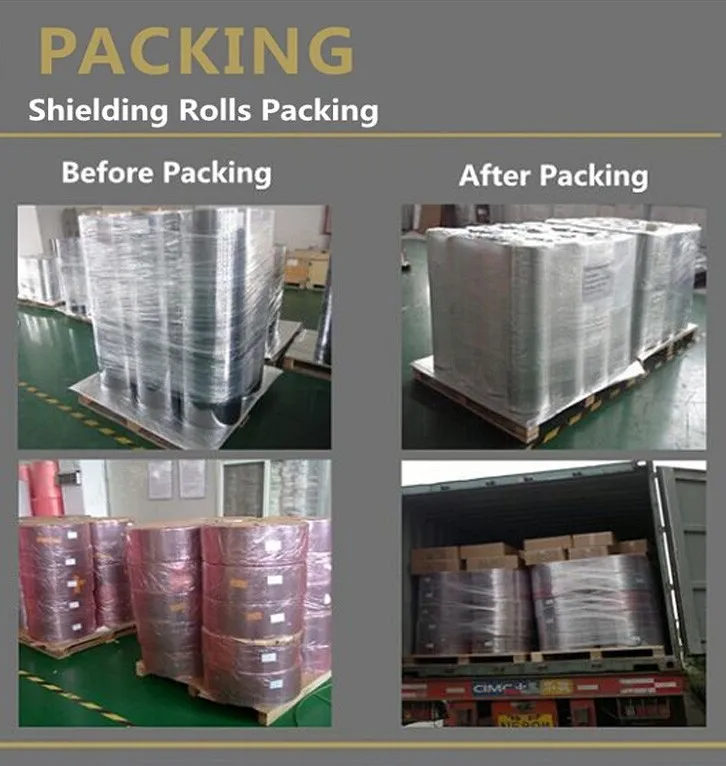

Packaging & Shipping
EMI Shielding Film ESD Shielding Antistatic Film
Production Flow
EMI Shielding Film ESD Shielding Antistatic Film
Company Information

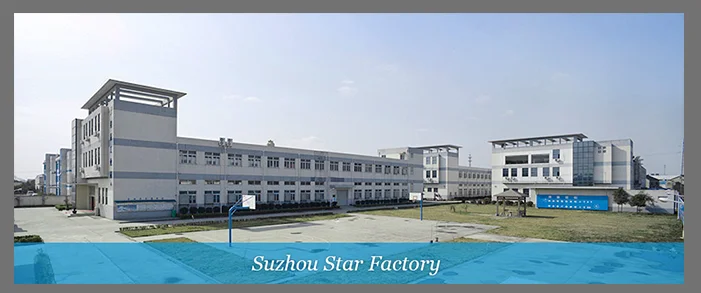

New Star Intl Group Limited was established in 1999. With its headquarters in the global financial centre----Hong Kong, New Star Intl Group is a group integrated with R&D, production, sale and service. It all has 3subsidiaries located in Shenzhen,Tianjin and Suzhou of China mainland. The factories in Shenzhen and Suzhou cover a floor area of 17,982 square meters and 20,000 square meters respectively. With the seaports in the triangle area of both of the Pearl River and the Yangtze River as its bases, it has convenient transportation conditions which facilitate forwarding products to all over the world.

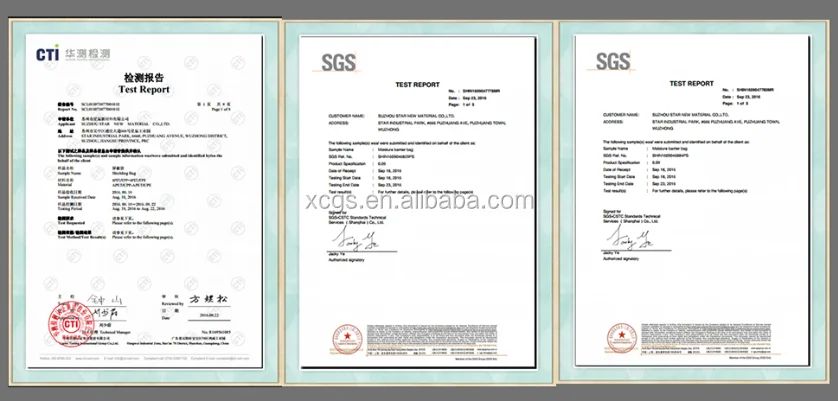

We have large and advanced product lines for Anti-static Packing Bag, Cushioned Mailer and Heat Insulation Material. All of our Star series products have passed SGS tests which are in conformity with the international environment protection standard. At present, our products are mainly exported to America, U.K., Germany, Australia, Canada, Poland, Japan, India, Malaysia, Indonesia, Singapore, etc.
Our Services
1. Existing samples provided.
2.OEM service,(custom service) Star has the resource to design, develop and implement innovation solutions for customers' packaging applications.
3. And efficient production team, timely delivery.
4.Star packaging provides trial supervision and regularly scheduled technical service support.
5. Sharing resources among all branch factories to provide convenience for large-sized enterprise groups to realize cross-regional production and cooperation.
If you know more products about Shielding Film ESD Shielding Antistatic Film or other products, please send me inquiry or call me, I will reply you ASAP.
