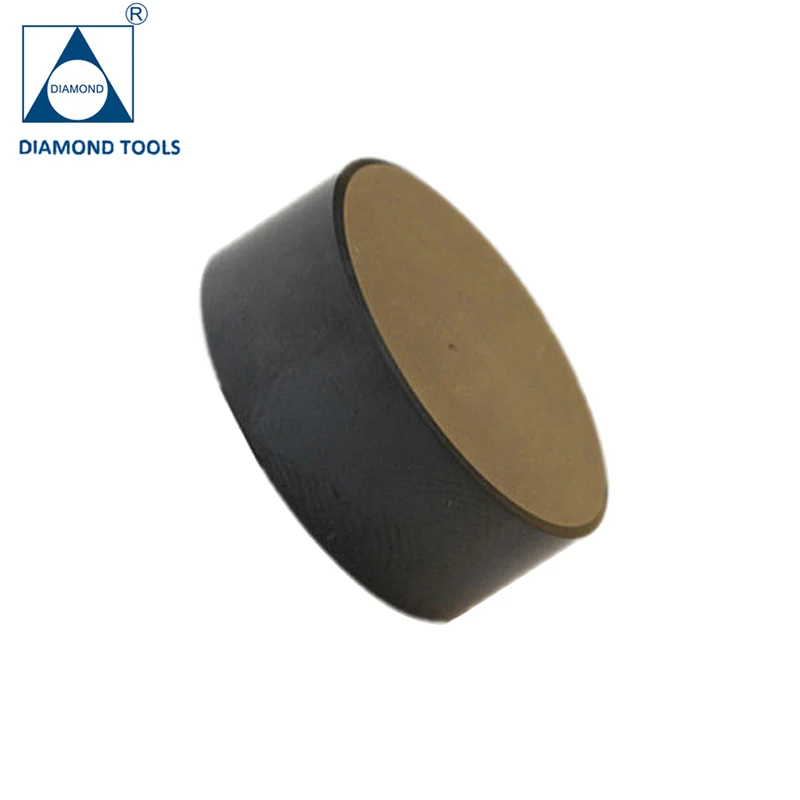

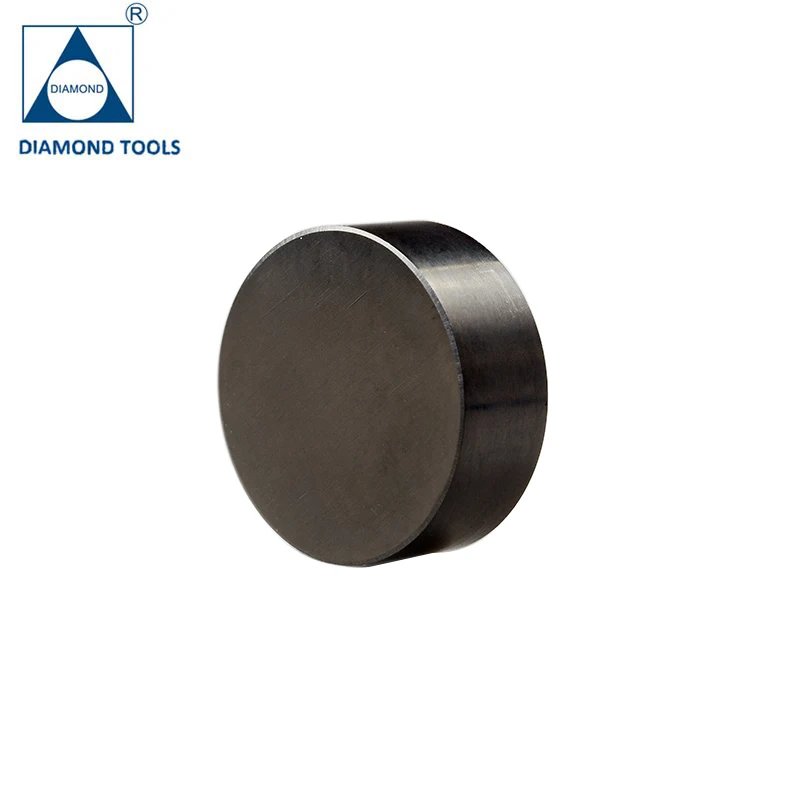

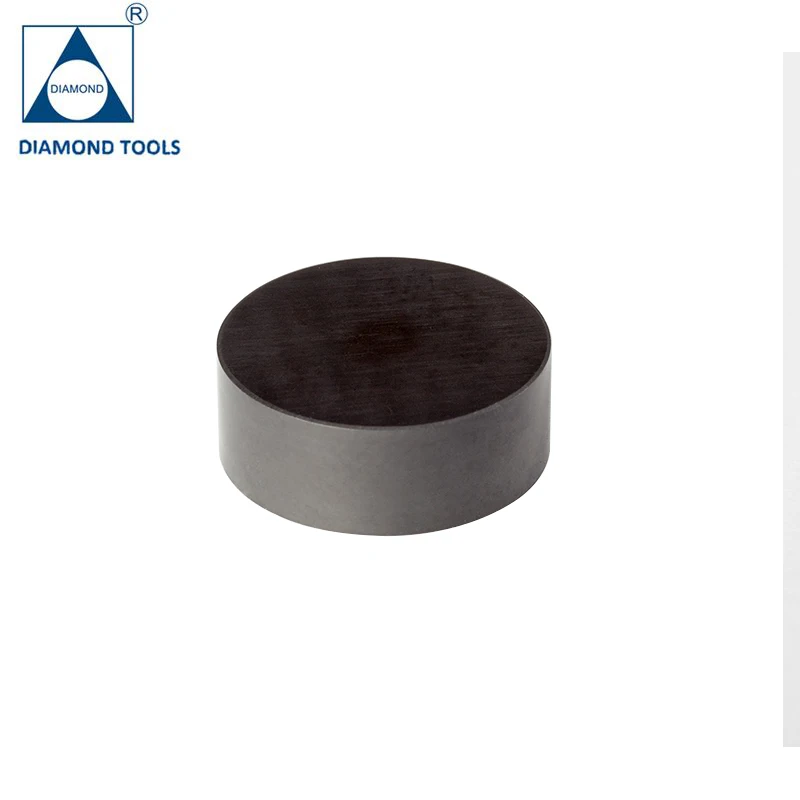

CNC turning inserts Solid CBN Insert for Roller Cutting Tool

Product Overview

Description

CNC turning inserts Solid CBN Insert for Roller Cutting Tool



		Quality Control: ISO 1832:2004 system
		Workpieces Material:   hardened steel, cast iron, powder metallurgy and thermal  spray coated workpiece, others (Co>15%wt Carbide HRA=80-88)
		CBN Grade: Diamond Innovations(US), Element Six(UK), Sumitomo(Japan)
		Vacuum Brazing process
		The life: 50 - 150 times as long as that of carbide tool
		Work Efficiency: turning improved by 5-10 times comparing to grinding



  Full Specification

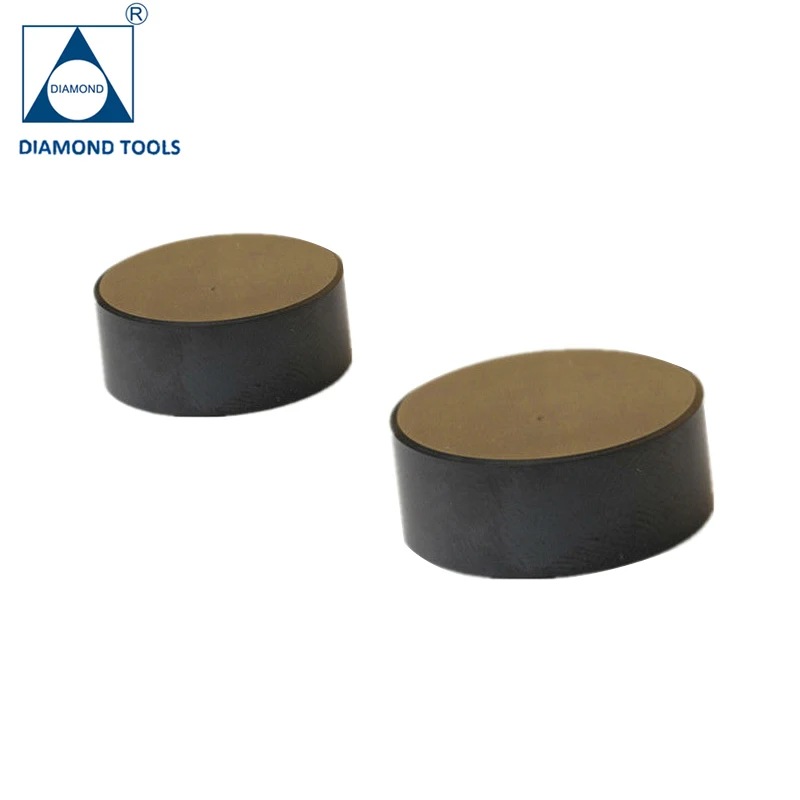

Shape of solid cbn inserts		Insert	Dimension (mm)
			I.C.	T	r
		RNMN0603	6.35	3.18
		RNMN0604	6.35	4.76
		RNMN0903	9.525	3.18
		RNMN0904	9.525	4.76
		RNMN0907	9.525	6.75
		RNMN1204	12.7	4.76
		RNMN1207	12.7	6.75
		RNMN1907	19.05	7.94



Shape of solid cbn inserts		Insert	Dimension (mm)
			I.C.	T	r
		TNMA160404	9.525	4.76	0.4
		TNMA160408	9.525	4.76	0.8
		TNMA160412	9.525	4.76	1.2
		TNMA220408	12.7	4.76	0.8
		TNMA220412	12.7	4.76	1.2

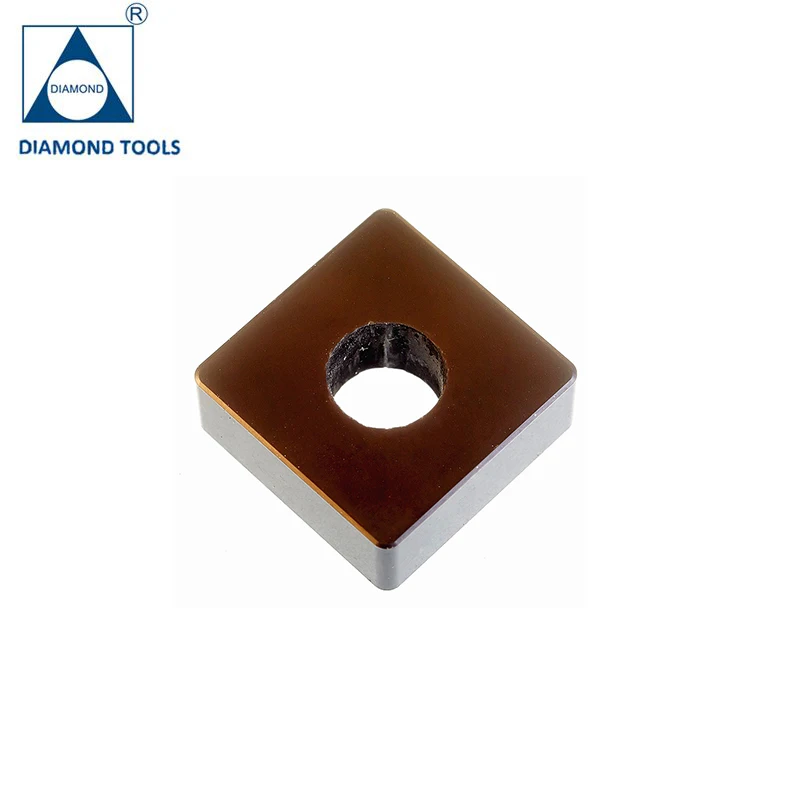

Shape of solid cbn inserts		Insert	Dimension (mm)
			I.C.	T	r
		SNMN090304	9.525	3.18	0.4
		SNMN090308	9.525	3.18	0.8
		SNMN090404	9.525	4.76	0.4
		SNMN090408	9.525	4.76	0.8
		SNMN120404	12.7	4.76	0.4
		SNMN120408	12.7	4.76	0.8
		SNMN12T608	12.7	6.8	0.8
		SNMN12T612	12.7	6.8	1.2
		SNMN150720	15.875	7.94	2.0
		SNMN201020	20	10	2.0







Quality control:
We have dedicated team of quality control and precise equipment to keep good and stable performance for our products and processing services.

Contact:
As a specialized PCD and CBN cutting tool manufacturer in China, we supply a comprehensive range of products that includes PCD reamer, PCBN Inserts, diamond die blanks, PDC cutters, and more.



Experience & Facilities:
18 years rich experience in manufacturing, export to nearly 40 countries. PCD woodworking tools and end mills win good reputation worldwide.
PCD diamond Blank imported from DeBeers or Diamond Innovations to ensure longer tool life and MAX machining productivity.
C.N.C grinder CORBON RG9 from UK, FANUC ROBOCUT cut machines from Japan, Germany VOLLMER, inspection device ZOLLER from Germany

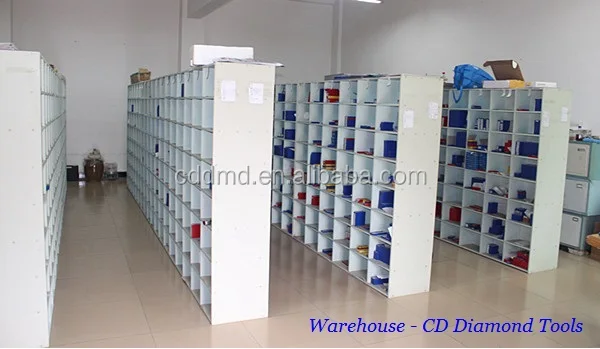

Factory & Equipment

1. Special Specification CNC cutting tools can be customized according to customer's requirements

2. Our company has attained ISO9001 certification and we have patents in cooling diamond cutter, end mill boring cutter and reamer.

3. We can give priority to production and delivery if you are in urgent need.

4. Reasonable prices with high quality, short production time and satisfactory after-sales service

Exhibitions



Customers Reviews

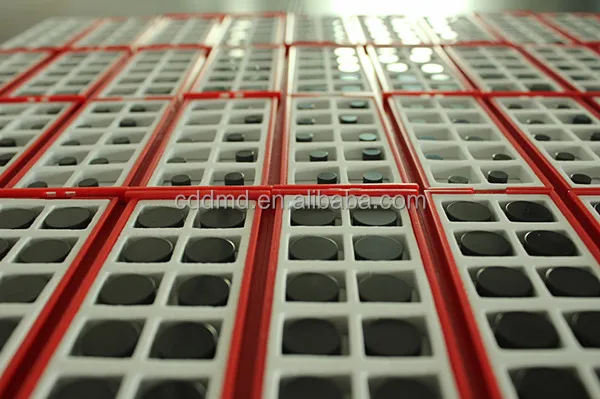

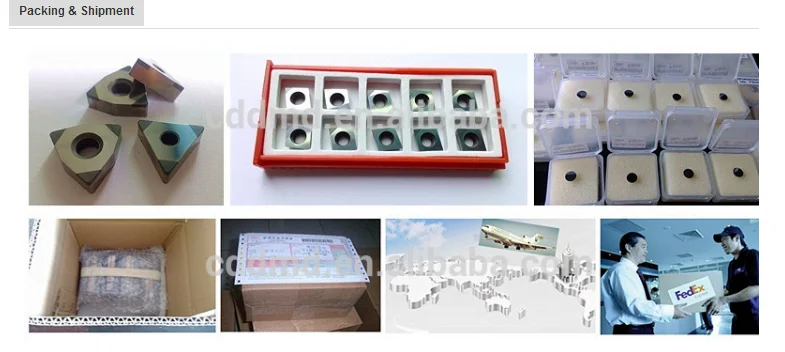

Packing Details: The case used to pack the goods is strong enough to ensure the safe arrival of the goods. We always keep the tenet that customer is king.
Delivery Detail: 3-10 days after receiving payment (if the product in stock will dispatch at once)



Certifications

We can provide the electronic edition certificates if asked, or you can see the original documents in our factory. We can ensure the truth of our certificates.

1. Are you PCD and CBN inserts manufacturer or trader?

A: Certainly we are manufacturer. Welcome to visit us to check it!



2. How long have you done in this industry?

A: Over 18 years specializing in producing PCD&CBN cutting tools, 10 years focusing on exporting.



3. Are samples available?

A: Yes, you can ask some samples for testing after confirming our prices, but please pay the sample and freight fee, the sample fee will be returned to you after you making official order.

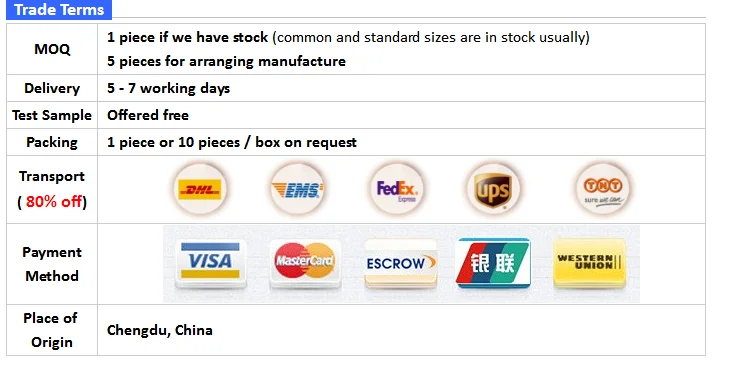

4. How do I pay for my purchase?

A: Escrow, Credit card, Western union, Paypal, Money Gram,T/T, L/C are all accepted.



5. What's your delivery time?

A: Usual delivery time is 3-10days after receiving the advance payment;

For the customized product, 12-30 days after receiving the advance payment.



6. Is your company accept customization?

A: OEM and ODM are available. And we have our own professional R&D team servicing for you. We can design and produce the products according to your concrete requirement.



7.Can I go to visit Chengdu Diamond factory?

A: Yes,of course. We will be warming welcomed to visit our factory. Please call us or send Email to make a reservation of visiting date and people.





Free samples can be offered to new customers for testing first.   Return Policy   1. If you receive our tools in bad condition, we can make a refund or re-send new to you. 2. If your machining productivity is unsatisfactory, pls feel free to send us feedback, we improve our tools according to your workpiece and machining condition, and then re-send sample for your further testing.   Ms. Nela Gou  Skype:dhsyfist1    whatsapp:+86 13551383127  Email :sales2 ATcddmd.com
