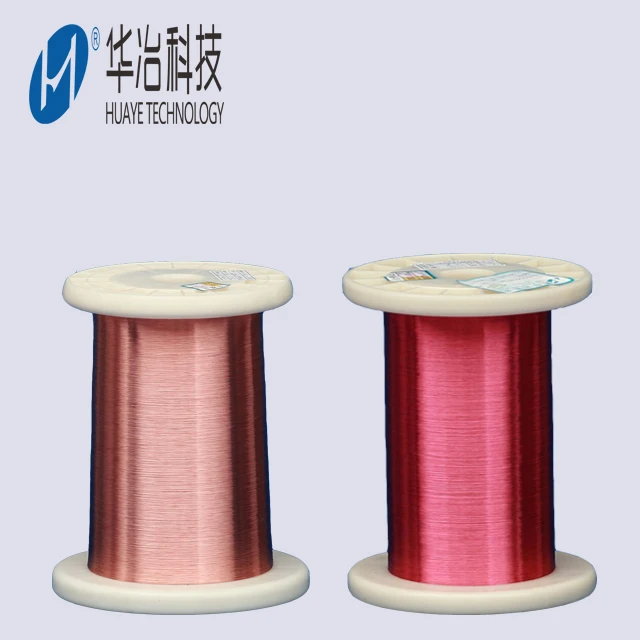

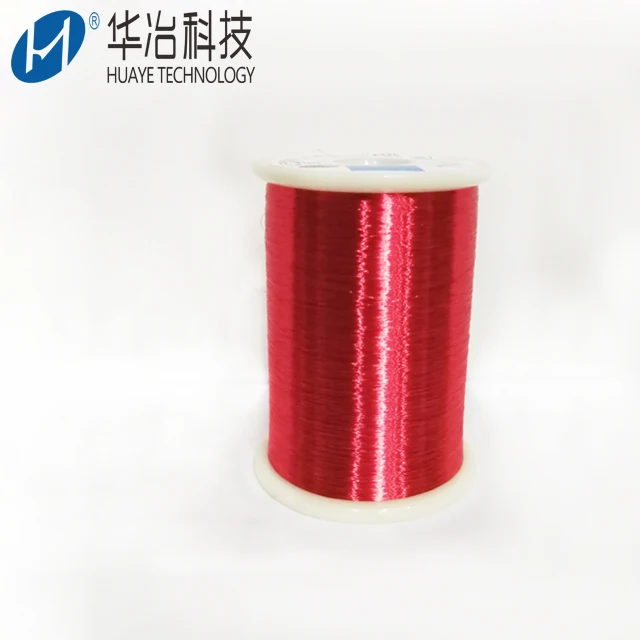

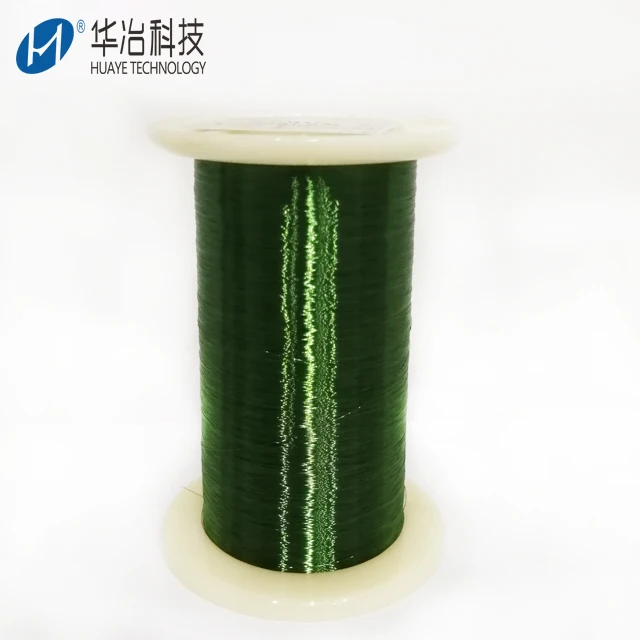

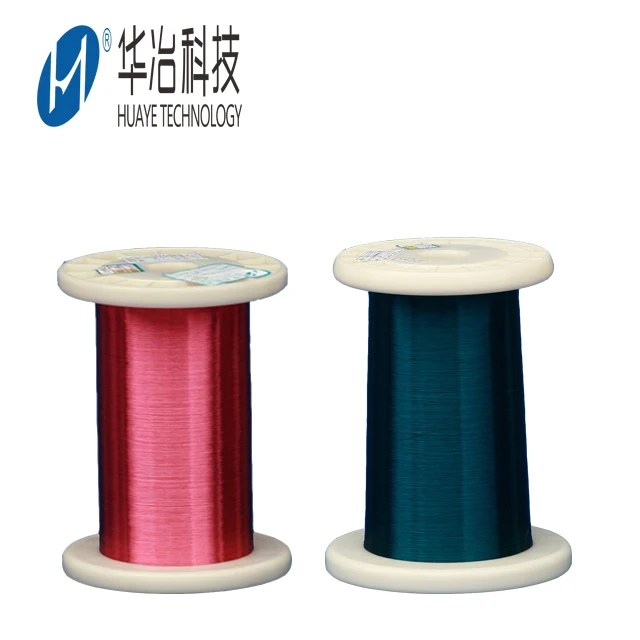

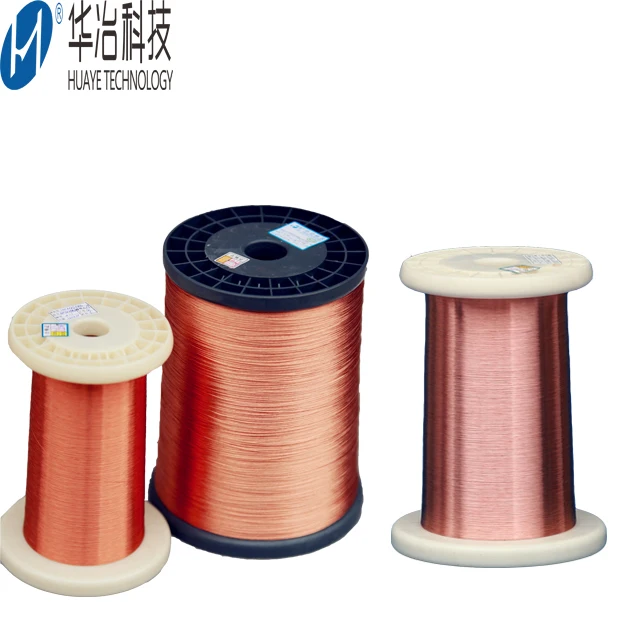

self bonding magnetic copper wire for sim card manufacturing
- Category: >>>
- Supplier: Dongguan Huaye Cables Technology Co. Ltd.
Share on (60086744897):
Product Overview
Description
Alibaba Self bonding enameled magnet copper wire,Self bondable Magnetic Coil Winding for sim card,Electrical Manufacturing
Product Description
Solderable Polyurethane Enamelled Round Copper Wire Overcoated With Polyamide,Class 155
Brand name | HUAYE | Specification Met | IEC 60317/NEMA MW |
Material type | copper wire | Conductor | Solid Round Copper (99.9% pure) |
Bare copper dia. | AWG 21-46 | Insulation | Solderable polyurethane |
Thermal class | 155 Degrees celsius | Shape | Round |
Bond method | Heat bonding | Color | natural |
Spool | PT-15,PT-10.PT-4,PL-2,PC-1 | Certification | UL,SGS,REACH,ROHS |
Enamel Base coat | mod. Polyurethane | Enamel Bond overcoat | Polyamide(nylon) |
SELF BOND WIRE Certificate:
Production Flow:
Magnetic Coil Winding Application:
self-bonding inductance coils:
Inductance coils of products such as toys, sensors,laser magnetic heads, chip inductors,
clocks, high frequency magnetic core transformers.
voice coils:
All kinds of trumpet voice coils
general motors coils:
Motor coils such as electric motors, servo motors, submersiblepump motors, draining
pump motors, brushless motors.
small motors coils:
Small vibration motors(flat,columnar) coils: telephone motors, toys motors, airplane model
motors, small household appliances motors.
contactless IC card coils:
13.56MHz contactless IC card coils, compatible with internal antenna of CPU.
smart card(ID)antenna coils:
Apply to all kinds of smart card antenna coils.
Low frequency 125 KHz, high frequency13.56MHz, ultrahigh frequency2.5GHz and
different shapes of card coils.
high-performance magnetic induction coils:
Apply to magnetic induction equipment of motors illumination, security, wireless
charging and so on, such as infrared induction floor, mobile wireless charging.
Properties:
Imported high quality copper and environmental protection enamel are adopted in the series of the products
to improve tensile strength and uniformity of the film.
Stable impedance, uniform diameter, good electrical performance are always kept and resistance to
high-temperature, wear and corrosion have further promoted in order to guarantee the wonderful effect
of bonding and range, bright and clean surface.
It fits the harsh environment of special motors and meets the requirements of the times for it has replaced
the varnishing process and improved its environmental protection level.
Characteristic:
Our Services
1.Quality assured, refund guarantee due to quality issue
2.Free sample
3.Factory direct price
4.Shipping on time
Packaging & Shipping
Packing: Inner packing: Plastic Spool of PT-15,PT-10.PT-4,PL-2,PC-1 according to wire size
Outer packing: Carton box and styrofoam or as customer required
Shipping: Sample time: Nearby 3-5days, distance 5-7days. Production time: 7-30days
FAQ
1.What kind of copper wire do HUAYE produce?
We focus on research and development of self-bonding magnet round copper wire, fine polyurethane magnet wire, self-bonding litz copper wire and self-bonding silk covered wire.
2.What's diameters available of the products?
We specialize in fine and ultra fine enamelled copper wire,diameters available of our products is Φ0.018-0.50mm.
3.What's self-bonding enamelled copper wire?
Self-bonding enamelled copper wire is a special type of enamelled wire with an additional adhesive enamel overcoat such as thermoplastic resin.
This adhesive has a bonding feature, which is activated by heat or solvents.
Once activated the adhesive bonds turn to turn windings into a compact self supporting coil.
The use of selfbonding wire may offer cost and manufacturing advantages in some winding applications
as bobbins, tape, varnishing, or impregnation may be eliminated.
4. Is possible to get any sample of selfbonding enamelled copper wire that you have in production?
Of course you can!
Company Information
Company Idea: Sincere Trust Unite Create Share
Dongguan Huaye Cables Technology Co.,Ltd was founded in 2003 .
We focus on research and development of self-bonding magnet round copper wire, fine
polyurethane magnet wire,litz copper wire and self-bonding silk covered wire.
Diameters available of our products is Φ0.018-0.50mm
Our annual production capacity reaches to 800-1200 tons.
Huaye insist that “Quality is the foundation of value and respect” .
We are confident that all clients’ requirements are guaranteed.
