automotive part threading hubcaps threading rolling machines

Product Overview

Description

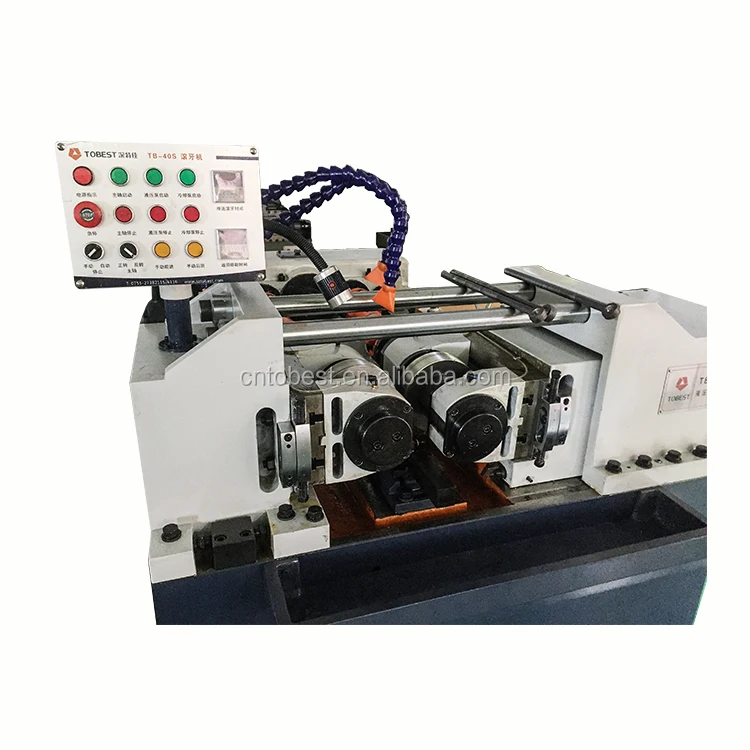

Automotive part threading hubcaps threading rolling machines



Features:

1.Combine dual-row needle bearing and cylindrical roller bearing.

2.Adopt multi-stage gear box to realize stable and convenient speed variation.

3.Equipped with sandwich plate valve for hydraulic system

4.The time can be delected by new digital display.

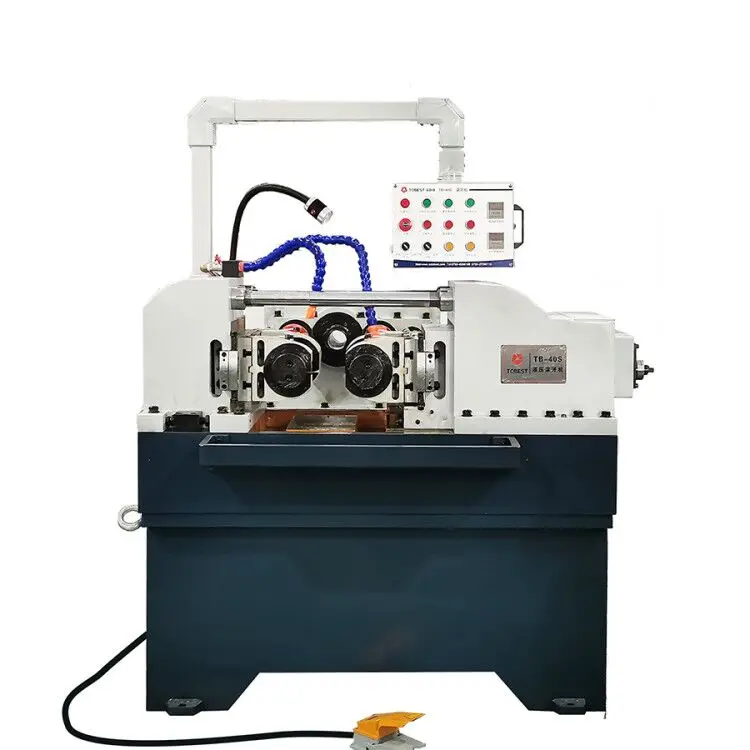

Technical parameter of Tobest TB-40S

Work piece diameter				φ5-φ80/mm
Range of pitch rolled				1.0-6.0P
Length of thread rolled				Fixed and rolling-through for option
Spindle speed				16/25/40/63(r/min)
Outside diameter of rolling die				φ135mm-φ215mm
Inside diameter of rolling die				φ75mm
Thickness of rolling die				120mm
Min.Distance between die spindles				130mm
Max.Distance between die spindles				260mm
Output(pcs/min)				4-20 pcs/min
Machine motor				7.5HP(5512W)
Hydraulic motor				2HP
Max.feed pressure				16T
Supply voltage				380V

Products display:





it is automatic rolling machine for sale
