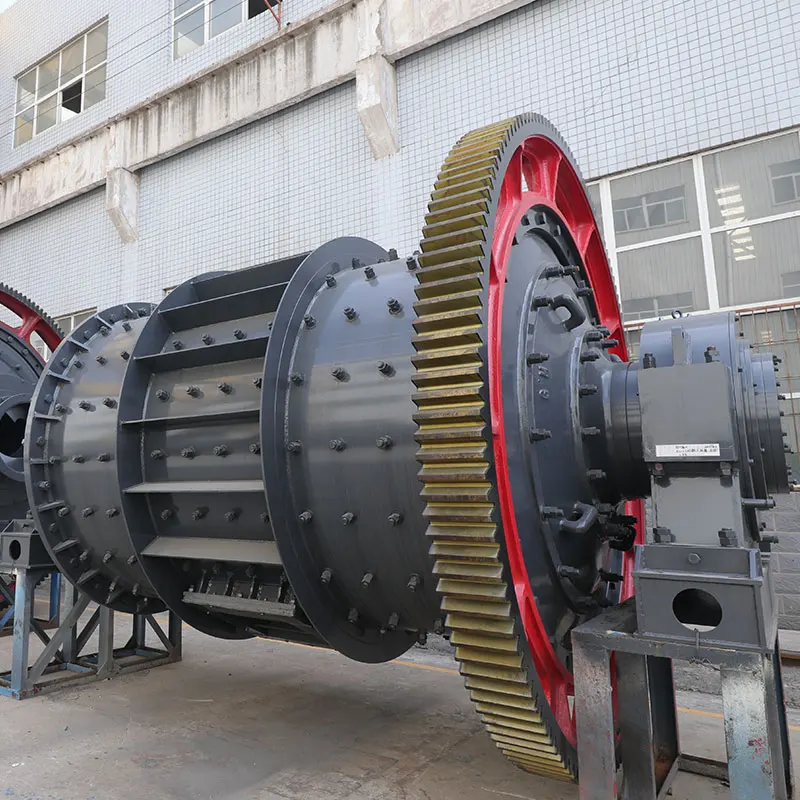

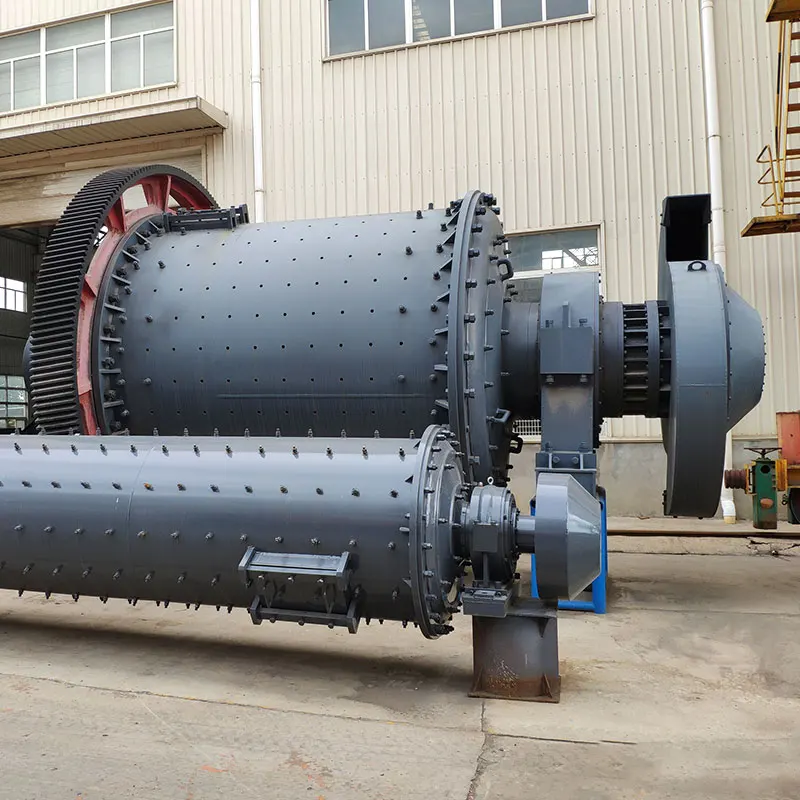

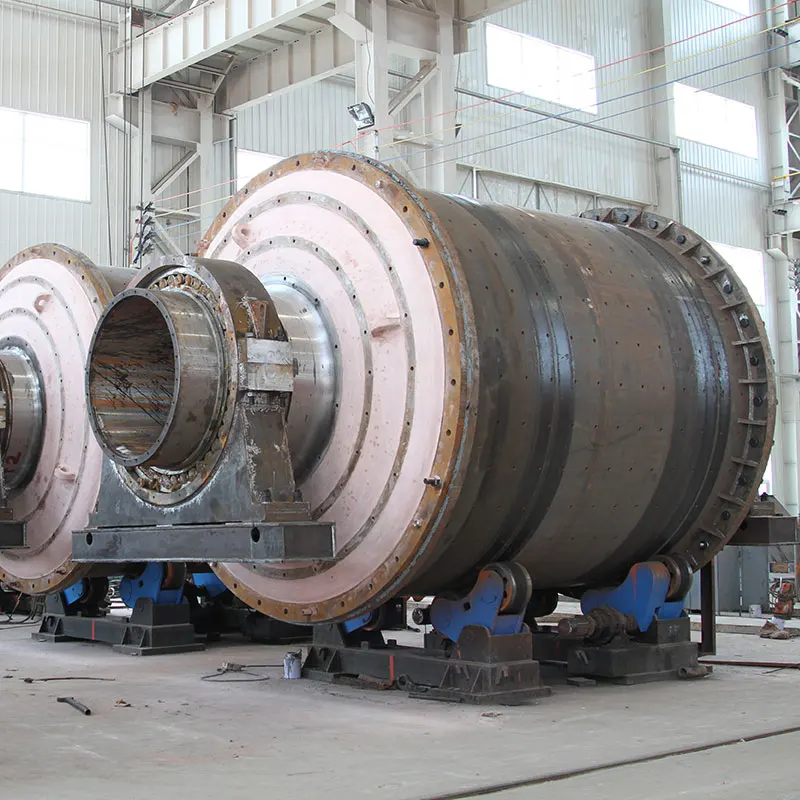

Copper Distiller, MQY 4060 Grinding Machinery of Overflow Ball Mill for Ore in Henan

Product Overview

Description

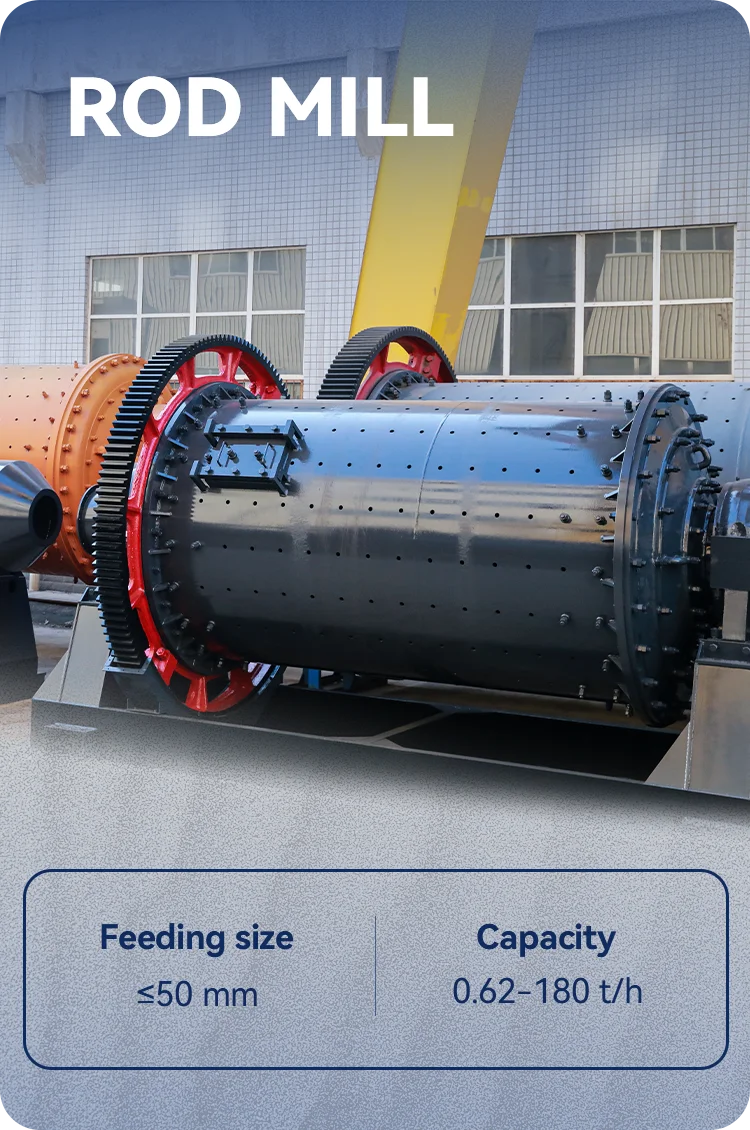

Rod mill is a key equipment used for grinding or artificial sand making after material crushing, suitable for crushing low hardness and brittle materials. When used for coarse grinding, the processing capacity of the rod mill is larger than that of a ball mill of the same specification. As a fine crushing equipment, the rod mill can replace the short-head cone crusher. Rod mills are widely used in metal and non-metal mining, water conservancy, glass, building materials and other industries



Applicable Materials





Rod mills are widely used in ores, cement, silicate products, ferrous and non-ferrous metals, steel slag, building materials, refractory materials, fertilizers, glass, ceramics and other materials.



Product Structure

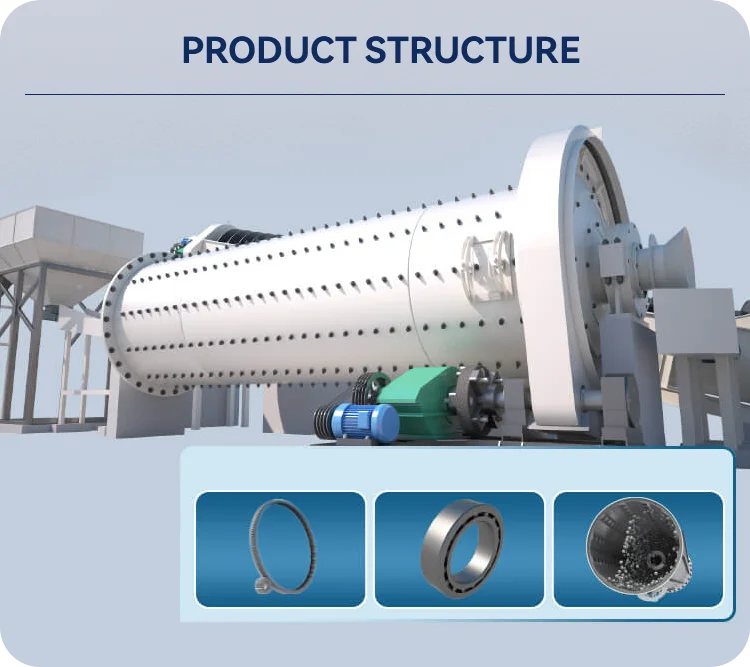

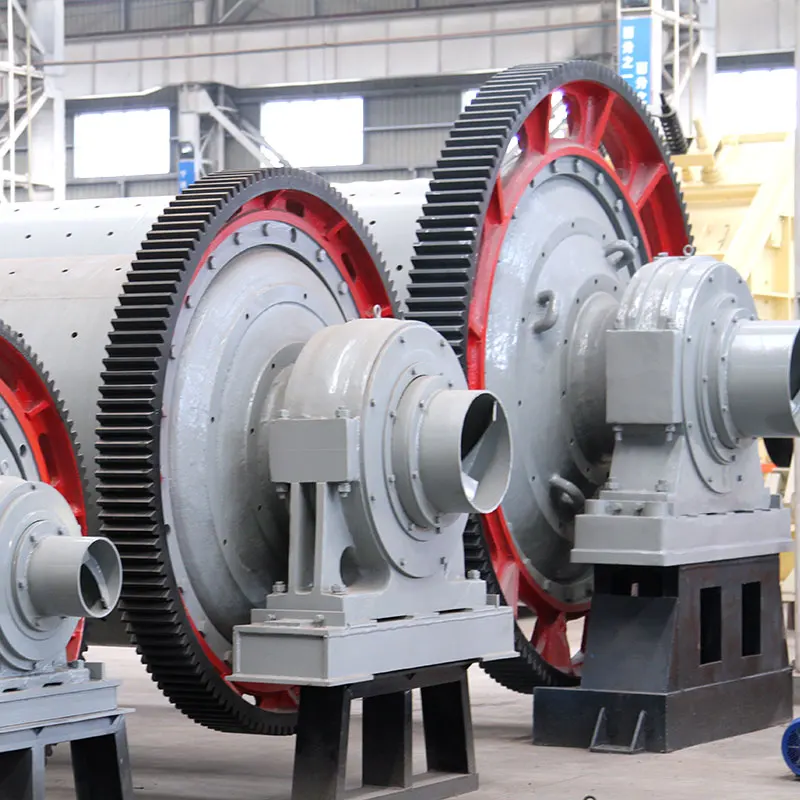

The main structure of the rod mill includes feeding device, rotary part, large and small gears and main bearing.





Outstanding Advantages



1. More uniform discharge particle size: The rod mill replaces the traditional ball mill's surface contact with linear contact, which is beneficial for the crushing of coarse particles. The output product has a more uniform particle size distribution, ranging from 0.147 to 0.833mm, with less over-crushing.



2. Power saving: It saves more than 40% power compared to traditional equipment, resulting in higher working efficiency and lower electricity consumption, reducing your operational costs.



3. Adjustable discharge fineness:There is a fineness control device and a discharging screening device inside the rod mill, which can be adjusted according to the user's needs to ensure the size of the grinding particles.



4. Good sealing performance: It can prevent dust and noise pollution to the environment, promoting green and environmentally friendly operations.









The rod mill uses reduction gears driven by a dynamo or low-speed synchronization electrical machine to make the tube run. Steel rods in the tube are thrown at high speed by centrifugal and friction force, crushing the ground material. The crushed material is discharged from the machine, ready for the next working process.







Model	Feeding size (mm)	Discharging size (mm)	Processing capacity (t/h)	Power (kw)	Total weight (t)
MBS0924	≤25	0.833-0.147	0.81-4.3	22	6.7
MBS1224	≤25	0.833-0.147	1.1-4.9	30	13.9
MBS1530	≤25	0.833-0.147	2.4-7.5	75	19.8
MBS1830	≤25	0.833-0.147	4.8-11.6	130	34.9
MBS2130	≤25	0.833-0.147	14-35	155	46.5
MBS2136	≤25	0.833-0.147	19-43	180	48.7
MBS2430	≤50	0.833-0.147	25-65	245	59.7
MBS2736	≤50	0.833-0.147	32-86	380	92.5
MBS2740	≤50	0.833-0.147	32-92	400	95
MBS3245	≤50	0.833-0.147	64-180	630	149









Henan Zhongde Mining Machinery Co., Ltd was founded in 1982 in Zhengzhou, Henan, the capital of Chinese machinery manufacturing. The company is large in scale and has four major production bases with a total area of 500,000 square meters, of which standardized heavy industry plants cover an area of 360,000 square meters, providing advanced and reliable infrastructure for production.





Our company focuses on the development and production of mining machinery, including crushers, mills, beneficiation equipment, briquette machines, rotary kilns and other products, which are widely used in mining, chemical industry, construction, coal, ceramics, and other industries. With excellent quality and professional solutions, it has won the trust of customers around the world.







Our Services



1. We provide customers with a full range of services, including solution design, technical process planning, and the design and manufacturing of standard and non-standard equipment.



2. We dispatch professional technicians to the customer site to assist with shell welding, equipment installation, adjustment, and training of operators.



3. We visit customers regularly to provide lifelong service and technical support.



4. Except for wearing parts, we provide one-year warranty, long-term supply of spare parts, and two-year maintenance of major parts if used correctly.





Quality Control



1. Our equipment holds ISO 9001, CE, and GOST certifications and all equipment undergoes pre-wiring, assembled, and factory tested at our manufacturing facility.



2. We take a test on each machine before delivery.





FAQs



How to get the best price for equipment?

• We are the direct manfacturer, so we can offer you the lowest price than the market price.


• The price of the machine can be given the largest discount based on quantity.

Our payment term?

• Paypal, T/T, L/C, and Western Union are all available.


• 30% deposit in T/T advance, 70% balance before shipment.


• We take photos of finished products before delivery.

Delivery time?

• Streamlined production allows for prompt delivery of most products within 6-8 weeks.


• The delivery time will be based on the machine type, selected shipping method, and parts availability.


• We take photos of finished products before delivery.

Packaging?

• The equipment is wrapped in plastic film before packaging to avoid moisture at sea.


• Bare machines are packed in export containers.


• The motors and small parts are packed in waterproof, sealed, and sturdy wooden cases.

Transportation?

• Standard container or bulk cargo transportation.


• Sea transportation, air transportation, land transportation, according to customer requirements.


• Complete shipping options and best services at lowest prices are provided: MSC, APL, COSCO, OOCL, CSCL, MSC, MSK, KLINE, etc.


• Seaports in normal use: Qingdao, Tianjin, Shanghai.


• We promise that your goods will be delivered to the destination promptly and safely, and will remind you before the ship arrives.





If you need quality machinery with the latest technology, best prices and fastest delivery, our company is your answer. You are welcome to visit our company and workshop, we sincerely look forward to cooperating with you.
