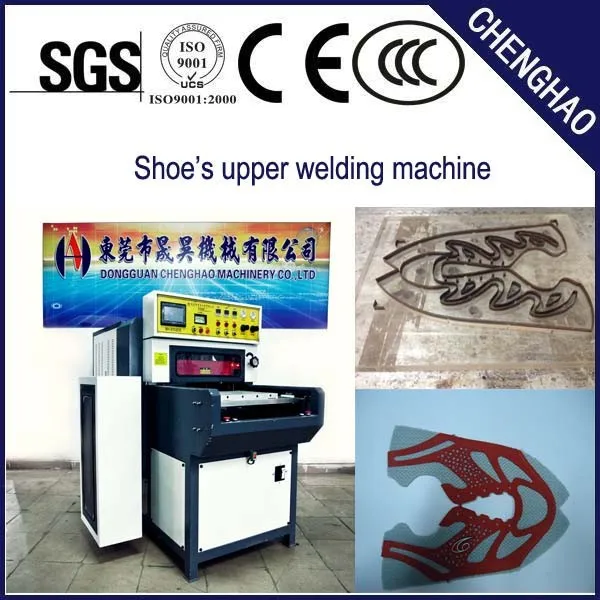

15 кВт спортивная обувь высокочастотная сварочная и режущая машина для вамп

Product Overview

Description







15KW sport Shoes High Frequency welding and cutting machine for vamp











Model	CH-8KW-HTRD	CH-12KW-HTRD	CH-15KW-HTRD
Output Power	8KW	12KW	15KW
Voltage	220V/380V/3P  50/60Hz	220V/380V/3P  50/60Hz	220V/380V/3P  50/60Hz
Input Power	10KVA	15KVA	25KVA
Oscillation Frequency	27.12MHz	27.12MHz	27.12MHz
Oscillation Tube	7T85RB	E3130	8T85RB
Anti-Spark System	NL-5557	NL-5557	NL-5557
Max Pressure	10TON	20TON	30TON
Size of Mould Holder	350*450MM	400*600MM	400*600MM
Working Table Size	350*700MM	350*700MM	350*700MM
Machine Dimension	2300*1560*2300MM	2100*15000*2300MM	2000*2350*21500MM
Machine  Weight	1100KG	1300KG	1500KG

H.F fusing principle:

High frequency fusing machine principle is high frequency equipment, By electron tube produce high-frequency electromagnetic field of oscillator. Be processing in the high frequency electromagnetic field object pressure on between motor, Medium material in the high frequency electric field happened under the action of molecular polarization, And according to the electric field direction arrangement,Because of the high frequency

electric field, With great speed changing direction, The media in the material internal molecules are sharpened and high speed movement to rub their own heat generation, In the mold under pressure to achieve the purpose of welding or embossing.





Structure:

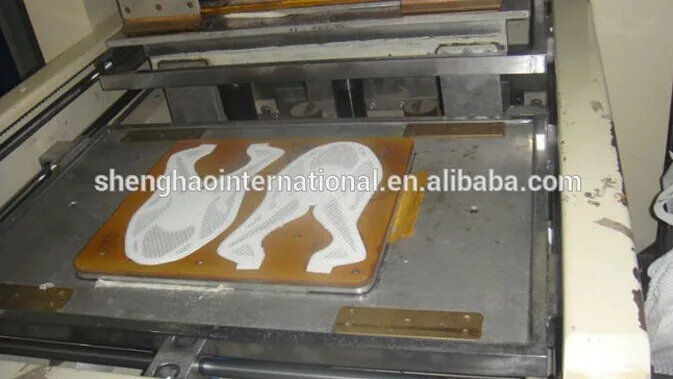

1. This machine have two push dish, have two working location, the worker just put the product into the machine,and turn on the switch, then the mold will automatic drop, after heating it will automatic rising, The entire process is simple and safe. Workers do not need any special training,  can use the machine.

2. Using force strength low loss of the coaxial oscillator is unique, Can at any time for mold size and adhesive material thickness and adjustment of the strength of the output force, Make operation high frequency unit not make interference telecommunications, other brands can not compare, The output of the adjustment of can also cooperate with time system,Maximum output can in the shortest possible time fusing product,increased

output. Protection device, Limit current protection, When output force adjustment of too big, Can cut off output is high weeks inside machine for electron tubes from protection of excessive current and damage.



Mechanical characteristics:

1. power range 5-35 KW, maximum pressure hydraulic 40 tons.

2. the maximum working area of 800-1000.

3. adopt the automatic sliding device, and a quick, accurate positioning.

4. fusing machine sleek and feel good.

5. 5555 7 PL American type sensitive spark protection device.



Purpose:

1. Fusing Cardboard and plastic absorbing at the same time(Toothbrush packaging)

2. Fusing car cutification machine, sunvisors, Door plank armrest at the same time etc.

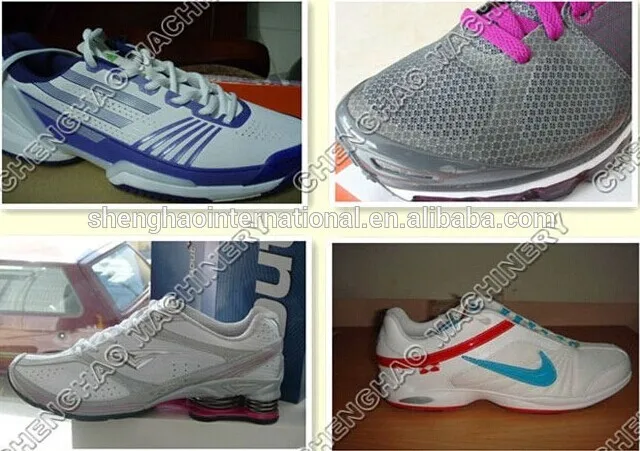

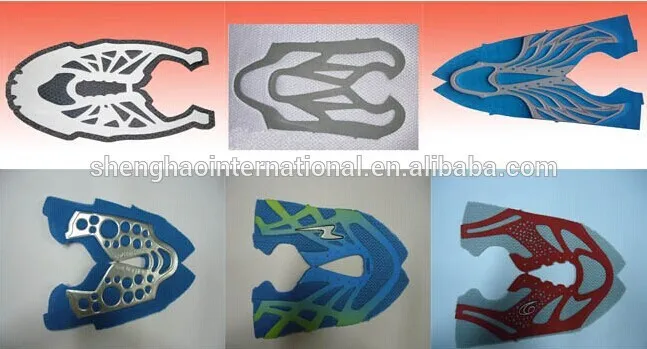

3. Footwear accessories, trademark, the watch belt, belts, CD bag etc.

4. APET, PTE, PTEG environmental protection material double-sided suck plastic foam packaging.

5. APET, PEG, PE, PP environmental protection material folding boxes line pressing machine.

6. Toothbrush/dental floss, blister packaging, hanging card it suck plastic synchronous fusing.

7. Synthetic leather embossing machine cloth.

8. All kinds of high frequency welding materi
