STB VFD DISPLAY 012BT231GINK CIG20 1222N DISPLAY SCREEN
- Category: >>>
- Supplier: Hangzhou Kinghigh Technology Co. Ltd.
Share on (60087148429):
Product Overview
Description

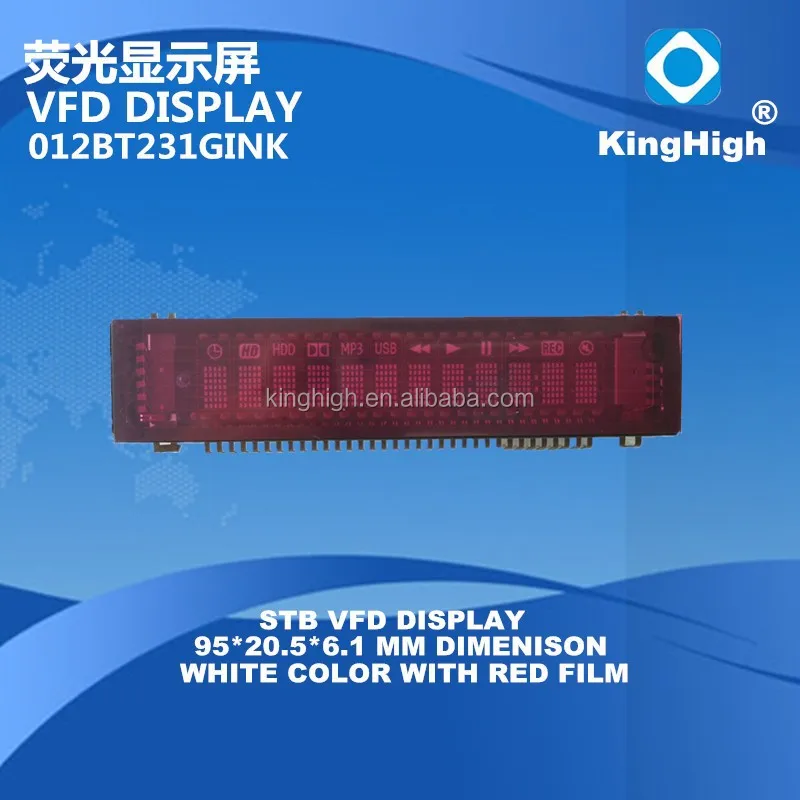

STB VFD DISPLAY 012BT231GINK CIG20-1222N DISPLAY SCREEN

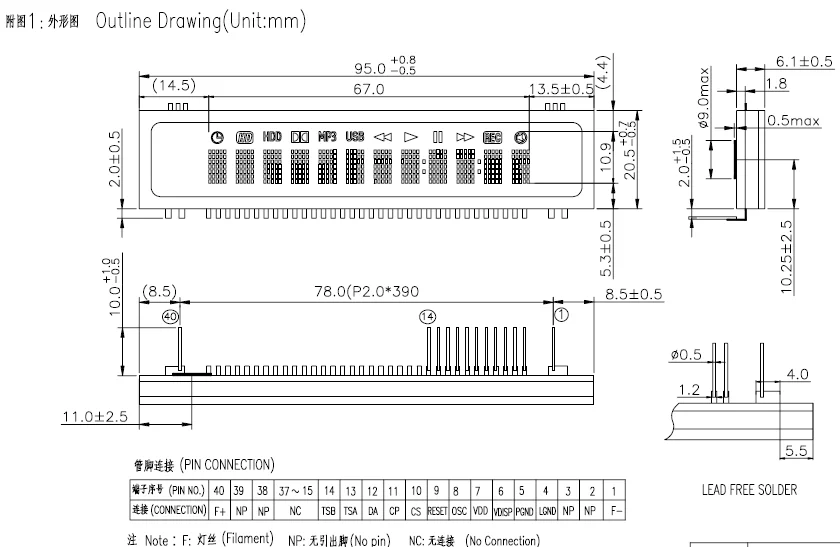

Outer Dimensions | 95.0x20.5x6.1 mm | 95.0x20.5x6.1 mm | |
Lead | Lead Pitch | 2.0 mm | |
Operating Temp | Lead Out | Single Bending Pin | |
Item | Symbol | Condition | Min | Typ | Max. | Unit |
Filament Voltage | Ef | - | 3.51 | 3.9 | 4.29 | Vdc |
Cut-off Voltage | Ek | - | 2.0 | - | 3.0 | Vdc |
Logic Supply Voltage | Vdd | - | 4.5 | 5.0 | 5.5 | Vdc |
Driver Supply Voltage | Vdisp | - | 30.0 | 33.0 | 36.0 | Vdc |
