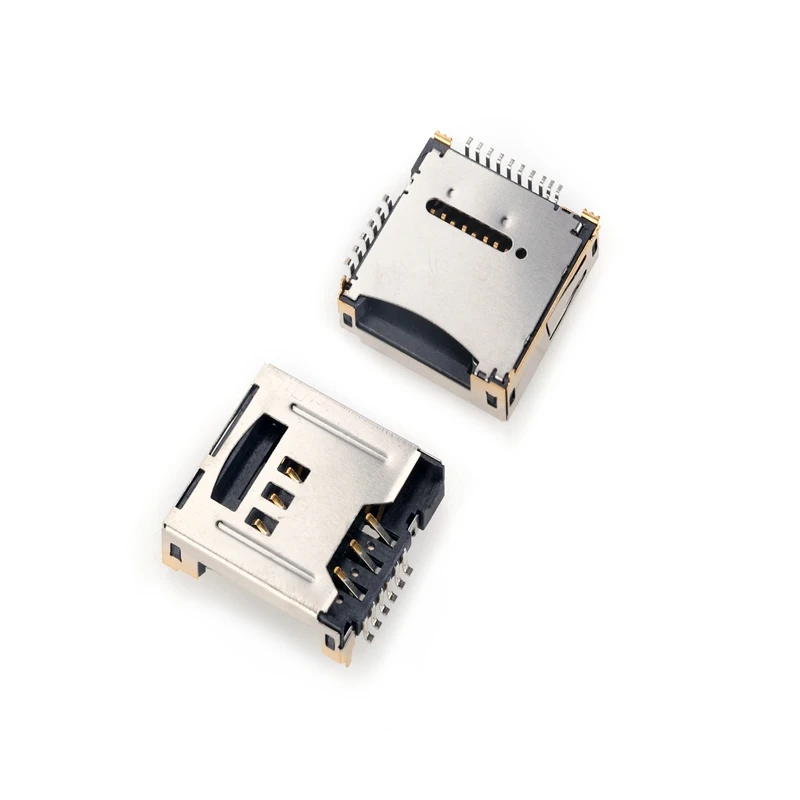

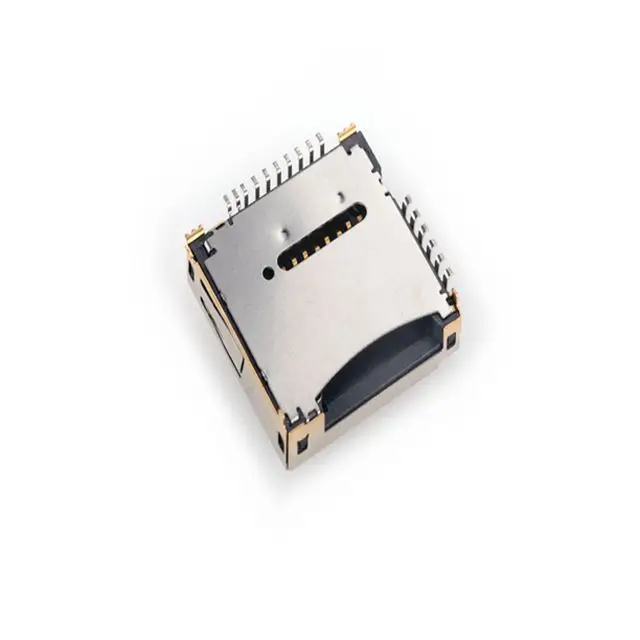

MUP M618 2 in 1 6pin SIM 8pin TF card holder connector

Product Overview

Description

MUP-M618 2 in 1 SIM+TF card holder





Product Description

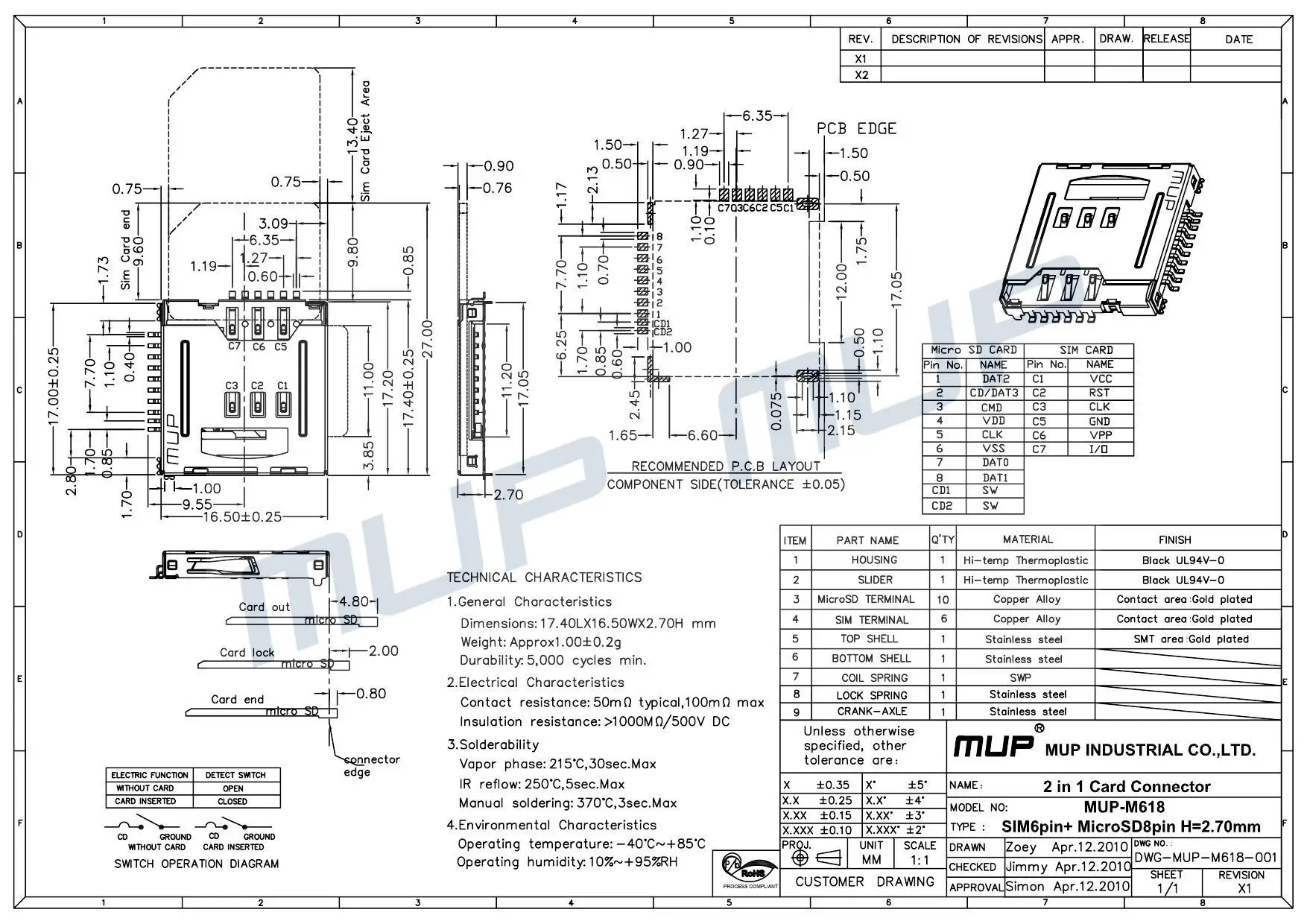

1.General characteristics



   Dimensions: 17.40L*16.50W*2.70H mm

   Weight:Approx: 1.20±0.2g

   Contact principle: Friction technology

   Operating position: shaft up/down/horizontal

   Mounting system: SMT(without post)

   Durability: 5000 cycles min



2.Mechanical characteristics



   Insulation material: Thermoplastic,UL 94V-0



3.Electrical characteristics



   Number of contact: 8pin SIM+8Pin TF

   Contact resistance: 50MΩ typical,100MΩ max

   Insulation resistance: >1000 MΩ/500V DC



4.Solderability



   Wave: not applicable

   Vaporphase: 215^oC,30sec Max

   IR reflow: 260^oC,10sec Max

   Manual soldering: 360^oC,3sec Max



5.Environmental characteristics



  Operating temperature: -25^oC − +70^oC

  Operating humidity: 10% − +95%RH

  temperature: -40^oC − +85^oC

  Storage humidity: 10% − +95%RH

  Thermal shock: -40^oC+85^oC,5cycles

  Damp Heat: 40^oC,90%RH,500H

  Salt-mist: 35^oC,5%Nacl,48H
