super white frosted channel glass U glass

Product Overview

Description

super white frosted channel glass U glass

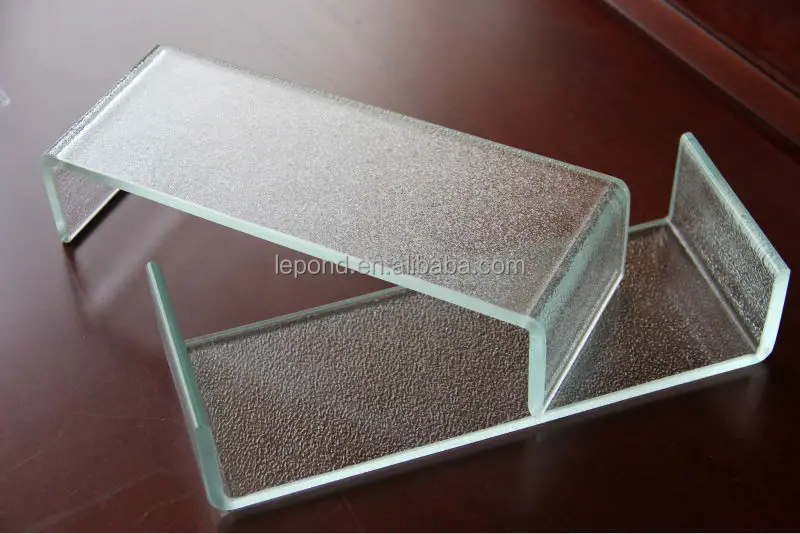

What is U glass ?



U glass is a U shaped cast glass. Cast in sheet form whilst still molten, it is rolled and the side wings are



formed to create a U shaped profile. It is commonly referred to as ‘channel glass’ and each individual length ‘a



blade’.It can be used internally and externally and is a very popular glazing solution selected by architects



because of its unique, aesthetic characteristics. ideal light transmission, good sound insulation, excellent heat



insulation, reservation and convenient installation.



Features :



U glass can be used in straight and curved applications and the channels can be fixed horizontally or



vertically. The blades can be installed single or double glazed.



It available in varying dimensions, up to a maximum of 6 meters lengths, and is designed to be cut to size. The



nature of how U glass is connected and secured to the perimeter frames means that by fitting the blades



vertically, long U glass facades can be achieved without the need to break the design with (visible)



intermediate supports.

Available in different clear glass tints – green tint or extra clear tint, with or without wires, and comes



in a variety of colors.



Specifications:







Thickness: 6 -7mm patterned, unwired

Section Size: 260x41x6mm, 260x60x7mm

Color: clear, bronze, blue or affixing color film as customer's require.





Application :

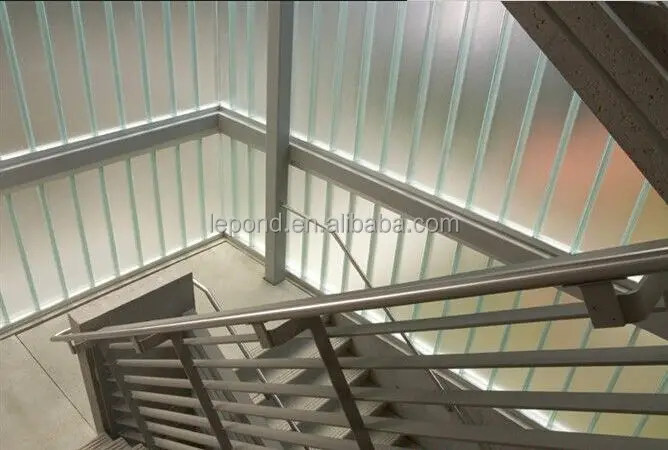

U Glass can be used internally, externally, for straight & curved walling, partitions, roofs and windows. It can be



considered for all manner of projects, from schools, offices, medical centers, public buildings to public &



private housing.



U GLASS range Dimension (mm)





Type	Channel width±2	Flange height ±0.5	Thickness ±0.5	Max. length±3	Weight (approx.)kg/m
SQ26	260	41	6	6000	4.75
	260	60	7	7000	6.50
SQ33	330	41	6	6000	5.60
	330	60	7	7000	7.70
SQ50	500	41	6	6000	8.40
	500	60	7	7000	10.20
