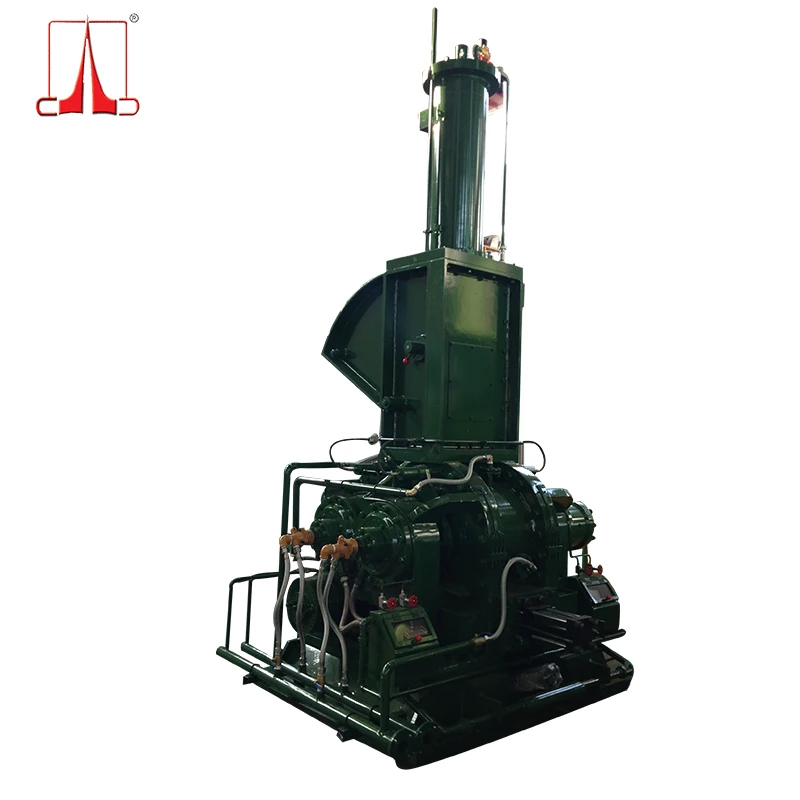

Rubber Mixer /tire industry / Banbury Mixer

Product Overview

Description

Machine Overview:



Internal batch mixers such as the Banbury mixer are used for mixing or compounding rubber and plastics. The mixer consists of two rotating spiral-shaped rotors encased in segments of cylindrical housings. The rotors may be cored for circulation of heating or cooling.



It has reasonable design, advanced structure, high manufacturing quality, reliable operation and long service life. It's suitable for tire and rubber industries insulating material and cable industries to plasticization, master-batch and final mixing, especially for mixing of radial tire compound.





Main features:

• Choice of Rotor Designs
• Pneumatic or Hydraulic Ram
• Direct Drive or Compound Drive
• Multiple contact surface hardfacing or heat-treating
• Temperature sensing and oil injection
• NMC Mixer Control System: monitors and controls mixing time

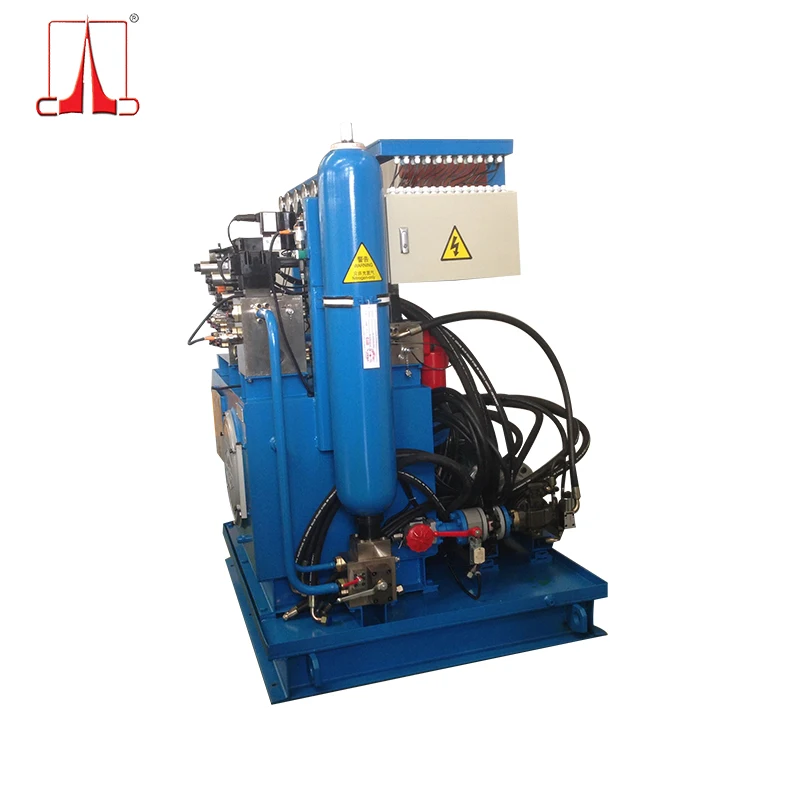

• Mixer Accessories: Hydraulic Power Unit, Dust Stop Lube Unit, Air Valve and Temperature Control System



Technical Parameters:





Tangential Rotors



Items	LX-75L	LX-100L	LX-120L	LX-160L	LX-190L	LX-255L	LX-270L	LX-410L
Total chamber volume (L)	75	100	120	160	190	255	270	410
Useful chamber volume (L)	50	80	100	120	140	115	188	319
The main rotor speed(rpm)	40	40	40	40	40	4-40 6-60	4~40	6~60
The rotor speed ratio	1:1.17	1:1.17	1:1.17	1:1.17	1:1.17	1:1.17	1:1.17	1:1.17
Max capacity (T/H)	1.25	1.6	1.95	2.64	2.85	4.6	4.6	7.4
Motor power (KW)	160	220	310	355	870	1500	1250	2X1250
Weight(T)	20	24	26	26	30	55	55	76







Intermesh Rotors



Model	LH-100Y	LH-145Y	LH-200Y	LH-250Y	LH-330Y
Chamber Volume (L)	100	145	200	250	330
Filling Coefficient	0.65
Rotor Speed (r/min)	10-60
Rotor Speed Ratio	1:1.17
Max. Capacity (T/H)	1.36	2.2	3.05	4.2	5.0
Motor Power (Kw)	520	720	1100	1320	1700
Dimension (m)	6.6x2.8x4.4	7.5x3.1x5.5	8.1x3.5x5.4	8.2x3.8x5.5	10.0x4.7x6.6
Weight (T)	19	29	48	65	80

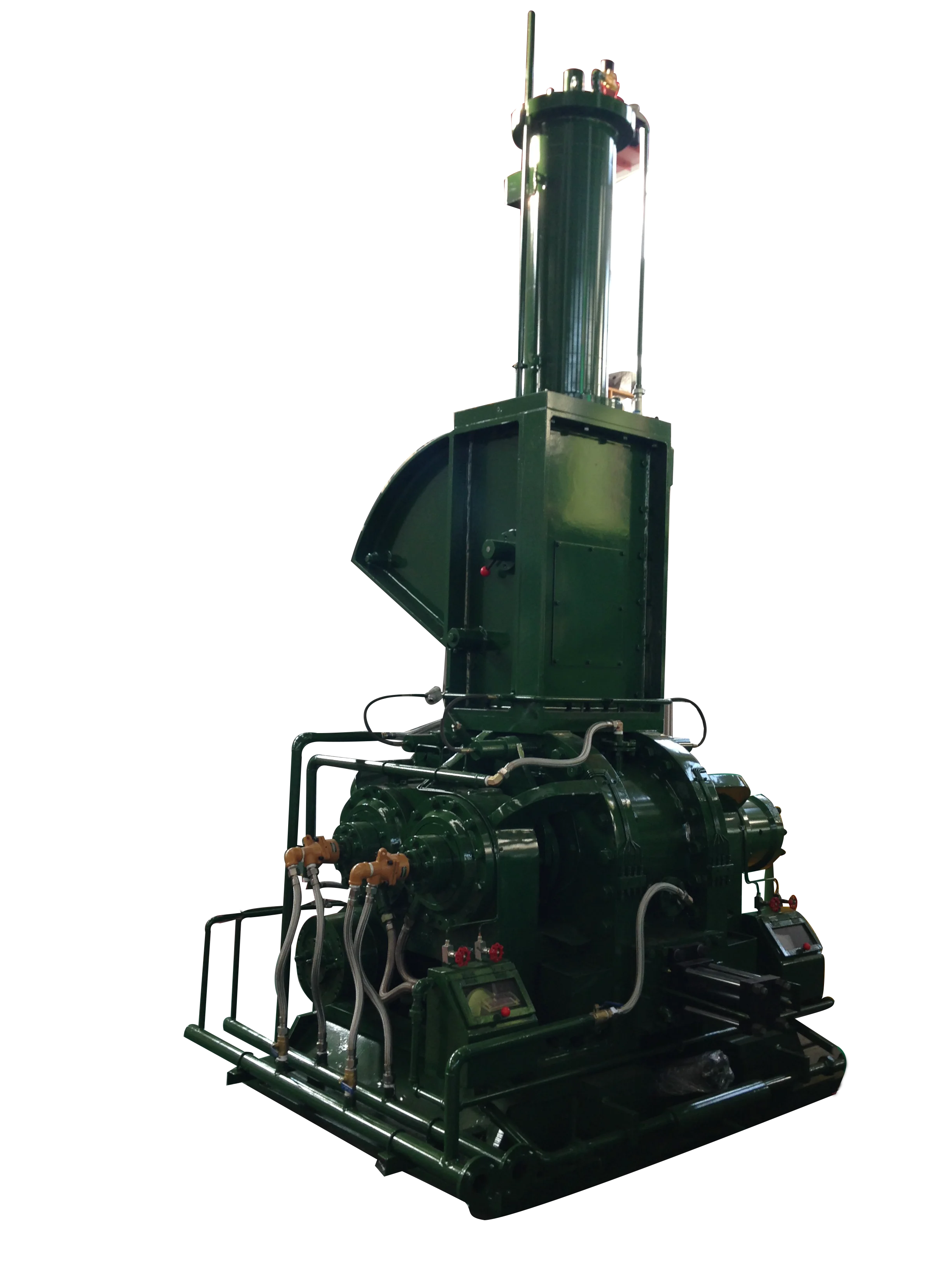

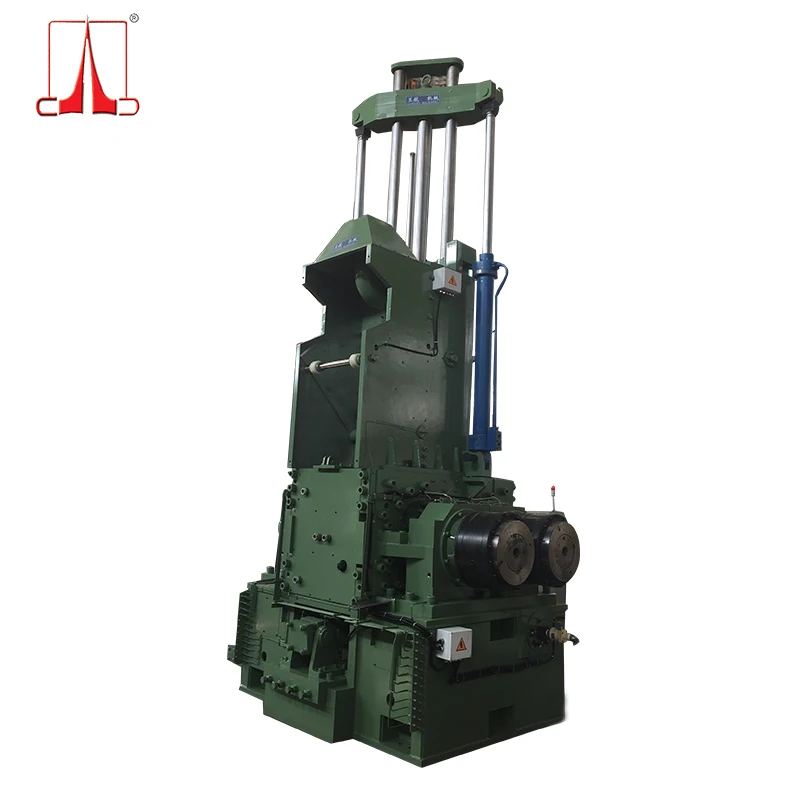

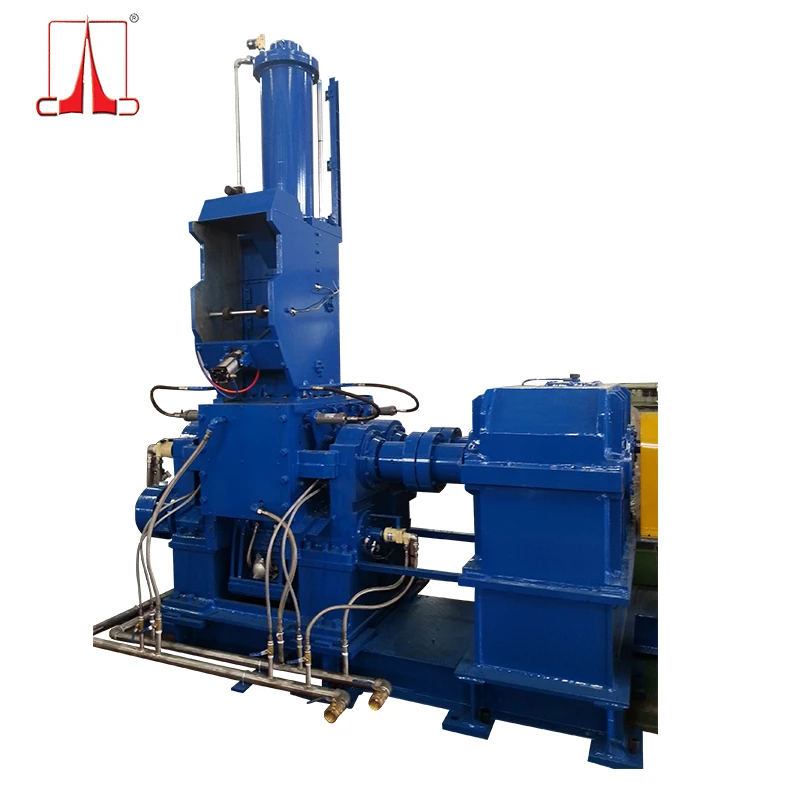

Machine Shows:









Company Introduction:

Zhangjiagang Lanhang Machinery Co,Ltd.,was founded in 1992 .which is a professional manufacturer and one of the leading Chinese suppliers of plastic and rubber equipment for a wide range of applications.

With its rich expertise and familiarity in plastic and rubber industry technology, we provide our customers with mechanical engineering and production at the highest quality level.

Our machinery enjoys the good reputation among our customers due to the high quality and reasonable price. With the excellent after-sale service, we always give our customer the best satisfaction.
