Online Electronic weighing machine/digital check weigher JZ W25kg

Product Overview

Description

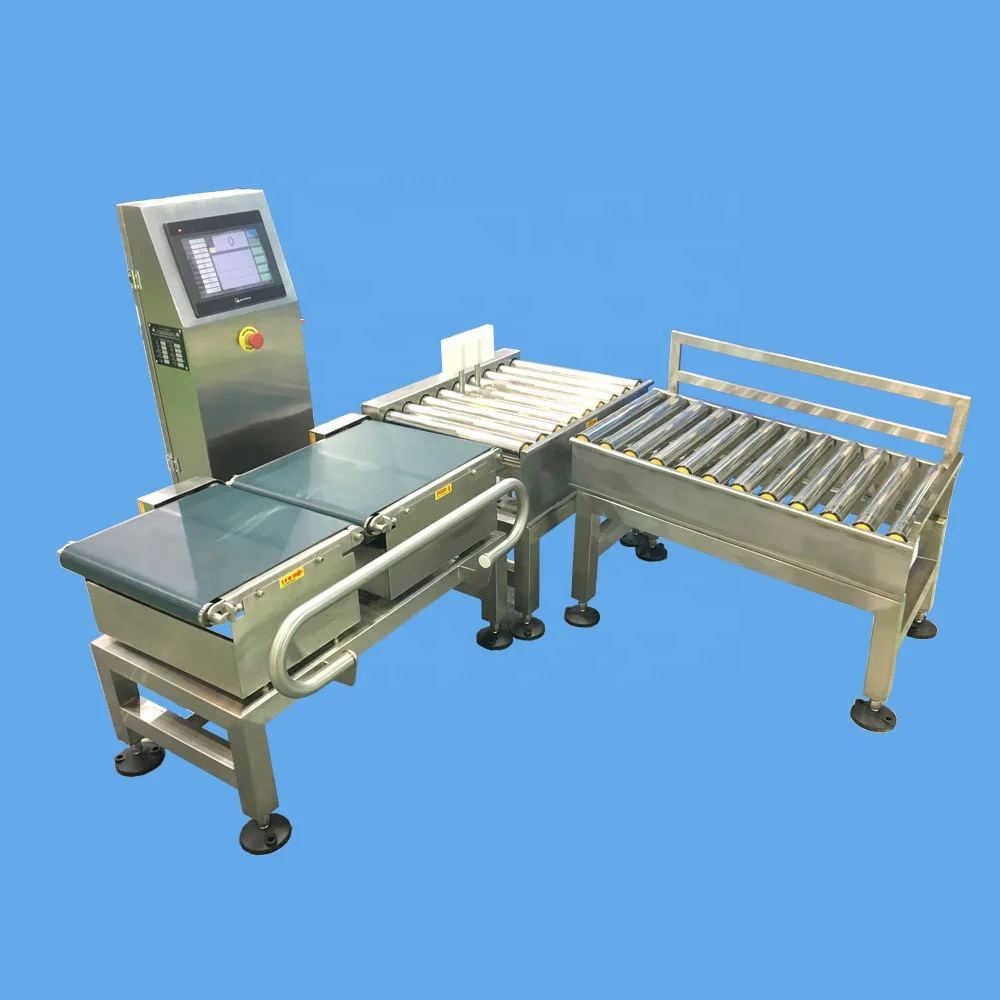

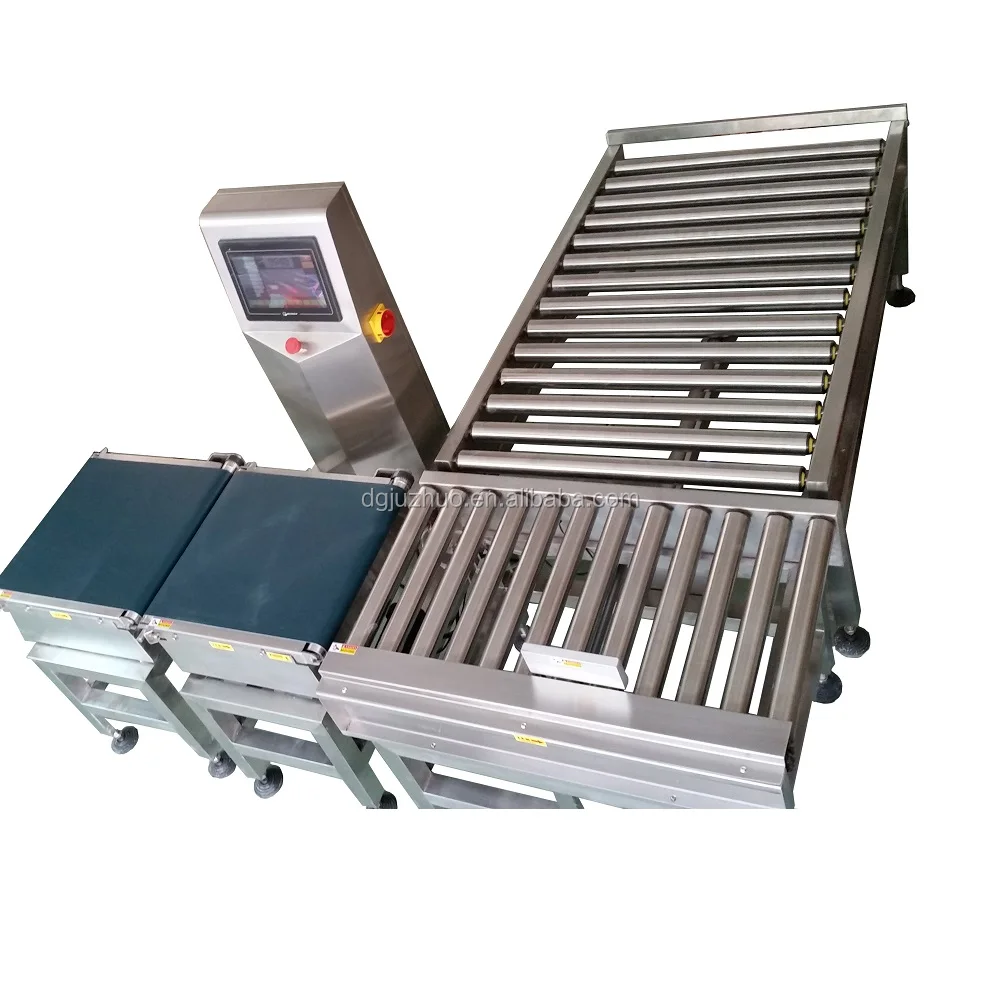

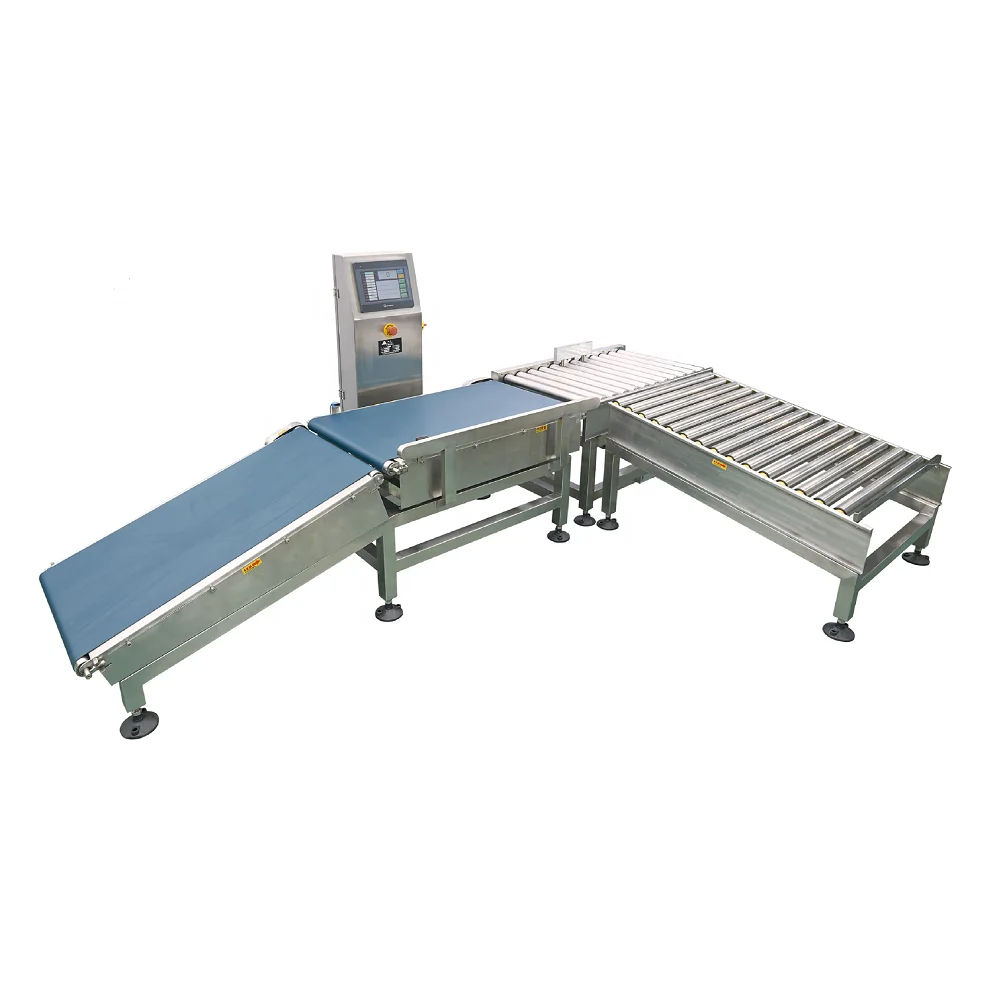

Electronic weighing machine/digital check weigher JZ-W25kg

Application

Electronic weighing machine/digital check weigher JZ-W25kg is used to check whether the single pack weight is conformed to the preset weight, and the overweight and underweight products can be removed by various reject devices automatically. qualify bags will be passed to next equipment

Features

• SIEMENS PLC and 10" color touch screen, Intelligent compact design construction ,Auto program setting adjust for more stability and easier to operate;


• Apply HBM load cell ensure high accuracy and stability (original from Germany)


• Solid SUS304 structure ensure stable performance and precise weighing


• Reject arm, air blast or pneumatic pusher for selecting


• Belt disassembling without tools, which is easier to clean


• Install emergency switch at the size of machine, user friendly operation


• Arm device show clients clearly for the production situation (optional)


• Can record up 10 kinds of different products parameter,

Model	JZ-W25kg
Control System	10’’ color touch screen
Weighing range	50-25000 grams
Conveyor Speed	13-78meter/min
Maximum through-put capacity(products)	500bags/min
Accuracy	+5grams
Product Size	60<L<420mm; 30<W<380 mm ;10<H<430mm
Mini Scale	0.5 grams
Weigh Belt	600mmL*400Wmm
Conveyor height	750mm+/-50mm
Auto Rejector system	Reject Arm/Air Blast/ Pneumatic Pusher/divided –flow style
Grade of waterproofing	IP66
Power supply	220V/50HZ or 60HZ Single Phase
Machine material	304 stainless steel
Interface	Transmit the weight to Ink-jet printer(need customer offer the protocol)
Packing Dimension	1900L*550W*1600H mm
Gross Weight	300KG

Optional part

1,the software for network date management



2,Front feeding FBC feedback control software



3,Printer



4,lamp
