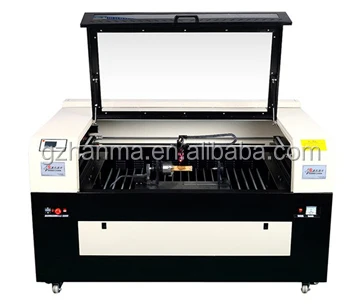

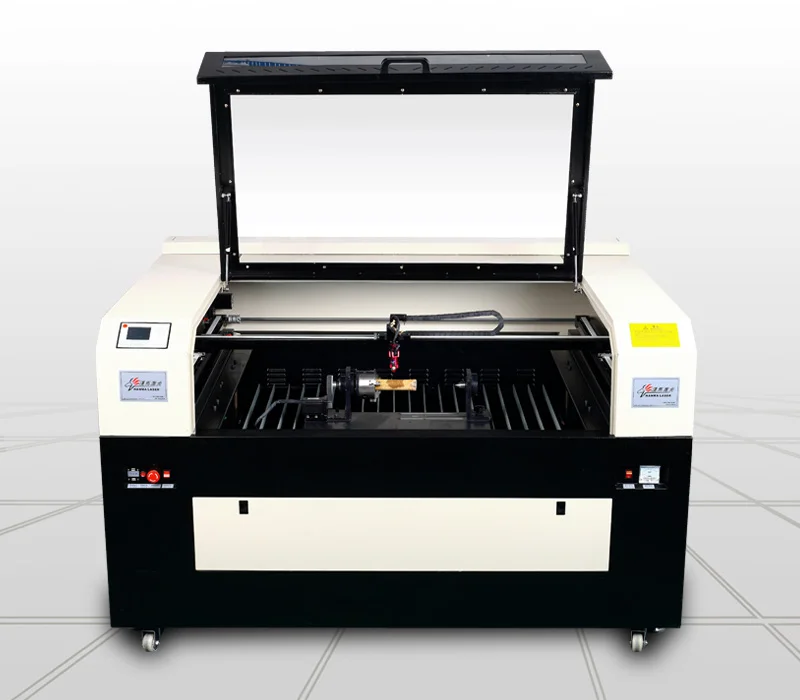

HM-U1310 Non-metal Material CNC CO2 Laser Engraver/Cutter/Rotary Shaft

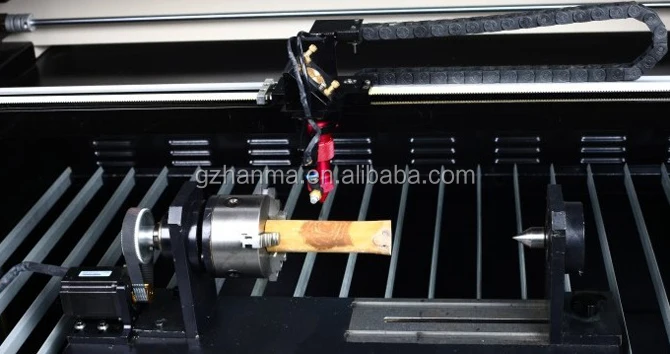

the up and down working table plus the rotary shaft
Features:
This series usesthe latest designof a working table which can go up and down automatically to make the thickness of the materials without limits any longer when processing,thus improving the flexibility.Optional rotary shaft makes the craft diverse.
1.CE Approved.
2.Good quality laser tube.
3.Standard laser-adjusting mode.
4.Easy operation.
5.High precision.
6.Good after-sales service.
Brief introduction of main accessories:
Brief introduction of main accessories
1.Advanced CO2 Laser Tube ofthe famous brand of Beijing Reci:with a chemical life expectancy
of 10000 hours.
2.The Laser power supply with the aluminum shell:highly stable.
3.Laser lens imported from Singapore:with a high reflection ratio and small focal spectrum.
4.The high precision conveyor belt with the steel wires inside: with a longer life.
5.The high speed adjustable guide rails imported from South Korea:work more smoothly.
6.Step motor of the famous brand of Leadshinedriven:more stable.
7.System operation software in Hanma original version:1 set.
Technical Parameters:
Technical Parameters
Working Area:
1100X1000 mm
Size(the practical table):1300X1000 mm
Laser Power of Speed adjustment without class:
Optional,60W, 80 W,100 W,150 W or 180 Ware all available.
Resolution Ratio:
0.025mm
Specification of the minimum shaping character:
Chinese characters in 2 mm,and letters in 1 mm.
Repositioning Accuracy:
±0.01mm
Power Supply:
Ac220v±100%,50HZ/60HZ
Total Power:
<1500 W
Working Temperature:
0℃-45℃
Working Humidity:
5%-95% of non condensation water
Graphic Format Supported:
BMP,GIF,JPEG,PCX,TGA,TIFF,PLT,CDR,DWG,or DXF.
N.W./G.W.:
400/550 KG
Dimensions:
1850x1500x1130mm
1950X1600X1300mm(with packing,as reference)
Application:
Engraving & Cutting of Non-metal materials
such as wood,paper,leather,cloth,organic glass,epoxy resin,acrylic,marble,wool,plastics,porcelain tiles,crystal,jade,and bamboo, etc.
The Applied Material & Industry:
The Applied Material & Industry
The Applied Material:
Non-metal materialssuch as wood,paper,leather,cloth,organic glass,epoxy resin,acrylic,
wool,marble,plastics,porcelain tiles,crystal,jade,and bamboo, etc.
The Applied Industry:
1.Apparel&Textile Making.
2.Shoes Making.
3.Carton/Color Card Packaging.
4.Crafts/Gifts Making.
5.Advertising.
6.Printing.
7.Decoration.
8.Furniture.
9.Home Appliance,etc.
Standard Accessories&Gifts:
Standard Accessories&Gifts
Accessory
Qty
Water Cooler
1 set
Air Pump
1 set
Exhausting Fan/Ventilation
1 set
60 W Laser Tube(Reci)
1 pc
Laser Mirrors&Lens(from Singapore)
4 pcs
Honeycomb Table
1 pc
Step Motor(Leadshine)
1 set
Guide Rails(from South Korea)
3 pcs
Laser Power Supply
1 set
System Operation Software
1 pc
QC & Installation:
QC
The test of every machine shall be strictly conducted before it's being sent out.
Installation
1.A manual of Installation & Operation.
2.A video Disk of Training.
Maintenance and After-sales Service:
Maintenance
Parts
Warranty
Main Body
1 year
Water Cooler
1 year
Air Pump
1 year
Laser Power Supply
10000 h,1 year
CO2 Laser Tube
10000 h,9 months
Mirrors & Lens
3 months
Exhausting Fan
3 months
After-sales service
1.We could send our engineer to give a good training for about 4 days to enable the customers
to operate the machine in person,during which,the traveling expenses of our engineer shall be
paid for by customers.
2.Except the laser tube's artificial damage,we'll send back the alternative fittings to customers
for free after the testing when customers send the damaged fittings to us which are under warranty.

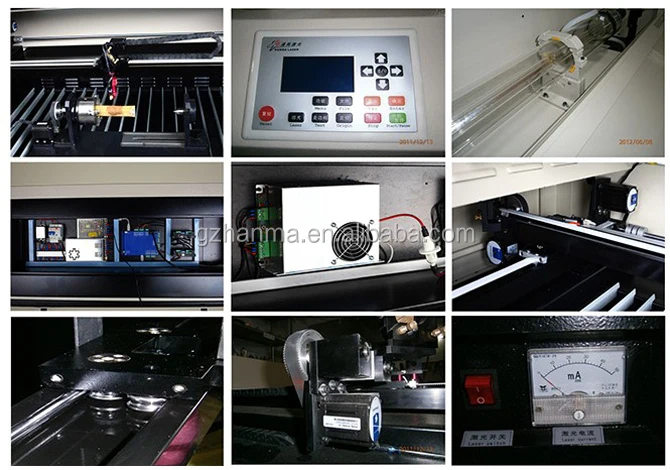

Pictures of Parts:
Pictures of Advanced CO2 Laser Tube:
Picture of Laser-adjusting Mode:
Packaging & Shipping
Packing Details :Standard packing for exporting
Delivery Detail :Within 15days after receive payment
Company Information
Guangzhou Hanma Laser Equipment Co.Ltd is a high-tech enterprise specialized in researching and developing laser processing, integrated product and sales. With the application of advanced technology and scientific management, Hanma Laser wins itself good reputation and lots of loyal customers in global market. Over the past years, our products have been exported to American, Western Europe, Southeast Asia, Middle East and other regions.
Our company manufactures series of machines such as metal and nonmetal laser cutter and engraver, laser die board cutter which are all custom made as required. We take pride in the good quality, stability and excellent after-sales service. Hanma laser machine manufacturing – head for global branding, and we standardized unified manufacturing 100% quality, produce the best cost effective laser machine.
our certification:
FAQ
Q1: How could i know if you are a trustworhy?
A: Hanma Laser is a professional laser cutting manufacturer with enrich experience in laser processing industry, provide stable and reliable laser processing machine and wonderful after sales service. We also have CE and other necessary certifications. So, Yes you can count on us.
Q2: Is your factory convenient for visiting?
A: Yes, it take Utmust 30~45 mins to come to our factory if you are in centre of Guangzhou.
Q3: Can i arrange sample cutting test?
A: Yes, always welcome; pls be prepare if your material are unique or not easy to get.
Q4: What 's the difference between the machine from Hanma Laser to other suppliers
A: It won't make much different in general looking and the initials running. But, when you work with the machine for one month or so, you will see the differences. Below advantages make us win in long running.
* Experienced engineer on QC.
* 1st class Reci laser tube adopted.
* Millingmachine processed platform.
* Unique 3 sideway exhausting designed.
Contact me!!!
Please feel free to contact me for more information.Thanks.
