Top manufacturer sintered silicone carbide ring for mechanical sealing
- Category: >>>
- Supplier: Henan Aryan New Materials Co. Ltd. [Henan China]Henan
Share on (60088217882):
Product Overview
Description

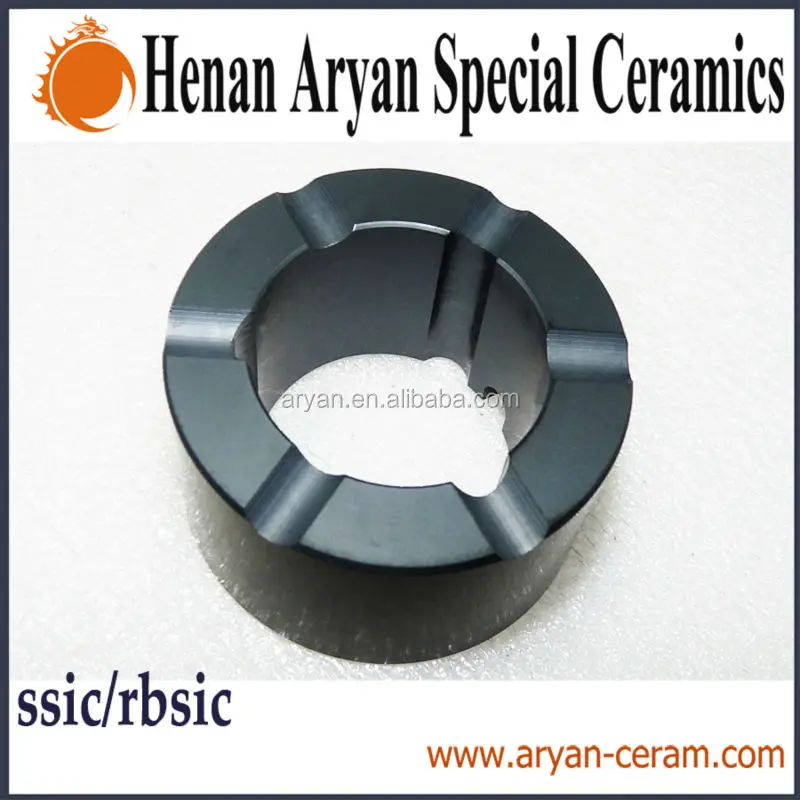

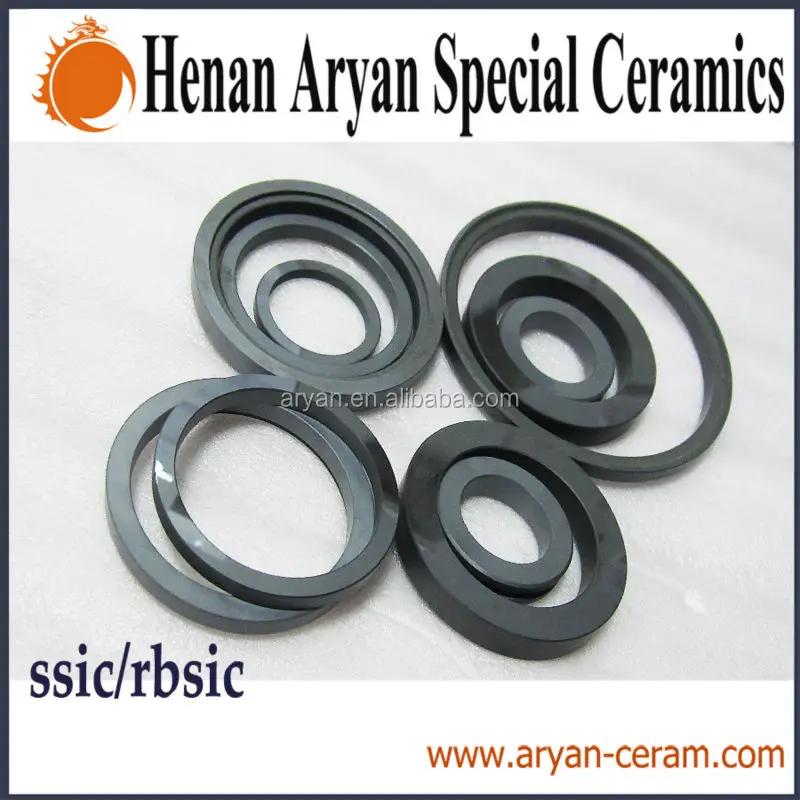

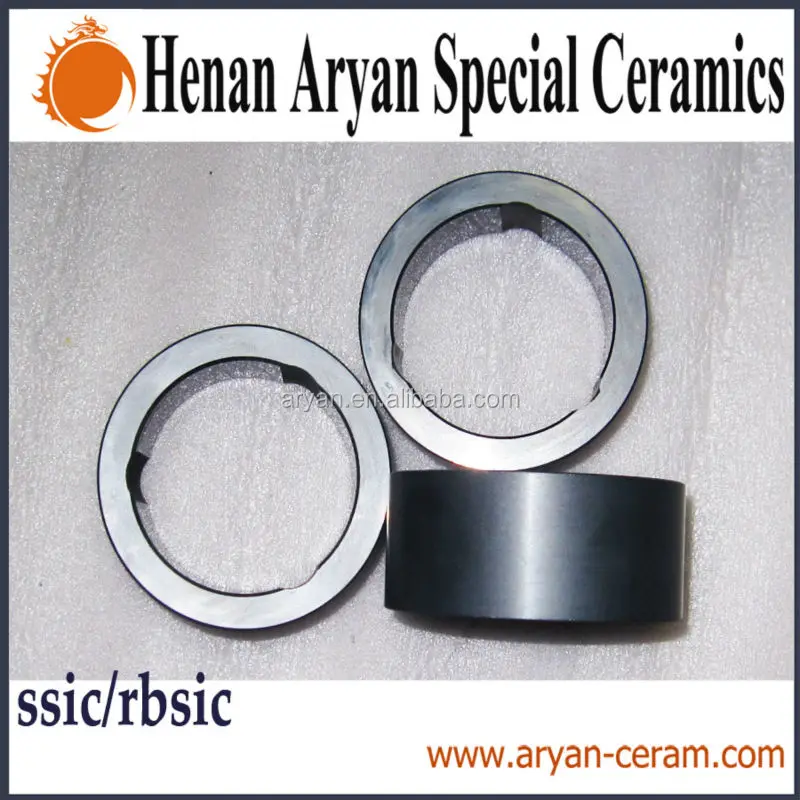

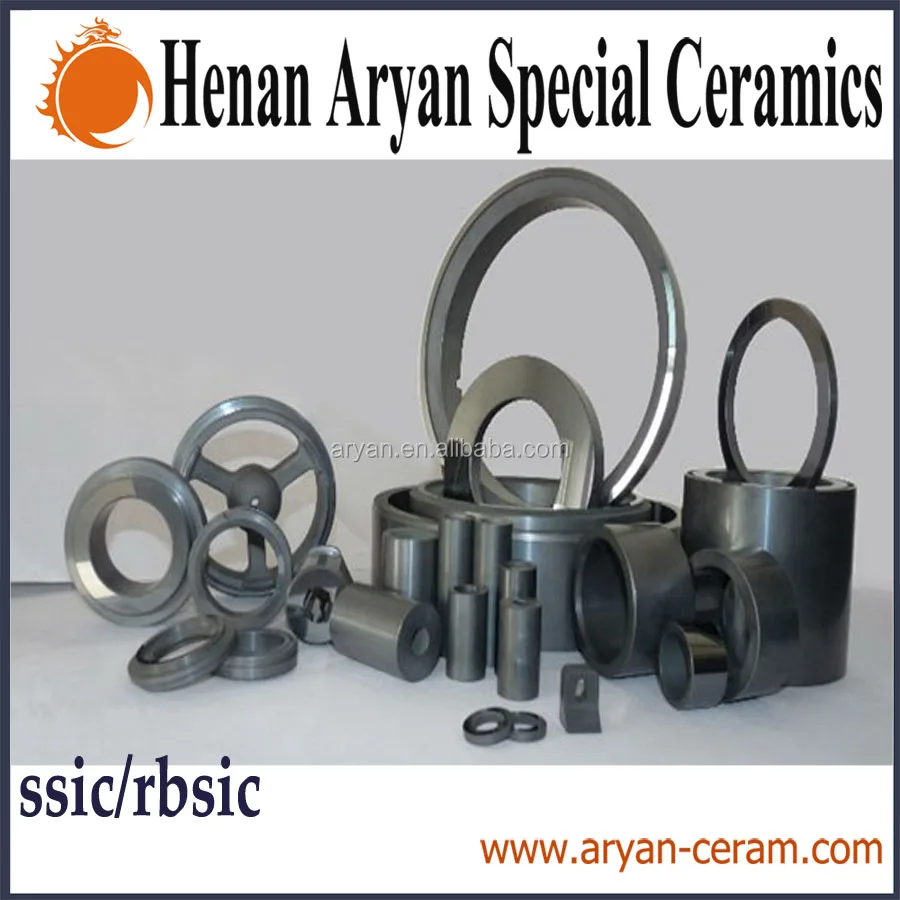

Top manufacturer sintered silicone carbide ring for mechanical sealing
Excellent corrosion resistance, high coefficient of heat conductivity, self-lubricity, low density high hardness and also provide customized production.
| Parameter | SSiC | RBSiC |
| Purity( % ) | >98 | >90 |
| Hardness( HRA ) | ≥92 | ≥90 |
| Grain Size( um ) | 0.5~0.7 | 8~20 |
| Density( g/cm3 ) | 3.10~3.15 | 3.03~3.08 |
| Bend Strength( MPa ) | 400-580 | 350-450 |
| Compressive Strength(MPa) | >2200 | >2000 |
| Fracture Toughness( MPA ) | 3.05-4.6 | 4.3 |
| Elastic Modulus( GPa ) | >400 | >360 |
| Thermal Conductivity(W/M.K) | 100~120 | 50~100 |
| Coefficient of heat Expansion( L/°C ) | 4.02x10-6 | 4.3x10-6 |
| Poisson Ratio | 0.14 |
0.15
|
1.Introduction of silicon carbide :
Silicon carbide is an inorganic non-metallic materials with high hardness, high wear resistance, low coefficient of friction, oxidation resistance, good thermal stability, low thermal expansion coefficient, thermal conductivity and thermal shock and great resistance to chemical corrosion, etc. excellent characteristics, can be used for a variety of requirements for abrasion, corrosion and high temperature mechanical equipment. Engineering and technical staff after years of unremitting efforts, has greatly improved the performance of silicon carbide. Now, silicon carbide has become an important engineering materials. Widely used in the field of machinery, metallurgy, petrochemical, shipbuilding, military equipment, etc., such as mechanical seal friction, plain bearings, nozzles, cutting tools, etc.
2.Features of john crane mechanical seal :
1) Heat shock stablity
2) chemical corrosion-resistant( resistant to strong acid/strong alkali /salt / gas / deleterious )
3) High temper-endure(up to 1650°)
4) Wearing/corrosion/oxidation resistant
5) Highly performance of mechanical strength
6) Cleaning or etching the hardest sub-surfaces
7) long life high hardness resistant to wear; especially resistant to hydrofluoric acid
8) Used for grinding, lapping, and wire saw cutting as well as abrasive blasting
3.why chose us?
Our advantages
| High quality |
Competitive price | |
| Strict delivery time | |
| Good after-sales service | |
Professional producer for 10 years | |
Gold supplier 3th year | |
Strict quality control |
4.Applications of john crane mechanical seal :
• For plain shafts
• Single and dual seal
• Elastomer bellows rotating
• Unbalanced
• Eliminates damage to bellows
• Eliminates drive failure
Operating parameters
• Shaft diameter: d1 = 9.525 … 101.6 mm (0.375" ... 4")
• Pressure: Up to 10 bar (145 PSI),
• Temperature: t = -30 °C … +200 °C (-22 °F … +392 °F)
• Sliding velocity: vg = 13 m/s (2500 fpm)
• Admissible axial movement: ±2.0 mm
Advantages
• Self-aligning unit automatically adjusts for shaft end play and run-out
• Eliminates potential shaft fretting damage between the seal and shaft
• Positive mechanical drive protects the elastomer bellows from overstressing
• Single coil spring improves tolerance to clogging
• Simple to fit and completely field repairable
• Can be used with practically any type and type of mating ring
applications
• Water and waste water technology • Food and beverage industry
• Pulp and paper industry • Water and waster water pumps
• Water, waste water, slurries (up to 5 % by weight) • Pulp (up to 4 % otro)
• Centrifugal pumps • Rotary and turbine pumps
• Compressors • Mixers
• Blenders • Chillers
• Agitators
5.production lines:
Granulation-compression moulding-sintering-grinding -finishing and fining
the inspection for each step of the production is conducted strictly.
6 Factory real landscape
7.contact us:
If you are interested in any producta, please send your detail request by email , by skype or QQ or Mobile. We will quote you the competitive price with the superior standard professional technology .
We specialize in john crane mechanical seal .
If you are interested in our cooperation, please send us samples or drawing for further check.including Dimension, Tolerance, Surface Roughness, Concentricity, Perpendicularity and other specification are upon your requirements.
And we warmly welcome friends from all over the world to visit our factories for business.
