Compact Design Electronic Wifi Relay 24V, 48V (SM 010)
- Category: >>>
- Supplier: Yueqing Saibang Electric Co. Ltd [Zhejiang China]Yueqing
Share on (60088248507):
Product Overview
Description
SAIP MEANING: electric relay
A global quality electric organization
In order to obtain the highest quality all of
Products according to international IEC normative.
SAIP VISION: electric relay
To be an enterprise lasting 103 years and beyond
To be an enterprise with a network of 20000 sales personnel and 2000 design engineers
To be the choice brand manager of major worldwide electrical brands
SAIP MISSION: To create products that deliver happiness to everyone
SAIP BUSINESS PRINCIPLE: To conduct business in a simple straightforward manner.
SAIP WORKING PRINCIPLE: To work and live happily
Compact Design Electronic Wifi Relay 24V, 48V (SM 010)
Wifi Relay
Product Features:
1. Simple connection
2. Compact design
3. Clip fixing
4. High DC switching capacity
5. Variety of applications
6. Electronic relay for switching DC appliances with high switching capaity. A separate
conventional switch contact is used as controller (e.g. temperature regulator,humidity
regulator). The electronic relay is available in 24VDC and 48VDC versions.
Technical Data:
| Contact type | contact maker, normally open (Relay MOSFET) |
| Contact resistance | < 10mΩ |
| Service life | >100,000 cycles |
| EMC | acc. to EN 55014-1-2, EN 61000-3-2, EN 61000-3-3 |
| Connection | 6-pole terminal,clamping torque 0.5Nm max.: rigid wire 2.5mm² |
| Mounting | clip for 35mm DIN rail, EN60715 or for exit filter EF 118 Series |
| Casing | plastic according to UL94 V-0, light grey |
| Dimensions | 67 x 50 x 46mm |
| Weight | approx. 85g |
| Fitting position | variable |
| Operating/Storage temperature | -20 to +80°C(-4 to +176°F) |
| Protection type | IP20 |
| Art. No. | Operating voltage | Max. Switching capacity |
| 01001.0-00 | 24VDC (20-28VDC) | 28VDC 16A |
| 01000.0-00 | 48VDC (38-56VDC) | 56VDC 16A |

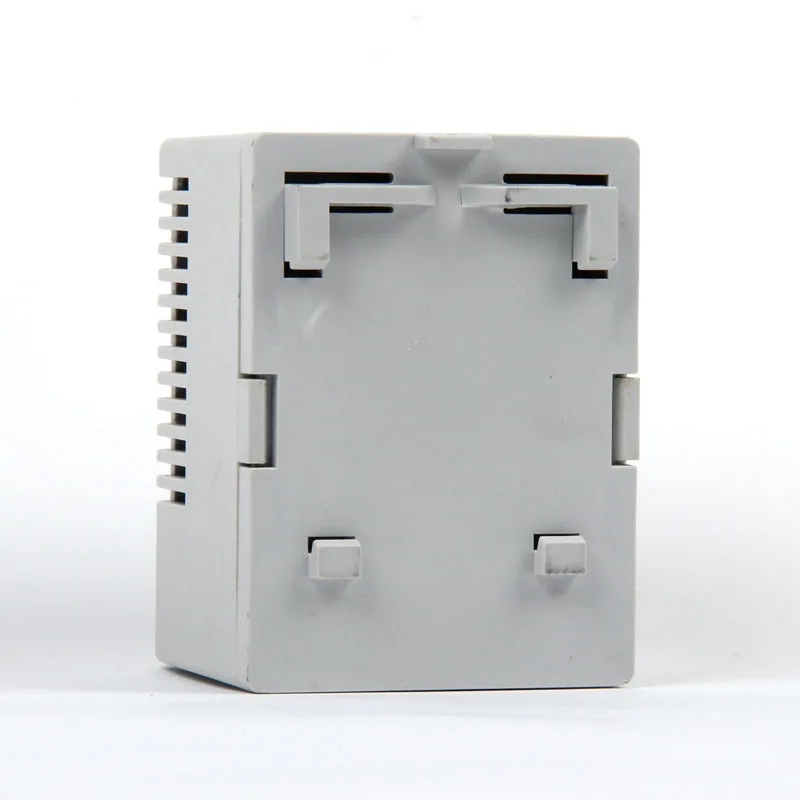

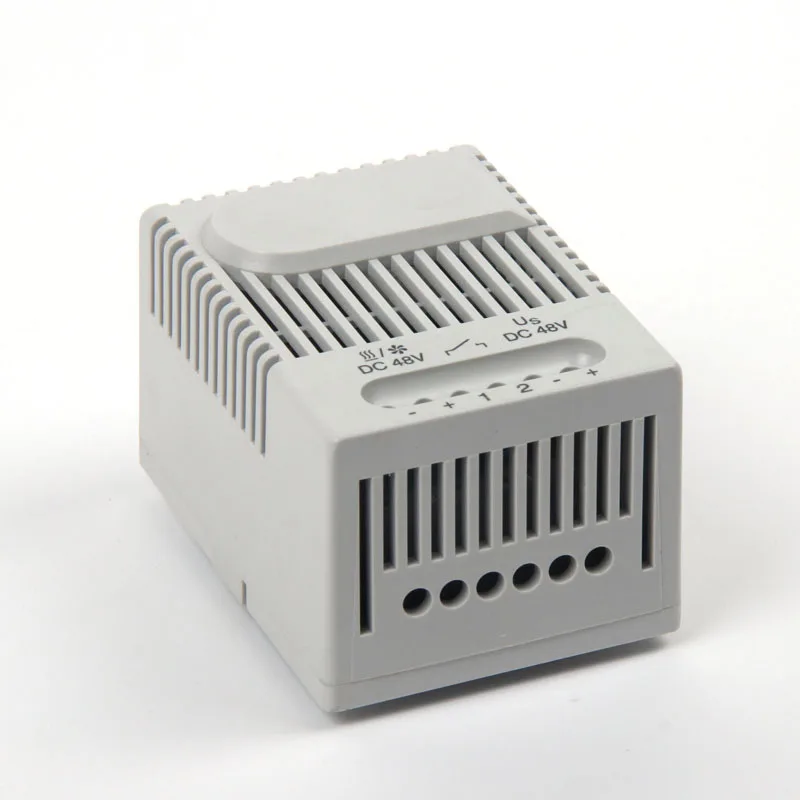

Product Pictures:
