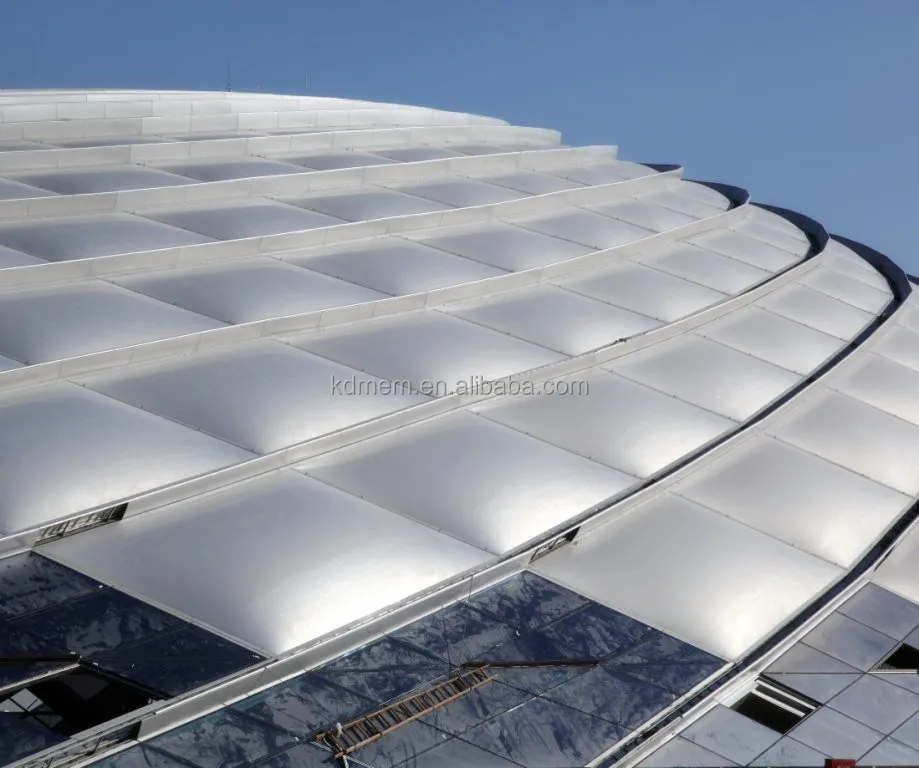

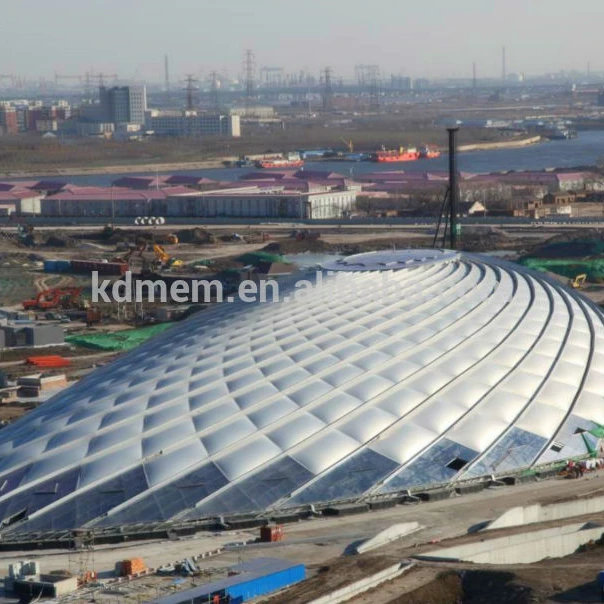

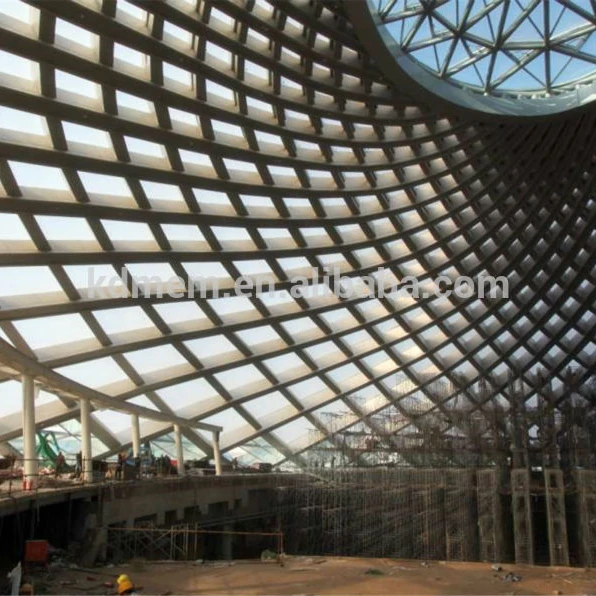

This project includes 783 ETFE cushions and there are 20~22 cushions between each two right-handed screws. The whole area of the cushions is about 7060m2 and the biggest one is 42 m2 while the minimum one is about 0.5 m2.
The cushions of this project use three layers of ETFE to meet the requirement on the heat transfer coefficient (U-value=2.0W/m2K).There are several little holes on the middle layer of the cushions to make the air pressure of the bottom and top layer of cushions to meet the design requirements.
Three layers of ETFE membrane adopt silver dot printing to reduce the sunlight transmission rate of membrane structure. The printing coverage rate respectively are 63%,46% and 0.
Specification Table
Material
Thickness(mm)
Tensile Intensity(N/5cm)
Tearing Intensity(N/5cm)
Fire Tetardance
Endurance
PVC
>0.5
4000
700
B1+
15yrs
PVDF
>0.5
5500
800
A2+
25yrs
PTFE
>0.5
6000
1100
SIS650082
40yrs+
ETFE
0.05-0.25
SIS650082
40yrs+
Tension Membrane structure Practical,appealing and of exceptional quality. Material:100% Polyester With high strength
Construction Tensile Membrane structure
Description:
*Material: 100% Polyester
*Finish: use ETFE (Ethyl Tetra Fluoro Ethylene)
*Dimension: Diversity design,according to customer's requirement
Advantage:
* Thermal Insulation
* Top quality with reasonable price.
*Easy to clean and self-clean.
*Waterproof/ fireproof/translucent.
*Not to be rusty & rotted
*No beams and brackets.
*More freedom of building physical shape
*Better cost-effectiveness
*A shorter construction period
*Lower energy losses
*Greater span of the building space
Terms:
*Payment: T/T(30% prepaid as deposit)
*Package: As per customer's detail required.
*Loading: Loaded in to 40OT,40GP,20GP or as per the order
