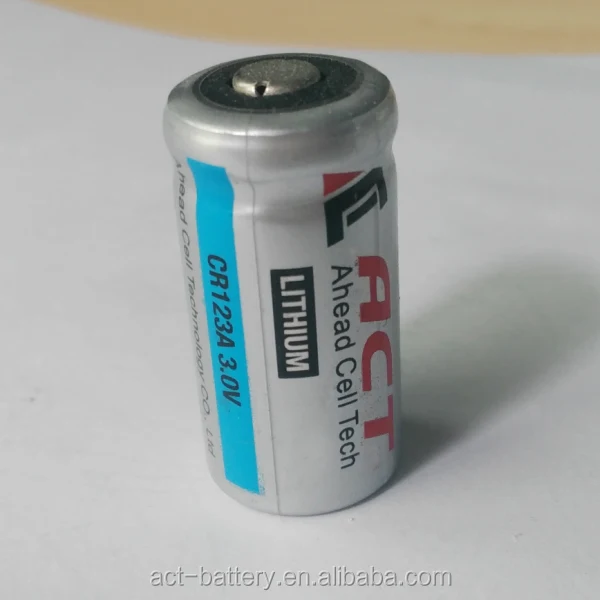

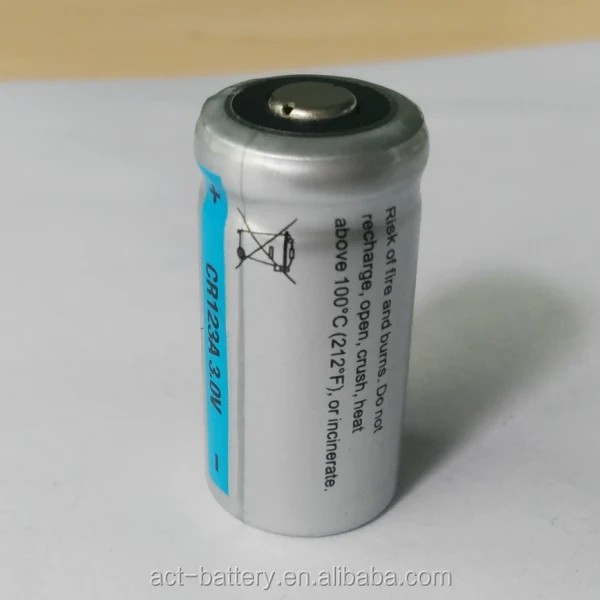

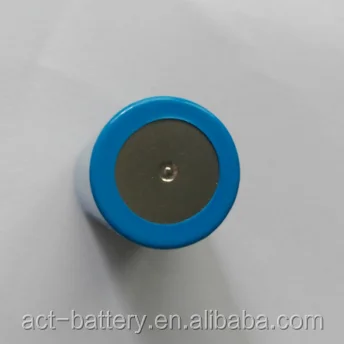

123A battery CR123A CR123 DL123 DL123A
- Category: >>>
- Supplier: Xiangyang Ahead Cell Technology Co. Ltd. [Hubei China]Xiangyang
Share on (60088636204):
Product Overview
Description
123A battery CR123A CR123 DL123 DL123A
SPECS:
| Model | CR123A |
| Brand | ACT or OEM |
| Nominal capacity | 1500mAh |
| Dimension | 17.0*34.5mm |
| Size | 2/3A |
| Chemistry | Lithium Manganese Dioxide |
| Cell Type | Primary, non-rechargeable, lithium |
| Nominal Voltage | 3.0V |
| Open circuit voltage | 3.06V |
| Weight | Approx. 17g |
| Shelf life | 10 years |
| Max. continuous discharge current | 1500mA |
| Max. pulse discharge current | 3000mA |
| Yearly self- discharge | ≤1% |
| Certification | CE/RoHS/UL/UN38.3 |
| Operating Temperature Range | -40C~+80C |
| Storage ( Recommended ) | 20C ~ +25C |
| Terminals/Connector | Radial tabs / radial pins / axial leads / flying leads |
| Exterior/Housing | Stainless steel container |
| Welding technology | Laser |
| Factory area | 33,325 square meters |
| Alternative models | CR123, DL123A, K123A, EL123AP, VL123A, 5018LC and CR17345. |
Related Models:
| Model | IEC | Nominal Voltage (v) | Nominal Capacity(mAh) | Max. Continuous Current(mA) | Max. Pulse Current(mA) | Operating Temperature | Max. Dimension (mm) | Weight(g) |
| CR11108 | CR1/3N | 3 | 170 | 60 | 80 | -40°C~+80°C | 11.6*10.8mm | 3 |
| CR15270 | CR2 | 3 | 800 | 500 | 1000 | -40°C~+80°C | 15.5*27.5 | 11 |
| CR14250 | 1/2AA | 3 | 800 | 100 | 200 | -40°C~+80°C | 14.5*25.0 | 9 |
| CR14250SE | 1/2AA | 3 | 950 | 7 | 70 | -40°C~+80°C | 14.5*25.0 | 11 |
| CR14505 | AA | 3 | 1400 | 1500 | 3000 | -40°C~+80°C | 14.5*50.5 | 21 |
| CR17335 | CR123A | 3 | 1500 | 1500 | 3000 | -40°C~+80°C | 17.0*34.5 | 16 |
| CR17450 | 4/5A | 3 | 2200 | 1500 | 3000 | -40°C~+80°C | 17.0*45.0 | 23 |
| CR17450SE | 4/5A | 3 | 2400 | 15 | 150 | -40°C~+80°C | 17.0*45.0 | 28 |
| CR34615 | D | 3 | 10000 | 2000 | 3000 | -40°C~+80°C | 34.2*61.5 | 120 |
| CR-P2 | - | 6 | 1400 | 1500 | 3000 | -40°C~+80°C | 19.5*34*35.8 | 42 |
| 2CR5 | - | 6 | 1400 | 1500 | 3000 | -40°C~+80°C | 17*34*45 | 43 |
| CR9V | - | 9 | 800 | 120 | 400 | -40°C~+80°C | 17.2*26.0*48.8 | 32 |
Why choose ACT
1. 20+ Years of experience in battery industry with extensive knowledge.
2. An own property industrail zone of 33,325 square meters.
3. More than 200 workers of production, make sure large order process.
4. Quick analyze, design and prototypes.
5. Professional battery manufacturer
6. Established quality control systems under ISO9001 & ISO14001
7. OEM/ODM battery packs are available
8. We treat clients as friends with quick action & respond
9. Most batteries are RoHS, CE, UL, UN38.3, MSDS approved.
10. Battery Quality: A level & 100% new, No leakage guaranteed
