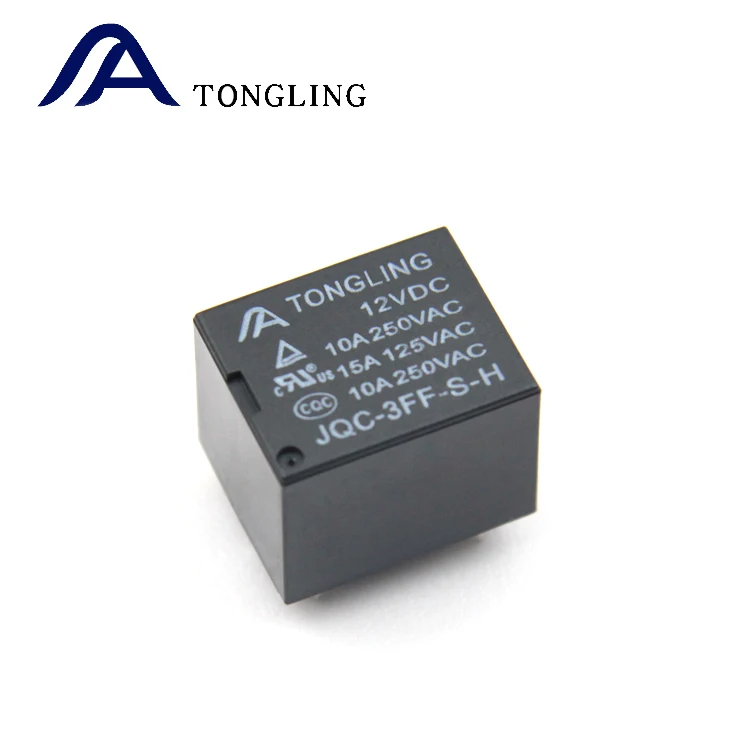

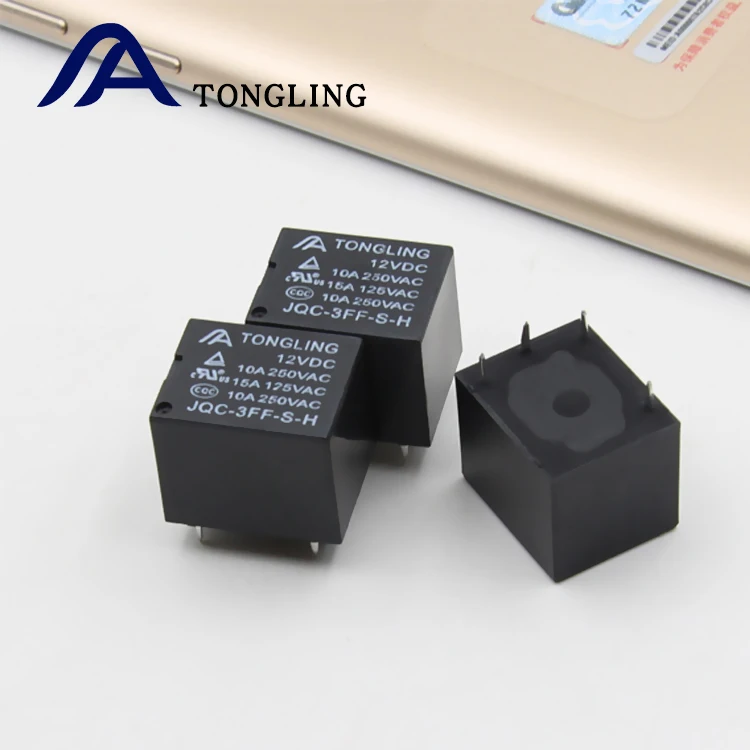

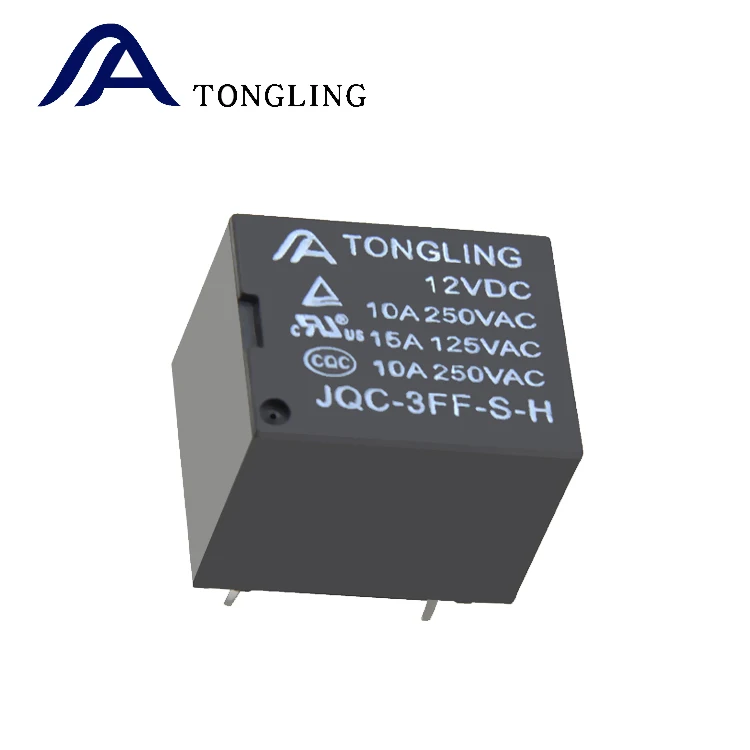

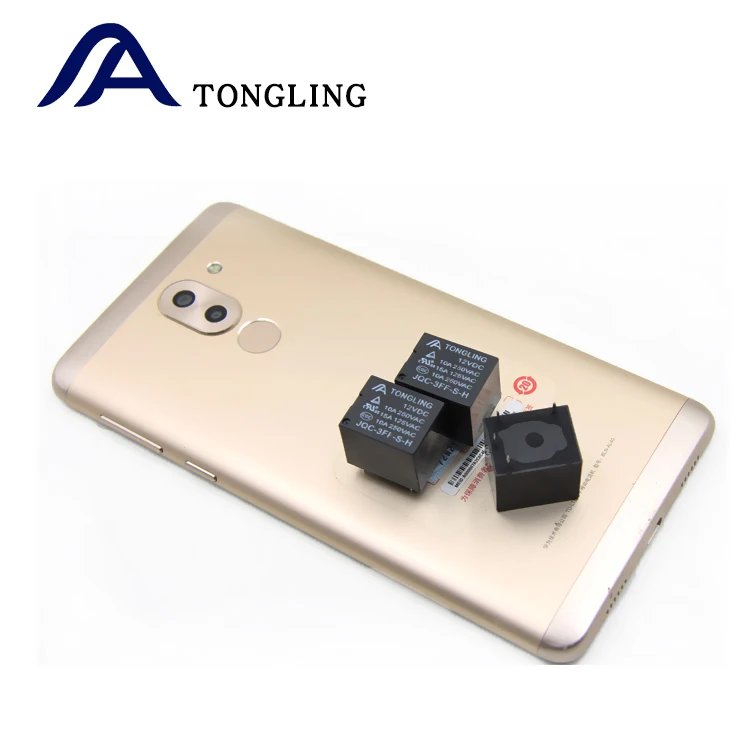

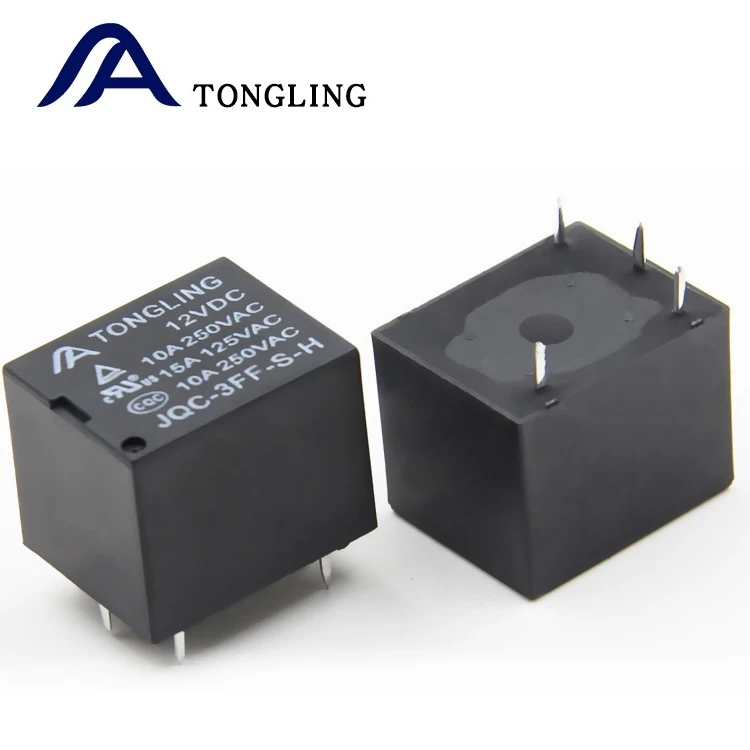

10A Relays 4 Pin 12V 1HS/1ZS Miniature PCB JQC 3F Relay
- Category: >>>
- Supplier: Donghai Tongling Electric Appliance Co. Ltd.
Share on (60088766484):
Product Overview
Description
Ordering Code
JQC-3FF-S-H
1 2 3
1.Relay module
2.S:sealed
3.Contact Form:1H Form A
The main specific sparameters | ||
Relay module | JQC-3FF relay (T73,YF3F,Sangyou SRD,Hongfa HF3FF) | |
Coil voltage | DC: 3V 5V 6V 9V 12V 18V 24V 48V | |
Contact form | SPDT-CO (1 Form H)-4 pins | |
Contact Material | Silver Alloy | |
Pin | 4 Pin | |
Contact rating | 10A 250VAC, 15A 125VAC | |
Coil Power | 0.36W | |
Size | 19.2mm*15.4mm*15.4mm | |
Coil Data(at 20℃）
Nominal Voltage(VDC) | 3 | 5 | 6 | 9 | 12 | 18 | 24 | 48 | 0.36W | ||||||||
Coil Resistance(Ω±10%） | 25 | 69 | 100 | 225 | 400 | 900 | 1600 | 6400 | |||||||||
Rated Current(mA) | 120 | 71.4 | 60 | 40 | 30 | 20 | 15 | 7.5 | |||||||||
Max Release Voltage(VDC) | 2.25 | 3.75 | 4.5 | 6.75 | 9 | 13.5 | 18 | 36 | 0.36W | ||||||||
Min Release Voltage(VDC) | 0.15 | 0.25 | 0.3 | 0.45 | 0.6 | 0.9 | 1.2 | 2.4 | |||||||||
Max Applicable Voltage | 130% of the rated voltage at 70℃ and 170% at 23℃ | ||||||||||||||||
Contact Data
Contact Ratings | 10A 250VAC 15A 125VAC |
Minimum Load | 100mA 5VDC |
Max Switching Voltage | 250VAC/30VDC |
Max Switching Current | 15A |
Max Switching Power | 2500VA/240W |
Contact Resistance | 100mΩMax at 6VDC 1A |
Life Expectancy | Electrical:100,000 Operations(at 30 Operations/minute) |
Mechanical:10,000,000 Operations(at 30 Operations/minute) |
Characterinstics data
Insulation Resistance | 100MΩMin at 500VDC |
Dielectric Strength Between Open Contacts | 750VAC(50/60Hz for one minute) |
Between Contacts And Coil | 1500VAC(50/60Hz for one minute) |
Operate Time | 10ms |
Release Time | 5ms |
Temperature Range | -40℃ to +85℃ |
Shock Resistance | Operating Extremes:10G |
Damage Limits:100G | |
Vibration Resistance | 10-55Hz,1.5mm |
Max.switching frequency | Mechanical:18,000 operations/hr |
Electrical:1,800 operations/hr | |
Humidity | 40-85% |
Weight | Approx 10g |
Safety Standard | CQC UL TUV ROSH |
Engineering Data
Overall And Mounting Dimensions
JQC-3FF Mini Relay

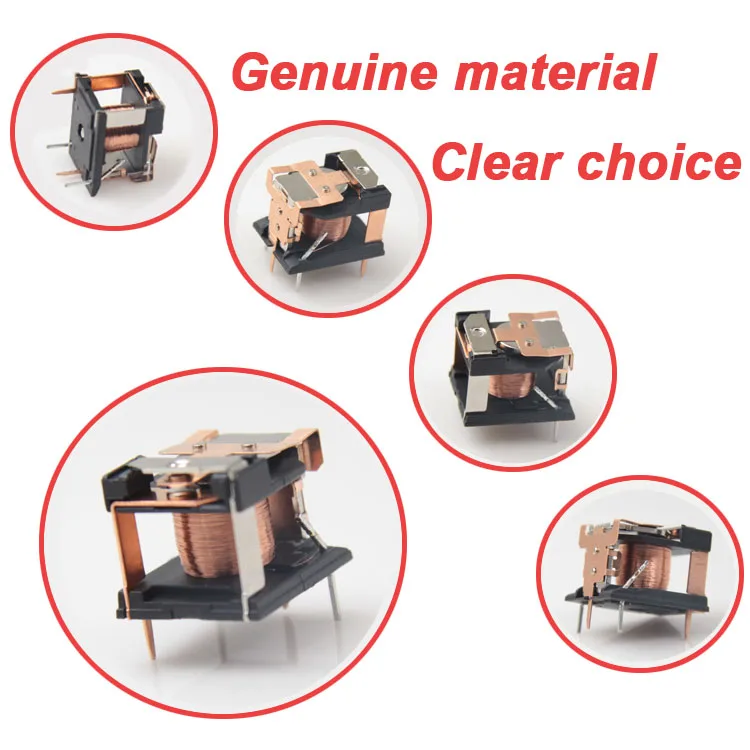

JQC-3FF series relay is the most common small electromagnetic relay, with a volume of 19.2mm * 15.4mm * 15.4mm. It adopts silver contacts and excellent quality.
Customizable
Accessories and materials can be customized according to your use requirements. Contact materials can also be customized as needed.

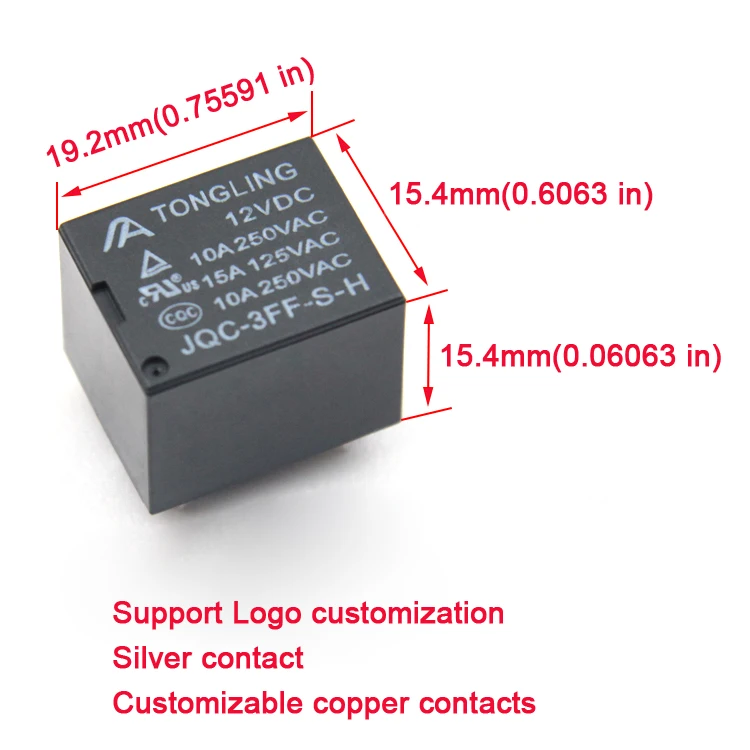

Size:19.2mm*15.4mm*15.4mm
Compact size, PCB in-line welding
Beautiful welding effect
Universal relay
JQC-3FF relay is one of the most widely used relays in the market. It is widely used in the circuit board of small household appliances.
