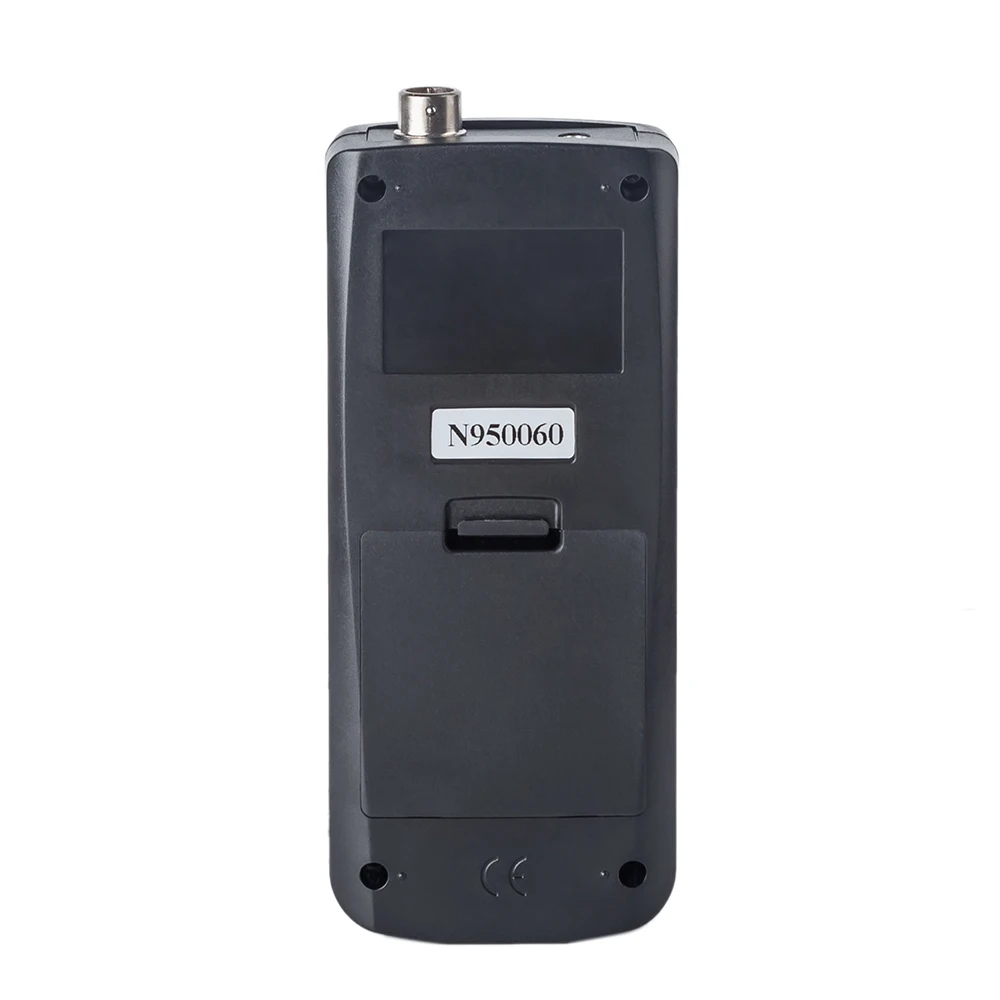

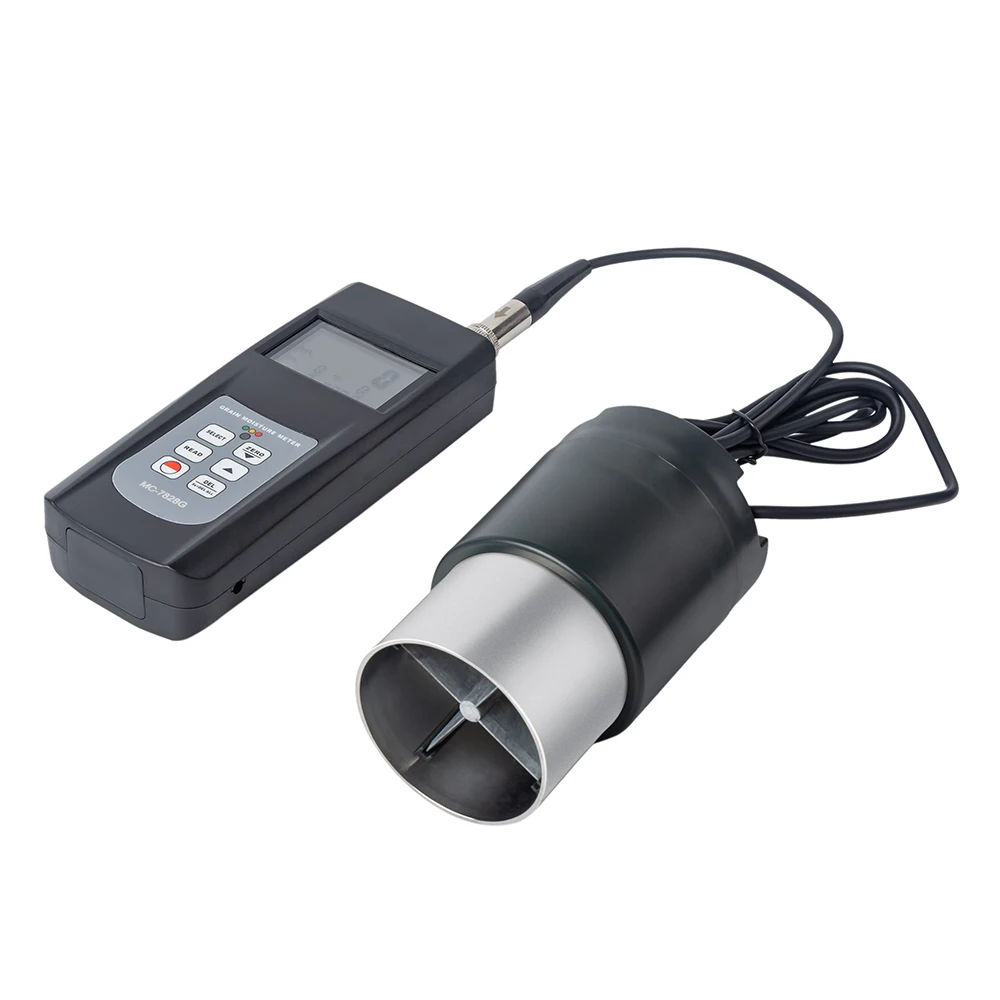

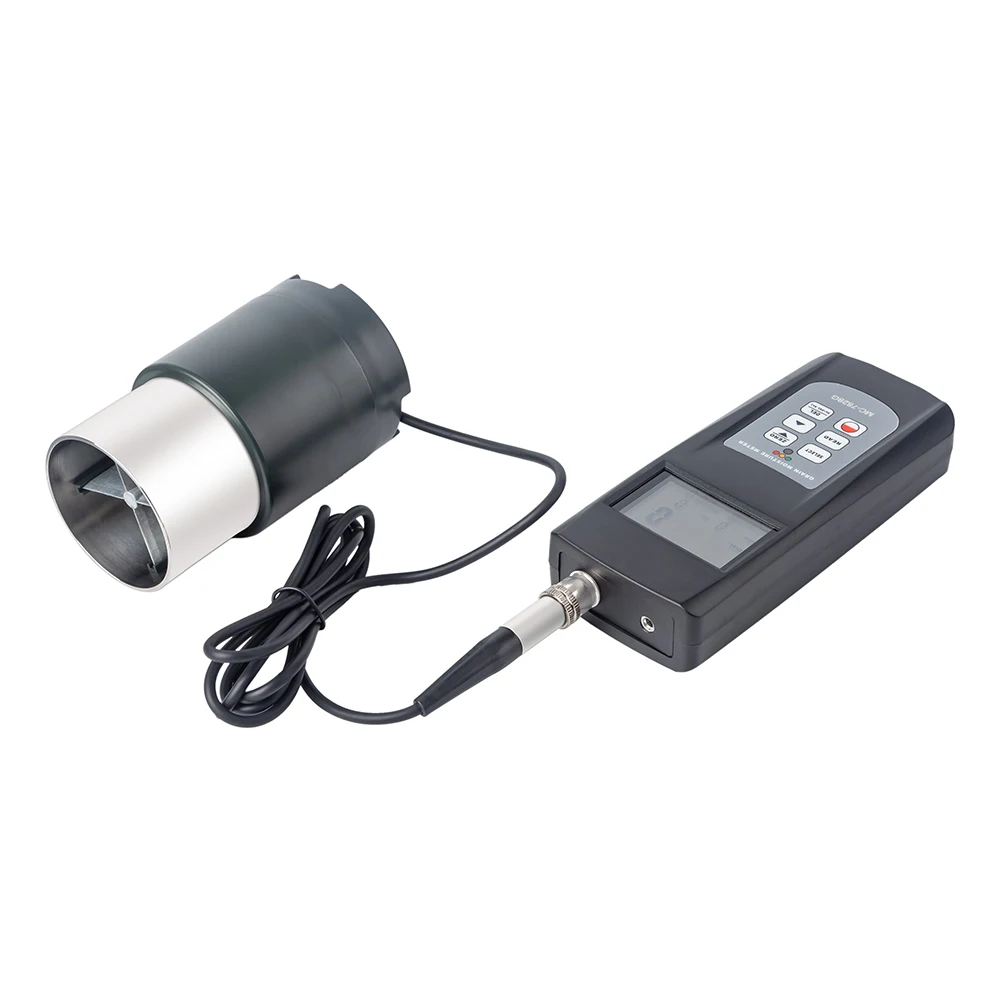

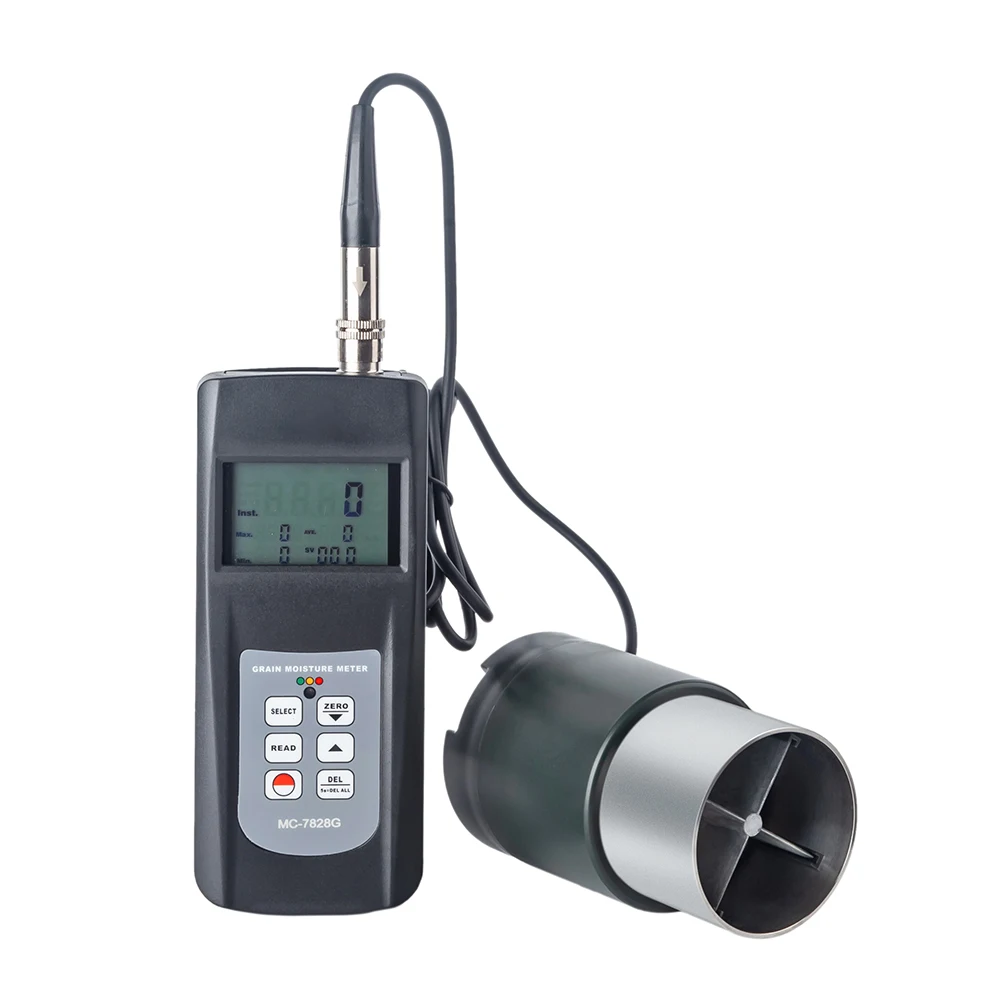

MC 7828G Digital Cup Type portable Grain Moisture Meter Tester

Product Overview

Description

Digital Cup Type portable Grain Moisture Meter Tester



Used for fast and accurate measurement of moisture in the process of

allotment, acquisition, storage, machining of packed grains, feedstuff, powder.

Features:

* Able to measure grains up to 22 species.

* The cup type measurement causes small error.

* Wide measuring range.

* Two presentations, digital display and color coded LED indication.

* Use the exclusive Micro-computer LSI circuit and crystal time base to offer high accuracy measurement. It can obtain

automatically the temperature corrected moisture value.

* Use “USB data output” and “RS-232 data output” to connect with PC.

(NOTES: RS232/ USB cable+software is optional part)

* Provide “Bluetooth ? data output” choice.



Grain Code:

Code Grain Range(%)

Cd01 Japonica Rice 0~50

Cd02 Soya Beans 0~35

Cd03 Wheat 0~50

Cd04 Rapeseed 0~35

Cd05 Corn 0~50

Cd06 Barley 0~50

Cd07 Indica Rice 0~50

Cd08 Rice 0~50

Cd09 Bean Pulp 0~50

Cd10 Peanut 0~50

Cd11 Rapeseed Meal 0~50

Cd12 Granulated Feed 0~50

Cd13 Sunflower Seed 0~35

Cd14 Watermelon Seed 0~30

Cd15 White Wheat 0~50

Cd16 Sorghum 0~50

Cd17 Black Sesame 0~45

Cd18 Northeast Corn 0~50

Cd19 Cottonseed 0~50

Cd20 Cottonseed Meal 0~50

Cd21 Coffee Beans 0~45

Cd22 Cocoa Beans 0~40

Details:

Grains: 22 Species

Measuring Range: 0~50 %

Accuracy: ±( 0.5n%+0.5)

Resolution: 0.1

Display: 4 Digits, 10 mm LCD, With Color Coded LED Indicator

LED Indicator: Green LED represents a safe, air-dry state

Yellow LED represents a borderline state

Red LED represents a damp state

Calibration: Automatic

Battery Indicator: Low Battery Indicator

Data Output: USB, RS-232, Bluetooth

Operating Conditions: Temperature: 0~50 %°C, Humidity: < 90 %RH

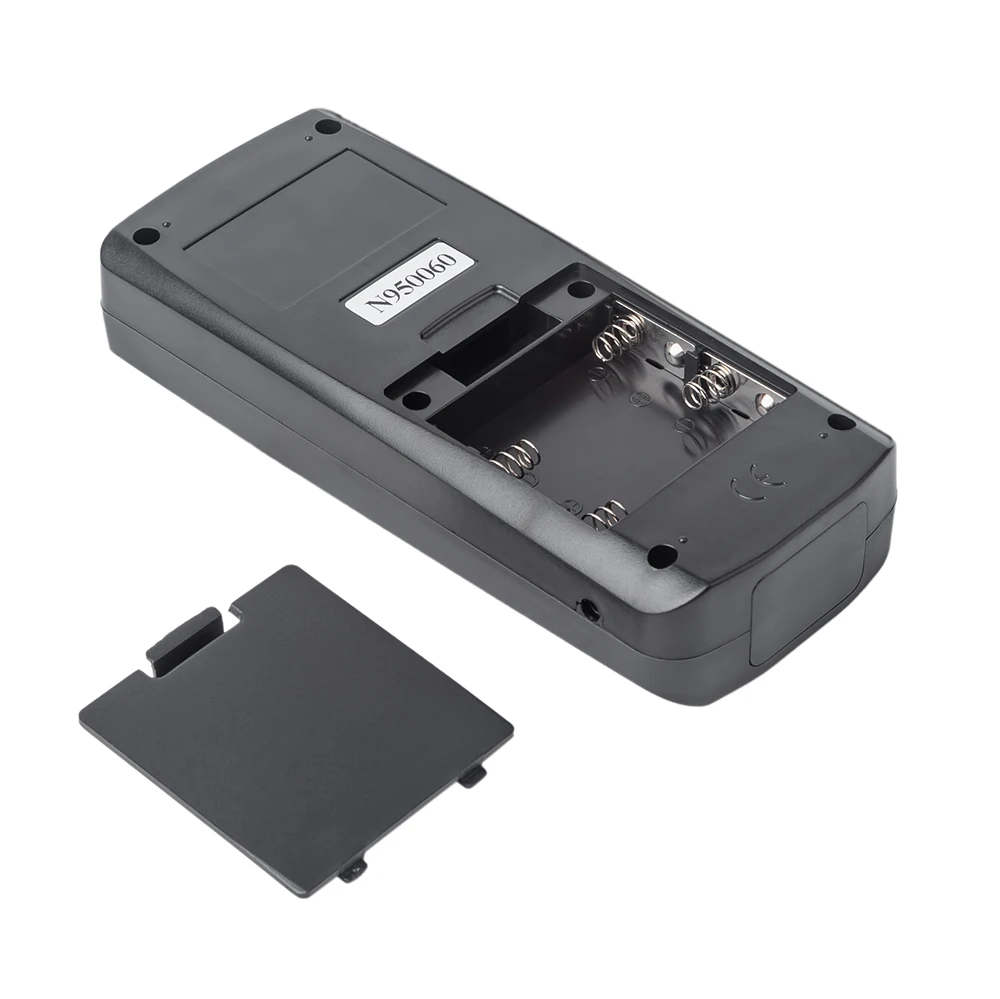

Power Supply: 4 x 1.5V AAA Size (UM-4) Battery

Dimensions: Uint: 150 x 65 x 30 mm

Sensor: 175 x 76 x 76 mm

Weight: 690 g (Not Including Batteries)

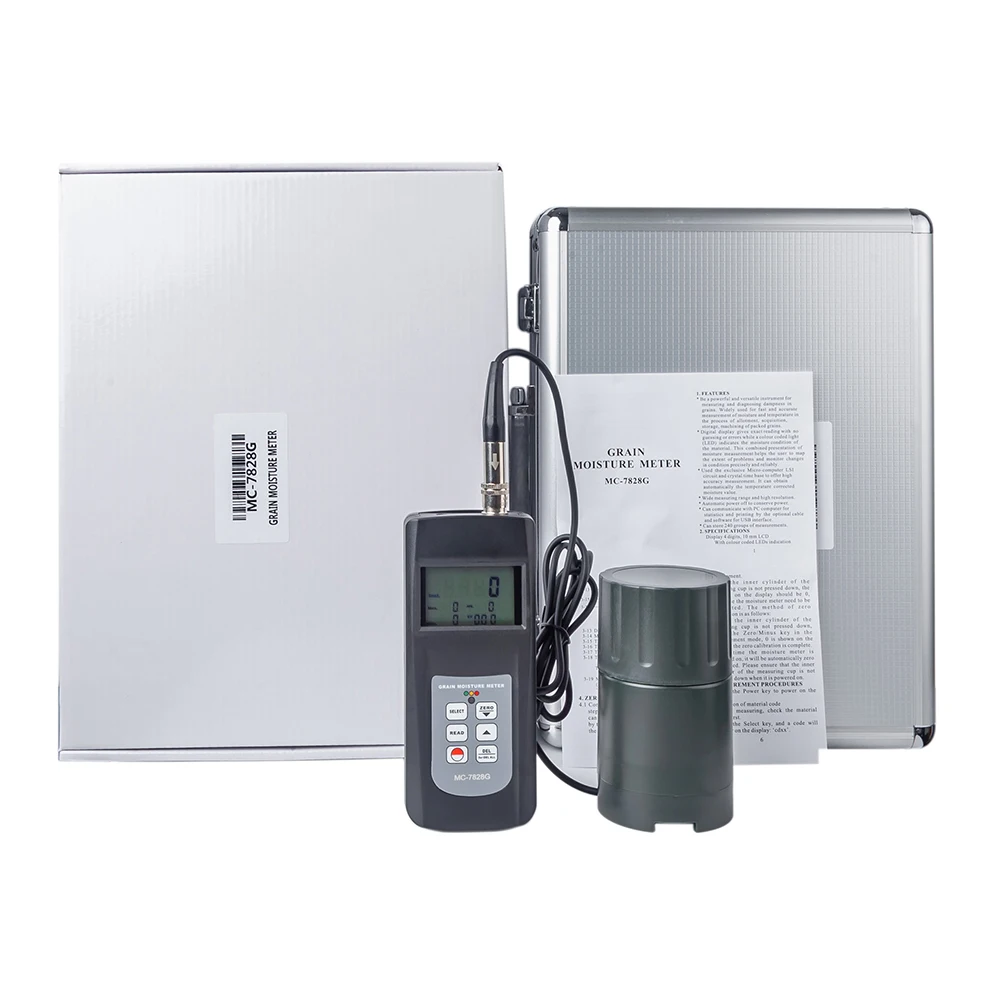

Standard Accessories:

1. Main Unit

2. Cup Sensor

3. Carrying Case

4. Operation Manual

Optional accessories:

1. USB, RS-232C data cable with software

2. Bluetooth data out put with software
