Full automatic CNC Glass drilling,milling and polishing machine From Eworld Machine
Drilling, Milling, Internal and External grinding and polishing, Writing, Shaped Notching, Engraving
CNC Glass working centre Mechanic Structure
1.The machine tool and beam adopt welded steel structure. With special heat treatment, the structure
is firm and can work for a long time.
2.The machine uses automobile paint which is more rust-resistant.
3.Total weight: about 7 tons (including peripheral accessories and electric cabinet).
CNC Glass working centre Mechanic Transmission
The machine is transmitted through AC servo motor by synchronic belt and synchronic belt wheel
driven spindle. There is automatic lubricating system for the screw nut and guide-rail slider of the
CNC Glass working centre Servo System
It adopts Mitsubishi/Hitachi AC servo system
Screw: all the screws are from KGF series double nut screw (German NEFF)
axis XX = 2000 mm
CNC Glass working centre Length ways
axis Y: Y = 1000 mm
axis Z: Z = 250 mm
CNC Glass working centre Speed(X,Y)
220 V, 60 Hz, 3 phases
0 – 50 ℃
≥ 0.6 Mpa
CNC Glass working machine
1.There is a multi-location worktable of large size in front of the machine. With function of automatic
rubdown of high precision, users can adjust the flatness of the worktable when needed. This is to
keep a flat worktable.
2.CNC Glass working centre There are positioning blocks for the work piece and vacuum system.

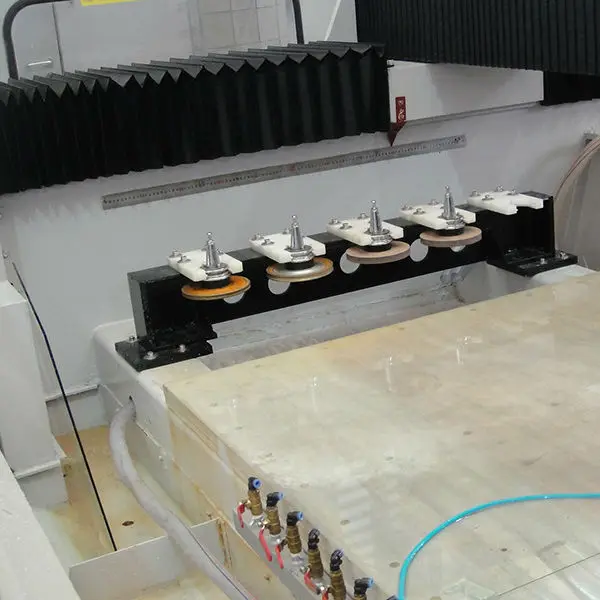

3.There is a tool library with 2 x 5 tools. There is a tool library with 5 tools at both left and right side
of the machine. Users can select different tools and optimize route according to processing
Parts of Main Spindle
1.Motor of the main spindle: it adopts asynchronous speed-adjust sensor motor of high efficiency.
Adjusting range of rotating speed: 0 – 9000.
2. CNC Glass working centre The machine equips 10 pieces of IOS 40 handles.
The cone part adopts 7:24 international uniform standard which is easy to be changed.
Grinding wheel with outer diameter 170 mm can be used.
Electric Cabinet The distributing of electric cabinet can be designed according to customer’s
requirements.Each terminal is clearly marked. This is convenient for the maintenance in the future.
CNC Glass working centre Drawing Software
With Auto CAD software, user can design any geometrical pattern on PC with mouse and keyboard.
With combination of CNC engraving system, user can set the variable parameter of processing
pattern and then it will generate G code automatically.
Safety and Reliability of Operation
1.CNC Glass working centre The moving parts are lubricated by automatic lubricating system.
2. Electric cabinet adopts IP54 industrial standard and equips air-conditioner.
3.The electric parts inside electric cabinet are common products in the market which is easily
4.CNC Glass working centre The main fault will be automatically reminded.
Central Lubricating System It adopts PDI lubricating system of American BIJUR –DELIMON
which can timely lubricate the transmitting parts by separate setting to PLC.
