Product Overview

Description

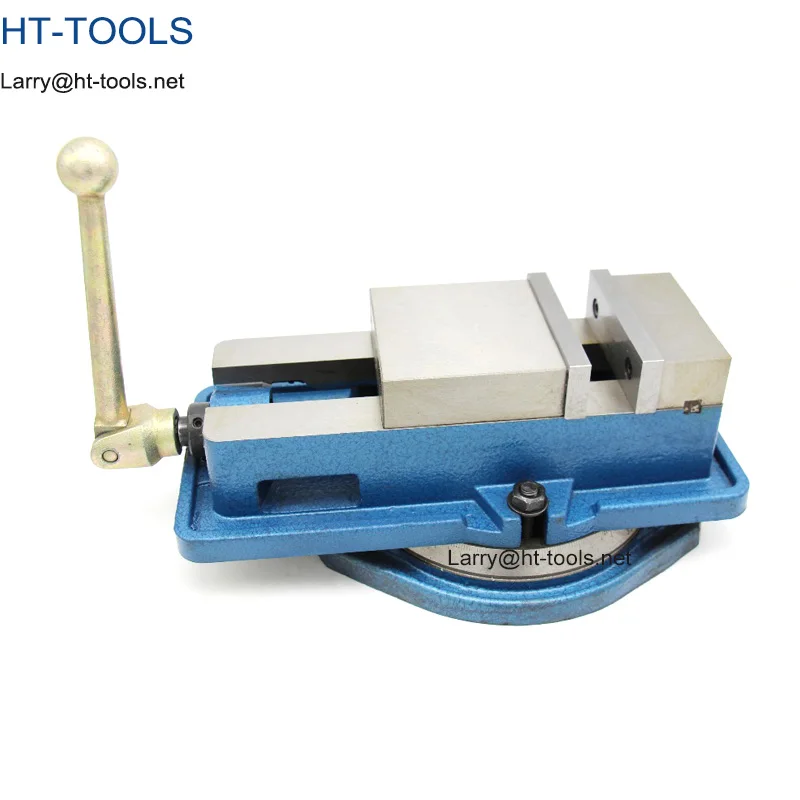

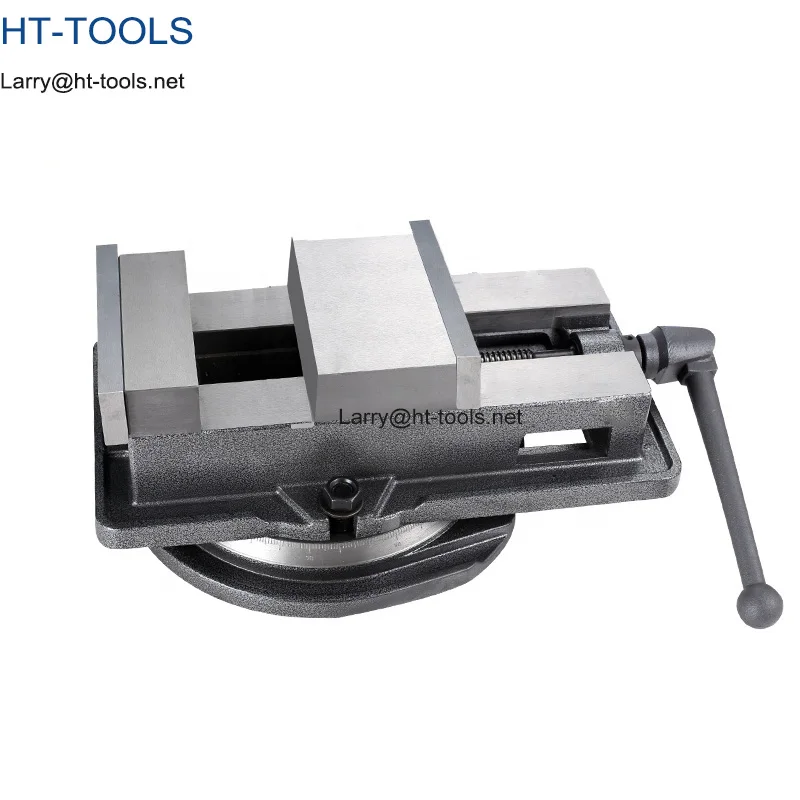

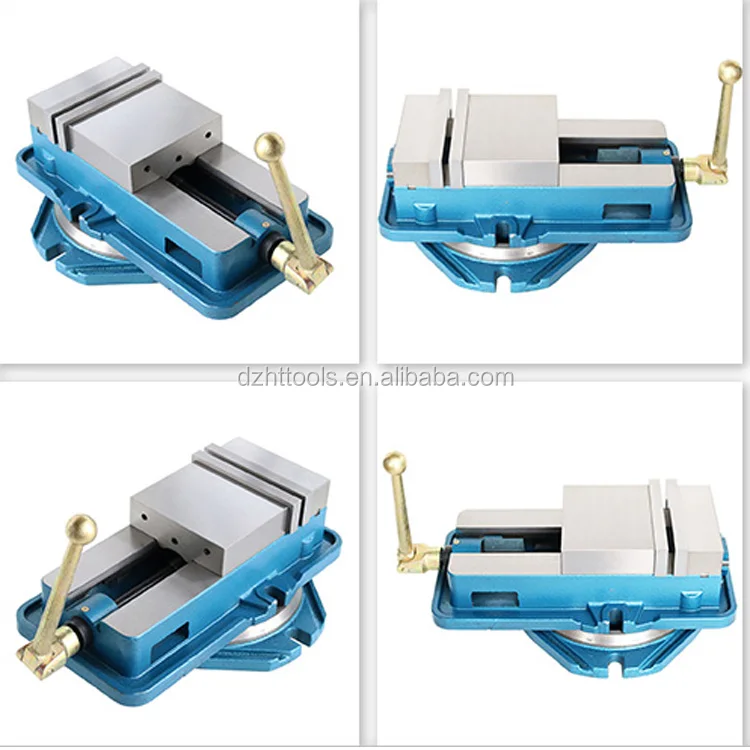

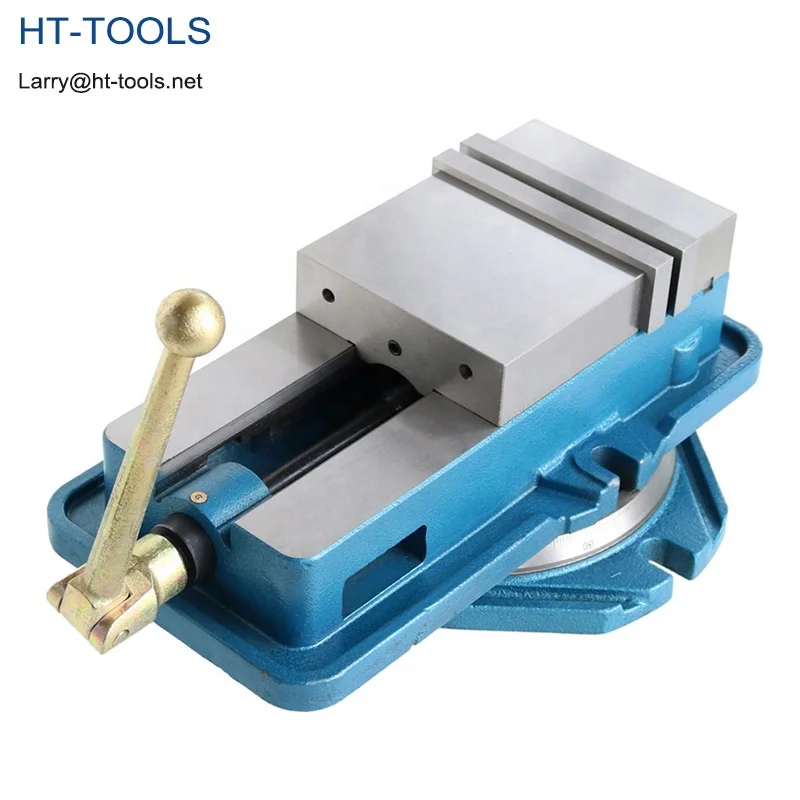

QM Accu-lock precision milling machine vise QM16100 Bench vise



1.It is main attchments to precision millings grinders CNC machines it is particularly suitable for the finishing of precision parts

2.Parallelism 0.025mm/100mm,squareness 0.025mm

3.The special segments in the movable jaw forces the vertical pressure downward when the horizontal pressure works,so that this jaw does not lift the workpiece

3. For positions allow extre capacity to change opening of jaw

4.As the thrust component of the screw is equipped with thrust needle bearing if can be easily operated.



HT-0149	ACCU-LOCK PRECISION MACHINE VISE
Order No.	Width of Jaw	Height of Jaw	Max. Opening	GW./NW.	Paking Shape	L×W×H
	(mm)	(mm)	(mm)	(kg)		(cm)
QM16100	100	32	100	17/16	paper case	38×25×18
QM16160	160	45	140	40/38		49×32×23
QM16200	200	50	190	75/69	wooden case	62.5×41×25.5

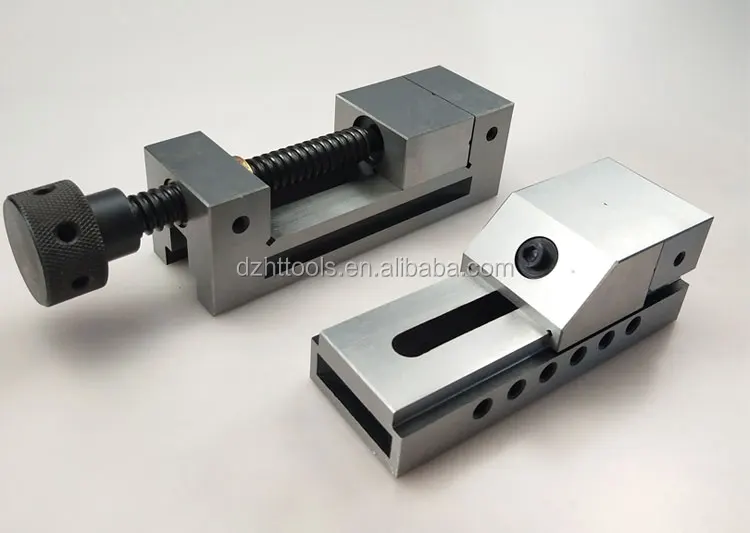

 Precision vises series

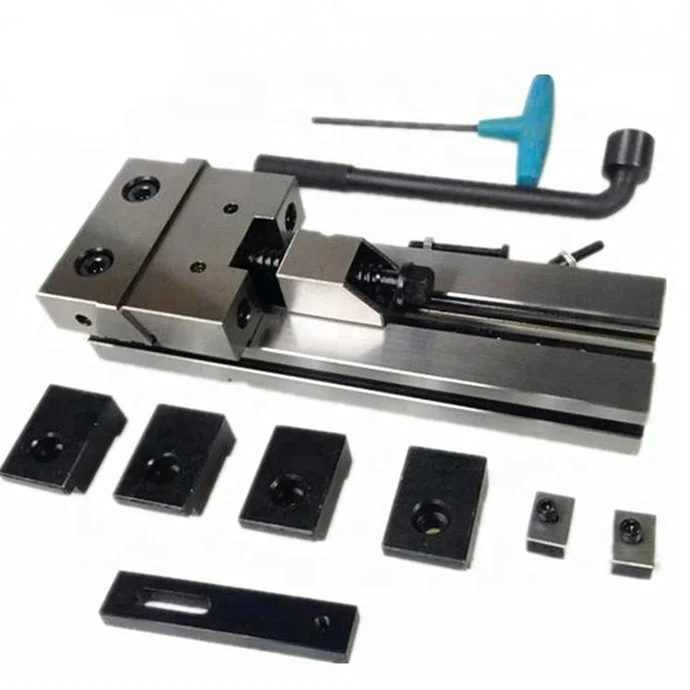

Precision modular vises ,quick action precision modvlar vise,ZQ 80 Precision horizontal vertical vises ,QW Universal tilting vises,qm Accu-lock precision machine vises ,QH machine vises,

 ADVANTAGE

OEM service



Quick responce in 24 hours



Big capacity



Short delievery time.

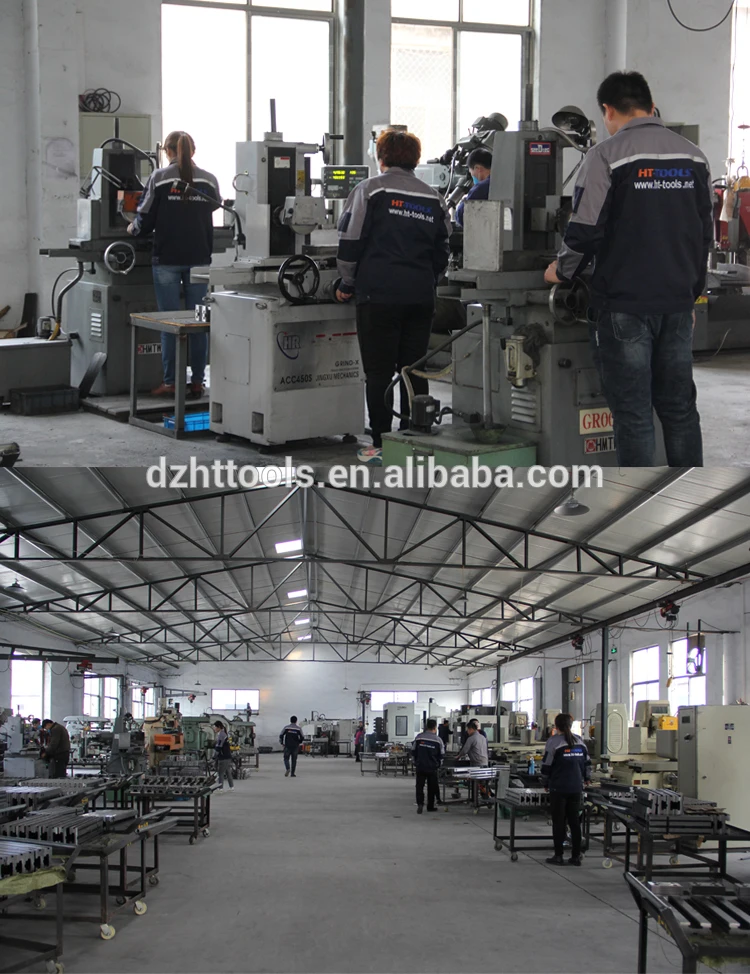

COMPANY PROFILE



 We have our own factory. We have 160 workers and 8 inspectors. Our old engineers have about 30 years experience in these area.



We established an independent commercial company in 2003. We have 12 sales.



Our products have been approved by many countries including German, Turkey, Brazil,Italy, England, American, India and so on.







 FAQ



1 Are you factory or Trade Company?
 We are Industry and trade integration.



2 Could you supply samples?
Yes, we can supply.



3 Where do you export?
The whole world.



4 Could you produce non-standard products?
Yes, we can. Please supply samples or drawing.



5 What’s the accuracy of ER Collet?
We have three kinds. 0.005mm 0.01mm and 0.015mm.



6. What are the shipping ways?
By international express, by air, by sea are all ok.



7. Do you have minimum order quantity?
Conventional Products don’t have. The minimum order quantity of non-standard products is 50pcs.



8. What’s your payment way?
T/T, Pay pal, Western Union and so on.



9. What’s your delivery time?
5-20 days after order confirmed



10. What’s your package?
Neutron-packing with no brand, plastic box, carton and so on. If your quantity is good, we can package with your demand.
