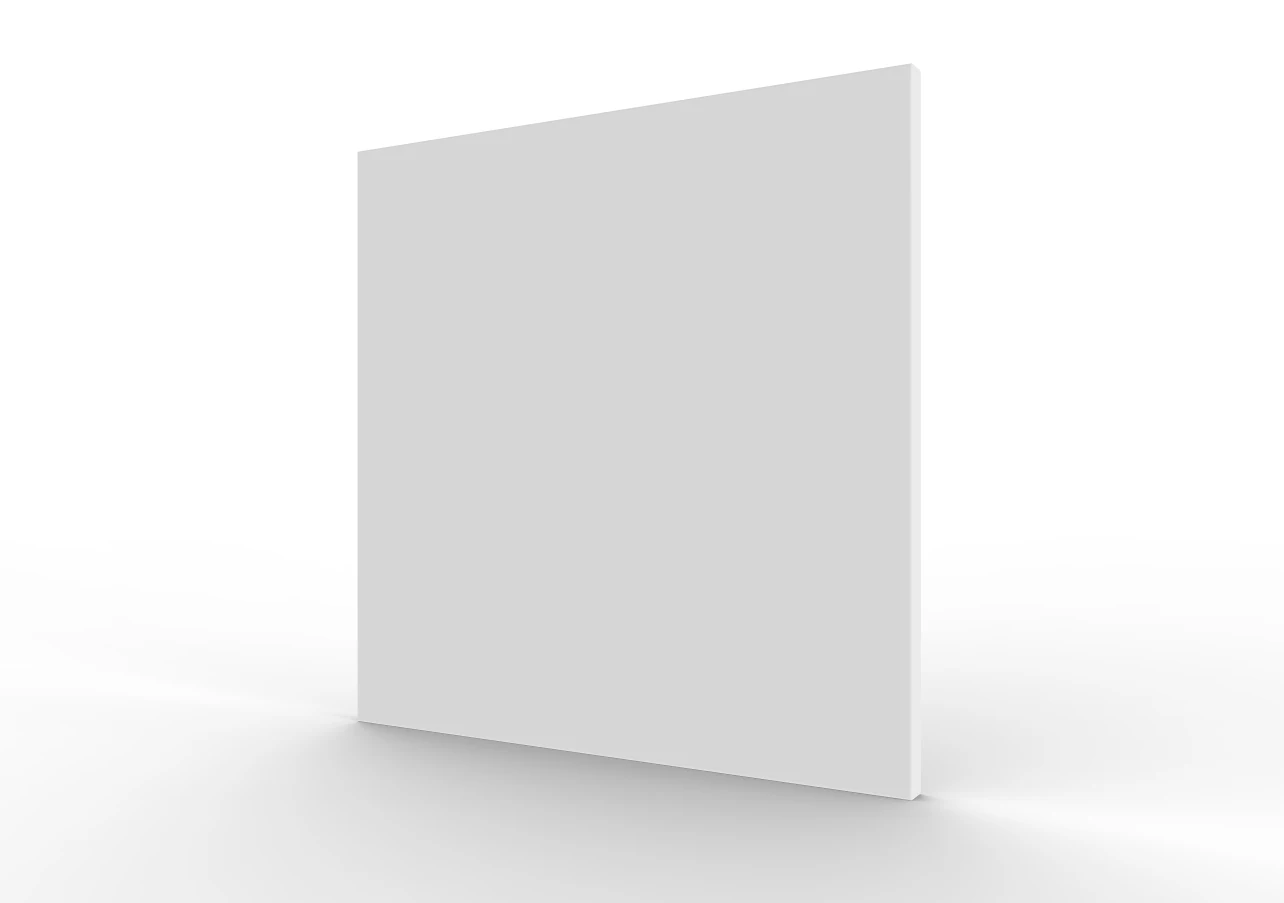

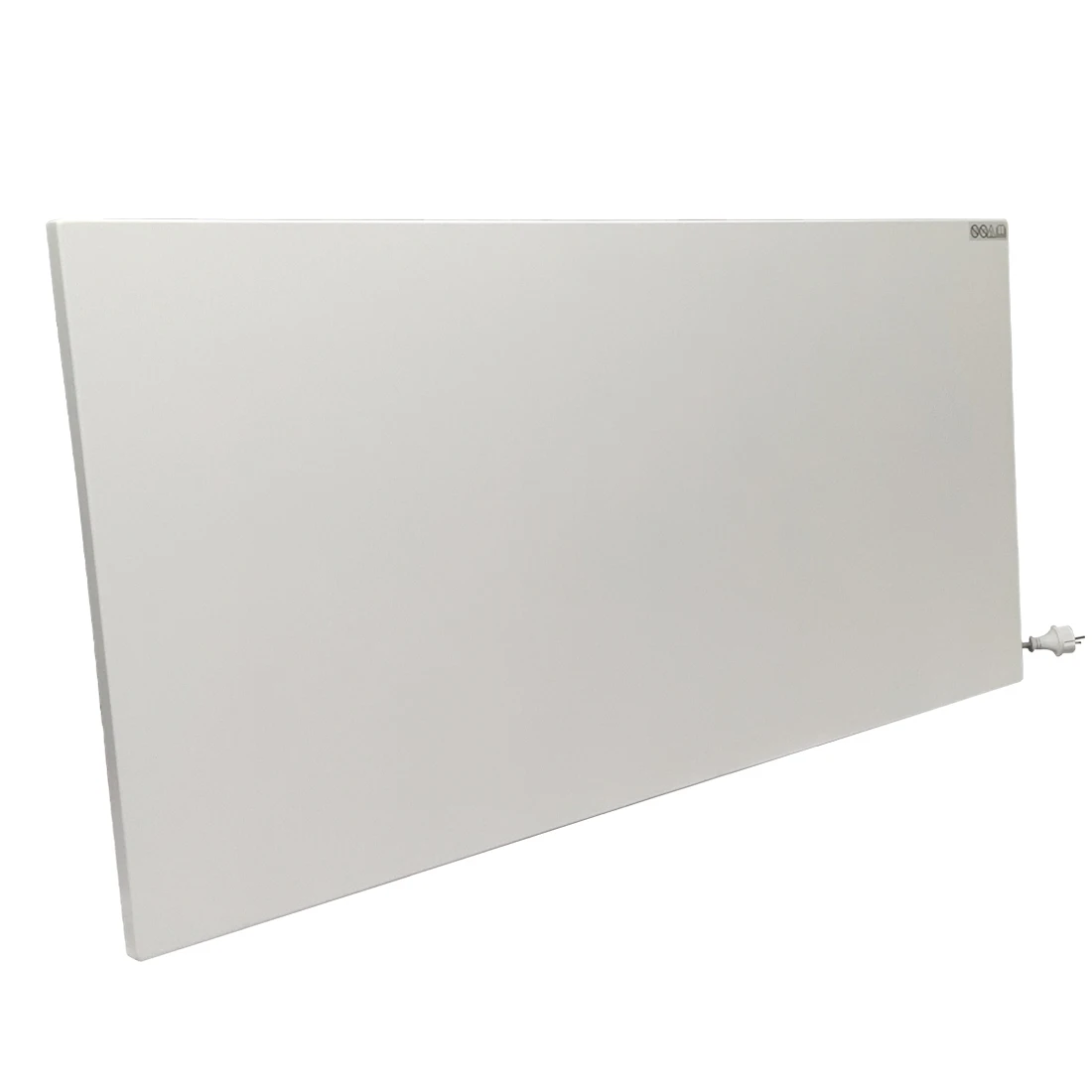

New designed solar radiator infrared flat panel heater infrared heating panel
- Category: >>>
- Supplier: Xuzhou Byecold Electronic Technology Co. Ltd.
Share on (60089916738):
Product Overview
Description
Products Description

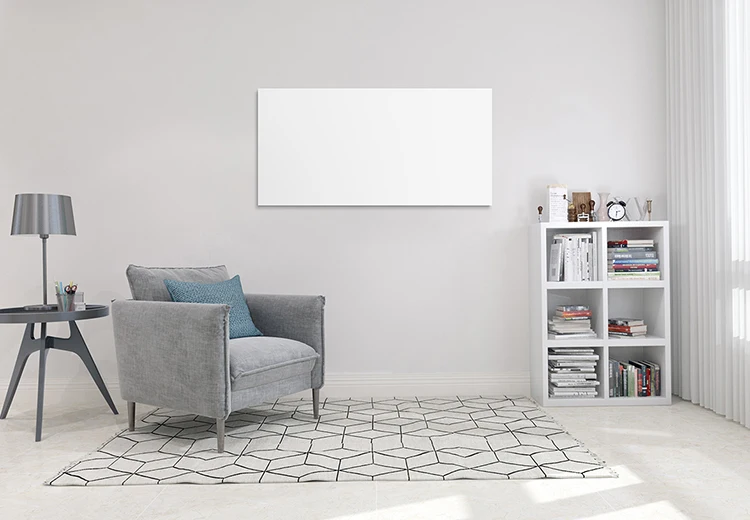

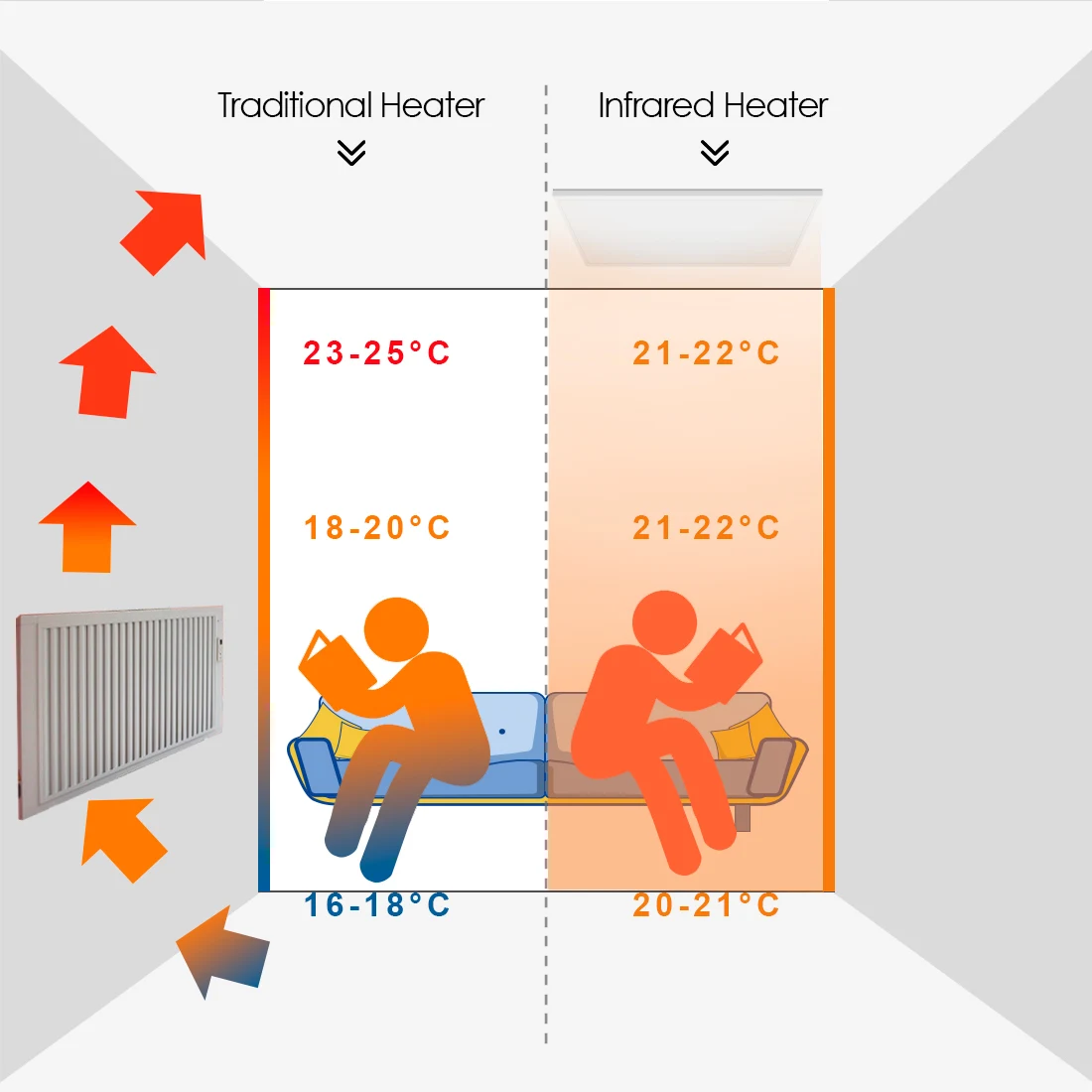

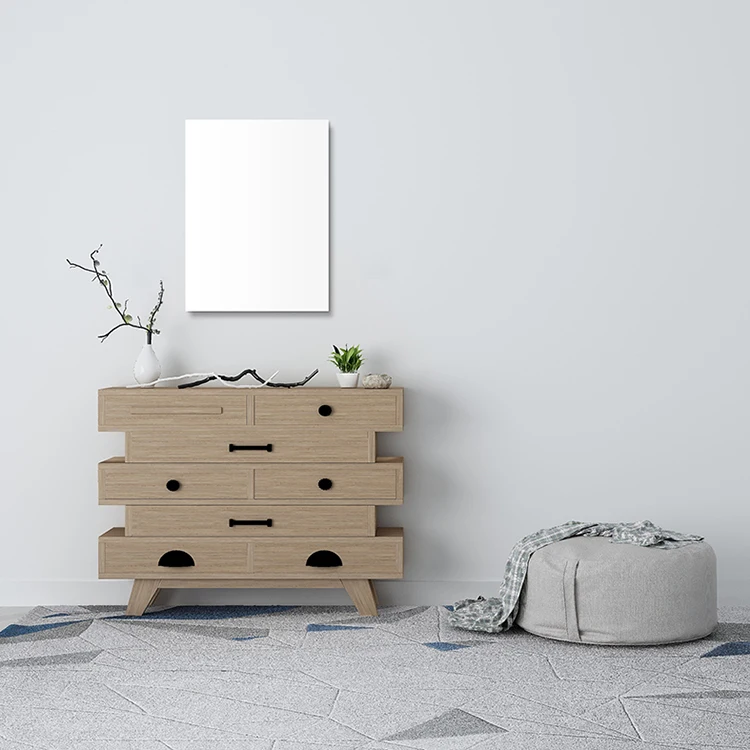

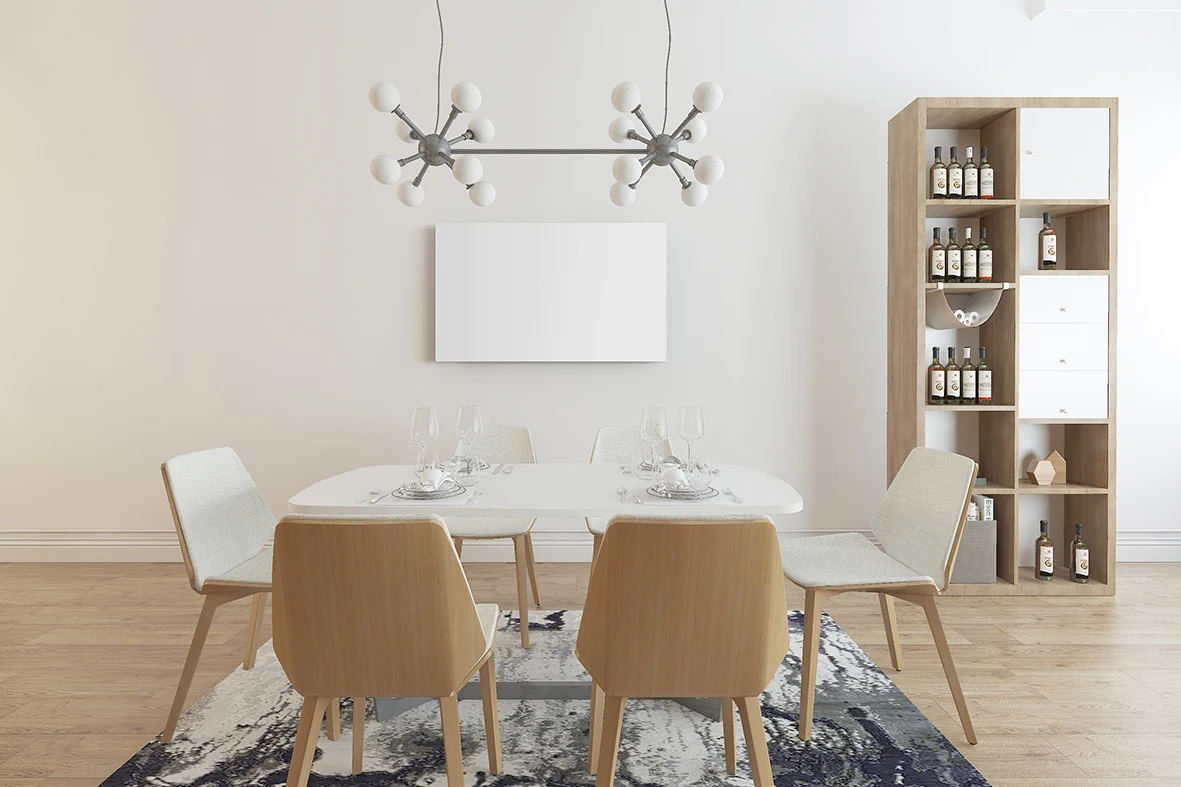

They look superb on lounge, office, and bedroom walls as well as suspending them on the ceilings of a modern office, providing an energy-efficient alternative to traditional heaters. Highly efficient, reliable, and safe heating solution with very low running costs. Giving you a refreshing heat that feels like you're standing outside on a summer's day.
Available in a lot of different sizes and power | ||||||||
Model number | Size | Rated power (wall mounting only) | Rated power (wall/ceiling mounting) | Box size | ||||
F0606 | 595*595*25mm | 350w | 270w | 70*68*6cm | ||||
F0706 | 705*605*25mm | 450w | 320w | 80*68*6cm | ||||
F1006 | 1005*605*25mm | 580w | 450w | 110*68*6cm | ||||
F1206 | 1195*595*25mm | 700w | 550w | 130*68*6cm | ||||
F1207 | 1205*755*25mm | 900w | 700w | 130*83*6cm | ||||
F1209 | 1205*905*25mm | 1100w | 800w | 130*98*6cm | ||||
Features | ||||||||
Surface temperature | Mainly 75-95℃ | Surface material | Powder coating + Aluminum sheet | |||||
Ingress protection ration | IP54 | Frame | Frameless | |||||
Certification | CE,RoHS,TUV GS | Voltage Input | 220-240V/50HZ | |||||
Warranty | 5 years | Heating element | Carbon | |||||
Other sizes also available | ||||||||
Details Images

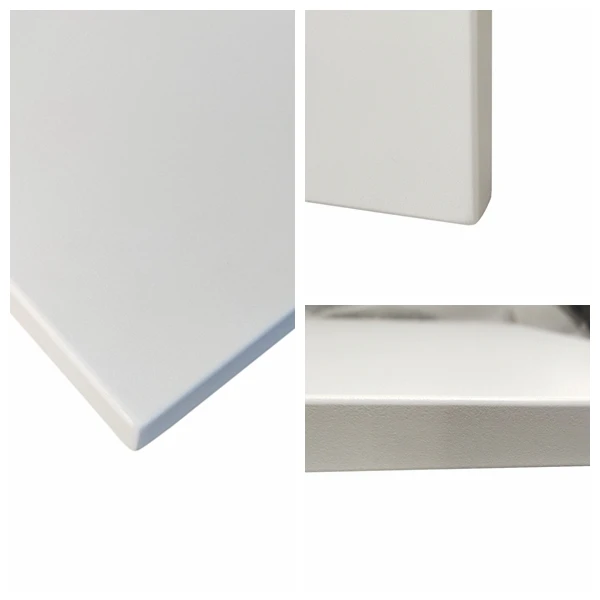

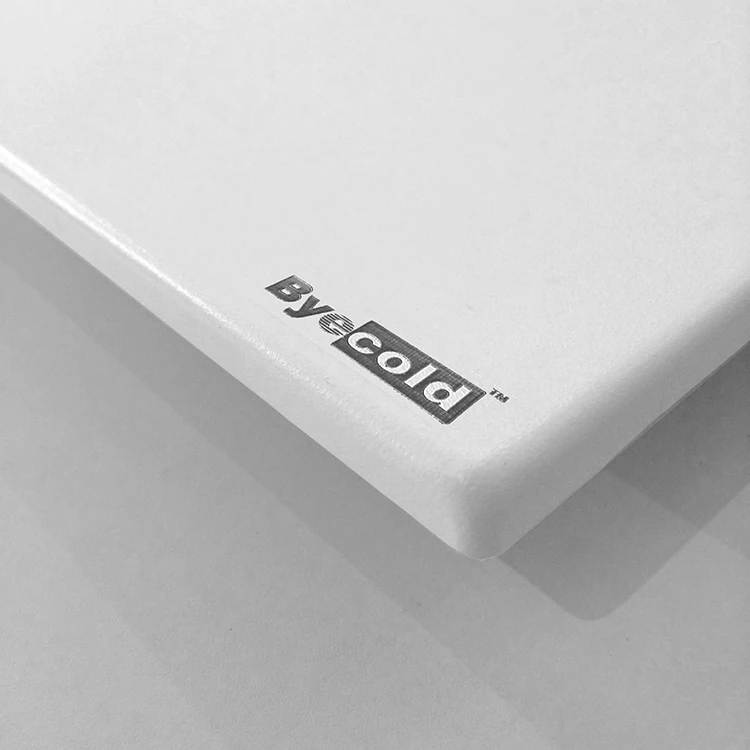

Frameless style
It has a simple and pleasing shape, thickness is 25mm.

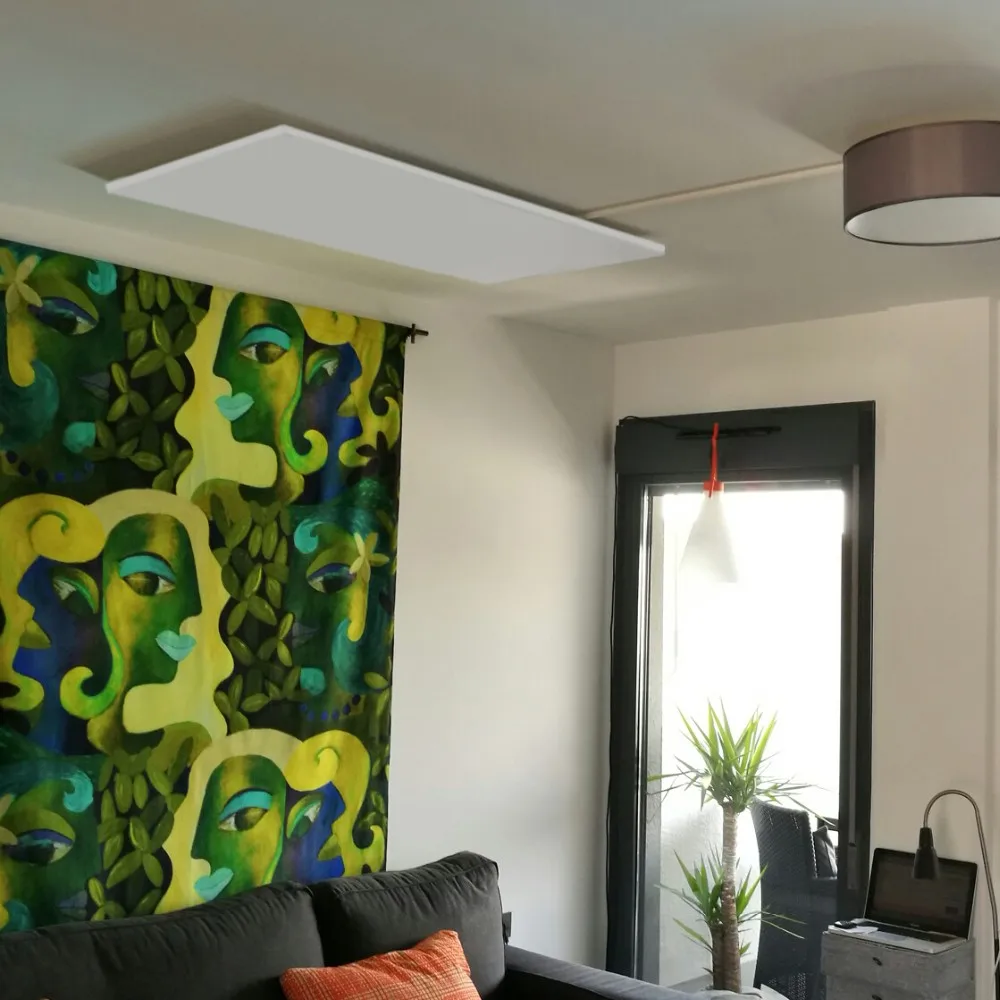

Whether you mount it onto a wall or ceiling, it will fit perfectly into the room space. The finish of the frameless shell is achieved by several stages of bending forming, welding burnishes, and surface treatment working procedure, along with numerous rine.
Whether you mount it onto a wall or ceiling, it will fit perfectly into the room space. The finish of the frameless shell is achieved by several stages of bending forming, welding burnishes, and surface treatment working procedure, along with numerous rine.
PS: the problem of surface leakage current exceeding the standard has been solved.
No pipes, chimneys, potential gas, oil, or water leaks. Byecold infrared heater has Overheat Protection (Auto-power Off when the
surface temperature is too high).
Optional

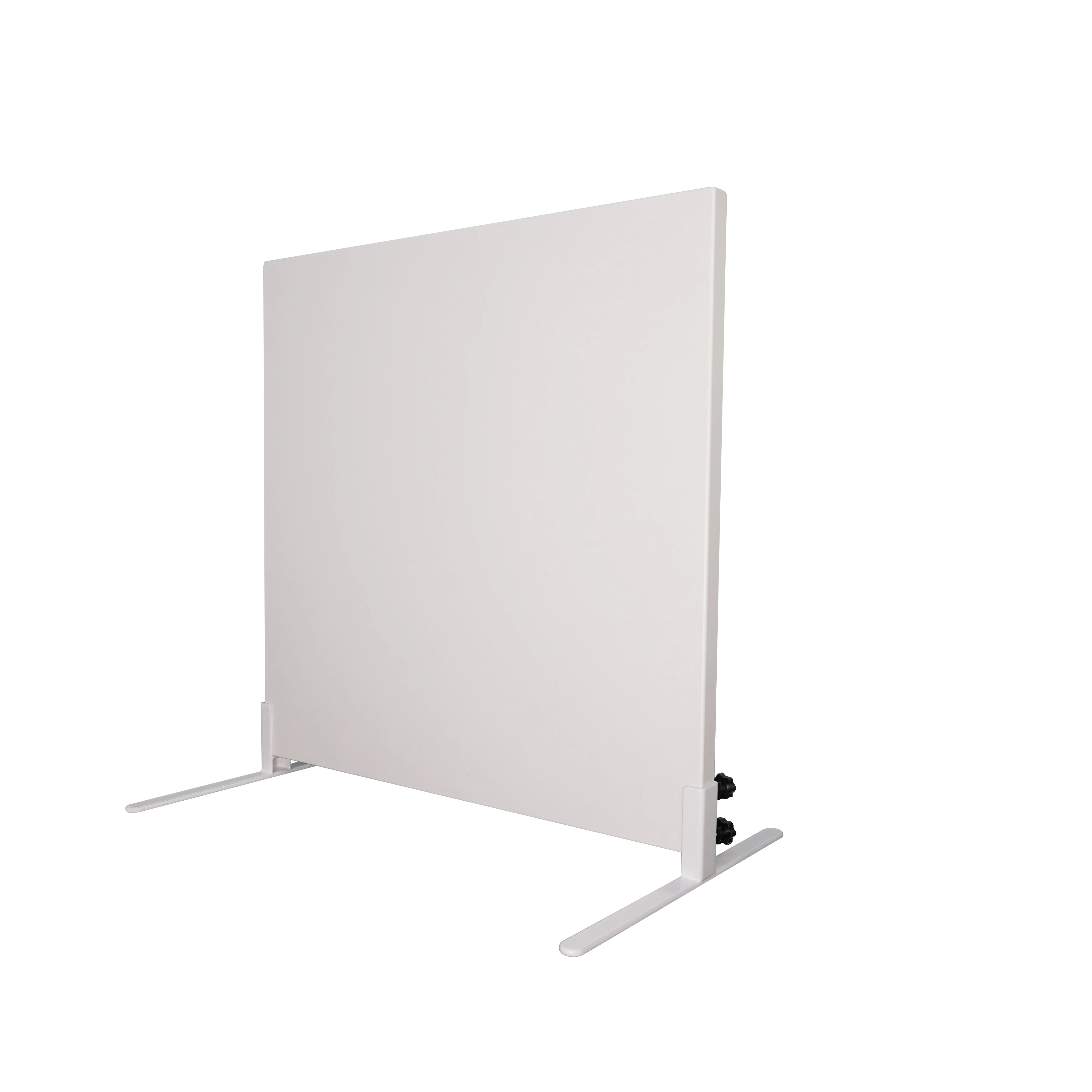

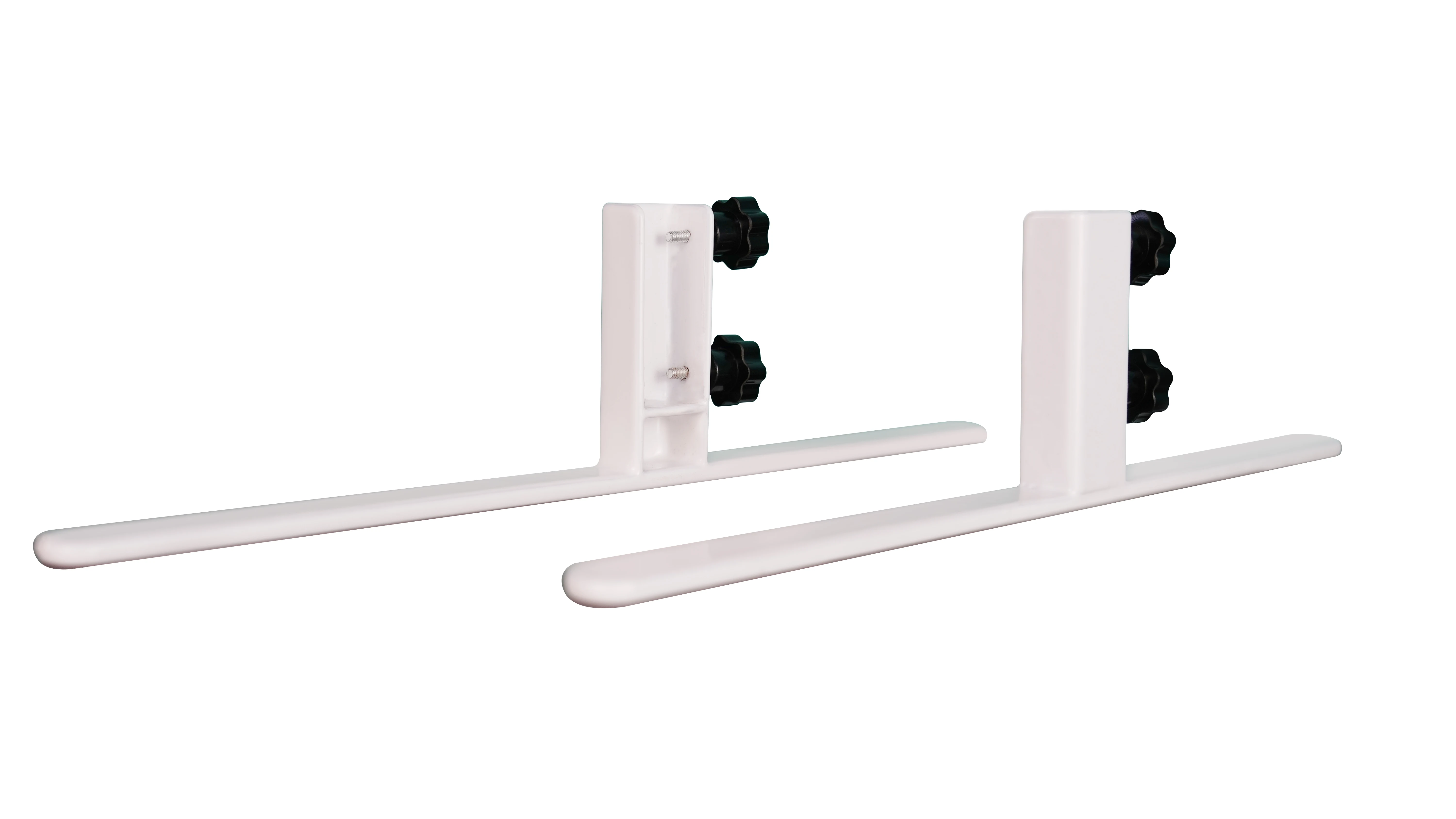

* Standing feet
1)Steel wire rope(4*1meter)
2) 1set=2pcs
(This accessory needs to be selected according to the width of the product.)
3) 2set=4pcs

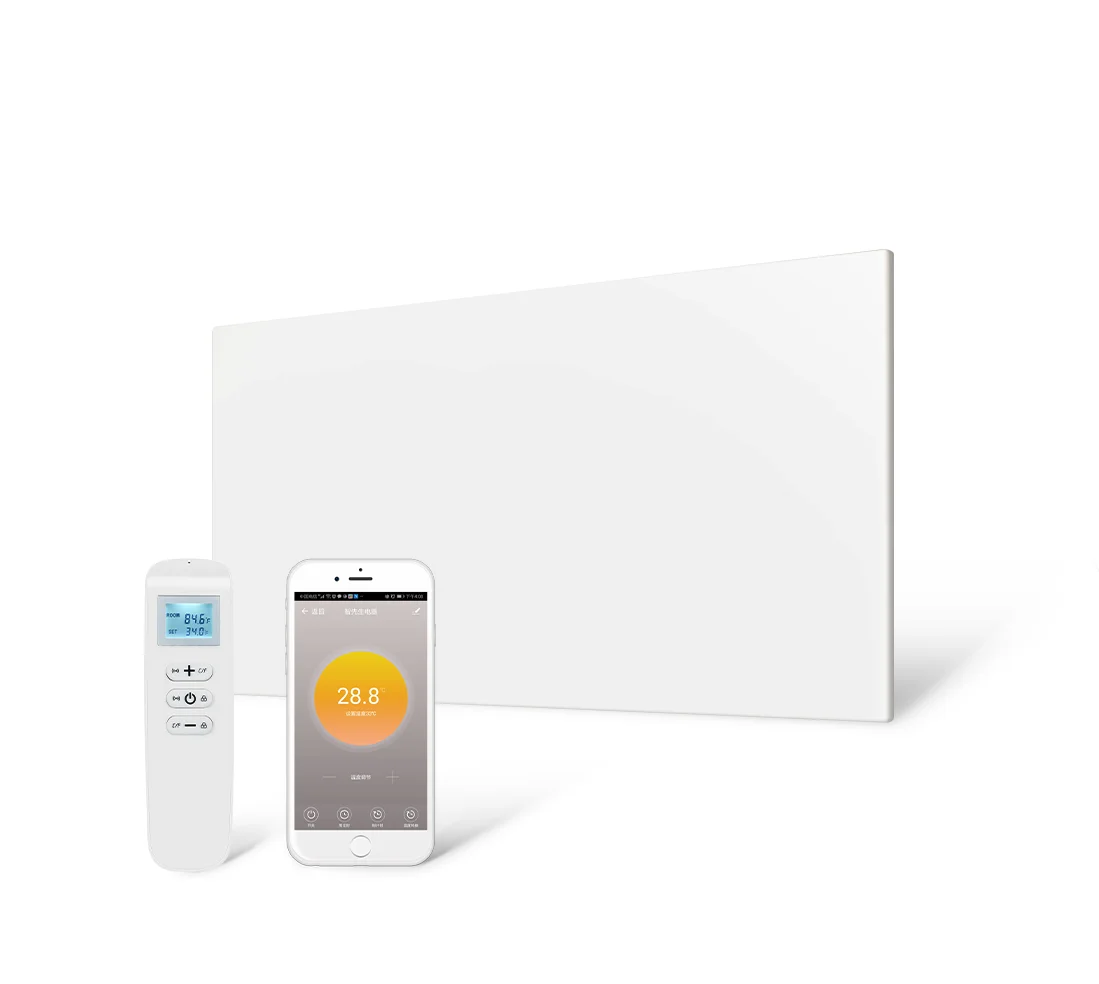

It can be controlled either through the mobile APP or through the remote control.
Product packaging
QC Systems
Our Services

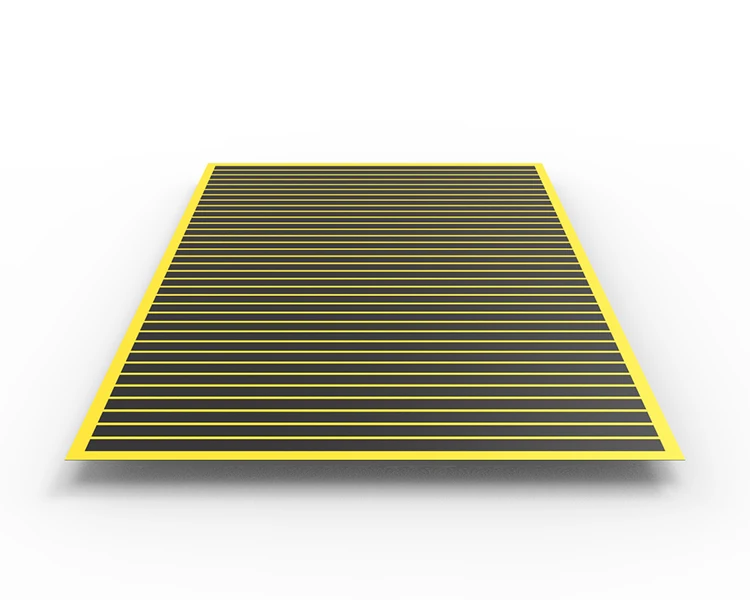

Carbon crystal is a kind of modified purification of carbon particle heating product, which the short carbon fiber is modified by ball milling processing,and made into microcrystalline particles, then add far infrared emission agent, with special craft synthetic made heating element. High quality carbon particles can generate heat more evenly, more efficient.
By continually practiced and compared,we have applied most advance infrared heating technology to improve the quality of our panel heaters.
By continually practiced and compared,we have applied most advance infrared heating technology to improve the quality of our panel heaters.
FAQ
Q1: Can I customize the printing of the packing and the brand of these IR panel heaters?
A: Yes.
Q2: What's your normal MOQ?
A: For standard size, even 10pcs is acceptable. And 1pc for sample checking is also available.
Q3: What's your normal lead time?
A: For small orders, 3-7 days. For mass order, 20-30 days.
Q4: What's the shipment method I can choose?
A: Up to you, courier door to door, air shipping to your airport, or ocean shipping to your sea port.
Q5: What certificates you have?
A: CE-LVD, EMC, RoHS and SAA. A series products have got TUV GS certificate.
Q6: Will you pay for all the shipping cost if any quality problems during warranty period?
A: Yes.
A: Yes.
Q2: What's your normal MOQ?
A: For standard size, even 10pcs is acceptable. And 1pc for sample checking is also available.
Q3: What's your normal lead time?
A: For small orders, 3-7 days. For mass order, 20-30 days.
Q4: What's the shipment method I can choose?
A: Up to you, courier door to door, air shipping to your airport, or ocean shipping to your sea port.
Q5: What certificates you have?
A: CE-LVD, EMC, RoHS and SAA. A series products have got TUV GS certificate.
Q6: Will you pay for all the shipping cost if any quality problems during warranty period?
A: Yes.
Company Profile
20000 square meters
160 workers, 4 R&D , 10 QC
Daily output 1500 pieces of heat panels
We have heating film producing line, spray coating line, panel assemble line.
160 workers, 4 R&D , 10 QC
Daily output 1500 pieces of heat panels
We have heating film producing line, spray coating line, panel assemble line.
