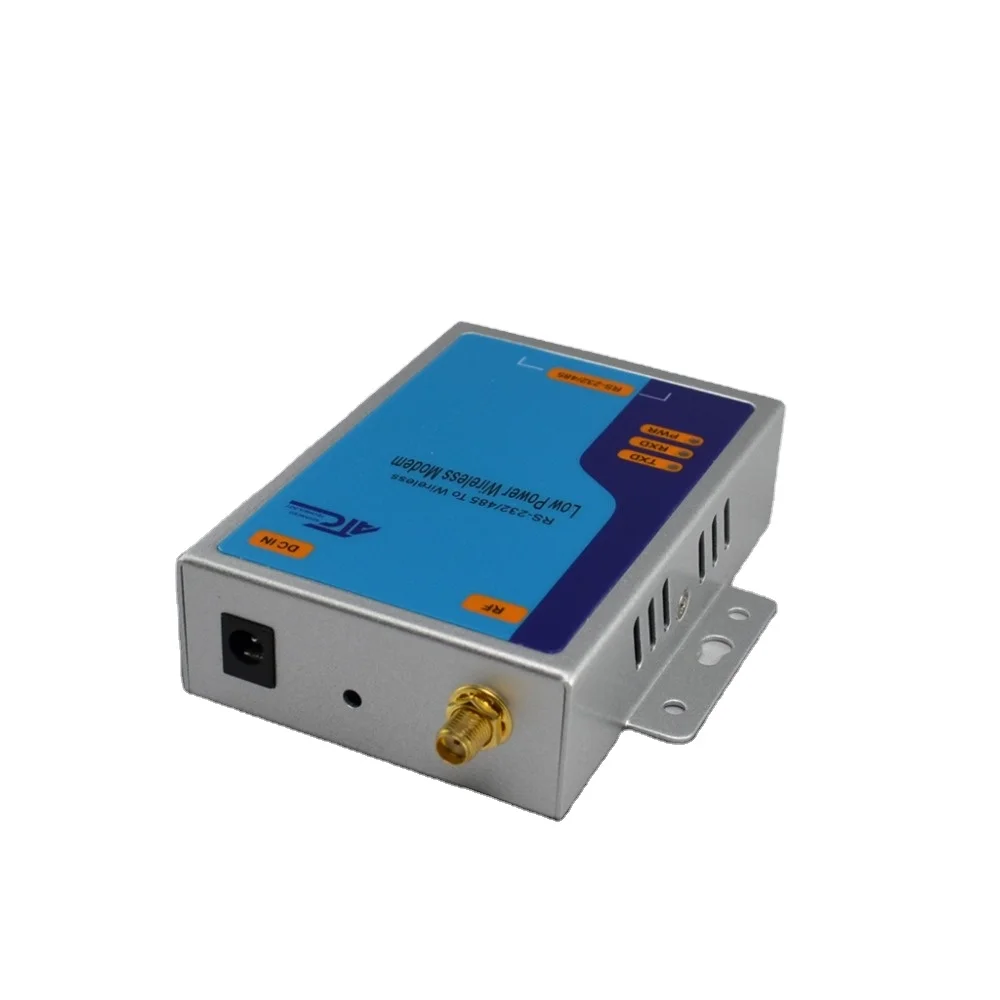

500M RS 232 Micro Power Data RF Module (ATC 871 S1)

Product Overview

Description

Micro Power Data RF Module (Transmission Distance>500m)





Product Features:



1.Ultra low power transmission

ATC-871 Transmission power less than of 100mW, high receiving sensitivity: -121dbm

2.ISM frequency band, not requiring on application of frequency point

Carrier frequency of 433MHz,also capable of providing 315/868/915MHz carrier frequency.

3.High ani-interference and low BER (Bit error Rate)

Based on the GFSK modulation mode, it adopts the efficient communication protocol. The actual bit error rate of 10-5 ~ 10-6 can be achieved when channel bit error rate is 10-2.

4.Long transmission distance

Within the range of visibility, the reliable transmission distance is >300m when the antenna height is greater than >3m

5.Transparent data transmission

Transparent data interface is offered to suit any standard or nonstandard user protocol. Any false data generated in the air can be filtrated automatically (What has been received is exactly what has been transmitted). The charge time for receiving and sending <10ms.

6.Multi-channel and speed

The standard ATC-863/871 configuration provides 8 channels. ATC-863/871 configuration provides 16 channels. to meet the multiple communication combination mode of the users. It has baud rate to be chosen such as 1200bps, 2400bps, 4800bps, 9600bps, 19200bps, 38400bps. The wireless transmission rate is direct ratio with baud rate of interface to meet user’s equipment requirement.

7.Low power consumption

Receiving current<20mA,transmission current<40mA,sleeping current <1uA.

8.High speed wireless communication and large data buffer

When the speed rate in the air is quicker than interface’s, allowing to transmit unlimited length data at one time, when the speed rate is slower or equal the interface’s, allowing the transmission of 255 Bytes long data frames at one time for more flexible programming by users.

9.Intelligent data control and the user doesn’t need to prepare excessive programs

Even for semi duplex communication, the user doesn’t need to prepare excessive programs, only receiving/transmitting the data from the interface. Module will automatically complete the other operations, such as transmission /receiving conversion in the air, control, etc.

10.High reliability, small and light

Single chip radio- frequency integrated circuit and single chip MCU are used for lessened peripheral circuits, high reliability, and low failure rate.

11.Watchdog monitor

Watchdog monitors the inner function, so that change the traditional product structure and improve the product reliability.

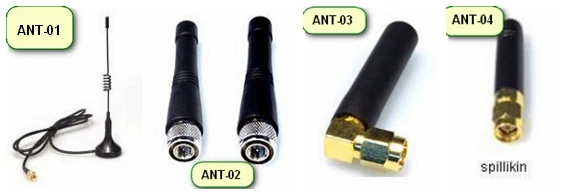

12.Antenna choose

Users can choose various antenna-setting project and antenna according to user’s different need to achieve a optimal effect.



Specifications:



Modulation mode: FSK/GFSK

Working frequency: 433MHz/868MHz/915MHz

Transmission power: 871 100mW

Receiving sensitivity: ATC-871 -121dBm

Transmitting current: ATC-871 <75mA

Receiving current: ATC-871 <30mA

Sleeping current: ATC-871 <10uA

Channel speed rate: ATC-871/873 1200/2400/4800/9600/19200/38400Bit/s

Interface speed rate: ATC-871 1200/2400/4800/9600/19200/38400Bit/s

Change time for receiving and sending: <10ms

Interface data format: 8E1/8N1/8O1

Power supply: 9-12V@200mA

Working temperature: -20°C~70°C

Working humidity: 10%~90% relative humidity without condensation

Dimension: 96mm*86mm*26mm

Weight: 0.6kg



Order Information:



Model NO.	Description	Frequency	Distance
ATC-863	RS-232/485 Mini Power Wireless Module	433/868/915 MHz	300 m
ATC-871	RS-232/485 Mini Power Wireless Module	433/868/915 MHz	500 m
ATC-873	RS-232/485 Mini Power Wireless Module	433/868/915 MHz	1000 m
ATC-875	RS-232/485 Mini Power Wireless Module	433/868/915 MHz	2000 m
ATC-3200	Zigbee to Rs-232/422/485 Wireless Module	2.4 GHz	500 m
GD230B	Wireless Data Transceiver	230/470 MHz	10 Km
GD230V	Wireless Data Transceiver	230/470 MHz	40 Km





Notice:ATC-863/871/873-S1  RS-232 Mini Power Wireless Module

            ATC-863/871/873-S2  RS-485 Mini Power Wireless Module
