Electric driven new condition spray paint aerosol tin can making machine
- Category: >>>
- Supplier: Jiujiang Yongxin Can Equipment Co. Ltd.
Share on (60090248156):
Product Overview
Description
1.GT1B5 gang slitter
for steel or other metal shear volume iron,for the canning jar-cover or cans.
The main technical parameters:
Adaptability:Max.Sheet Thickness | 0.4mm |
Max.Sheet Width | 1050mm |
Min.Sheet Width | 44mm |
Using Motor | 1.1kw |
Net Weight | 1400kg |
Dimension | 1500*1600*1105mm |

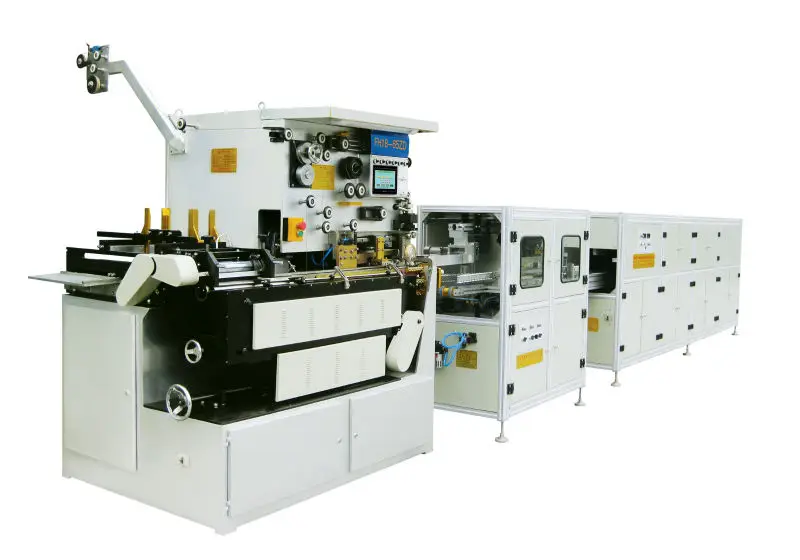

2.FH18-65ZD Automatic tin can making machine prodcution line
The main technical parameters:
Linear rate of welding | 6-26m/min |
Production capability | 40~100Cans/min |
Applicable can diameter | Φ65~Φ180mm |
Applicable can height | 60~280mm |
Applicable material | Tinplate steel-based |
Applicable material thickness | 0.2~0.35mm |
Seam welding landing | 0.4mm 0.6mm |
Seam point distance | 0.5-0.8mm |
Applicable copper wire diameter | Φ 1.38mm Φ 1.5mm |
Cooling water | Temperature:15-20°CPressure:0.4~0.5Mpa Discharge:10L/min |
Compressed air consumption | 600 L/min |
Pressure of compressed air | 0.5Mpa-0.7Mpa |
Power | 380V±5% 50HZ |
Total power | 40KVA |
Dimension | 1750×1100×1800mm |
Weight | 1800Kg |
3.Industrial chiller
With welding seam supporting into line.
4.GT3B12 necking and flanging machine
The main technical parameters
| Model: | 3B12 | |||
| Productivity: | 60~80 cans/ min | |||
| Diameter: | 40~100mm | |||
| Power: | 2.2kw | |||
| Weight: | 1500kg | |||
| Dimension: | 700x1700x1300mm | |||
5.GT4B2B Automatic sealing machine
The main parameters:
| Model: | GT4B2B | |||
| Capacity: | 42cans/min | |||
| Diameter: | 52-105mm | |||
| Maximum Height: | 52-280mm | |||
| Power: | 1.5kw | |||
| Net weight: | 1200kgs | |||
| Dimension: | 1210×1460×1900mm | |||
6.Leak hunting machine
The main technical parameters:
| model | JL-8 |
| Diameter | 52-66mm |
| Maximum Height | 100-320mm |
| Capacity | 2-20cans/min |
| Consumption of compressed air | 1-3m3/min |
| preesure | 1Mpa |
Q:Why choose us?
A:Cause we have leading edge technology for giving the best machines for a wonderful can.
Q:Does our machines available for Ex works and easy to export?
A:That’s a big convenience for buyer to come to our factory to get machines cause our products all don’t need
commodity inspection certificate and it will be easy for export.
Q:How can the price be most reasonable?
A:We handle the price to a reasonable level and it can be adjust according to customer's needs.Then, the price will
eventually based on request.
Q:What if I want to see the production process?
A:That's not a problem,we have many video from our customer's company.If you want to see it right front you,we will
contact our customer over the world and let be there to have the visit.
Q:Is it possible send engineer overseas to fix the machines?
A:Of course yes! This will be our after-sales service.
Aboutr the color,we also can paint accroding to your require, If you want to know more information about this machine, Please contact us!
