KR660S screen printing carousel

Share on (60090604780):


Price:

Quantity:


Product Overview

Description





Screen printing carousel KR660S:

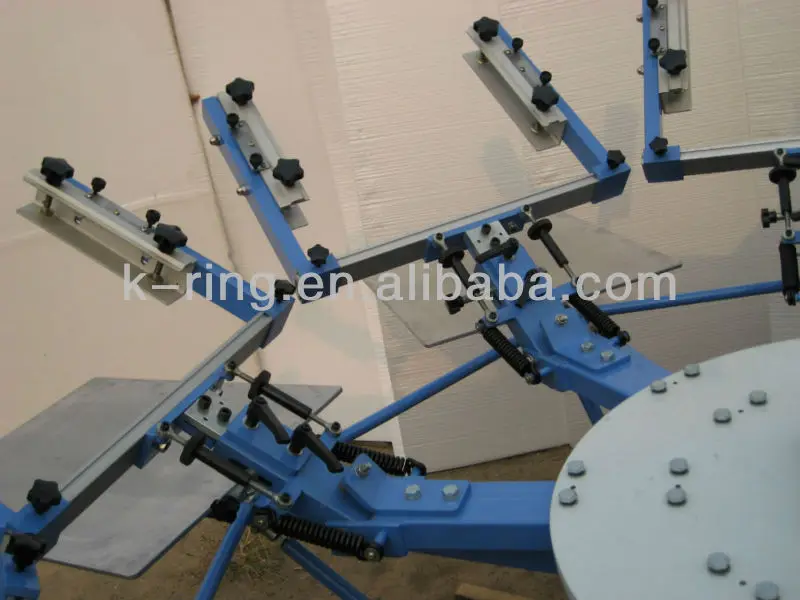

machine with side clamps01.jpg


Application:


This manual rotary screen printing machine is for textile/garment screen printing industry, such as garments, T-shirts and sport cloths, bags, PVC sheet, Umbrella, balloon and so on.The machine is suitable for printing products in bulk.


Sample Exhibition


 $T2eC16FHJGgFFm6PEV9bBS(V5+mOpQ~~60_3


Features:


1)6 Color steel press with 6 stations.


2)Rotating base


3)Consistent front, back, left, right, high and low makes it easy to use for multiple color prints.


4)There is literally no maintenance.


5)The head comes assembled & ready to attach to the base.


6)Location lock that helps lock the arm in place while in the printing position.


7)All Tubular Steel Construction.


8)Adjustable Screen Tension Hold Down





Technical date:


Model :KR-660S


Brand :K-RING


Printing color:    6 color


Worktable size :  500*600 mm


Mesh frame size : 550*650mm


Max Printing area:500*600mm


Dimension:   2800*2800*1600mm


Automatic grade :manual


Printing surface:Flat surface


Substrarte diameter/height(mm):1-12mm


Adjusting Worktable size :1-20mm


Suitable material:       cloth


Suitable products:   cloths ,trappings


Net weight :       400kg























































































                       Manual t-shirt screen printing carousel
Printing color 4 color  6 color 8 color
Automatic Grade ManualManual Manual
Printing speed(pc/h)800-1000800-1000800-900
Max printing area 500*600mm500*600 mm500*600mm
Worktable size(mm)500*600mm500*600mm500*600mm
Max mesh frame size(mm)550*650mm550*650 mm550*650mm
Substrarte height(mm)1-12mm1—12mm1-12mm
Dimension(mm)2800*2800*1400mm2800*2800*1400mm3000*3000*1400mm
Package size1400*1400*1300mm1420*1420*1350mm1500*1500*1400mm
Net weight 300kg350kg450kg
Gross weight 350kg400kg500kg
Appliance Material ,Clothes ,Material ,Clothes ,Material ,clothes,
T-shirt ,TextilesT-Shirt ,Textiles T-Shirt ,Textiles

Packaging Detail: wooden case of international standard.





Delivery Detail: 15 days after receive the deposit.





After –sale service:one-year warranty for parts,and provide the technical support for ever .





Manual t-shirt carousel screen printing machine

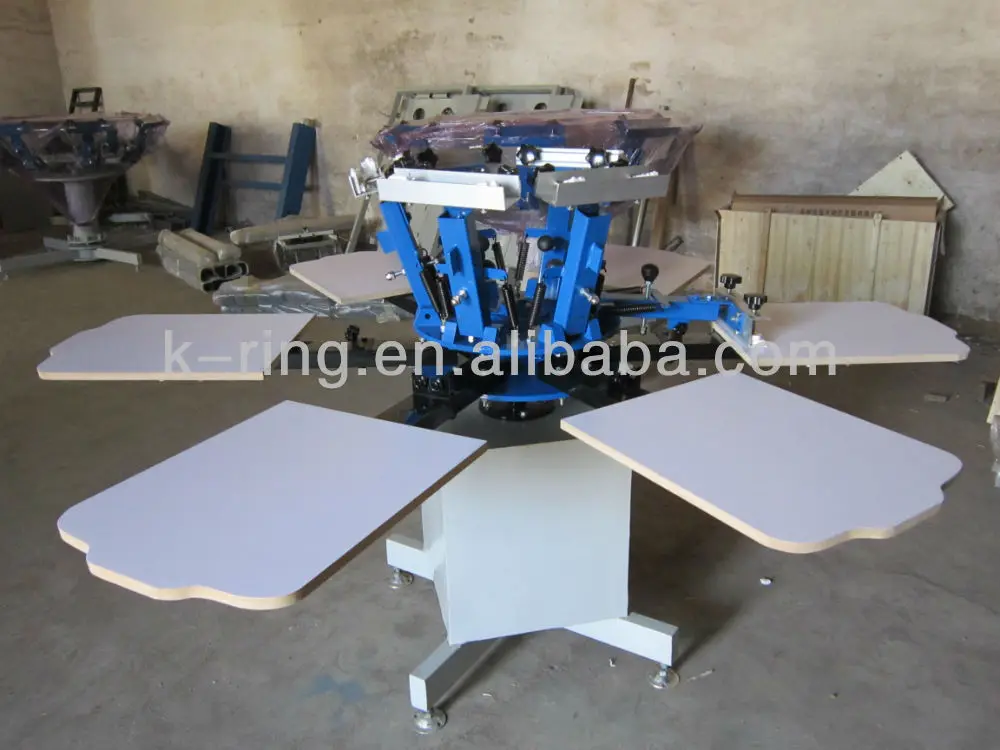

 310























































Machine Model



KR440M



KR660M



Printing color



4 color



6 color



Automatic Grade



Manual



Manual



Max printing area



400*500mm



400*500 mm



Substrarte height(mm)



1-10mm



1—10mm



Worktable material



bamboo board, aluminium alloy



Dimension(mm)



1850*1850*1180mm



1850*1850*1180mm



Package size



840*840*1200mm



840*840*1200mm



Net weight



61kg



82kg



Gross weight



94kg



115kg
