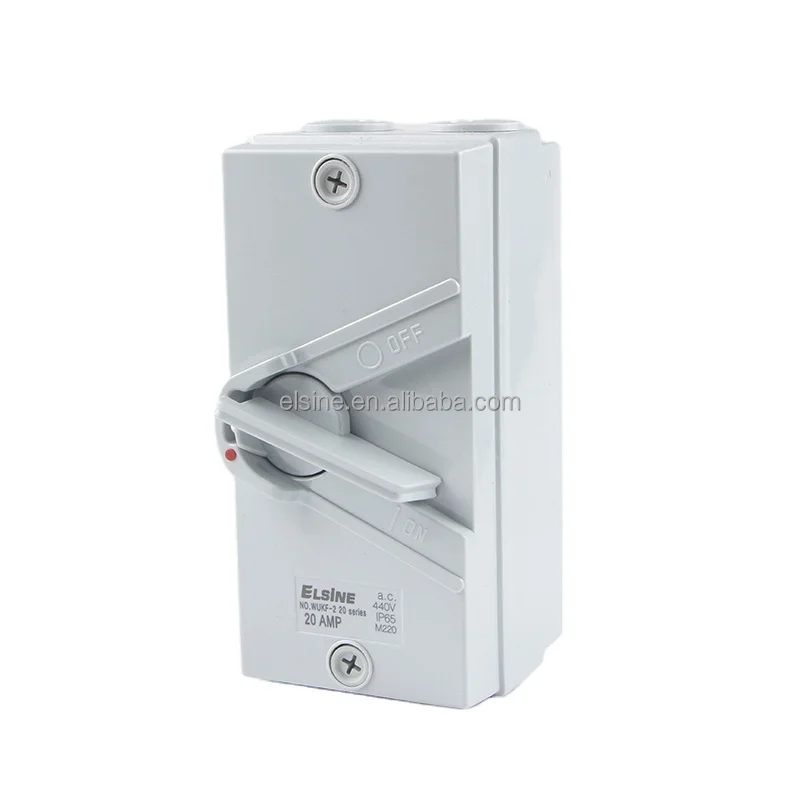

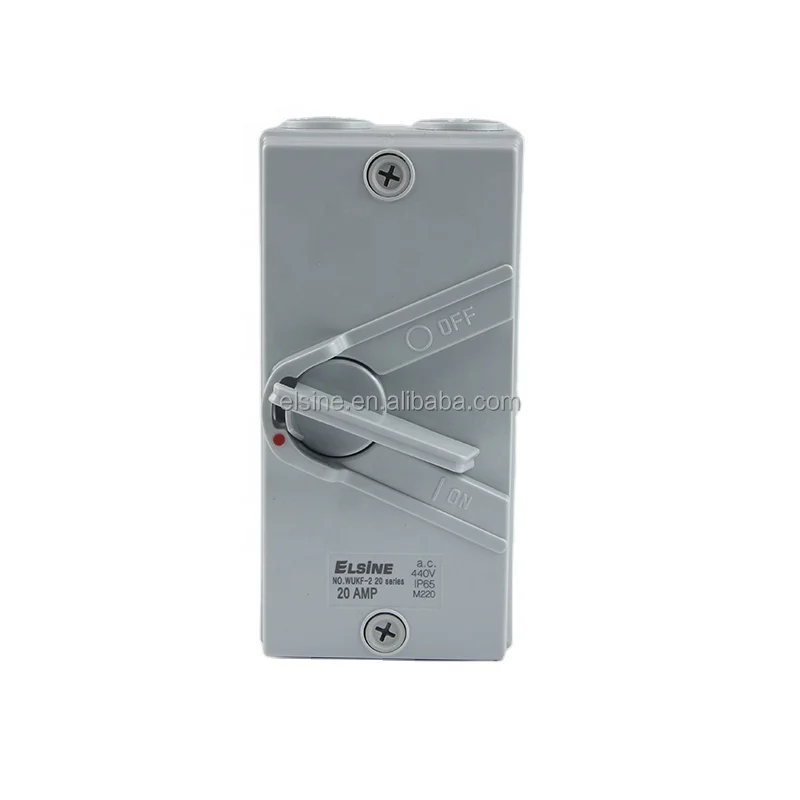

Погодозащищенный выключатель изолятора 4 полюса 20 А, выключатель изоляции TF420 UKF 420

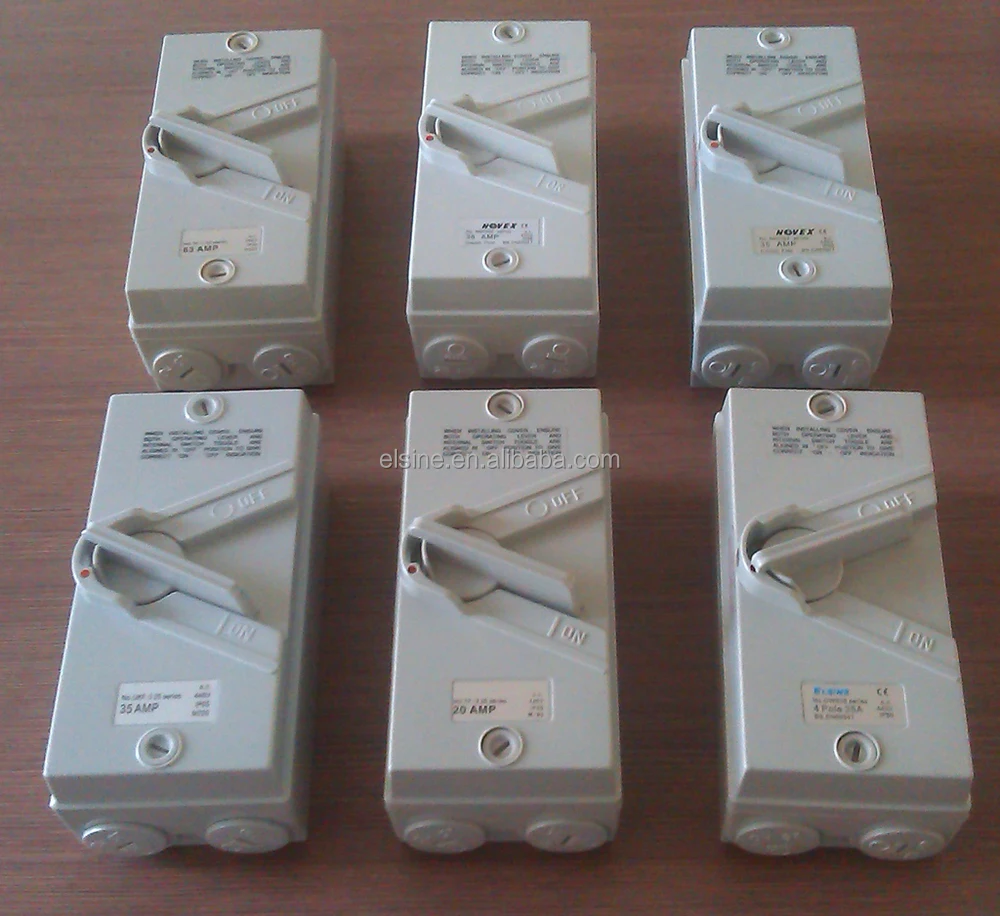

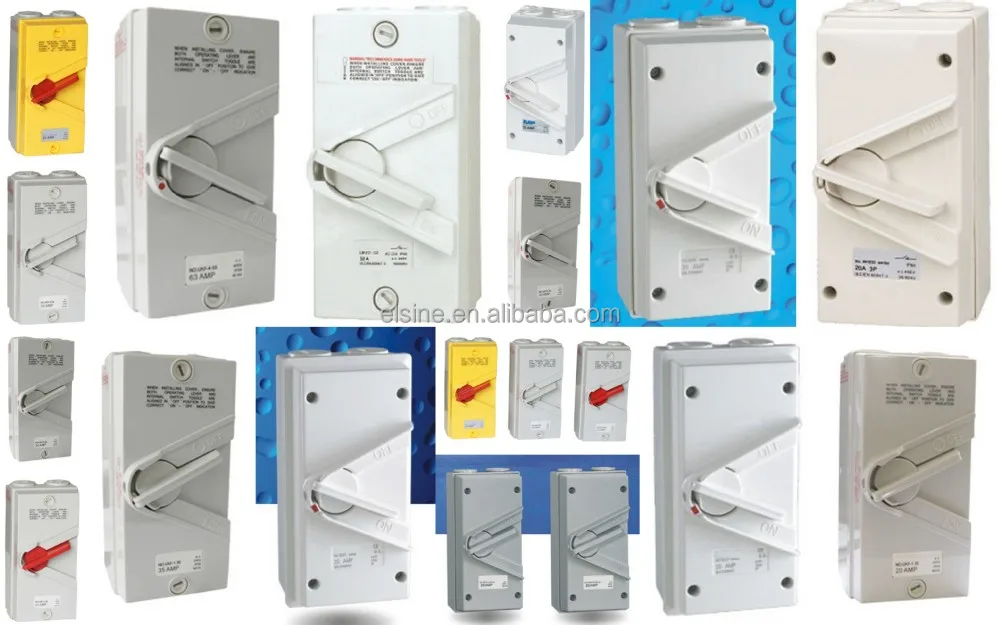

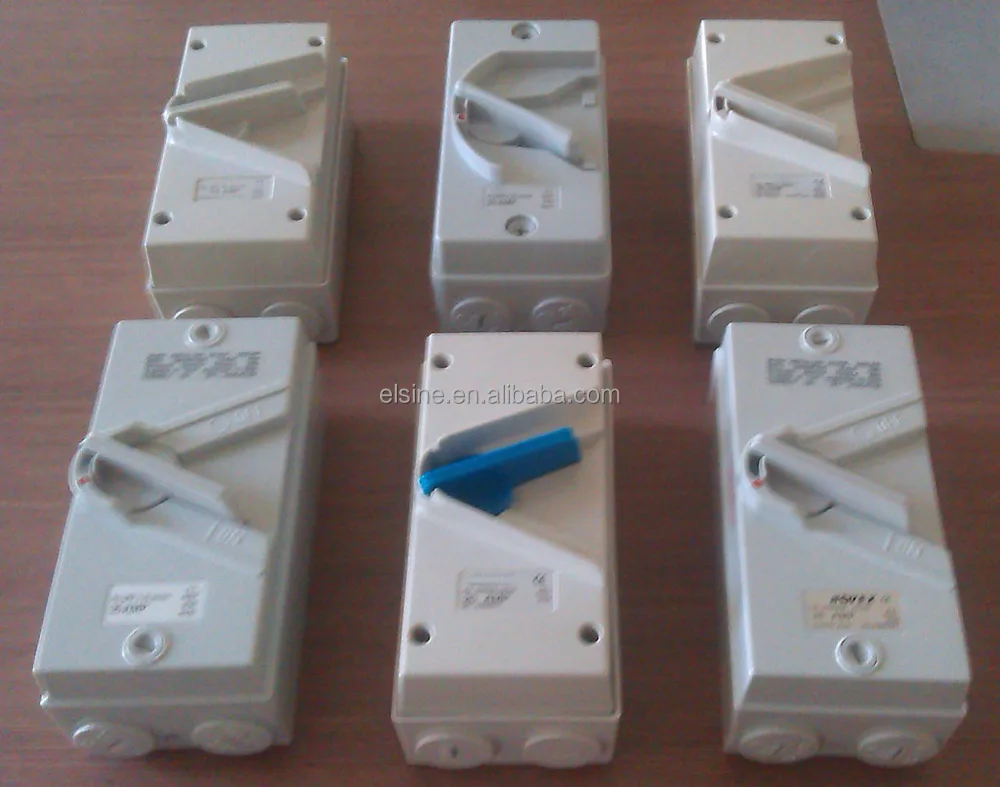

The UKF Series of weather protected isolating switch is a robust range of switch suitable for virtually any external application. Included in the range is single,double and triple pole switches from 20 to 80A.

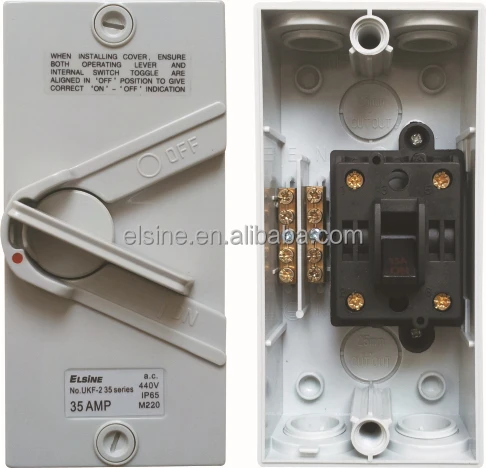

The base mounted mechanism provides for easier termination and more wiring room.

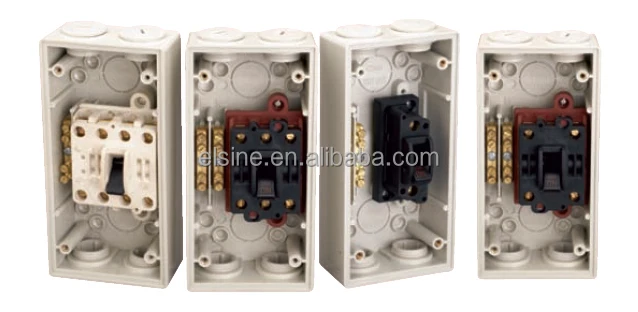

Fixed Earth and Neutral connector bars with dual clamping screws per tunnel provide equal as ripping lengths and secure clamping for all cables. Terminal bore size 5x6.6mm.

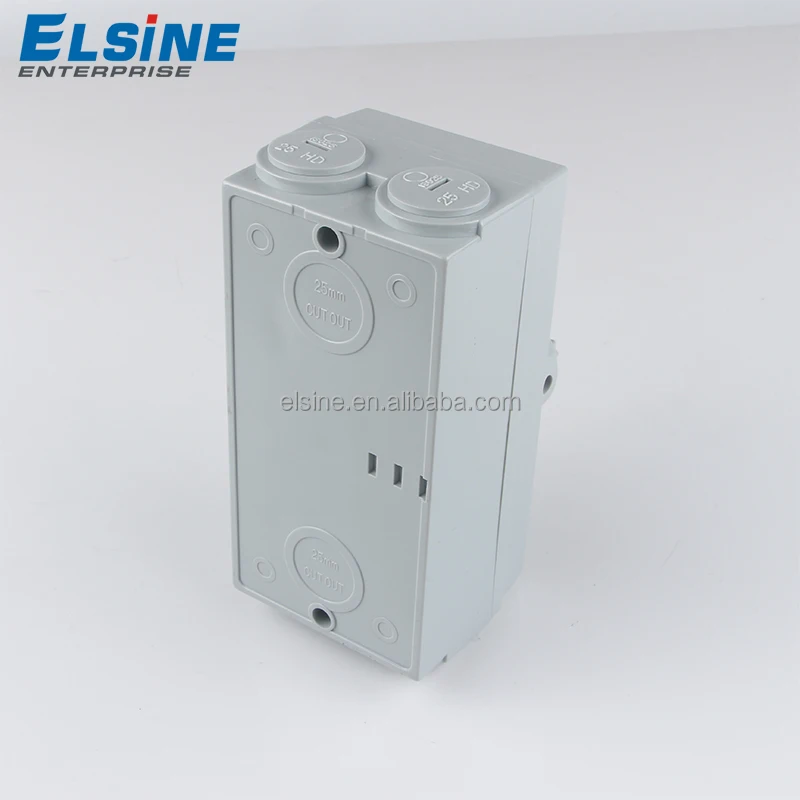

A safety feature for mounting switches to metal structures is the insulting caps that cover base mounting screws to totally protect them from any live cables.

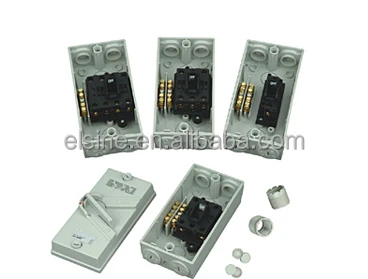

Each units supplied with screwed conduit plugs and screwed reducers for easy connection to 20mm or 25mm conduits and screw caps. Screw caps must be installed to ensure IP rating.

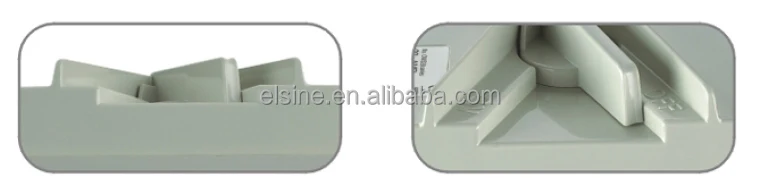

For security, a 7mm diameter hole is provided for padlocking the level in the OFF position.


All units according with IEC60947-3.

Premium moulding materials, chemically resistance and UV protection

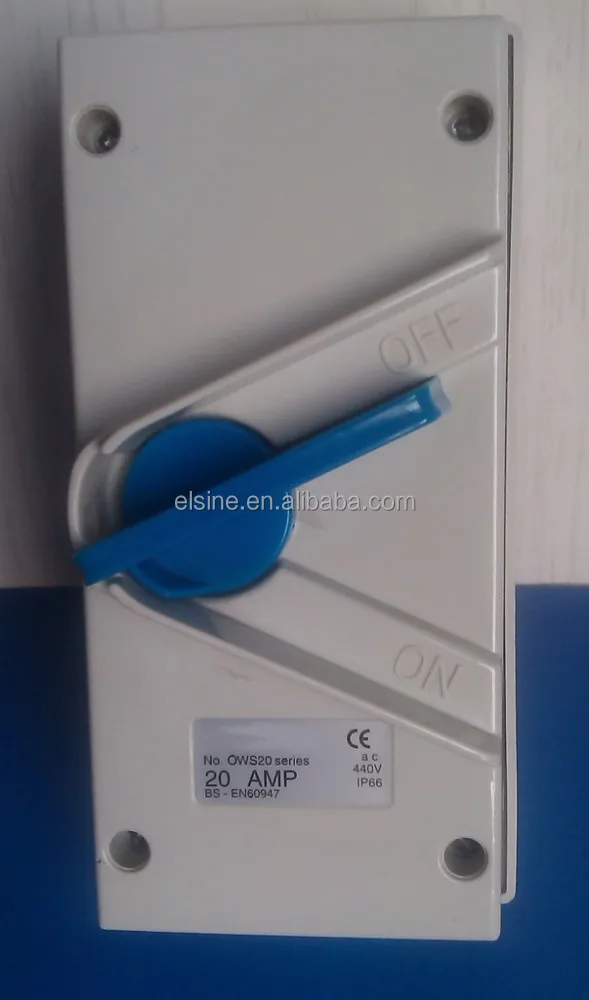

Standard colors are Grey & White Yellow

• Standard: IEC/BSEN60947-3, AS/NZS 3947


• Number of Pole: 1, 2, 3, 4 Pole


• Rated current: 20, 35, 63Amp


• Rated Voltage: 240/415V AC


• Rated Insulation voltage:  630V


• Rated Frequency: 50/60Hz


• Utilizatioin Category: AC22A/AC23A


• IP Protection: IP65

 Inner box: White neutral box or OEM color box
Out package: Standard export carton

 20PCS/Carton
G.W/N.W: 9.5/11KGS
Carton size: 44.5*19.5*38cm

OEM Inner packing box:
