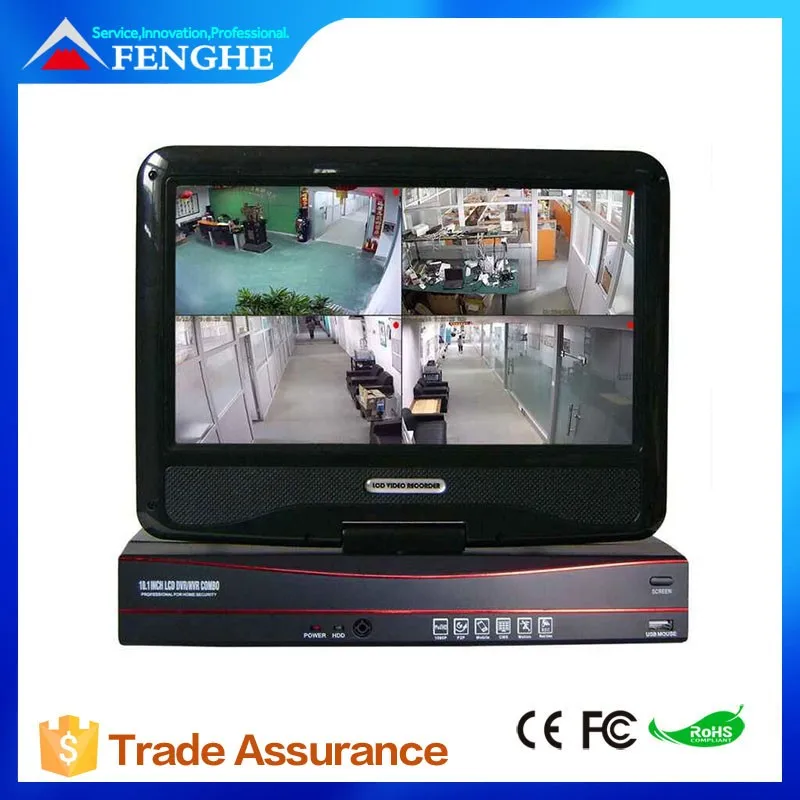

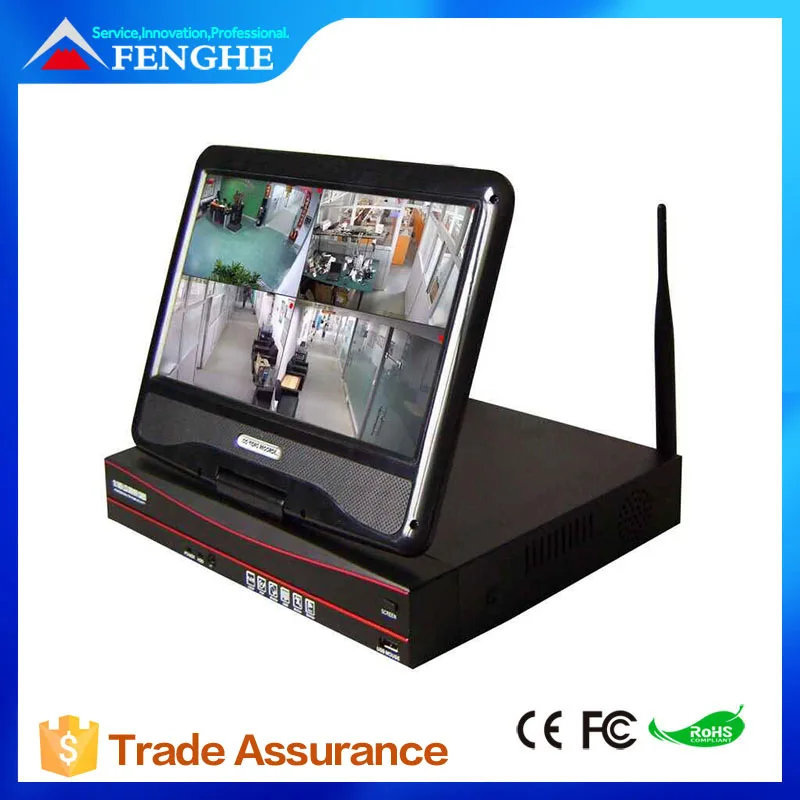

Fenghe 4ch 10 inch monitor wireless camera system
- Category: >>>
- Supplier: Shenzhen Fenghe Safeview Technology Co. Ltd.
Share on (60090983205):
Product Overview
Description
Fenghe 4ch 10 inch monitor wireless camera system
wireless camera system
Product Description
* 1080P/960P/720PWireless Network Video Recorder
* Built-in WIFI module with high-performance and high stability
* Automatically Connection between NVR and IPC

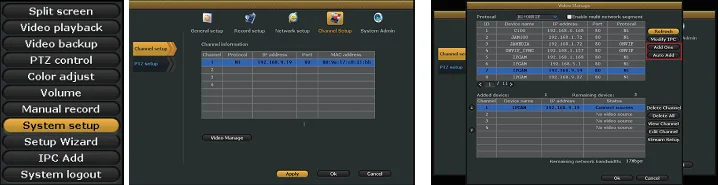

* Support video preview/recording/playback/backup
* Support the mixed use of wireless and wire,support different scene
* Support Android/IOS/PC remote
| Wireless NVR Specs | ||
| Operating System | Embedded Linux OS | |
| AV(audio/video)input | Network Video | 4CH |
| Network video input broadbank | 20Mbps | |
| AV (audio/video) output | HDMI input | 1ch,resolution:1024x768,1366x768, 1440x900,1920x1080p |
| AV CODEC Specification | Video Resolution | D1/720P |
| synch-playback | 4CH | |
| Video Control | Video/Capture mode | Maual,Time,Motion |
| Playback mode | Real time,Routine,Event | |
| Backup | USB backup | |
| Hard Disk | Type | 1*SATA interface |
| Max Capacity | 4 TB at most for each | |
| External Interface | Network Interface | 1 adaptable RJ45 10M/100M, 2 WIFI interface |
| USB Interface | 3 USB 2.0 | |
| Network Control | Protocol | UPnP (play&plug),SMTP (email survice), PPPoE (dial-up), etc… |
| Others | Power | DC12V3A |
| Power Consumption (W) | ≤5W(Without HDD) | |
| Operate Temperature (°C) | -10℃~+55℃ | |
| Working Humidity (%) RH | 10%~90% | |
| Size | 257mm(W)×210mm(V)×45mm(H) | |
| Weight(excluding HDD) | ≤1Kg | |

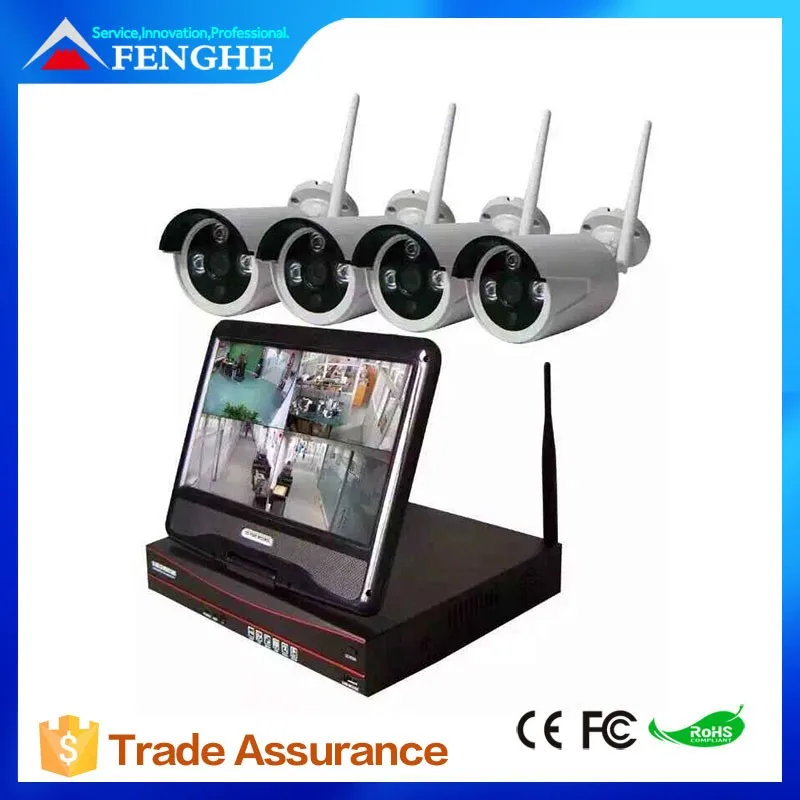

2-720P Outdoor Wireless IP Camera
*1.0M/720P wireless IPC
*with IR CUT
*3.6mm Lens
*3pcs 3rd generation LED Array,30m IR Distance
*Waterproof IP66
| Wireless Camera Specs | |
| Image Sensor | 1/4” Progressive Scan Sensor |
| Signal System | PAL/NTSC |
| Resolution | 1280 x 720 16 : 9 High Defination |
| Minimum illumination | Color: 0.1 Lux; B/W: 0.01 Lux |
| Shutter | 1/25s to 1/25,000s |
| Lens | 3.6mm |
| OSD | Date Time & Title |
| White Balance | Auto |
| Day&Night | Auto / Color / BW |
| 3D-DNR | Auto |
| Mirror/Flip | On / Off |
| Frame Specification | Three Streaming at the Same Time |
| H.264 128x720@30fps or below | |
| H.264 640x480@30fps or below | |
| S/N | > 39.1 Db |
| Interface | RJ45 / WIFI 802.11b/g/n |
| Anti-thunder Level | Standard IEC61000-4-5 |
| Working Temperature/Humidity | -10℃ to +50℃ / 30% to 80% RH |
| Storage Temperature/Humidity | -20℃ to +60℃ / 20% to 90% RH |
| Power Input | DC12V-1A |
| Power consumption | ≤6W |
| Size | 205(L)×70(W)×55 (H)mm |
| Weight | 500g |
| Level of Protection | IP66 |
