HDPE Pipe Hot Melt Welding Machine

Product Overview

Description

HDPE Pipe Hot Melt Welding Machine





Brief Introduction of HDPE Pipe Hot Melt Welding Machine



The welding machine is a butt fusion welding machine featuring automatic alignment, light weight, firmness and portability. It is available for welding of PE, PP and plastic pipes and pipe fittings, widely applied in welding of high-pressure water and gas delivery, chemical engineering and other liquid pipelines.





The host has double-side double-chuck device whose functions can be realized through two hydraulic cylinderse. It is equipped with non-leakage quick connector. The main body can be fixed through the position movement of the pinch plate to achieve the welding of the straight welding pipe and T pipe fittings.





The hydraulic system is lightweight, adopting the open structure, convenient for maintenance, equipped with a chuck open/close control operation lever. The pressure control valve can offer the accurate welding pressure.



The plane cutter can carry out the work through the electric-driven chain and implement the outward cutting.



The heating plate adopts the PTPE coating with the separated-type t emperature digital display,equipped with timer, a voltage meter, a digital display control switch, a group of safety protection switches and two powder sockets.



Milling cutter/heating plate support is equipped with a placement box in order to protect the plane cutter & heating plate. It is also furnished with a wooden delivery box so as to take care of the equipment.



Equipment Parameters of HDPE Pipe Hot Melt Welding Machine

Specification and Model	DRJ-160	DRJ-250	DRJ-315	DRJ-450	DRJ-630	DRJ-800	DRJ-1000	DRJ-1200
Surface Temperature  Difference of the  Heating Plate	≤±3℃	≤±3℃	≤±4℃	≤±5℃	≤±5℃	≤±7℃	≤±7℃	≤±7℃
Operating Pressure  Range of Hydraulic System	0-10.0MPa	0-10.0MPa	0-10.0MPa	0-10.0MPa	0-10.0MPa	0-16.0MPa	0-16.0MPa	0-16.0MPa
Power of Heating Plate	1.2KW	1.8KW	2.2KW	4.8KW	6.8KW	10.0KW	11.5KW	13KW
Power of Milling Cutter	0.75KW	1.0KW	1.0KW	1.1KW	1.5KW	2.2KW	3.0KW	3.0KW
Power of Hydraulic  Pump Station	0.75KW	0.75KW	0.75KW	1.1KW	1.1KW	1.5KW	1.5KW	1.5KW
Input Voltage	220V 50-60HZ	220V 50-60HZ	220V 50-60HZ	380V 50-60HZ	220V 50-60HZ	380V 50-60HZ	380V 50-60HZ	220V 50-60HZ
Input Power	3.0KW	3.6KW	4.0KW	7KW	9.5KW	13.7KW	16KW	17.5KW
Welding Specification  Range(mm)	63-160	110-250	160-315	280-450	450-630	560-800	710-1000	800-1200
Equipment Weight	110KG	130KG	190KG	400KG	600KG	700KG	2200KG	3000KG





Product Show of HDPE Pipe Butt Fusion Machine



Installation of HDPE Pipe Butt Fusion Machine





The size of HDPE pipe

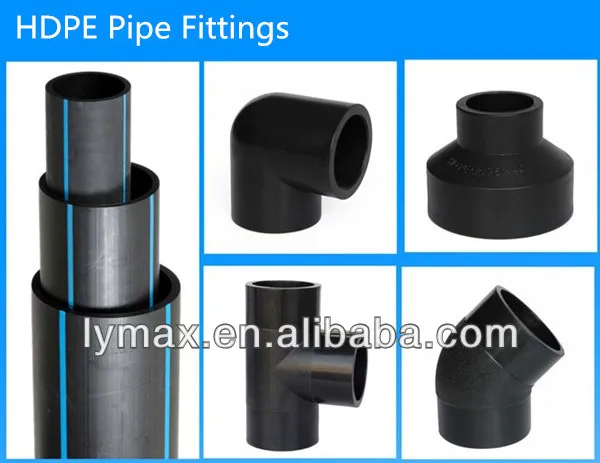

HDPE Pipes and Fittings
